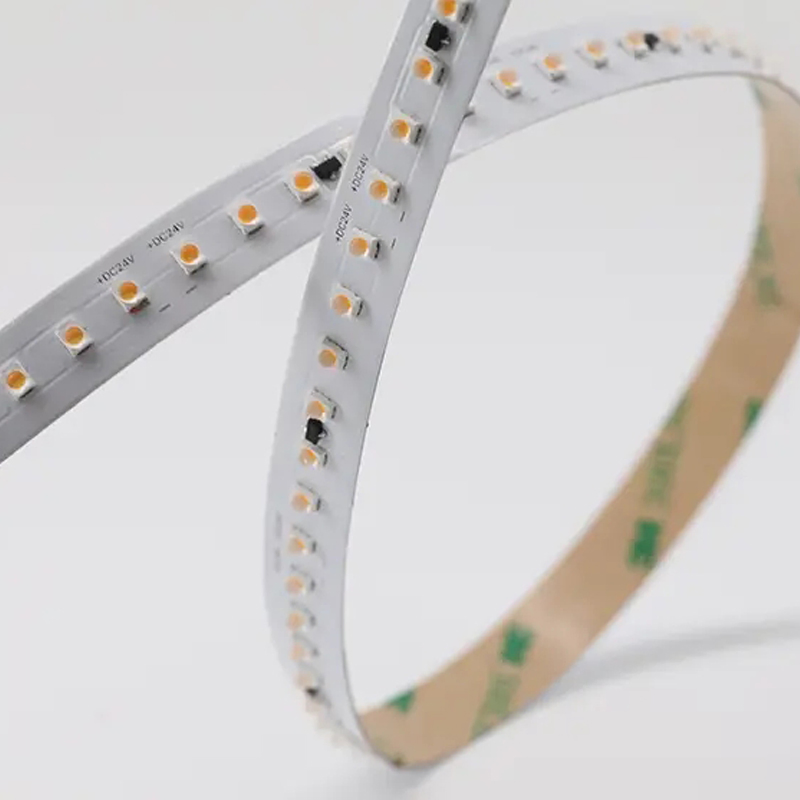

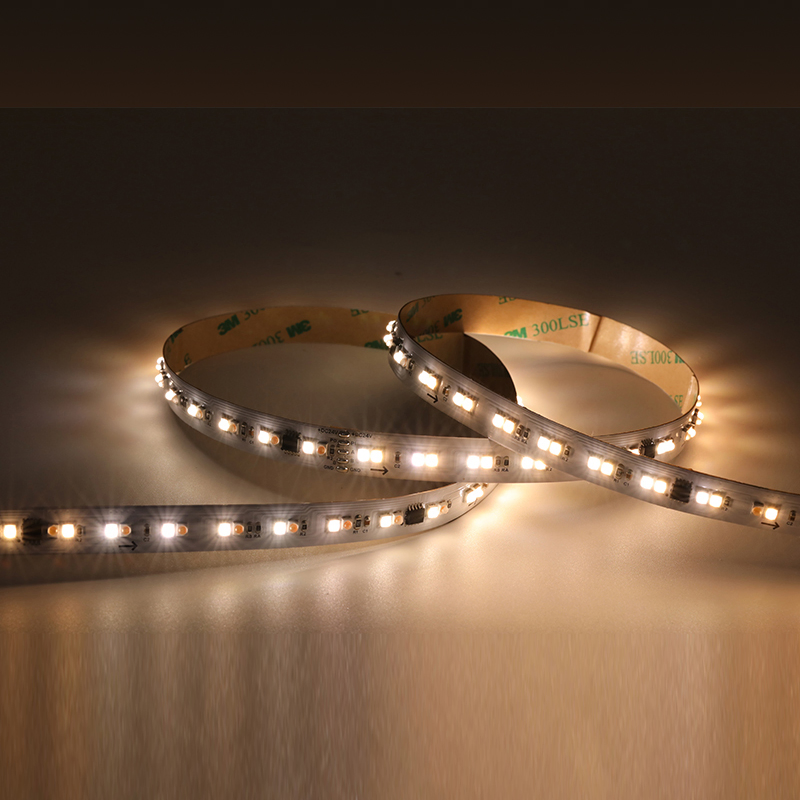

LED Wall Washer Outdoor IP67 Wall Washer New Design Architectural

Basic Specifications

Model NO. HM- Wall washer waterproof

Emitting Color 2700K~6500K

Input Voltage DC12V/24V

IP Rating IP20/IP67

Light Source 2835 Lens LED

CRI Ra > 80

Beam Angle 36°

Light Efficiency 115~135lm/W

Power/M 15W/M

HS Code 9405409000

Product Description

💡

High Concentration 36-degree narrow beam angle for more concentrated lighting and longer irradiation distance.

🔄

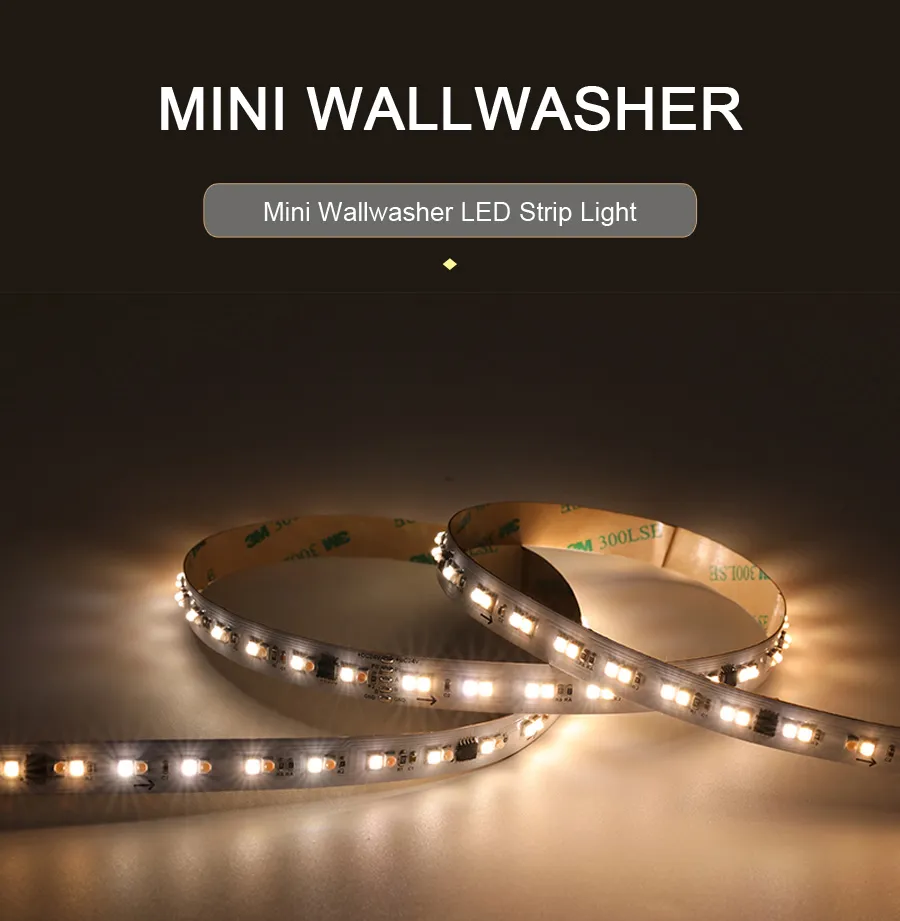

Flexible Update Updated mini wallwasher series, smaller size with the same powerful function as traditional bars.

🌿

Eco-Friendly Energy-saving LED technology that protects the environment with objective electricity savings.

This New Mini Wallwasher strip is a flexible solution for architectural lighting. Compared with the 120-degree angle of conventional strip lights, it provides concentrated lighting with higher output under the same luminous flux. It is easy to install, saving both time and cost, making it ideal for hotel, garden, bridge, and corridor applications.

Technical Parameters

Product Code	LEDs/m	Watt/M	Voltage	FPC Width	CRI	CCT	Lumen/m	IP Rating
HM328W084A80-D027	84	8.0W	24V	10mm	≥80	2700K	880 Lm/m	IP20
HM328W112A80-D040	112	10.0W	24V	10mm	≥80	4000K	1360 Lm/m	IP20
HM328W126A80-D065	126	15.0W	24V	10mm	≥80	6500K	1800 Lm/m	IP20
HM328W126Q80-D030	126	12.0W	24V	10mm	≥80	3000K	1416 Lm/m	IP67

Safety & Application

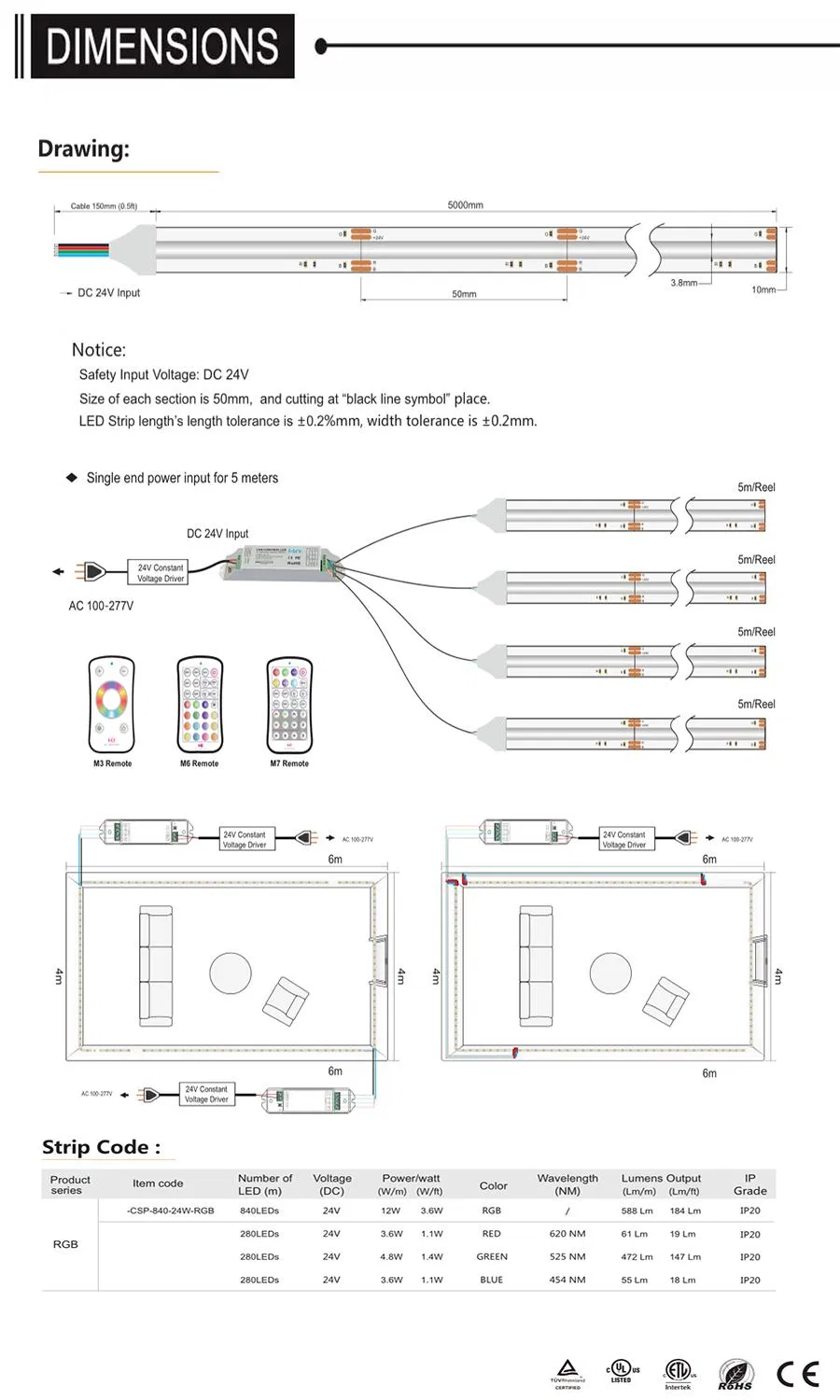

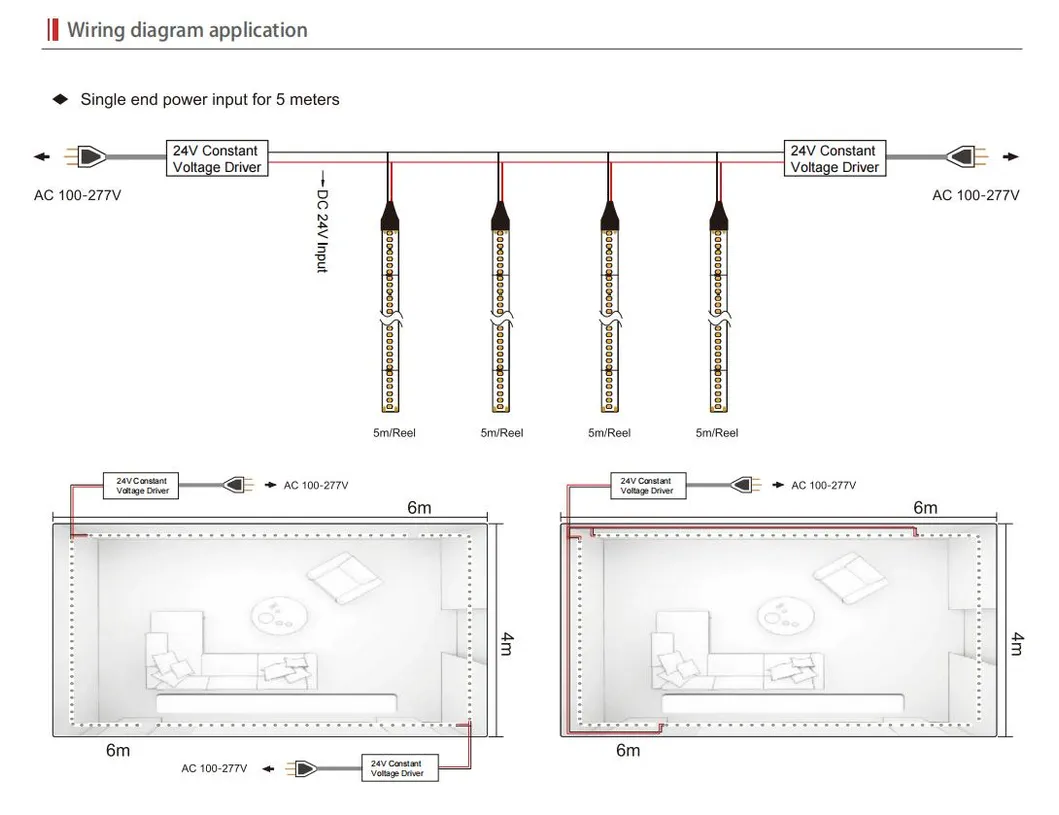

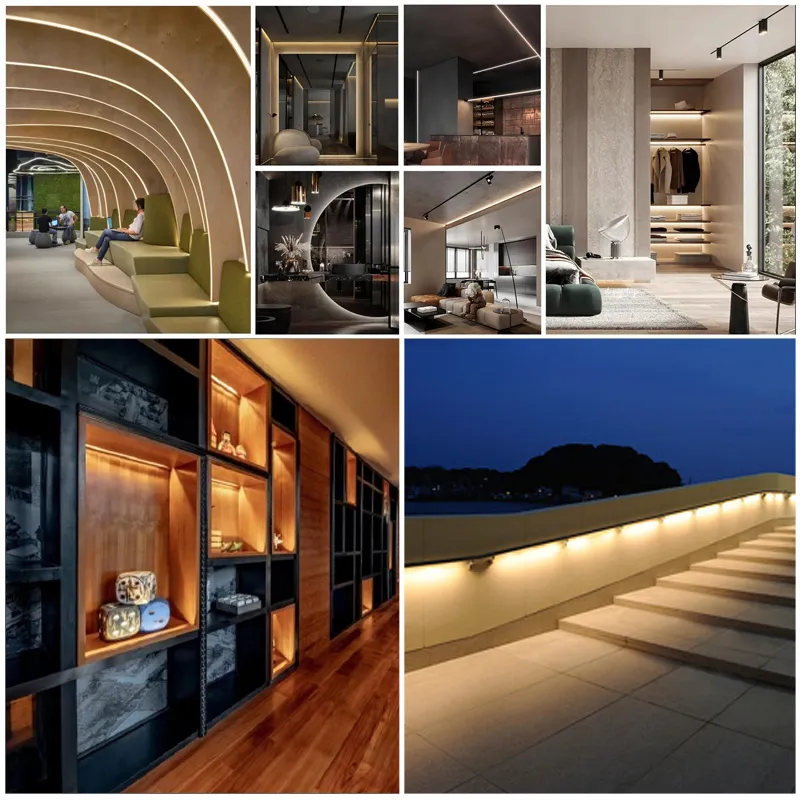

Notice: Safety Input Voltage is DC 24V. Length tolerance is ±0.2%, width tolerance is ±0.2mm. These strips are perfectly suited for showcase, shelf cabinets, hotels, gardens, bridges, corridors, and stairs.

Frequently Asked Questions

What is your minimum order quantity?

Usually the MOQ is 50m, but we also accept small orders for trial purposes to help you test our quality.

Is a free sample order available?

Yes, you can check our quality before ordering. Please contact our team for specific sample requirements.

How long is the lead time for orders?

Standard lead time is 7-10 working days depending on quantity. Bulk orders typically take 20-25 days, but urgent production can be applied for if necessary.

Can the LED strip be customized?

Sure, we can produce according to your specific requirements including LED type, power, length, and waterproof levels. We offer full OEM & ODM services.

What is the warranty period for your products?

We offer a 3-year or 5-year warranty depending on the product series and application requirements.

Do your lighting products have international certificates?

Yes, our equipment holds various certifications including CE, UL, ROHS, CULUS, ETL, TUV, FCC, and Energy Star. We also operate under IATF/ISO/TS 16949 standards.
