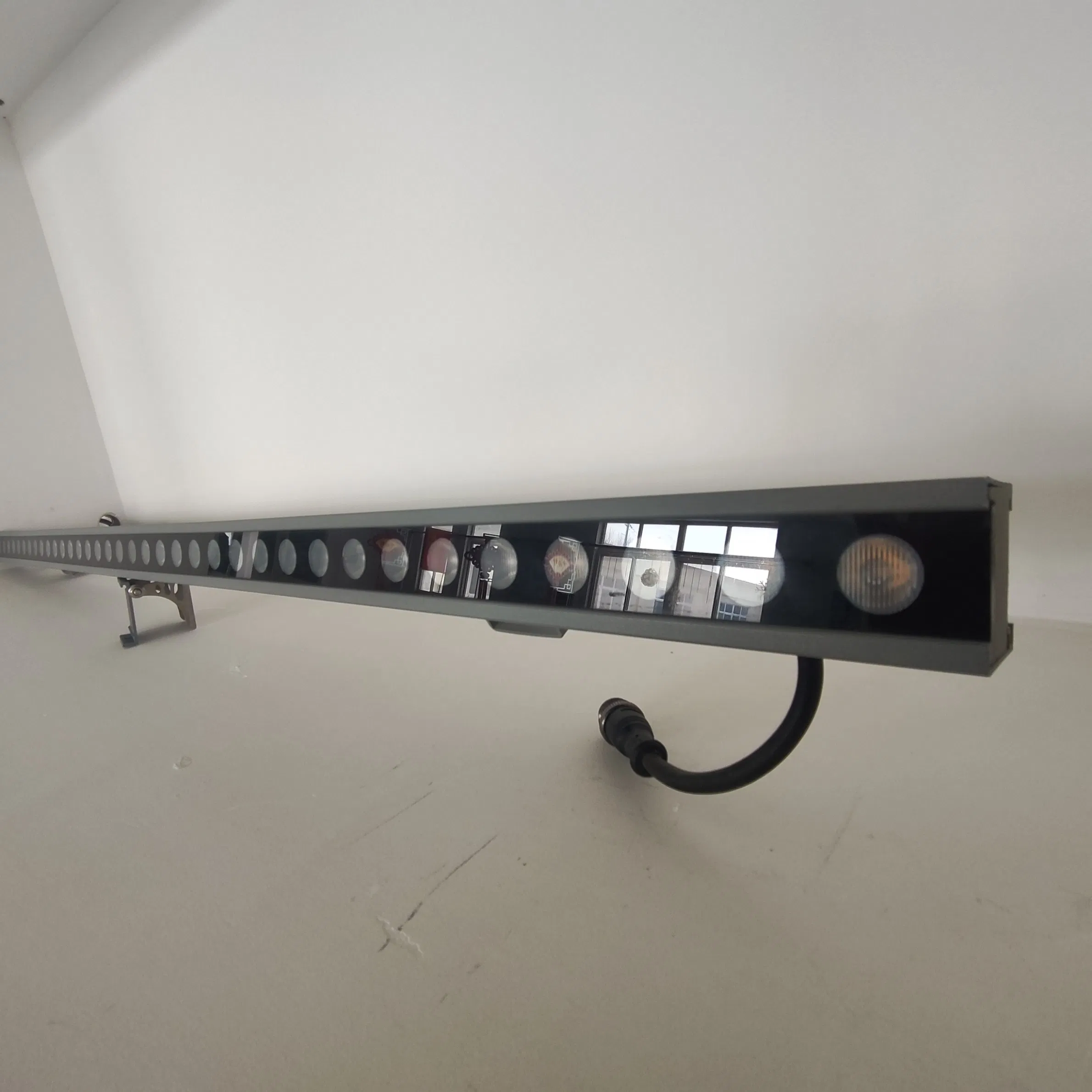

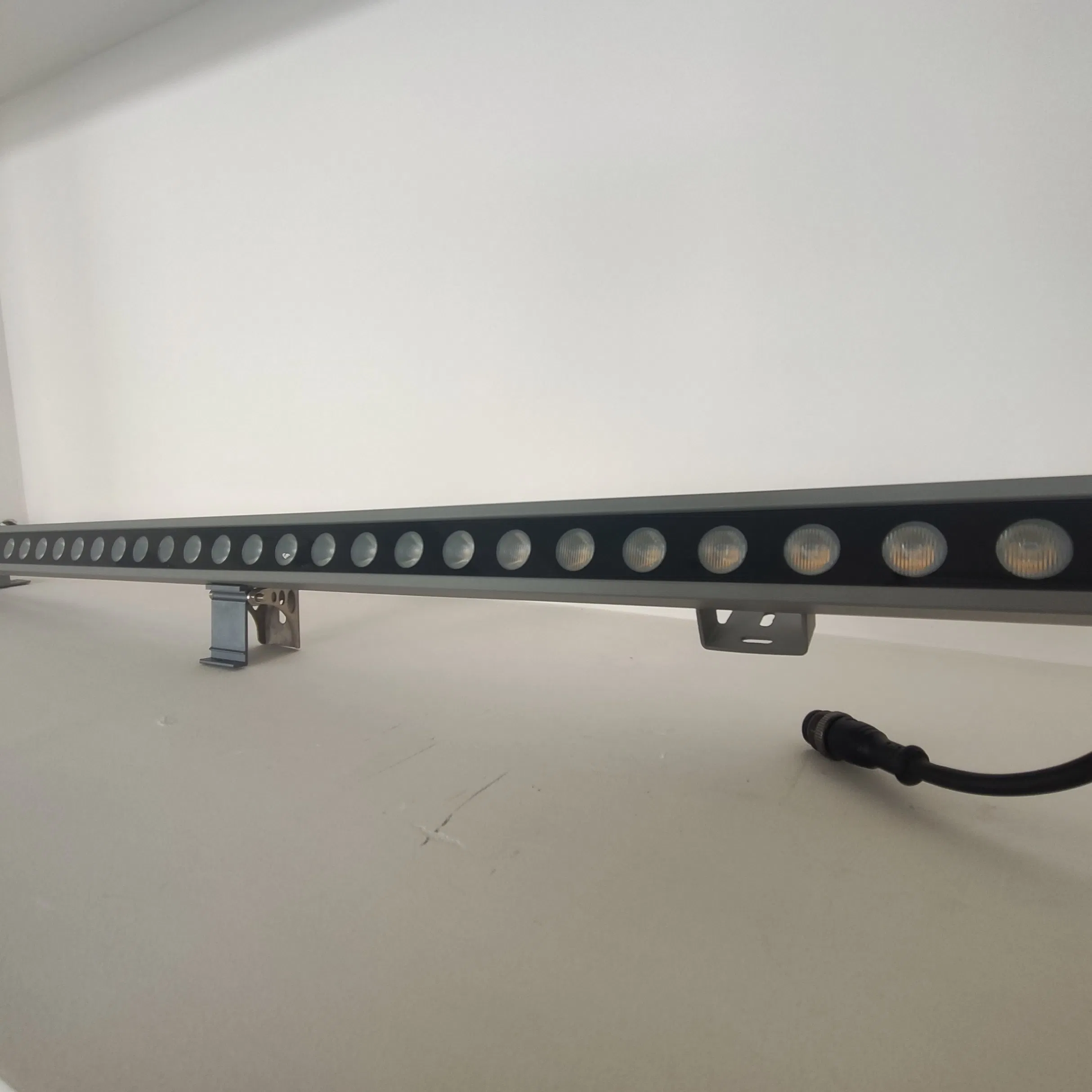

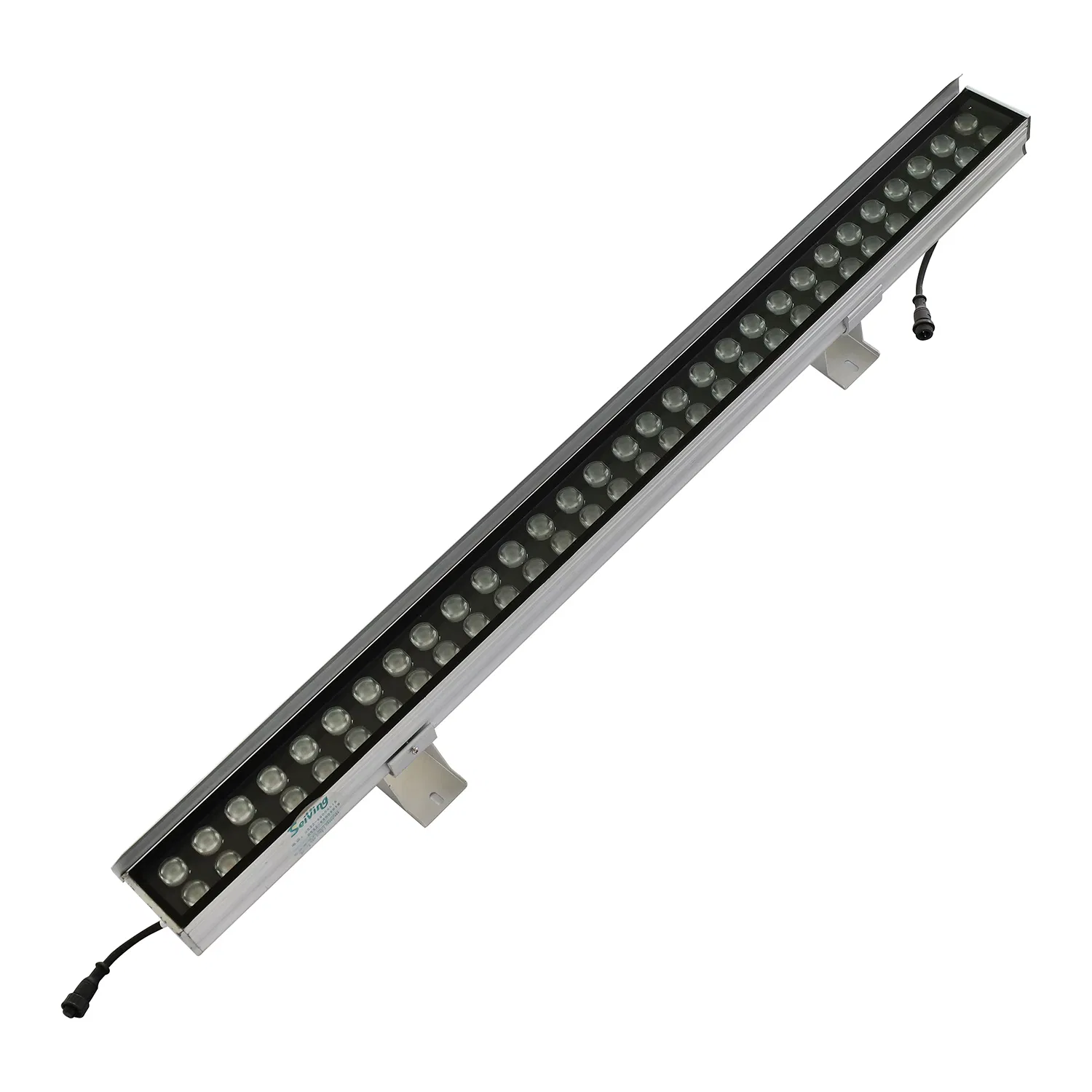

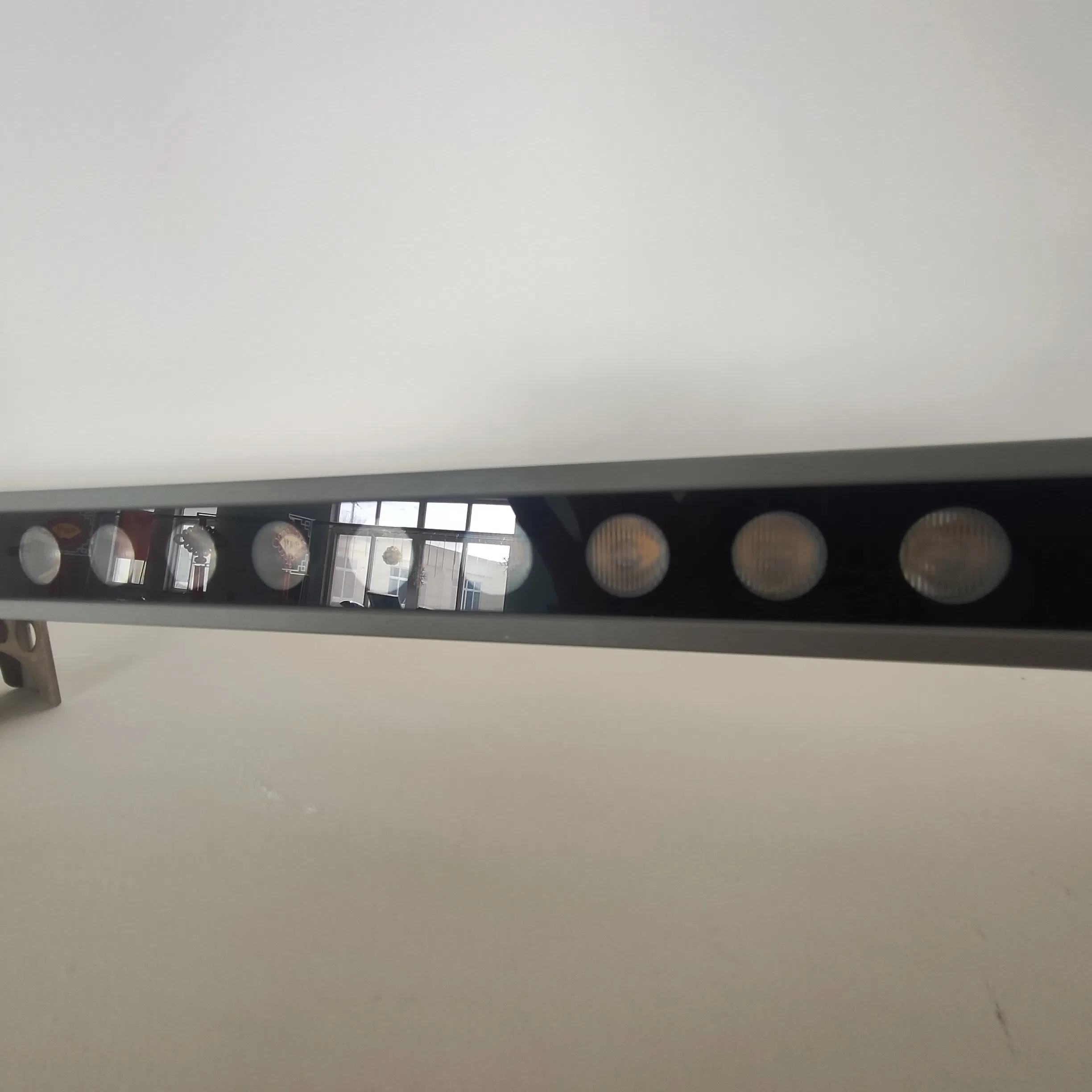

Wholesale Architectural Lighting Suppliers LED Wall Washer LED Light

Product Overview

Model NO.	SY-XGLXQD-028
IP Rating	IP65
Diffuser	Tempered Glass
Beam Angle	10X60 Degree
Lifespan	50000 hours
Warranty	1 Year
Certification	CCC, CE, RoHS
Electric Current Type	AC
Input Voltage	AC100-240V±10% DC24V
Lighting Power	12W
Control Method	DMX512 Control
Material	Aluminum alloy lamp body, glass face cover
Application	Outdoor Building, Contour Lighting

Product Description

1

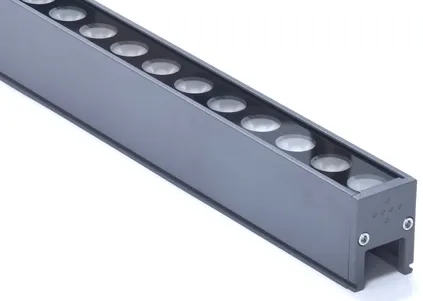

Appearance and Structure The lamp body features a streamlined design. An anti-glare light-shield is optional. Material is extruded 6063 aluminum with anodized natural-color surface treatment for high corrosion resistance.

2

Optical Light Distribution Equipped with PMMA optical lens, providing uniform light emission and strong UV resistance. High-specification brand lamp beads ensure high brightness and color rendering.

3

Control Method Adopts standard DMX512 protocol. Color and brightness can be adjusted to achieve effects like synchronization, chasing, and flowing water.

Technical Parameters

Size	100028H37mm
LED Color	Single Color / RGB / RGBW
LED Quantity	Configure according to power
Working Temp	-35ºC to 50ºC
System Power	12W
Electrical Safety	Level III

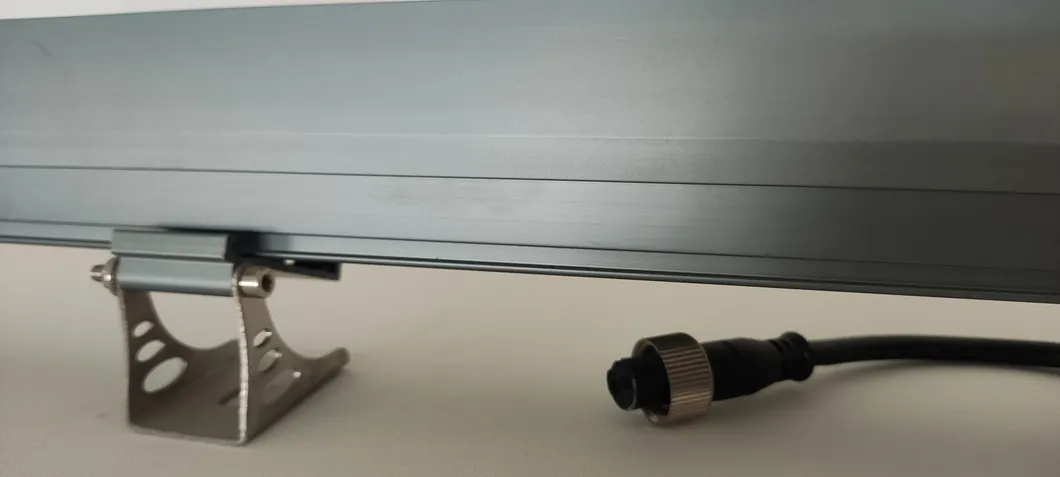

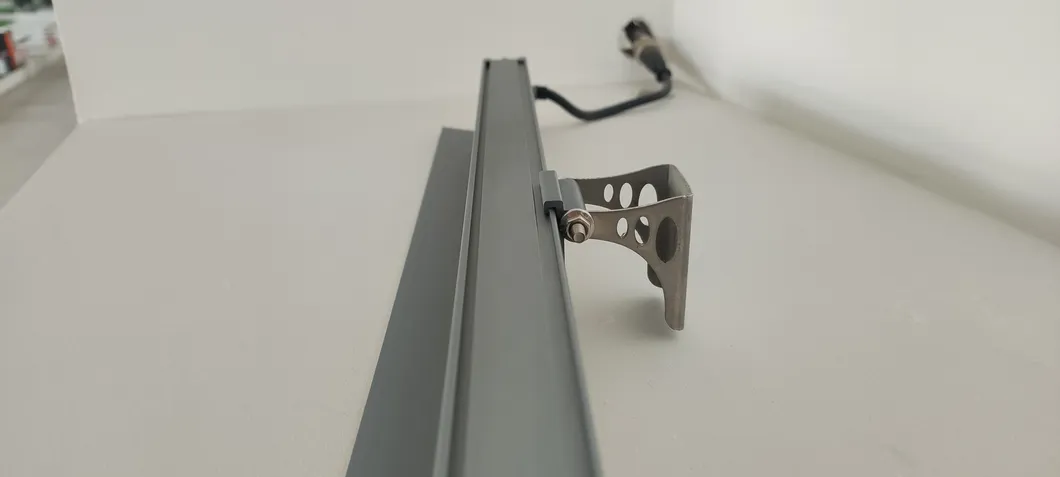

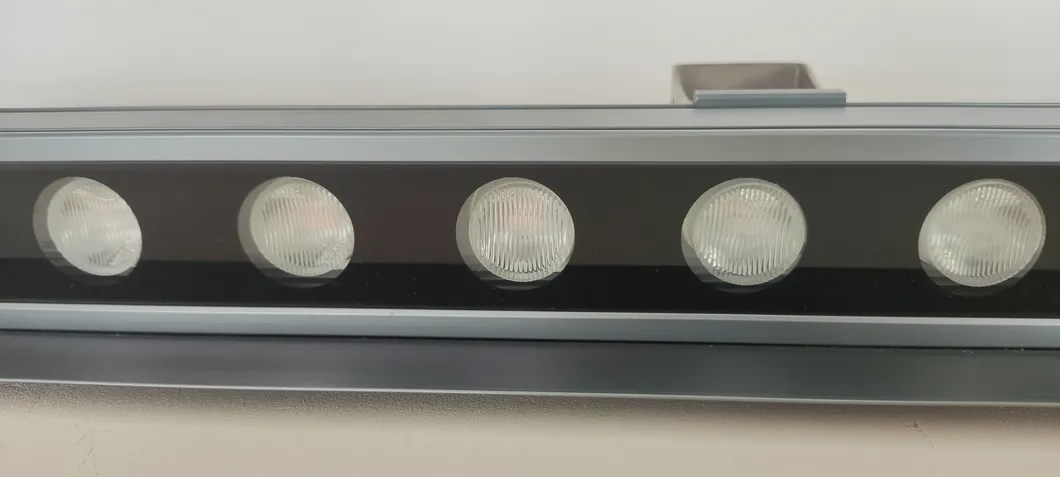

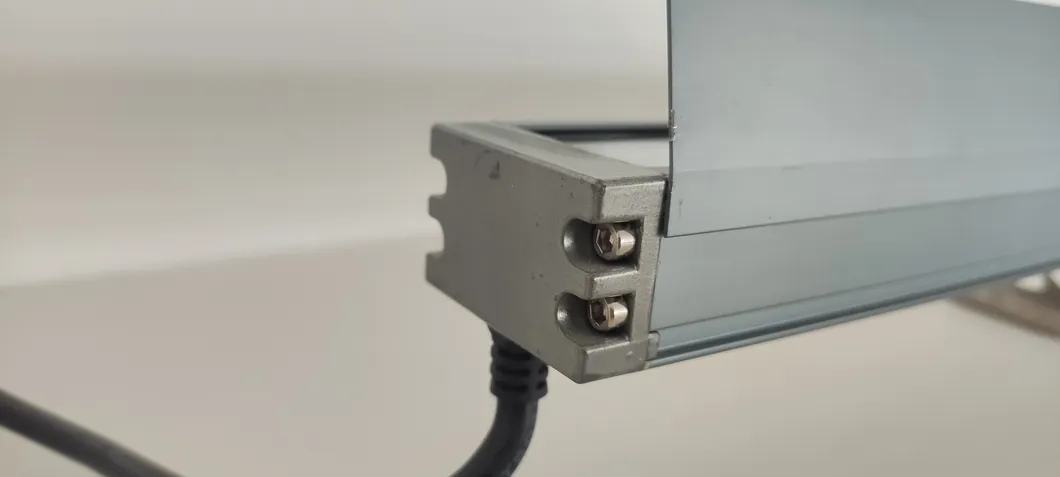

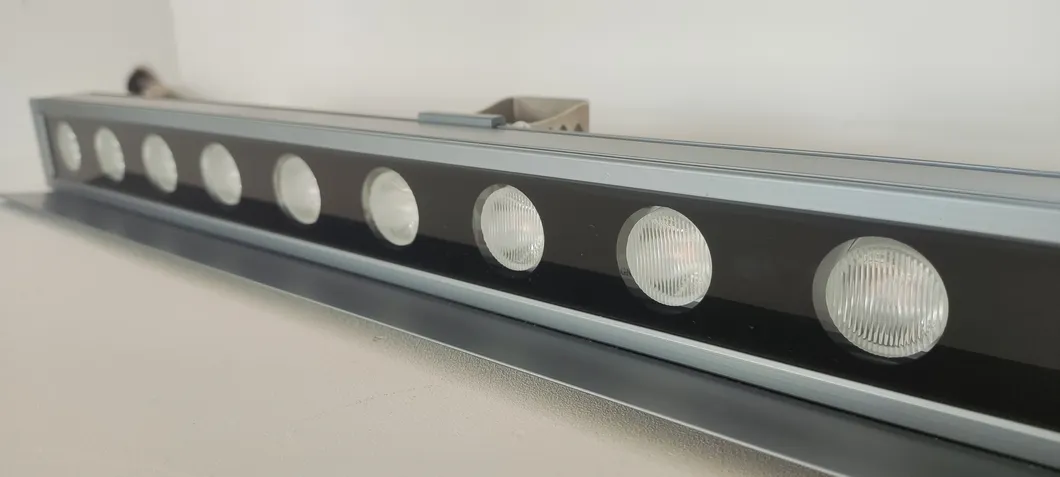

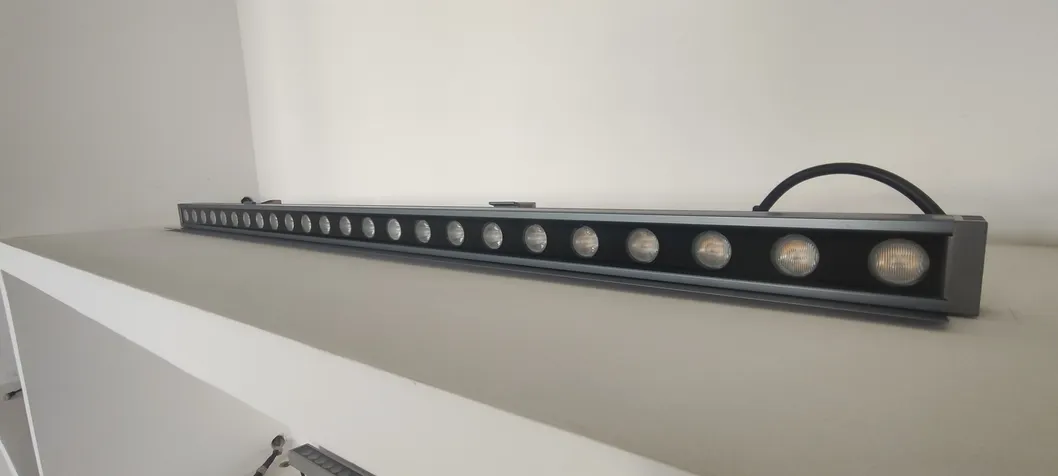

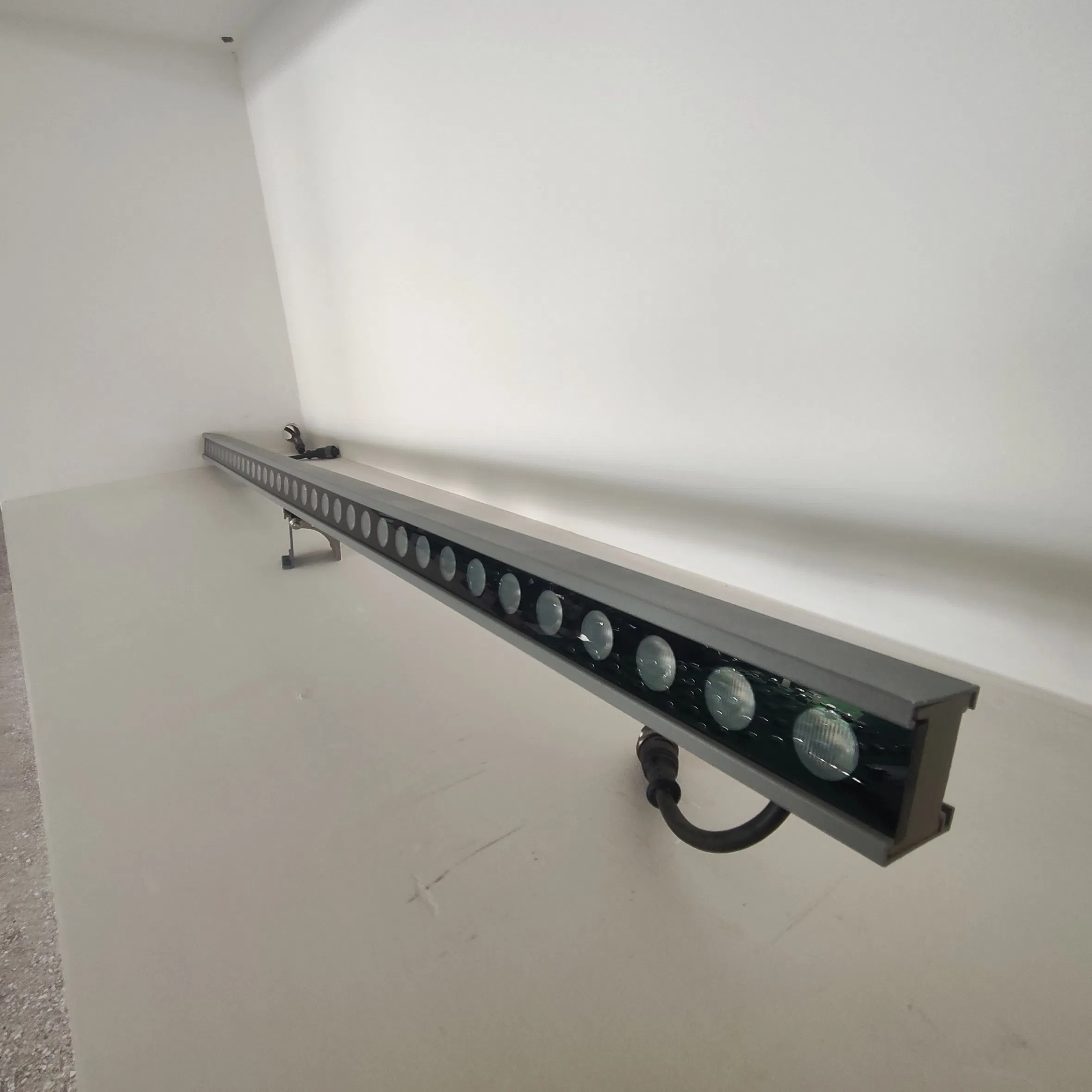

Detailed Photos

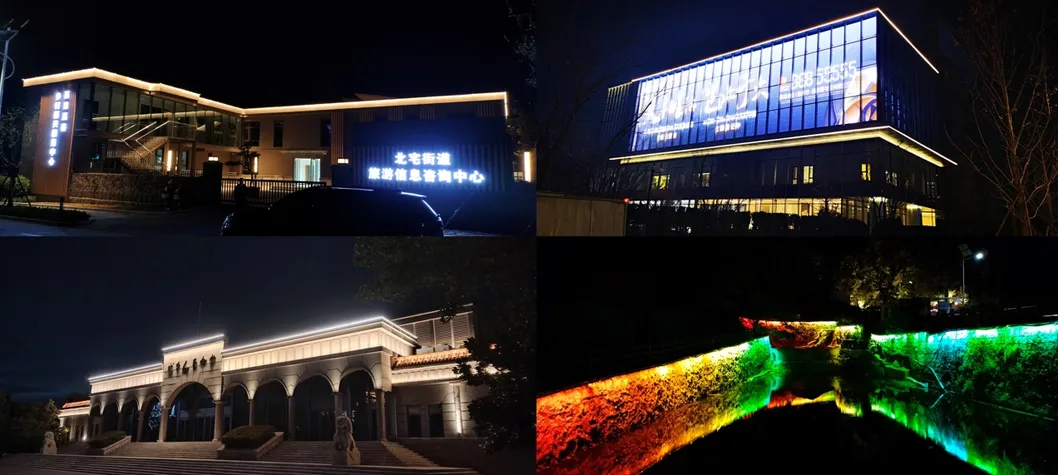

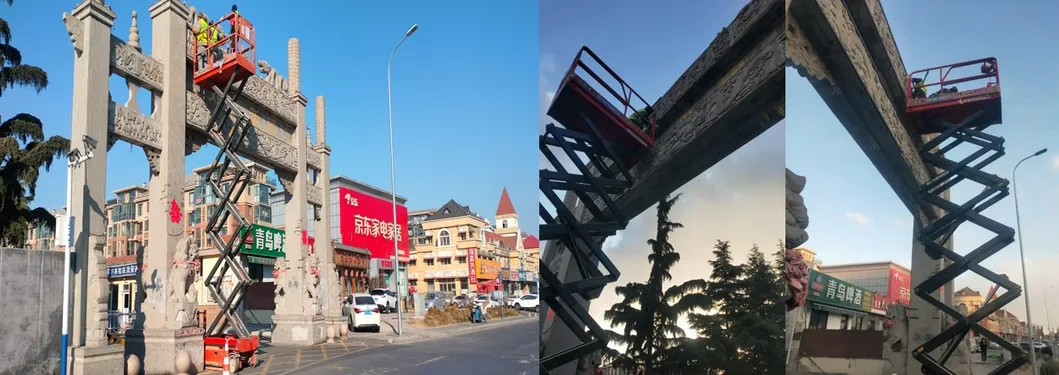

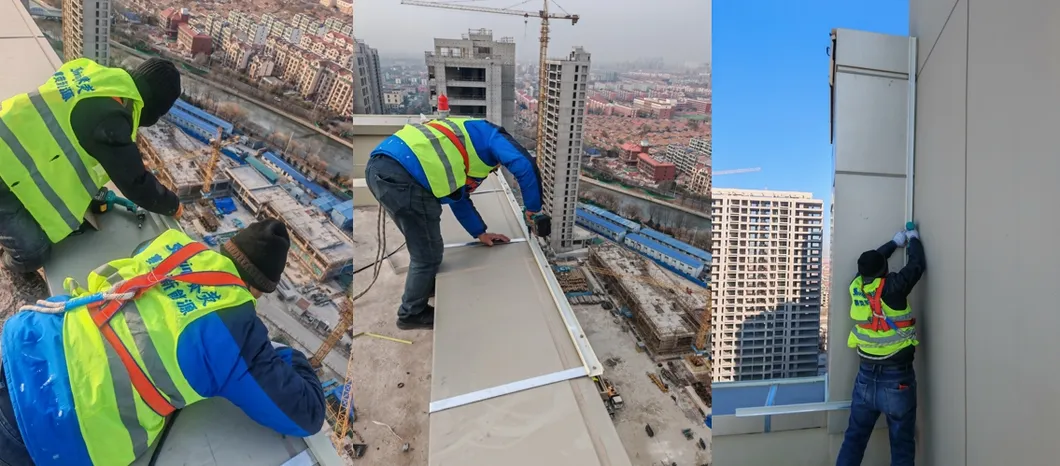

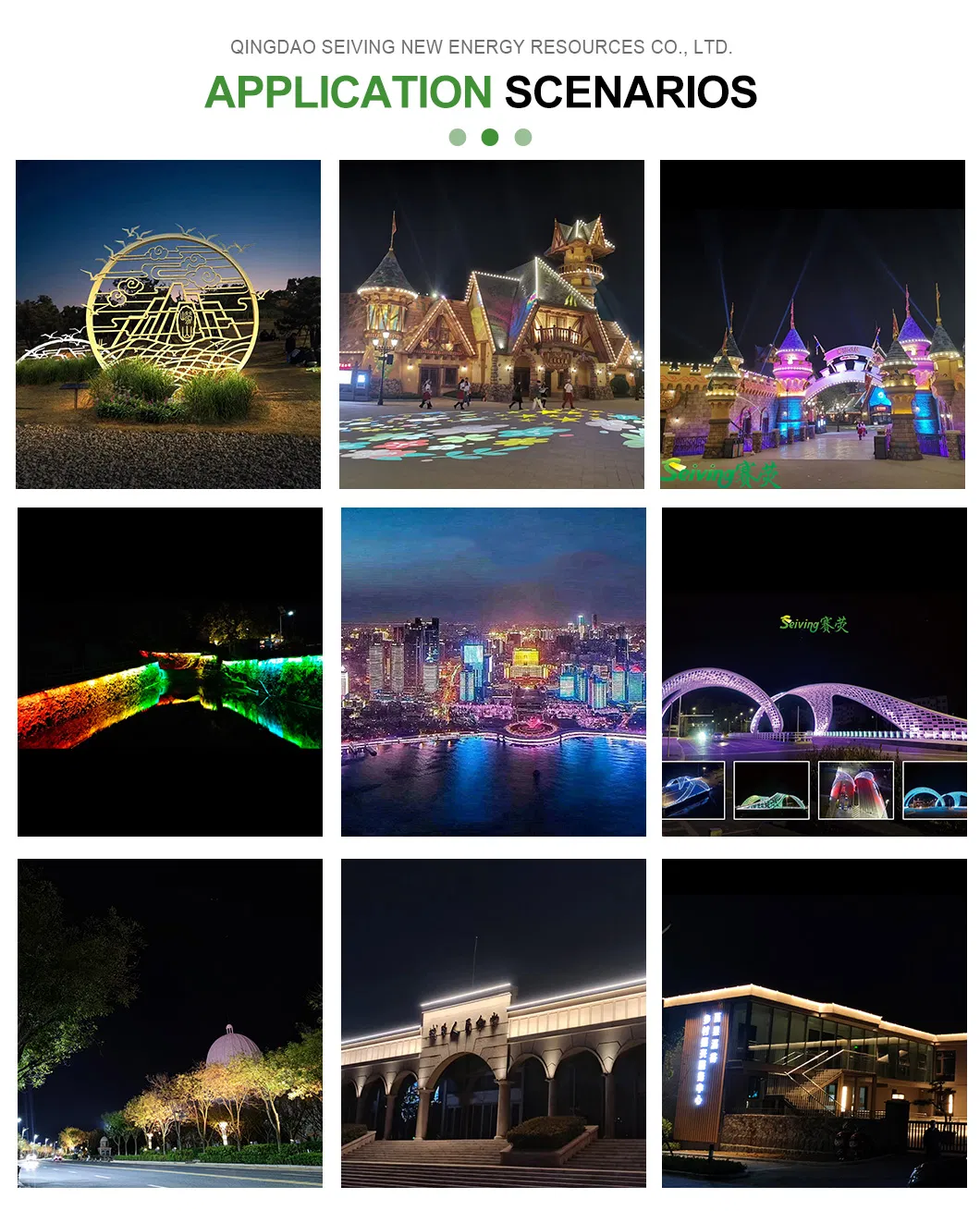

Lighting Effects & Applications

Urban night-scene lighting shapes the city's image. Our LED wall washers are suitable for building exteriors, squares, landscape roads, and garden lighting.
