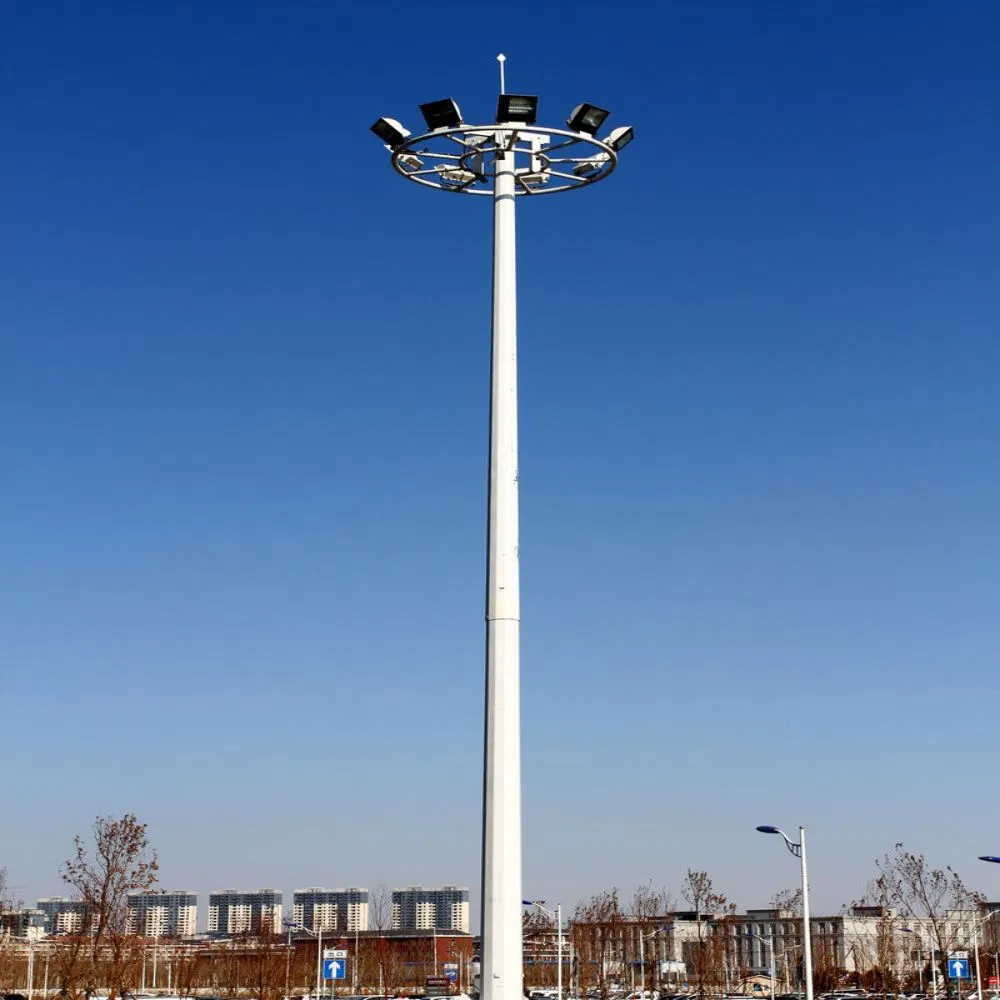

1000W LED Flood Lamp Q355 Steel Pole Stadium Airport High Mast Lighting

1 / 5

1000W LED Flood Lamp Q355 Steel Pole Stadium Airport High Mast Lighting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

YD-HMTP

Pole Height

25-30m

Power

600-1000W

IP Rating

IP66

Input Voltage

220V

LED Chips Brand

CREE

Product Name

LED High Mast Flood Light

Material of Pole

Q235A/Q235B/Q345/Ss400 Steel

Steel Pole

High Mast Stadium Light Pole

Feature

High Illumination

Company Overview

Providing expert design and manufacturing of pole structures for over 10 years. During this time, a wealth of experience has been gained in the structural, mechanical, and electrical aspects of pole design, production, and maintenance. Since 1998, the focus has remained on leading the industry in research, innovation, and quality of service.

Professional Manufacturer Since 1998

With over 15 years of experience in manufacturing High Mast Lighting, this is one of the few manufacturers holding AIRPORT EQUIPMENT CERTIFICATION in China. Our installations can be found in numerous domestic and international airports, including Kenya and Bangladesh.

Product Description

Manufacturing of High Mast Lighting poles with heights ranging from 18M to 50M. Current production capacity stands at 1000 pieces per month for High Mast Lighting Poles.

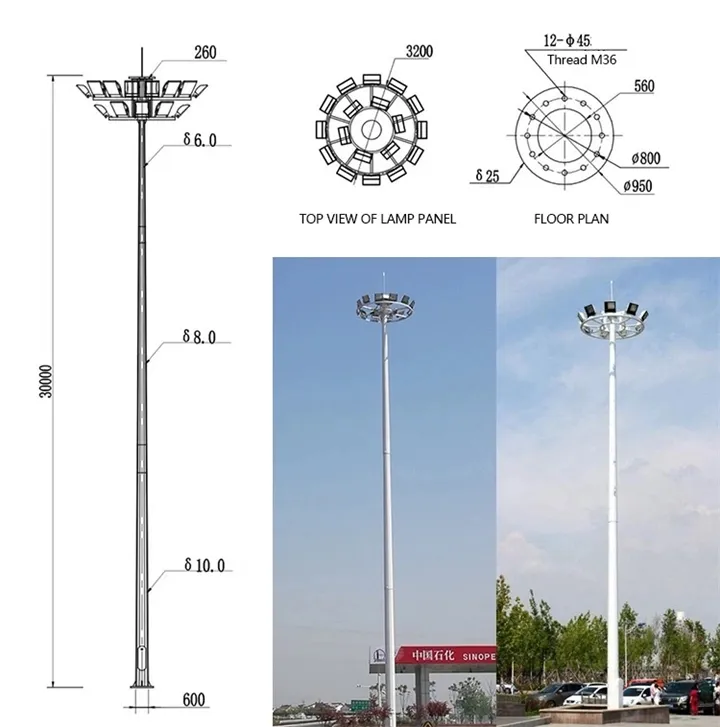

Technical Specifications (30M Galvanized LED Flood Light)

Common High Mast Pole Diameter & Technical Data
Material	Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, SS400, ST52
Height	15M	20M	25M	30M	40M
Dimensions (d/D)	120mm/280mm	220mm/460mm	240mm/520mm	300mm/600mm	300mm/700mm
Thickness	5mm+6mm	6mm+8mm	6mm+8mm+10mm	8mm+8mm+10mm	6mm+8mm+10mm+12mm
LED Power	400/600W	600/800W	600/800W	600/800/1000W	1000W
Surface Treatment	Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, UV Resistant. Design lifespan ≥ 30 years.
Wind Resistance	General design strength ≥ 150KM/H

Wide Applications

Plaza & Airport Lighting

Highway & Overpass Tower

Storage-yard & Industrial Plant

Park & Dock Lighting

Stadiums & Sports Arenas

Toll Station Lighting Tower

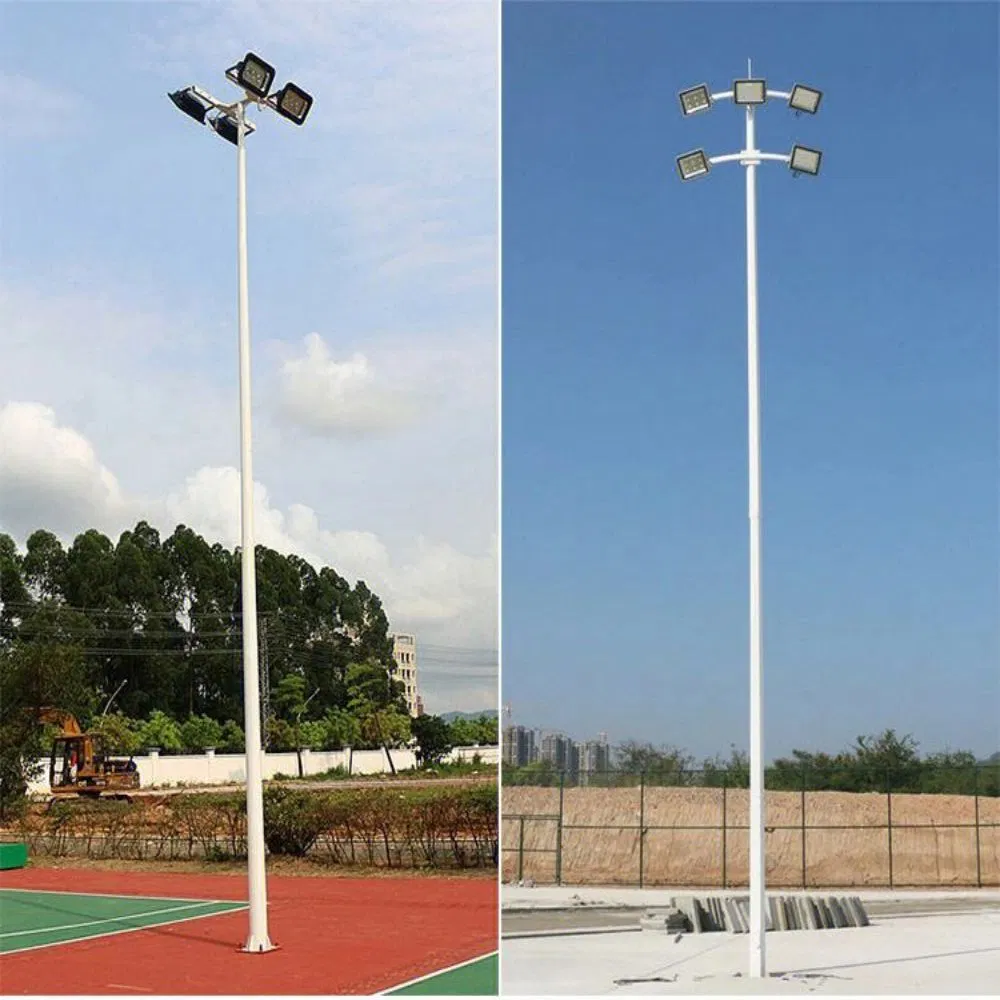

Detailed Photos

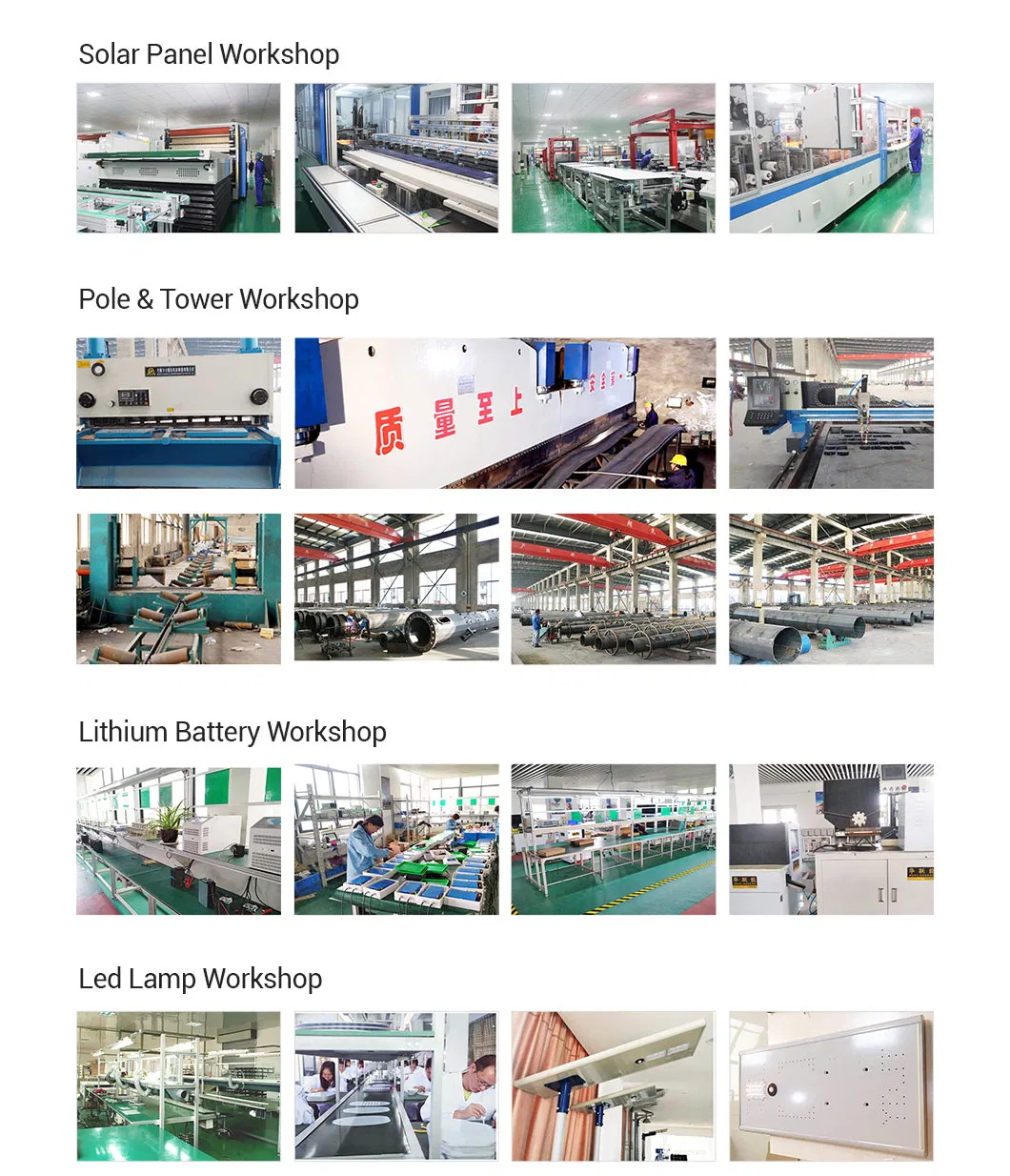

Our Advantages

Frequently Asked Questions

1. What is the typical height range for high mast poles?

We manufacture high mast poles ranging from 15 meters to 50 meters, customized to meet specific illumination requirements for large areas.

2. What materials are used to ensure the durability of the poles?

We use high-quality steel plates such as Q235B/A36 and Q345B/A572. These materials provide high yield strength and excellent structural integrity.

3. How are the poles protected against corrosion?

Every pole undergoes a hot-dip galvanization process (inside and outside) and electrostatic spraying. This provides a lifespan of over 25-30 years, even in coastal or high-salinity areas.

4. Can these poles withstand extreme weather conditions?

Yes, our poles are designed to withstand wind speeds of ≥150KM/H, depending on the local weather conditions of the installation site.

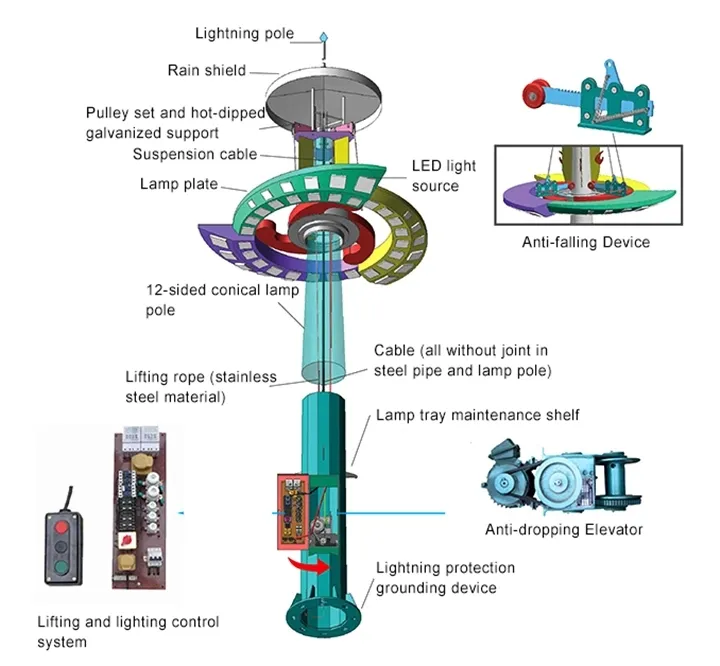

5. Do you provide lifting systems for maintenance?

We offer both ladder climbing options and automatic electric lifting devices to make maintenance of the LED floodlights safe and efficient.

6. Are your products certified for specialized use like airports?

Yes, we are one of the few manufacturers in China holding Airport Equipment Certification, and our lights are installed in numerous international airports.
