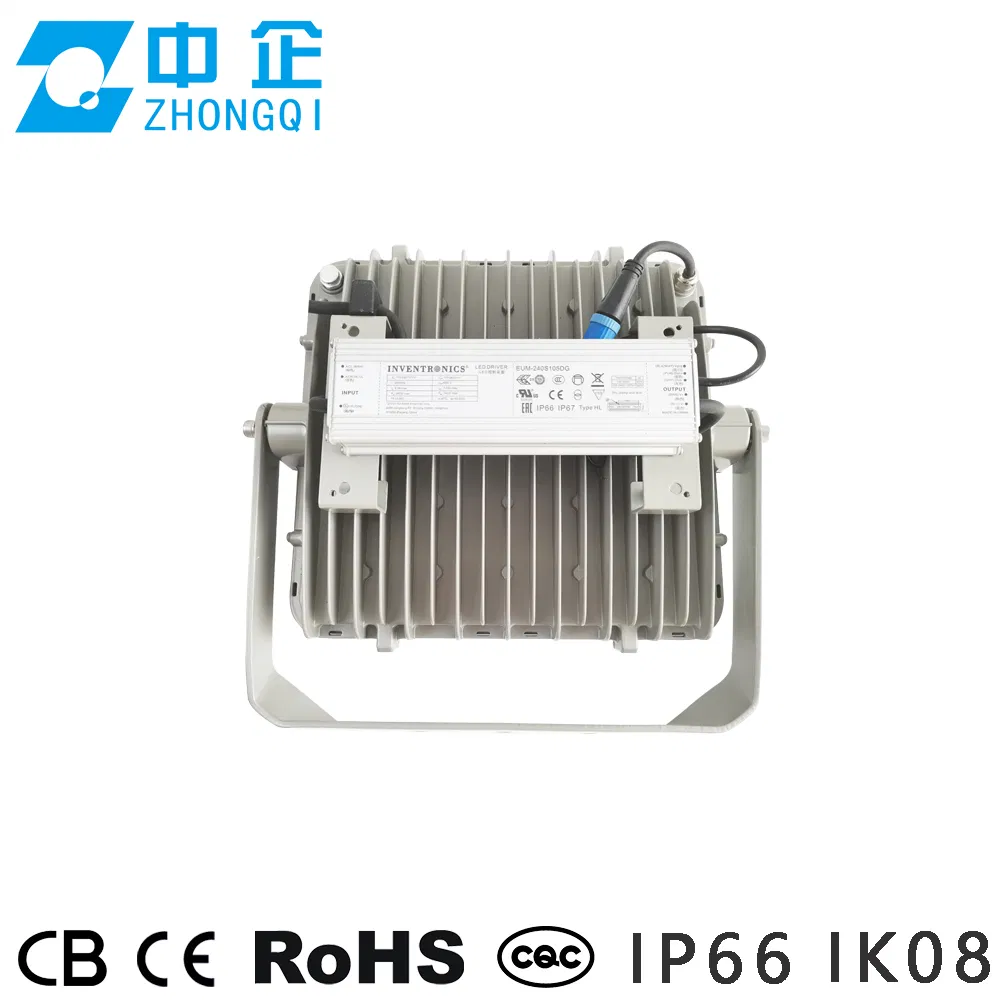

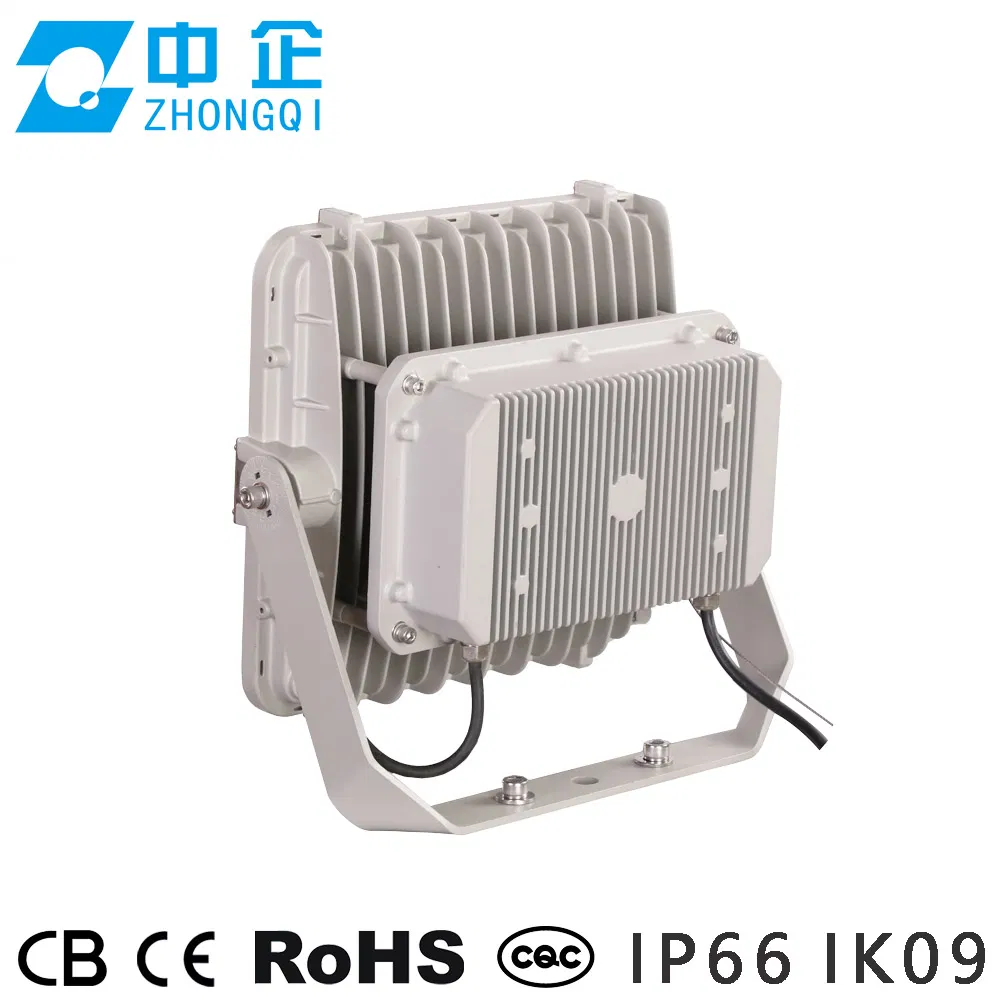

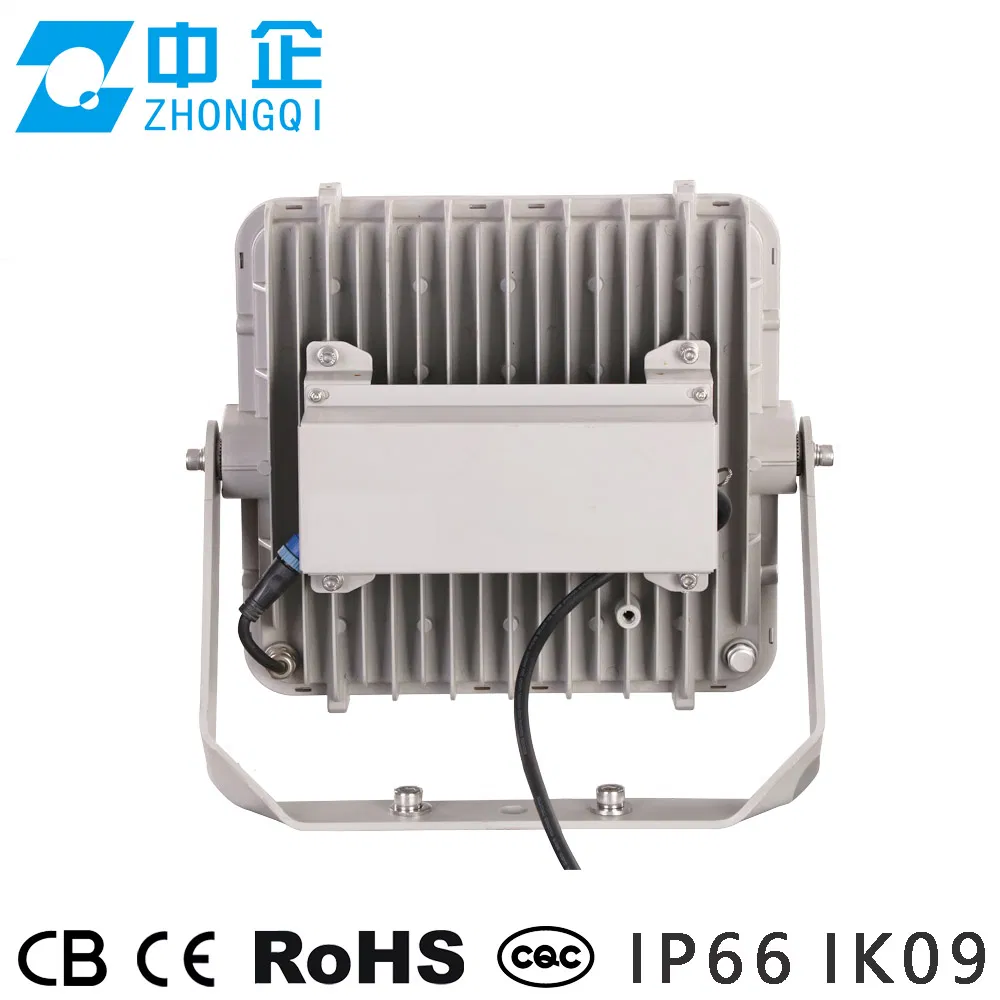

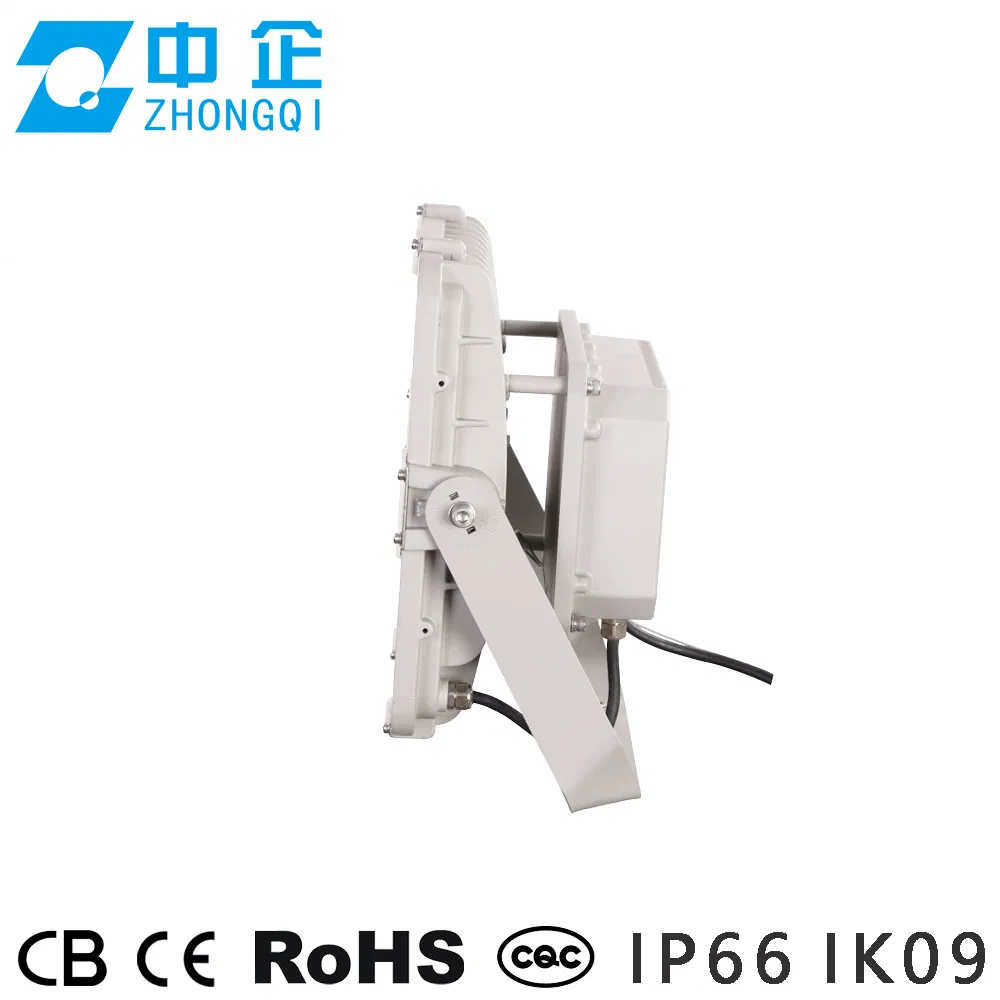

Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
1 / 5
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light
Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light

Industrial Grade 100W LED Floodlight SS316 Stainless Bracket IP66 Ik09 Marine Offshore Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
TYZQ-FD019M
Power
50-400W
Projection Distance
>35m
IP Rating
IP66
Operating Voltage
100-240V
LED Chips
Epistar / 5050 / 3030 / 3535
Efficiency
120lm/W - 200lm/W
Material
Die-Casting Aluminum, Tempered Glass
Beam Angle
8° to 120° / Asymmetric
Certification
CCC, CE, RoHS, ETL, FCC, etc.

Product Features

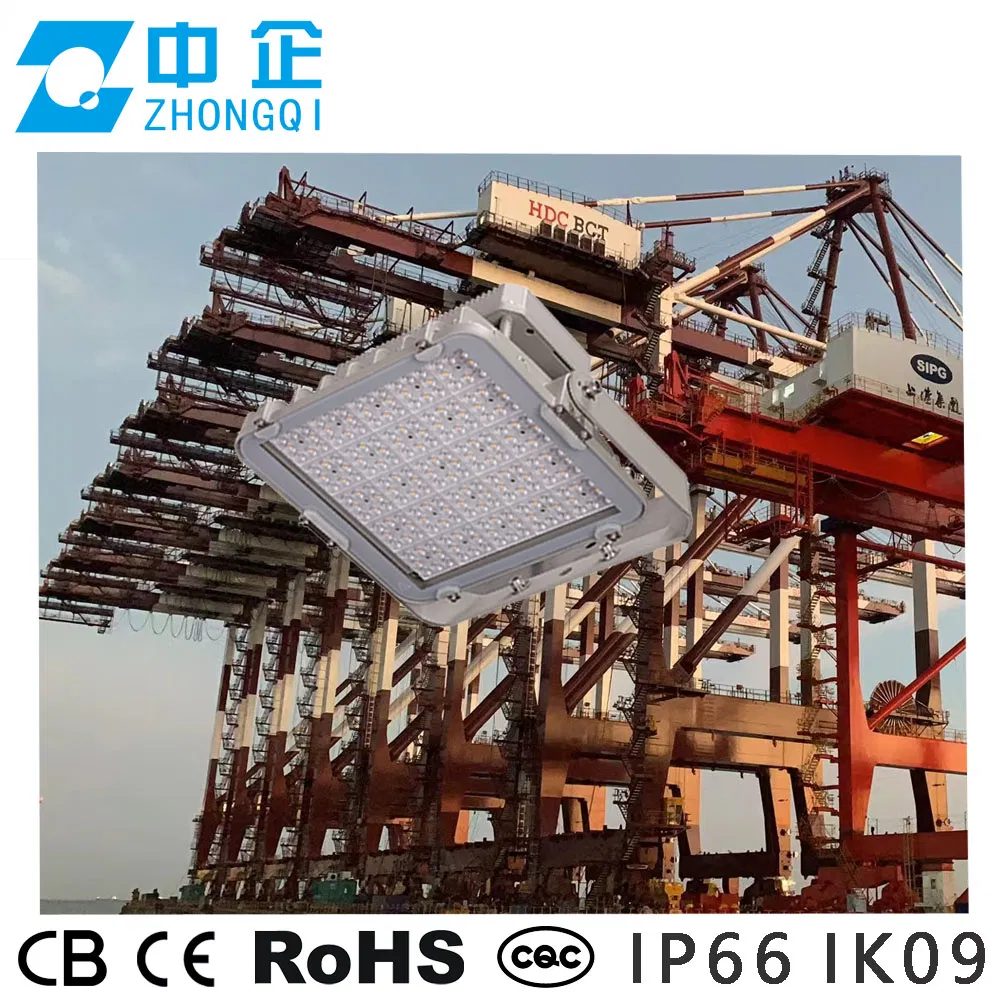

  • ✓ FD019 series floodlight born for harsh environment with high vibration and salt fog (cranes, harbors, seaports).
  • ✓ 5G vibration test approved (ANSI C136.31 & JIS C 60068-2-64).
  • ✓ 1000 hours salt spray resistant, IP66, IK09 rated.
  • ✓ Power range from 100W up to 1200W with Die-casting housing.
  • ✓ Precision optic lenses: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric options.
  • ✓ Tempered glass protects PC lens from UV, moisture, dust, and salt fog.
  • ✓ Separate IP66 driver chamber for superior heat dissipation and longer lifetime.
  • ✓ Standard 1-10V dimming; optional PWM, DALI, and 3-Timer-Modes.

Technical Parameters

Power (W) Premium LPW Standard LPW Net Weight (kg) Product Size (mm) Packaging Size (mm)
100W150 lm/W130 lm/W7.10346*370*152430*400*220
150W150 lm/W130 lm/W7.10346*370*152430*400*220
200W150 lm/W130 lm/W7.30346*370*152430*400*220
300W150 lm/W130 lm/W17.30605*408*204650*525*235
400W150 lm/W130 lm/W17.40605*408*204650*525*275
600W150 lm/W130 lm/W14.3(F) / 7.2(G)605*408*204650*540*240
1200W150 lm/W130 lm/W30.0(F) / 10.2(G)790*653*263895*695*230

Product Applications

Application 1
Application 2

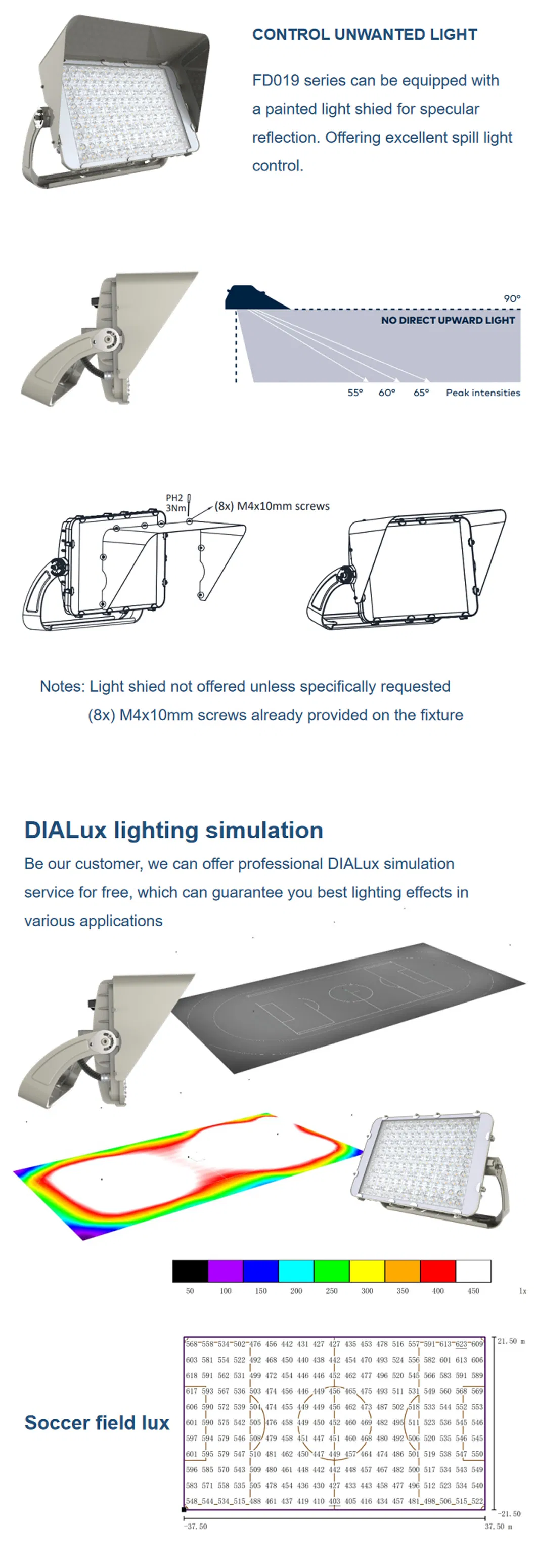

Application 3

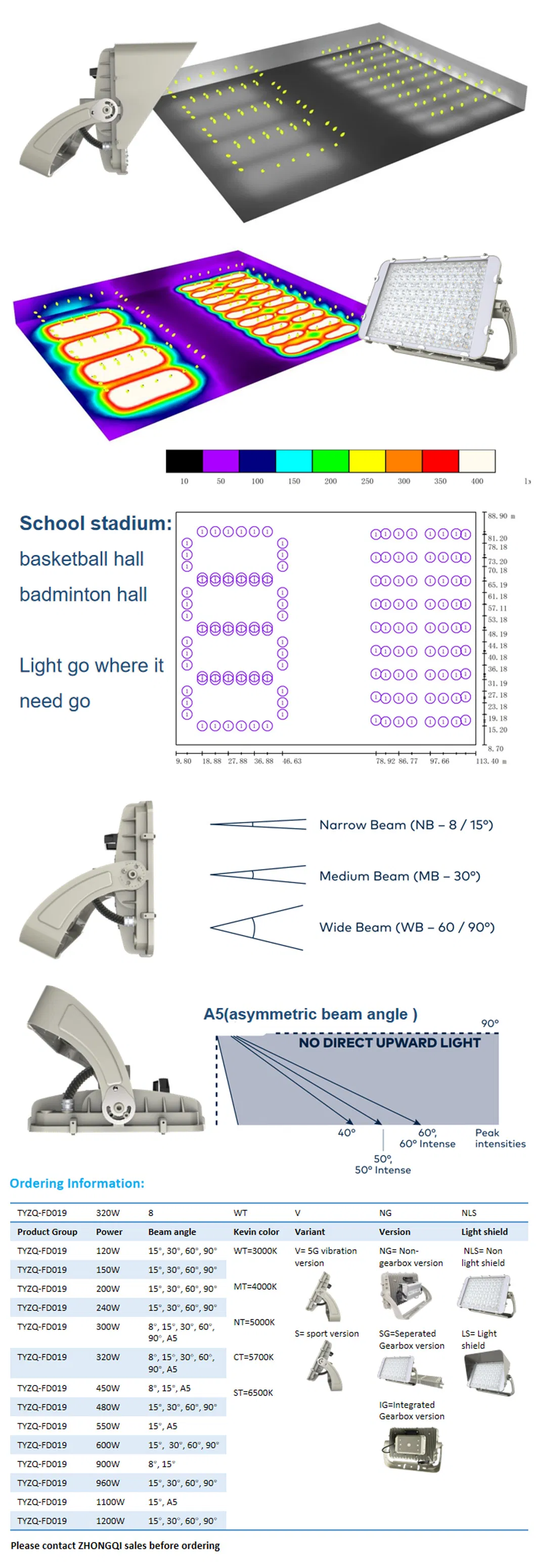

Application 4
Application 5

Product Details & Profile

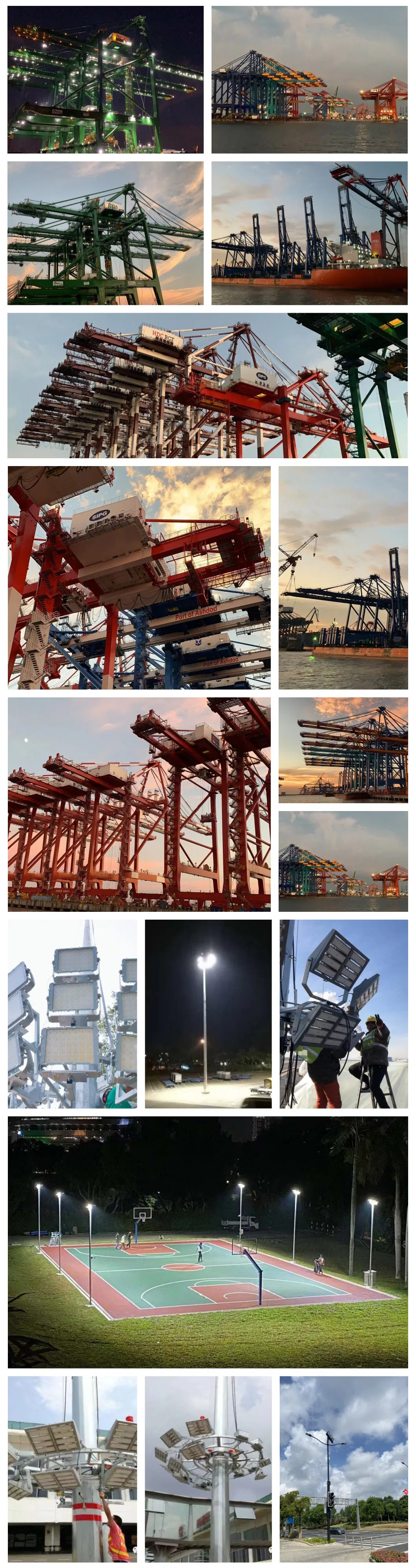

Product Details Company Quality

Packaging & Shipping

Packaging

Frequently Asked Questions

Q1: Can I have a sample before placing quantity orders?
Yes, we welcome sample orders for evaluation and testing before bulk production.
Q2: What is the typical lead time?
Samples usually take 3-5 days, while quantity orders typically range from 25-30 days.
Q3: Are ODM or OEM services accepted?
Yes, we provide full ODM and OEM services to meet customized requirements.
Q4: How long is the warranty for your products?
We offer a 2 to 5-year warranty depending on the product configuration and application needs.
Q5: What are the accepted payment terms?
Our standard terms are a 30% TT deposit, with the remaining 70% balance due before shipment.
Q6: Are your lights suitable for marine environments?
Yes, the FD019 series is specifically designed for harsh environments, featuring salt spray resistance and 5G vibration approval.
