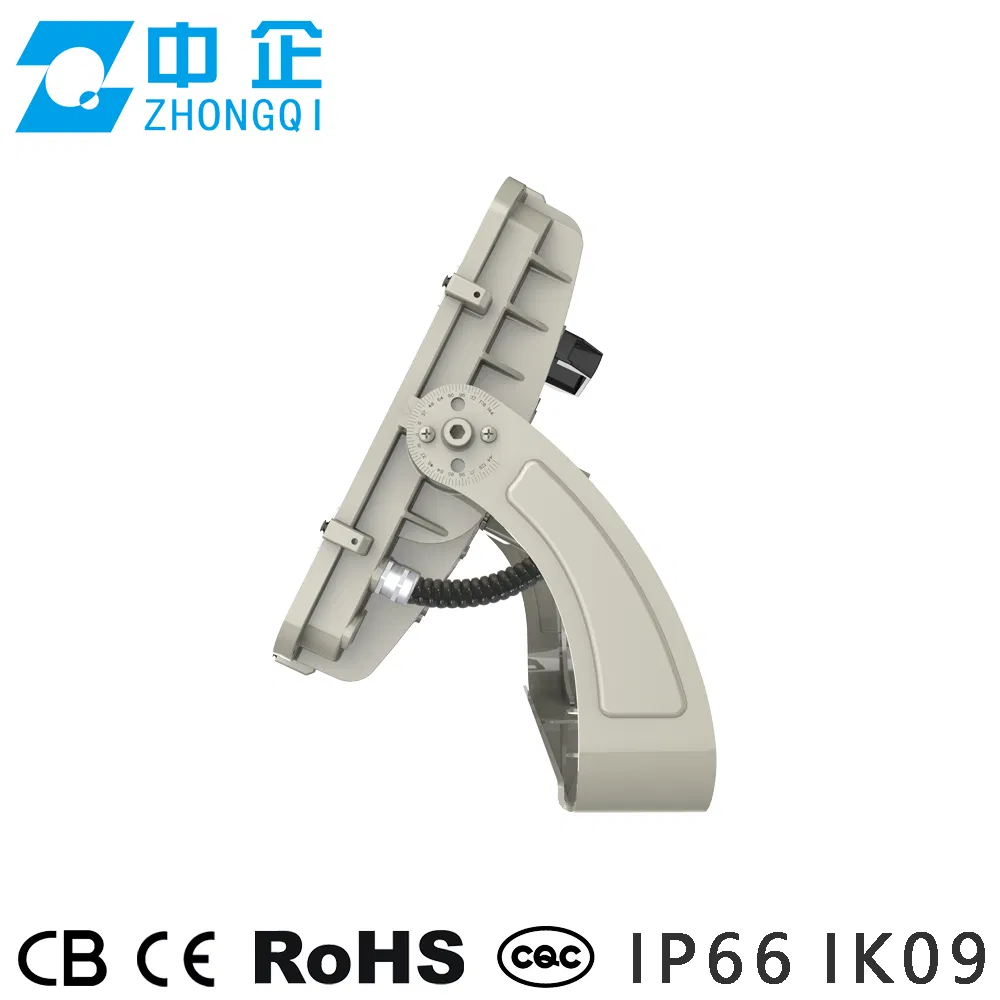

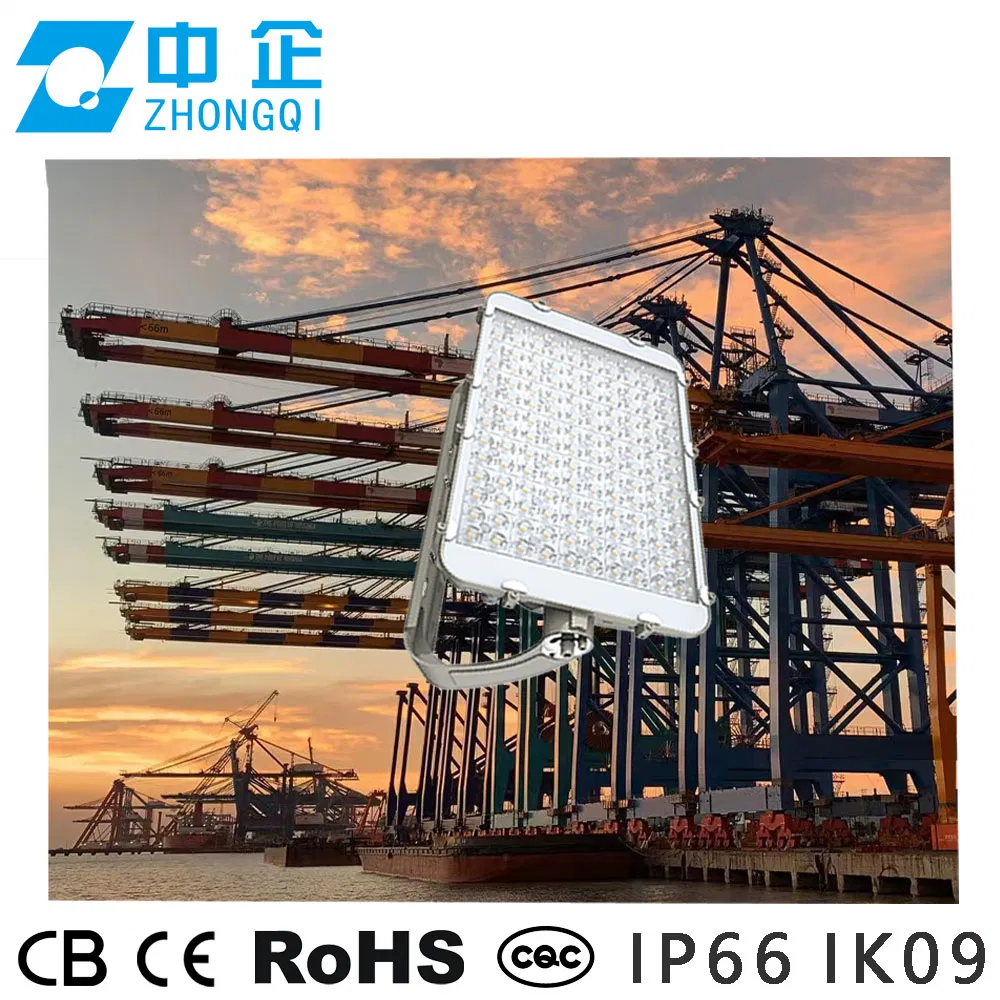

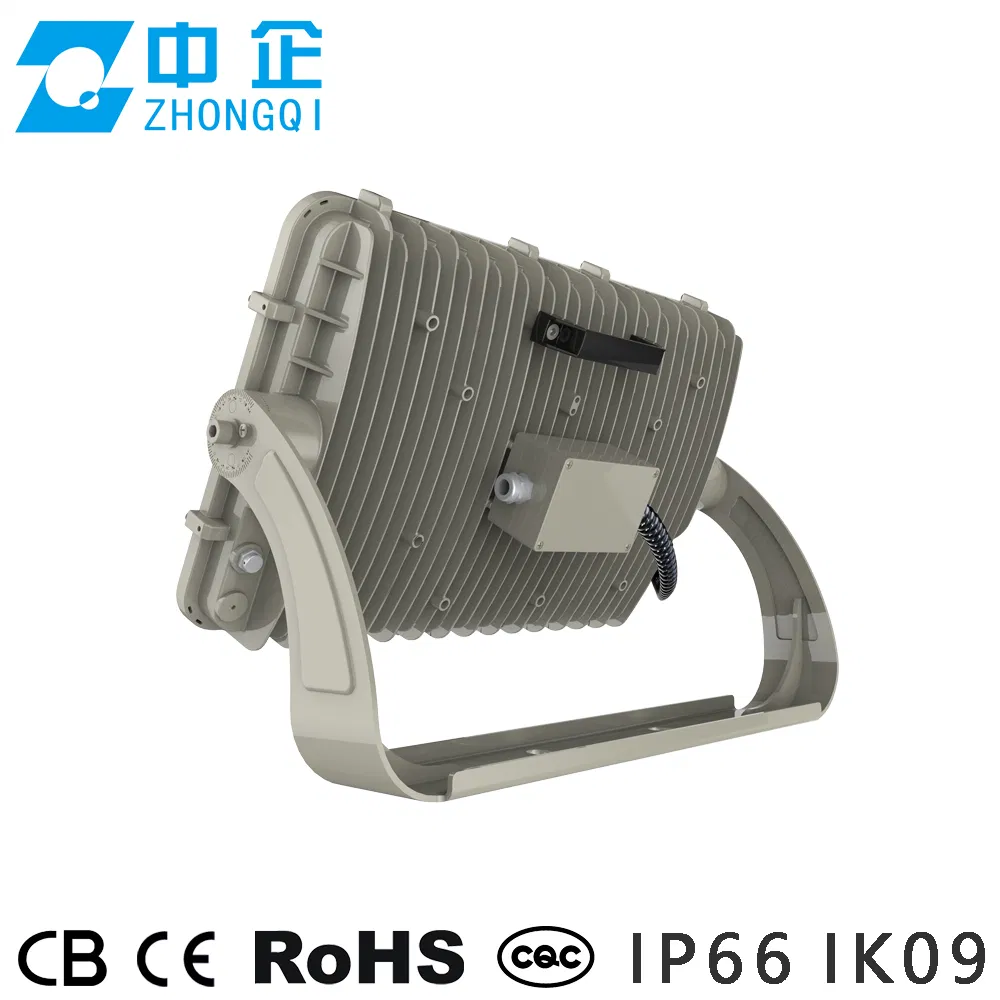

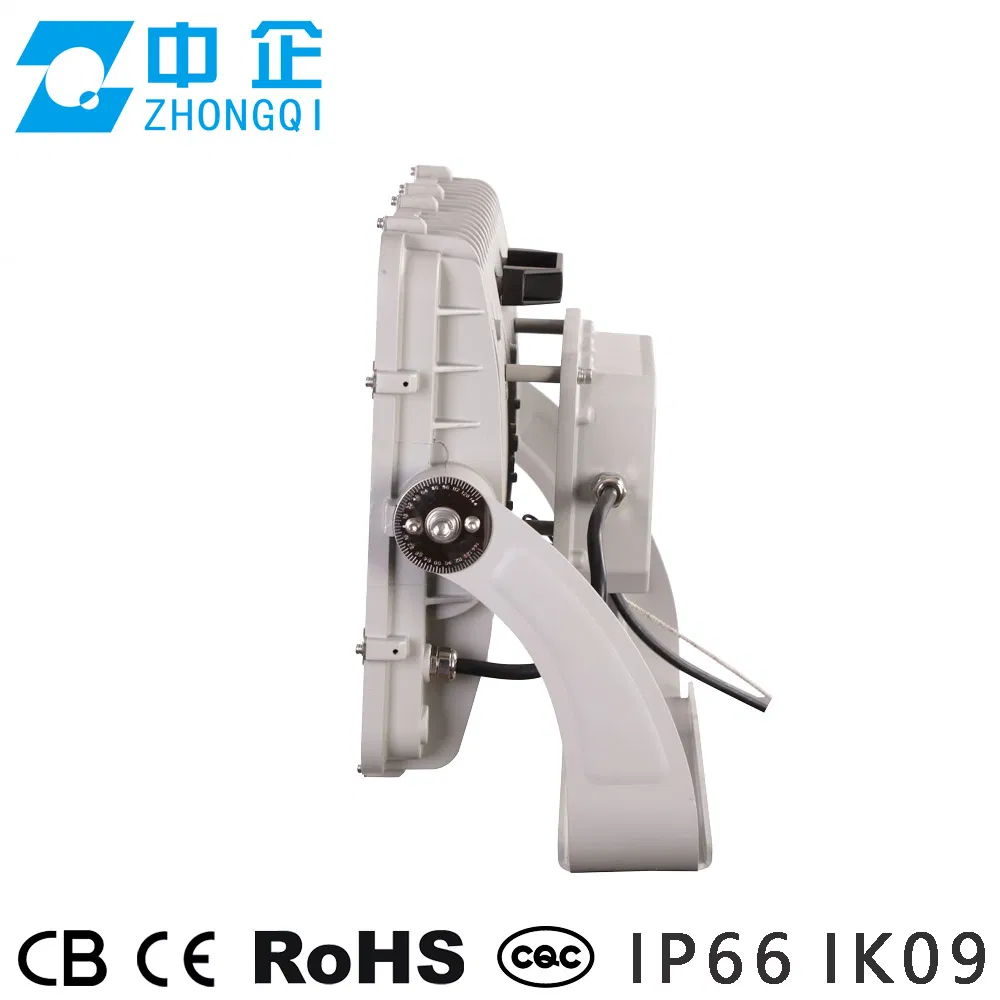

400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
1 / 5
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light
400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light

400W Marine Grade LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray 5g Vibration Test Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
TYZQ-FD019L
Power
50-400W
Projection Distance
>35m
Application
Park, Square, Factory, Garden, Stadium Sport Airport Crane
IP Rating
IP66
Operating Voltage
100-240V
LED Chips Brand
Epistar
Surface Treatment
Powder Coating Anti-Corrosion
Lpw
120lm/W - 200lm/W
Material
Tempered Glass, PC Lens, Aluminum
Surge Protection
10kv / 20kv SPD
Anti-Vibration
3G / 5G Vibration Rating
★

Product Features

  • FD019 series floodlight born for harsh environment which has high vibration and salt fog especially crane, harbor and seaport applications.
  • 5G vibration test approved under American standard ANSI C136.31 and Japanese standard JIS C 60068-2-64.
  • 1000 hours salt spray, IP66, IK09 CE CB RoHs certificated in TUV lab.
  • Die-casting housing, power range from 100w to 1200w.
  • Multiple optic lens: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric beam angles.
  • Tempered glass protecting PC lens from UV, moisture, dust, and salt fog.

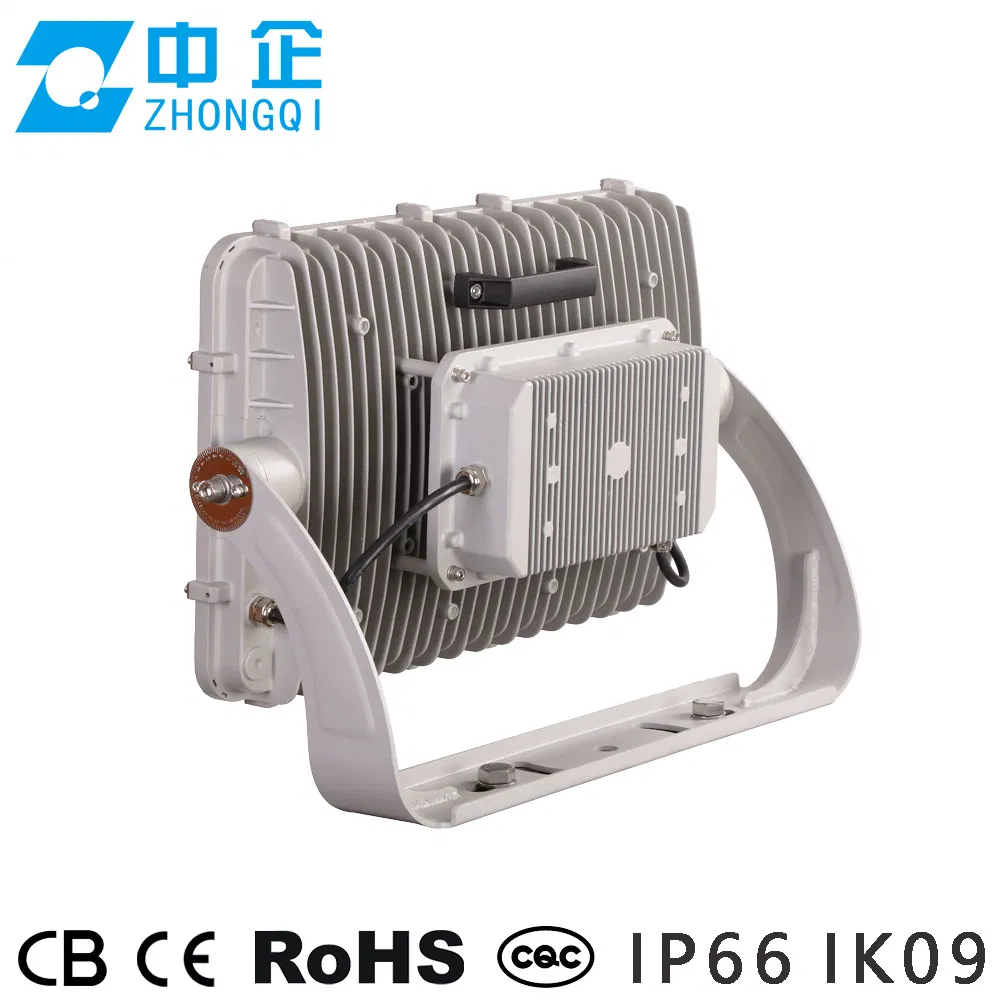

  • Separate IP66 driver chamber for better heat dissipation and longer lifetime.
  • Standard 1-10V dimming; optional PWM, 3-Timer-Modes, and DALI.
⚙

Technical Parameters

Product Model Power(W) Premium LPW Standard LPW N.W.(kg) Product Size (mm) Packaging Size (mm)
TYZQ-FD019 100W 150 lm/W 130 lm/W 7.10 346*370*152 430*400*220
TYZQ-FD019 200W 150 lm/W 130 lm/W 7.30 346*370*152 430*400*220
TYZQ-FD019 300W 150 lm/W 130 lm/W 17.30 605*408*204 650*525*235
TYZQ-FD019 400W 150 lm/W 130 lm/W 17.40 605*408*204 650*525*275
TYZQ-FD019 600W 150 lm/W 130 lm/W 14.3 + 7.2 605*408*204 650*540*240
TYZQ-FD019 1200W 150 lm/W 130 lm/W 30.0 + 10.2 790*653*263 895*695*230
📷

Applications & Details

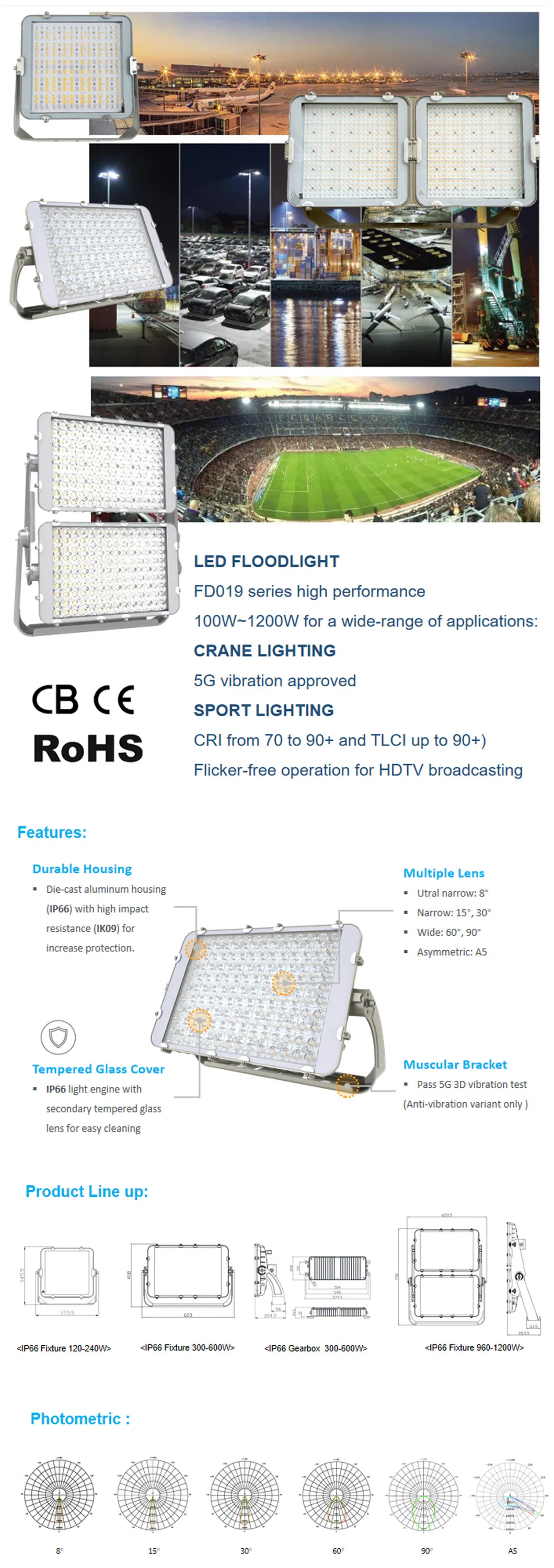

Application 1

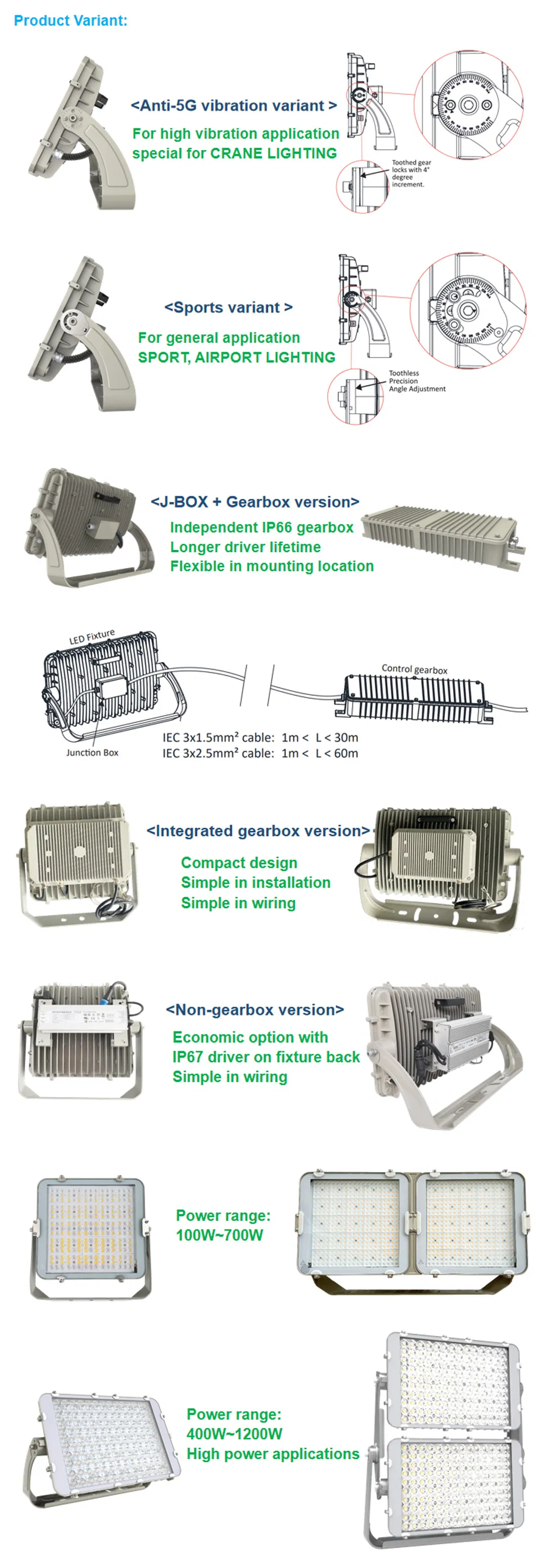

Application 2

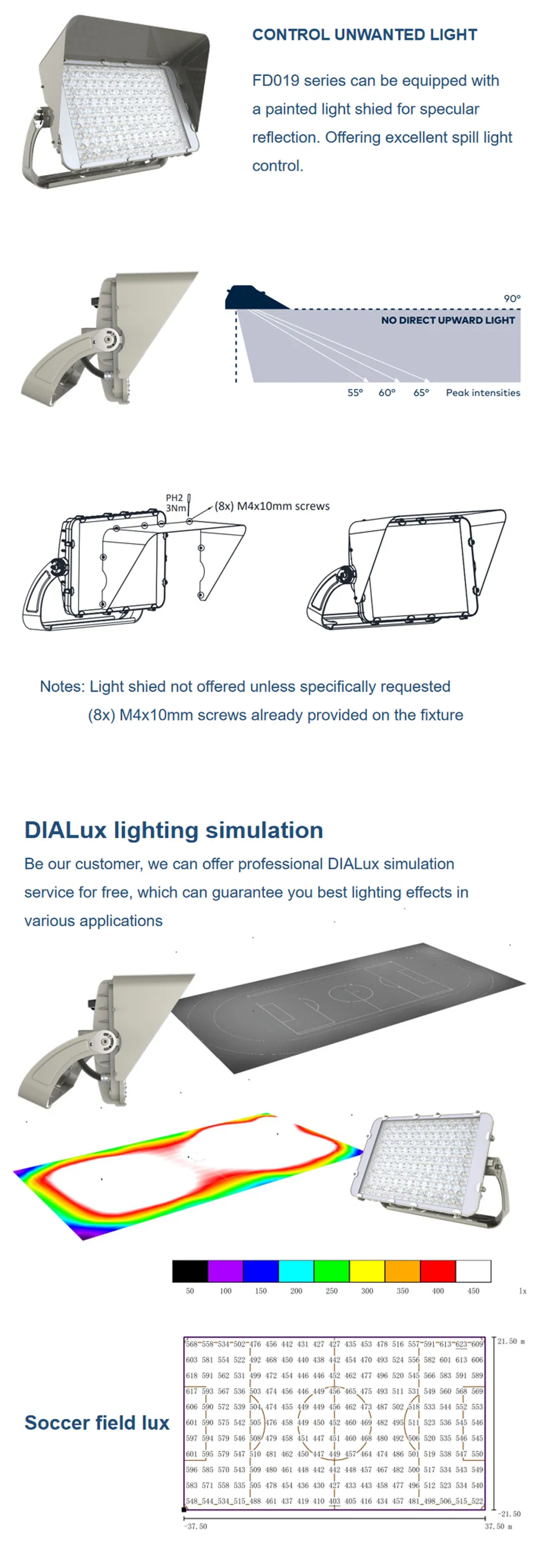

Application 3

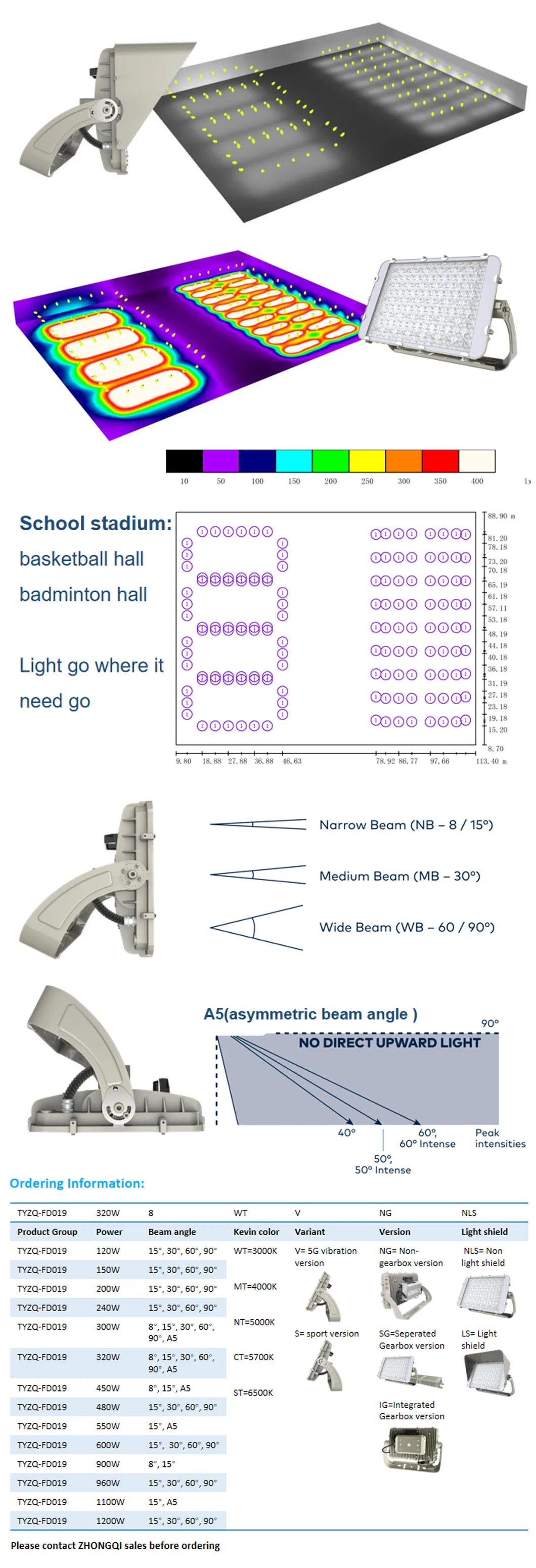

Application 4

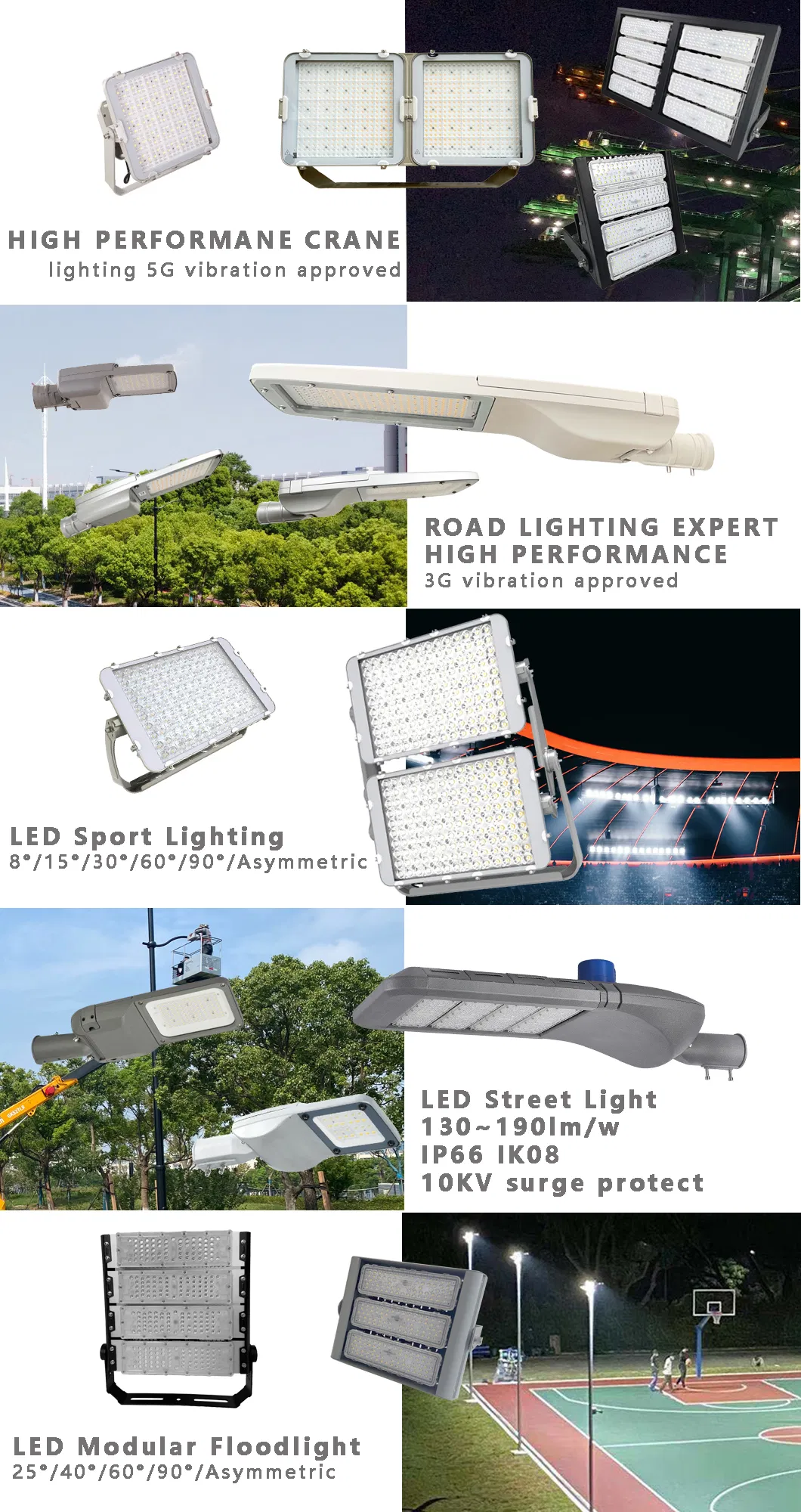

Product View

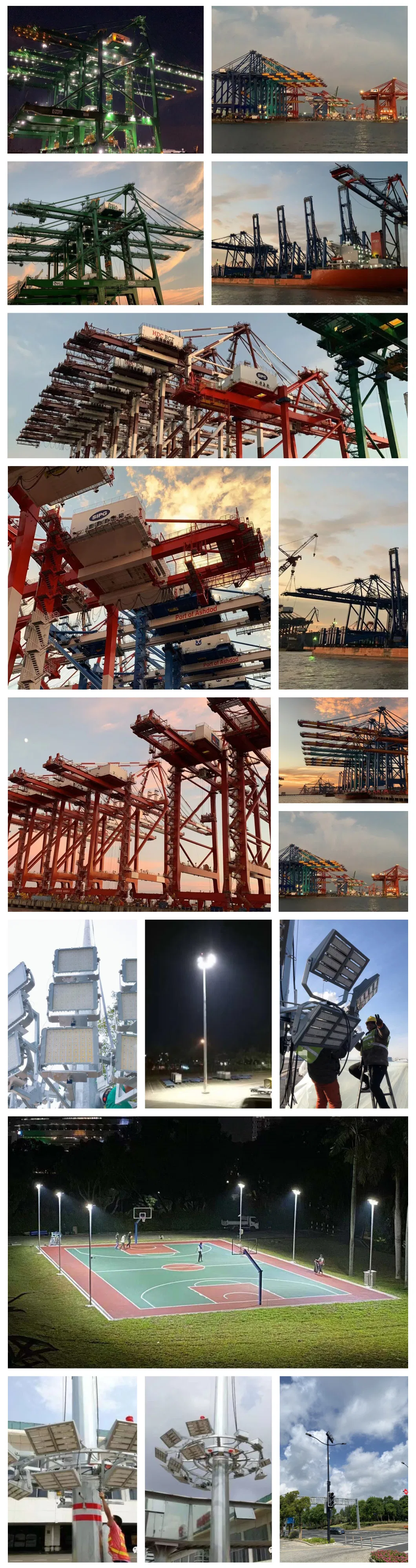

Details

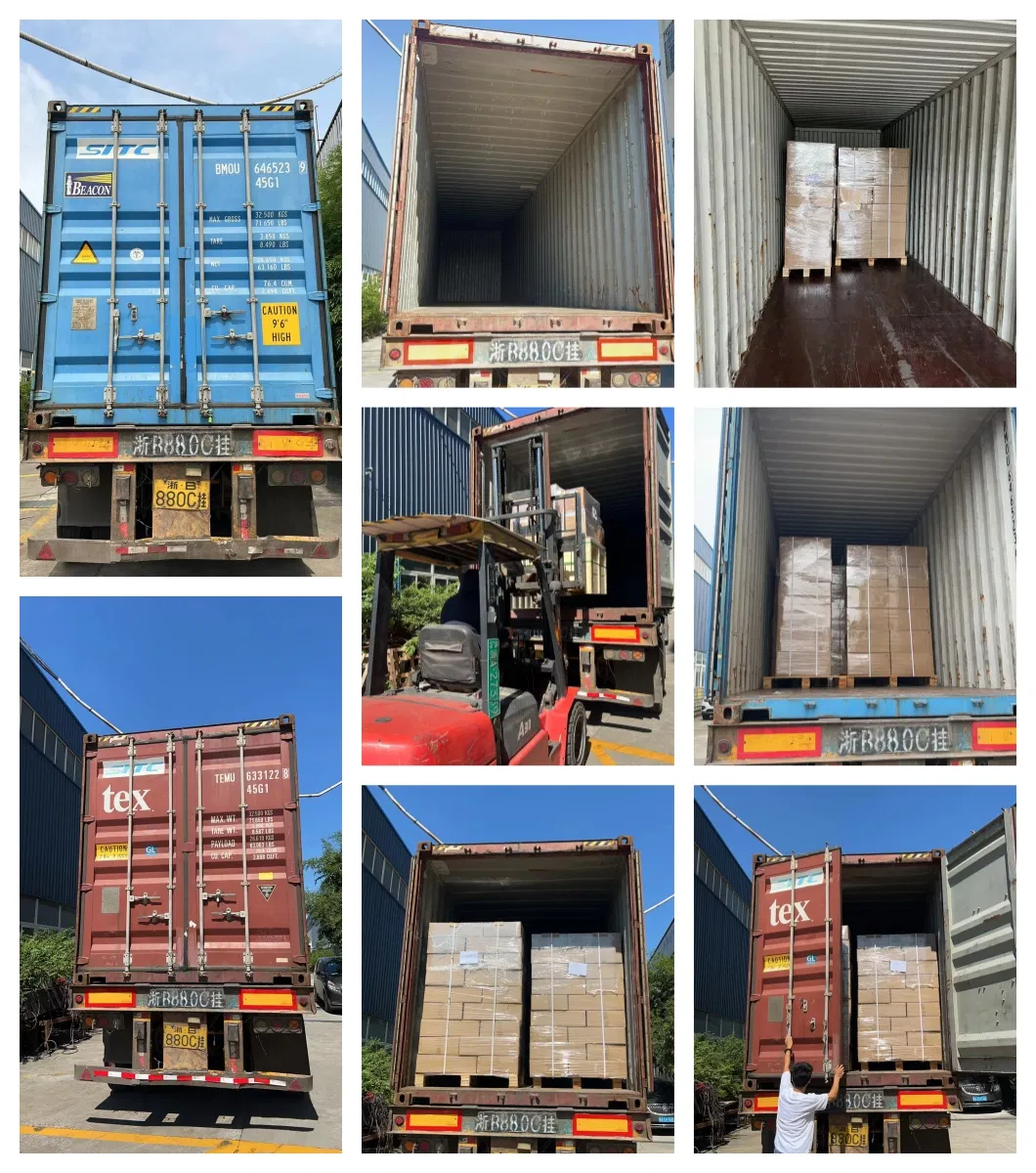

Packaging
?

Frequently Asked Questions

Can I have a sample before quantity orders?
Yes, we welcome sample orders for your approval and testing.
What about lead time?
Samples typically take 3-5 days, while quantity orders require 25-30 days.
Are ODM or OEM services accepted?
Yes, we offer professional ODM & OEM services to meet your specific requirements.
How long is the warranty for your products?
We offer a 2-5 year warranty on our products depending on the configuration.
What are the payment terms?
Standard terms are 30% TT deposit and 70% balance payment before shipment.
Is the fixture suitable for marine environments?
Yes, the FD019 series is specifically designed for harsh environments, featuring 1000-hour salt spray resistance and 5G vibration testing.
