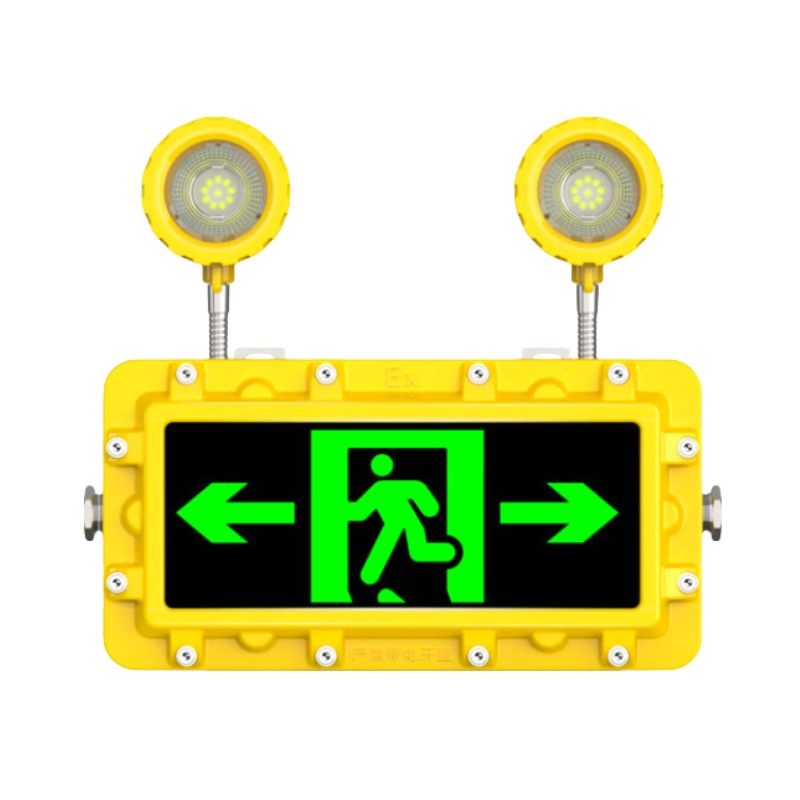

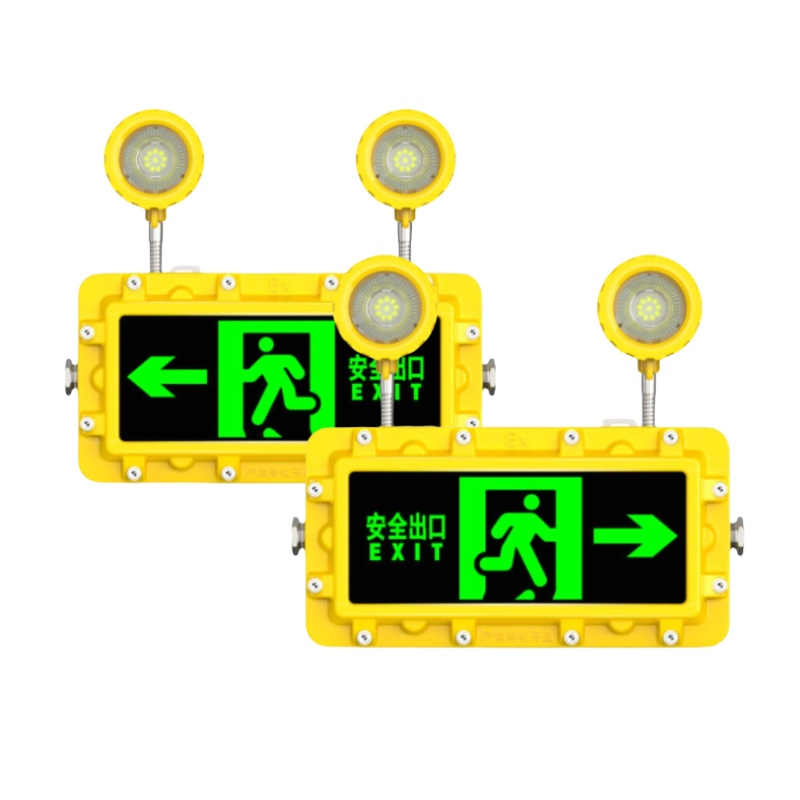

ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
1 / 5
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light
ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light

ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview

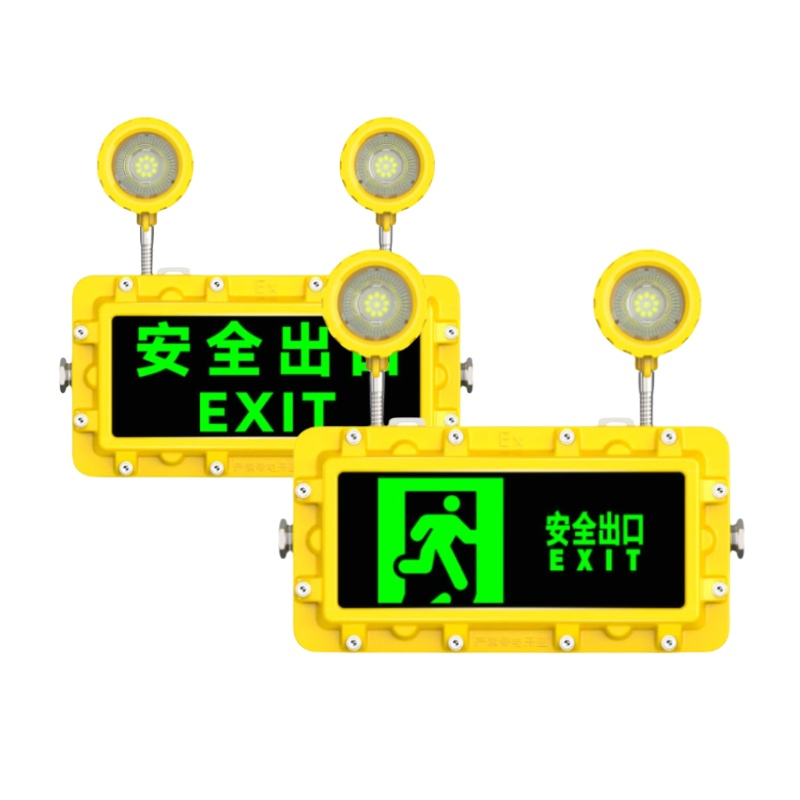

ATEX Wall Hanging LED Explosion Proof Backup Indicator Emergency Exit Sign Light

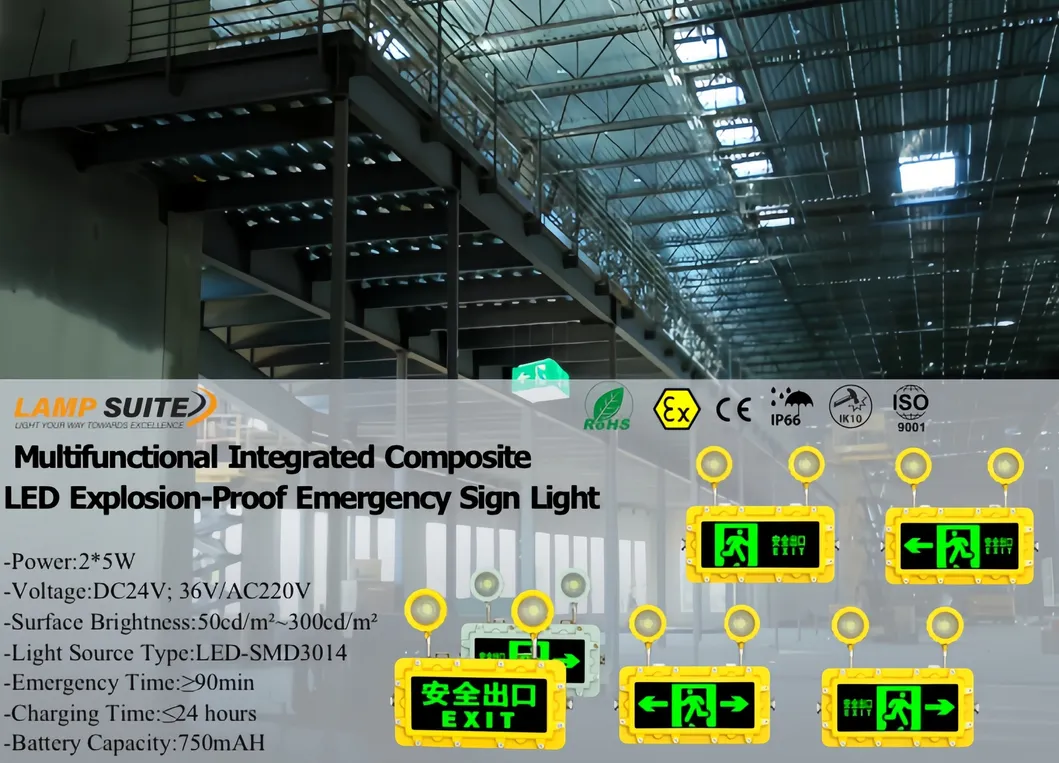

Explosion Proof Emergency Exit Sign
Basic Information
Model NO. BZD-ST Input Voltage DC24V; 36V/AC220V
Power 2*5W Color Temperature Warm White
Emitting Color Green Certification ATEX, CE, RoHS, ISO
Emergency Time ≥90min Charging Time ≤24 Hours
IP Rating IP66 N.W 4.8 Kg
Anti-Corrosion WF1/WF2 HS Code 85122010
Key Features
01/ Robust Construction Pure flameproof structure with high-strength aluminum alloy die-cast housing and 8-10mm tempered glass for superior impact resistance.
02/ Intelligent Emergency Automatically switches to battery mode during power failures, providing over 90 minutes of high-brightness evacuation lighting.
03/ High Protection IP66 rated with aging-resistant silicone gaskets and stainless steel fasteners to withstand harsh, corrosive environments.
Product Description

This multifunctional integrated composite LED explosion-proof emergency evacuation indicator light integrates modern lighting technology and a safe flameproof design. It utilizes high-strength composite materials to ensure reliable operation in flammable and explosive environments. Features a built-in high-efficiency LED source that automatically triggers during power outages for clear evacuation guidance.

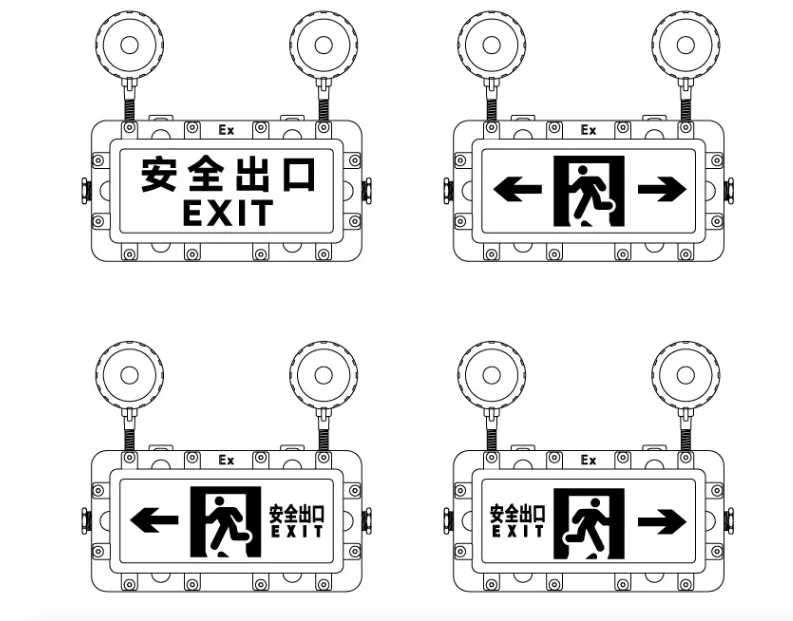

Indicator details

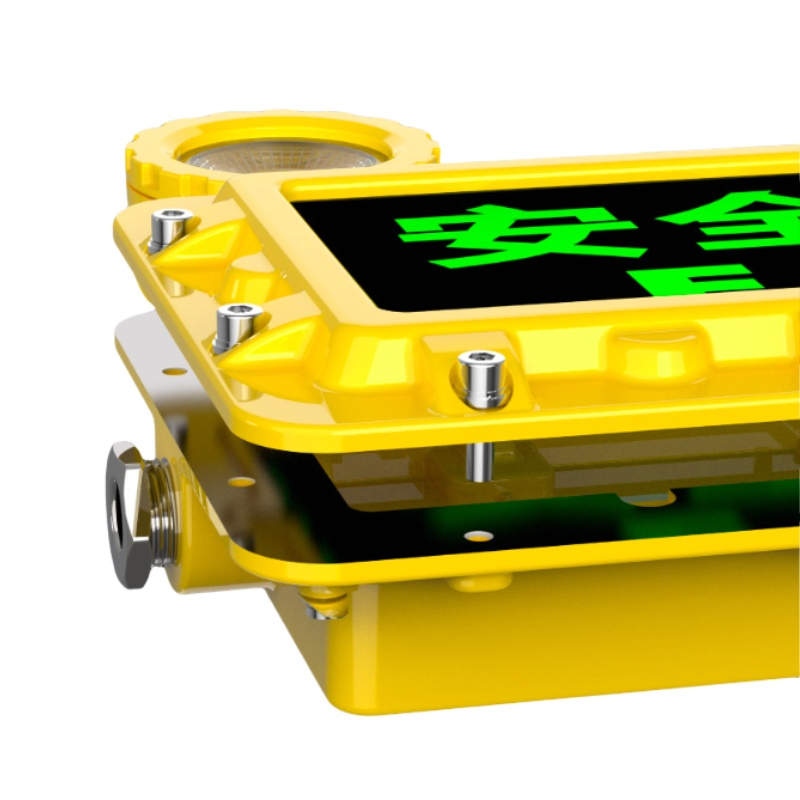

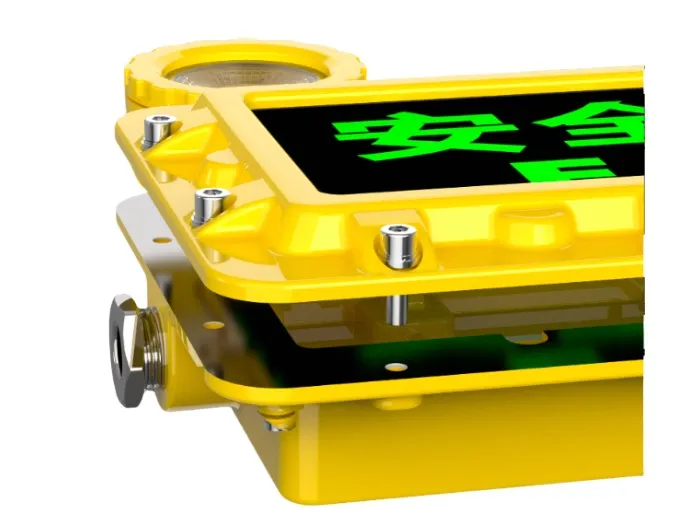

Housing structure

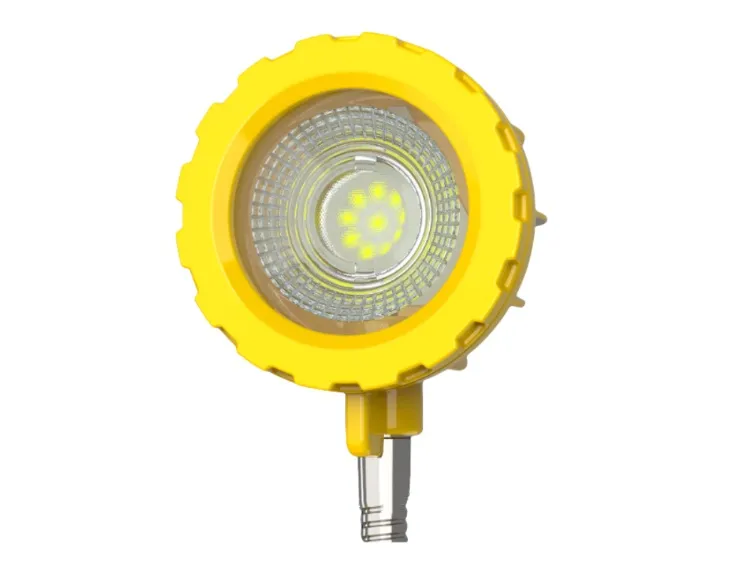

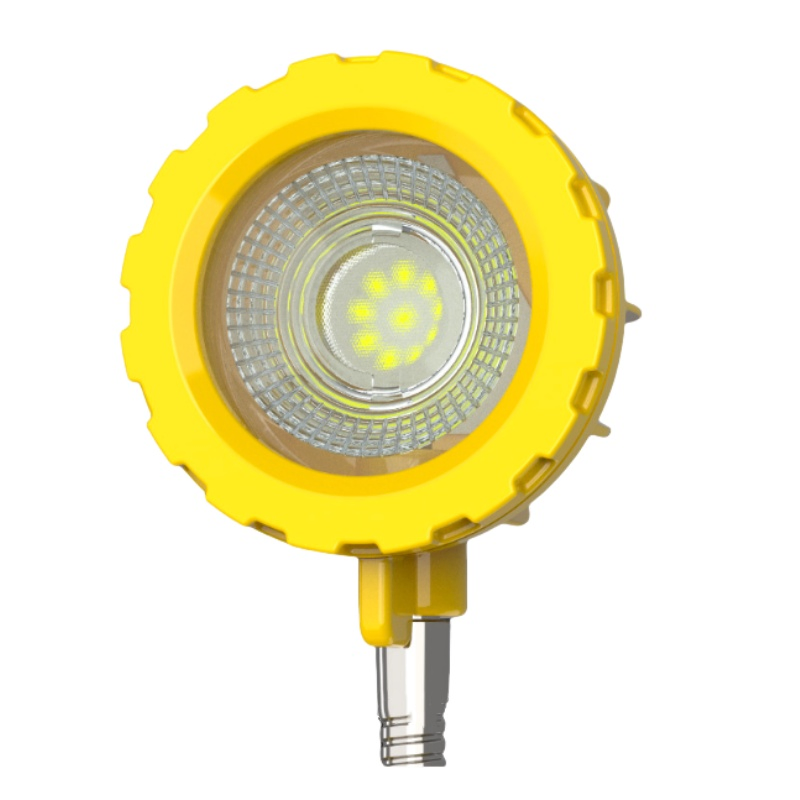

LED source

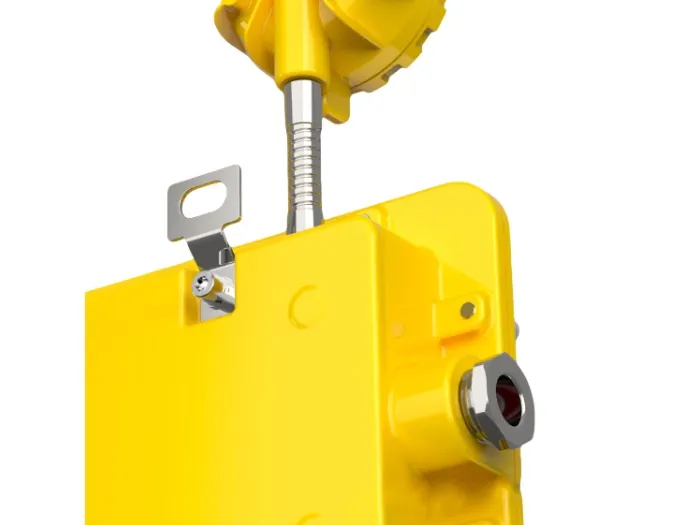

Stainless steel fasteners
Installation & Dimensions
Precautions

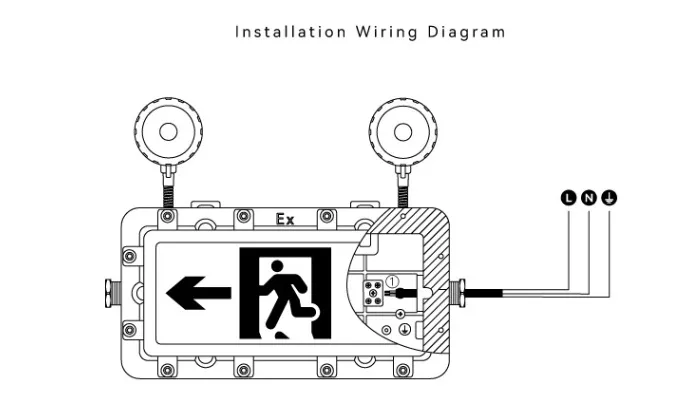

Wiring diagram
Installation Notes:
  • Dimensions: 355mm (W) x 330mm (H) x 65mm (T)
  • Wiring is non-polarized (no distinction between + and -).
  • Grounding must be secure and reliable.
  • Cover must not be opened while powered on in hazardous zones.
Applications
  • Oil & Gas Platforms & Offshore Drilling Rigs
  • Chemical Processing Plants & LNG Stations
  • Grain Silos & Flour Mills
  • Coal Mines & Tunnel Infrastructure
  • Hazardous Storage Warehouses
  • Zone 1 and Zone 2, Temperature Groups T1~T6
Application scene
Packaging & Shipping
Packaging
Frequently Asked Questions
What is the emergency duration of this exit light?
The lamp provides a minimum emergency discharge time of 90 minutes after the main power supply fails.
Is this light suitable for outdoor or wet environments?
Yes, it features an IP66 rating and aging-resistant silicone rubber gaskets, making it ideal for high humidity and outdoor hazardous areas.
Can the evacuation sign patterns be customized?
Yes, the display panel evacuation signs are available in various designs and can be customized to meet specific project requirements.
What certifications does this product hold?
This product is certified with ATEX, CE, RoHS, and ISO9001, ensuring compliance with international explosion-proof standards.
How is the quality of the light source guaranteed?
We use high-brightness LED-SMD3014 light sources which offer uniform light emission, low power consumption, and a long, maintenance-free service life.
What voltage options are available?
The standard input voltage options include DC24V, 36V, and AC220V to suit different industrial power infrastructures.
