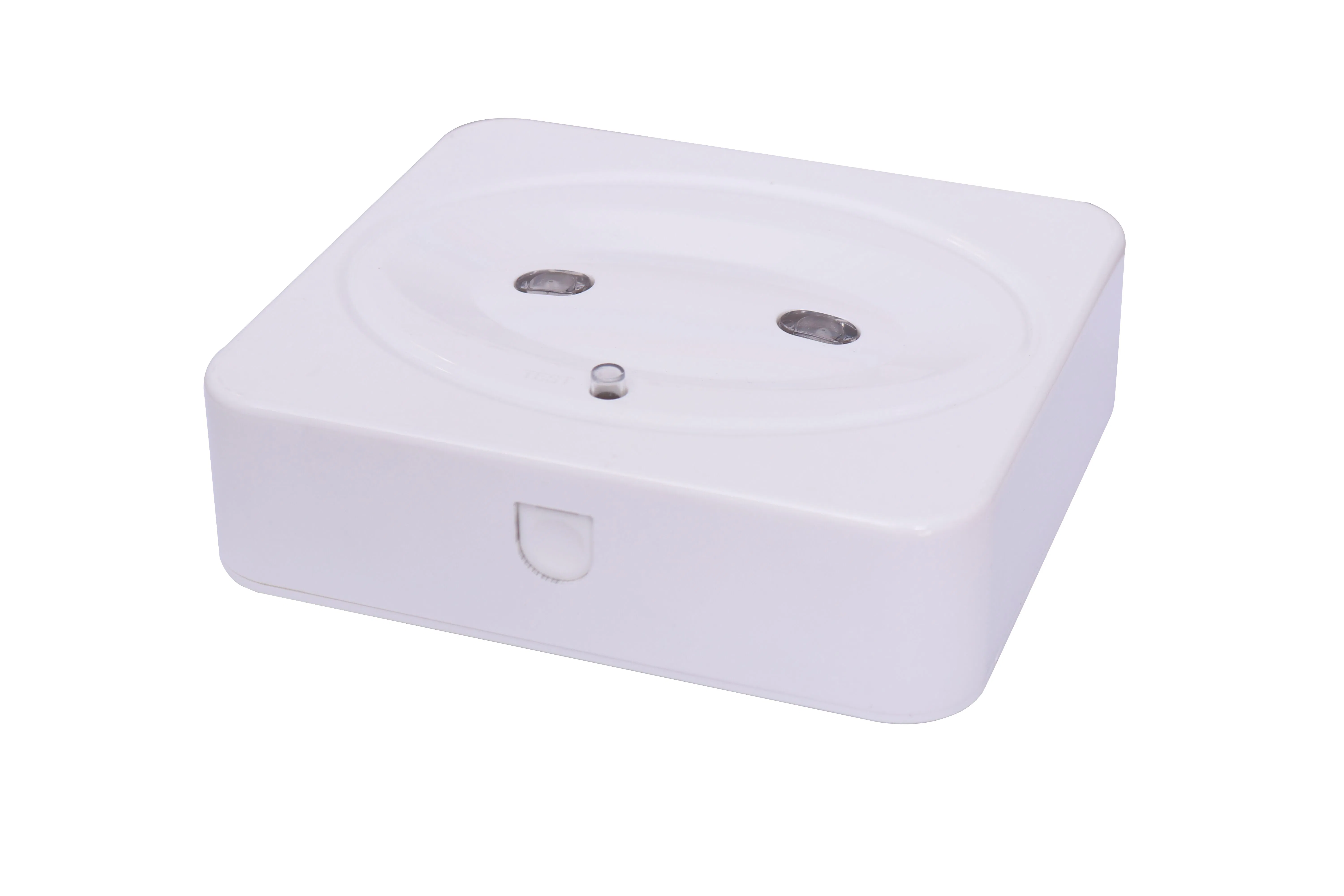

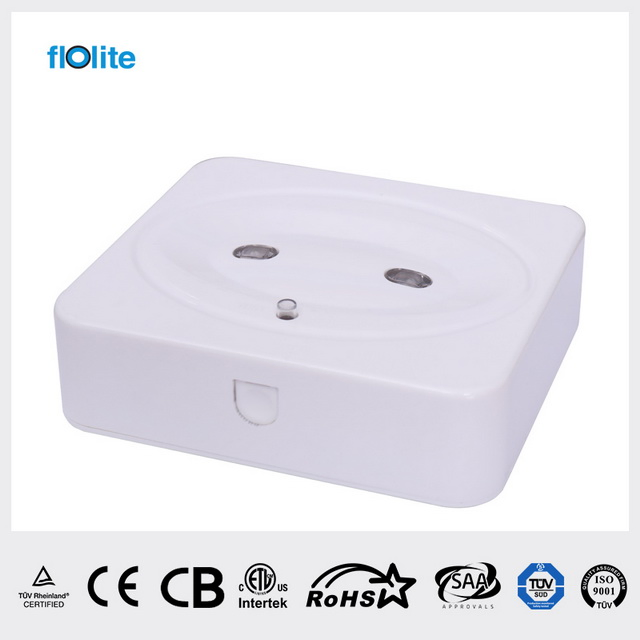

LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light
1 / 5
LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light
LED Backup Light, LED Emergency Surface Light

LED Backup Light, LED Emergency Surface Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
LEK03-6NC
Installation
Surface
Color Temp
Cool White
IP Rating
IP20
Operation Mode
Non-maintained
Battery Type
Ni-Cd Battery
Material
Aluminum
Certification
CE, RoHS, CB
Warranty
4 Years
Lumen
150lm
Charge Time
24hrs
HS Code
8504401400

Product Overview

CB Approved 2x3W LED Emergency light with Ni-Cd batteries 3Hours Backup

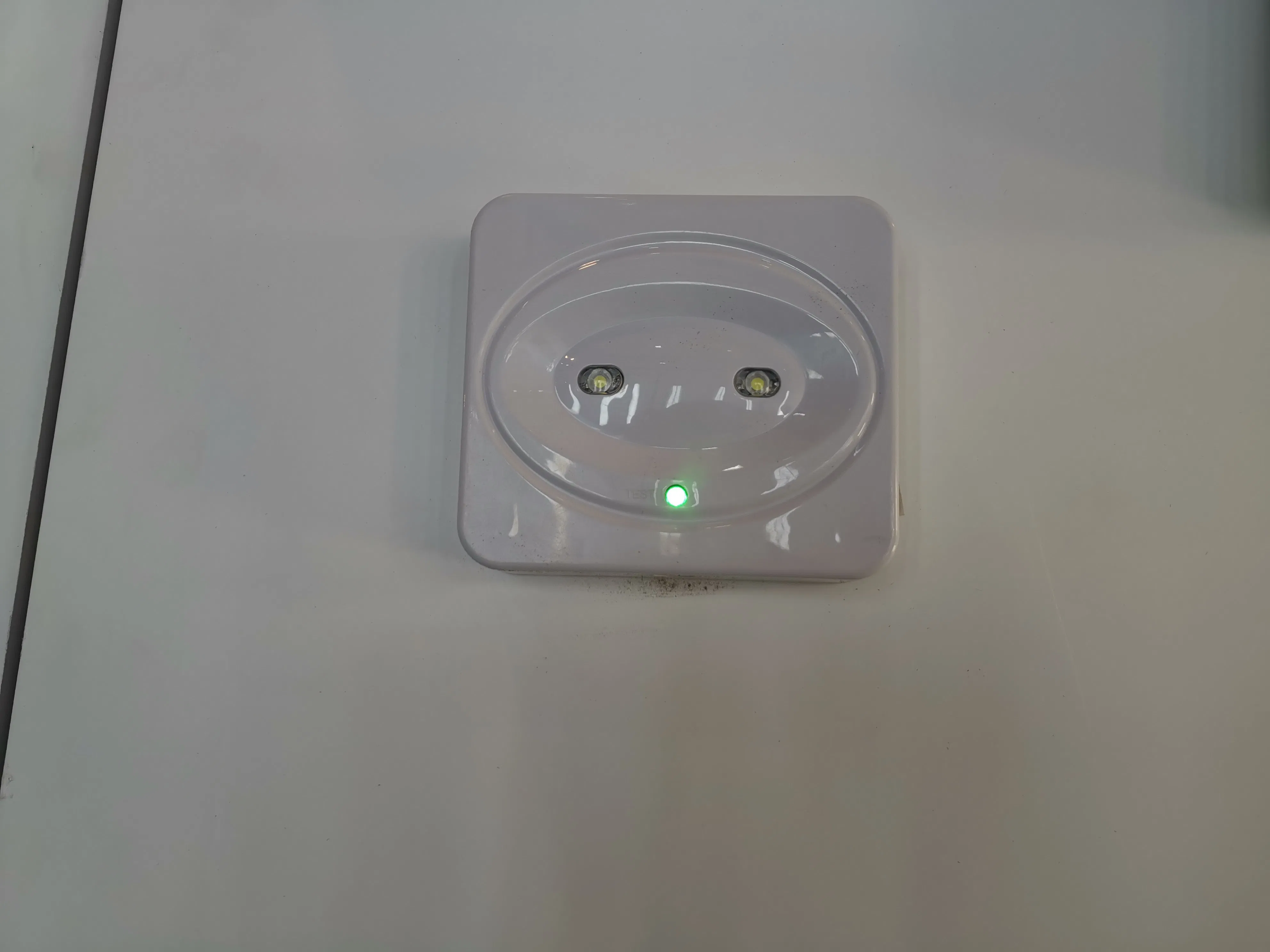

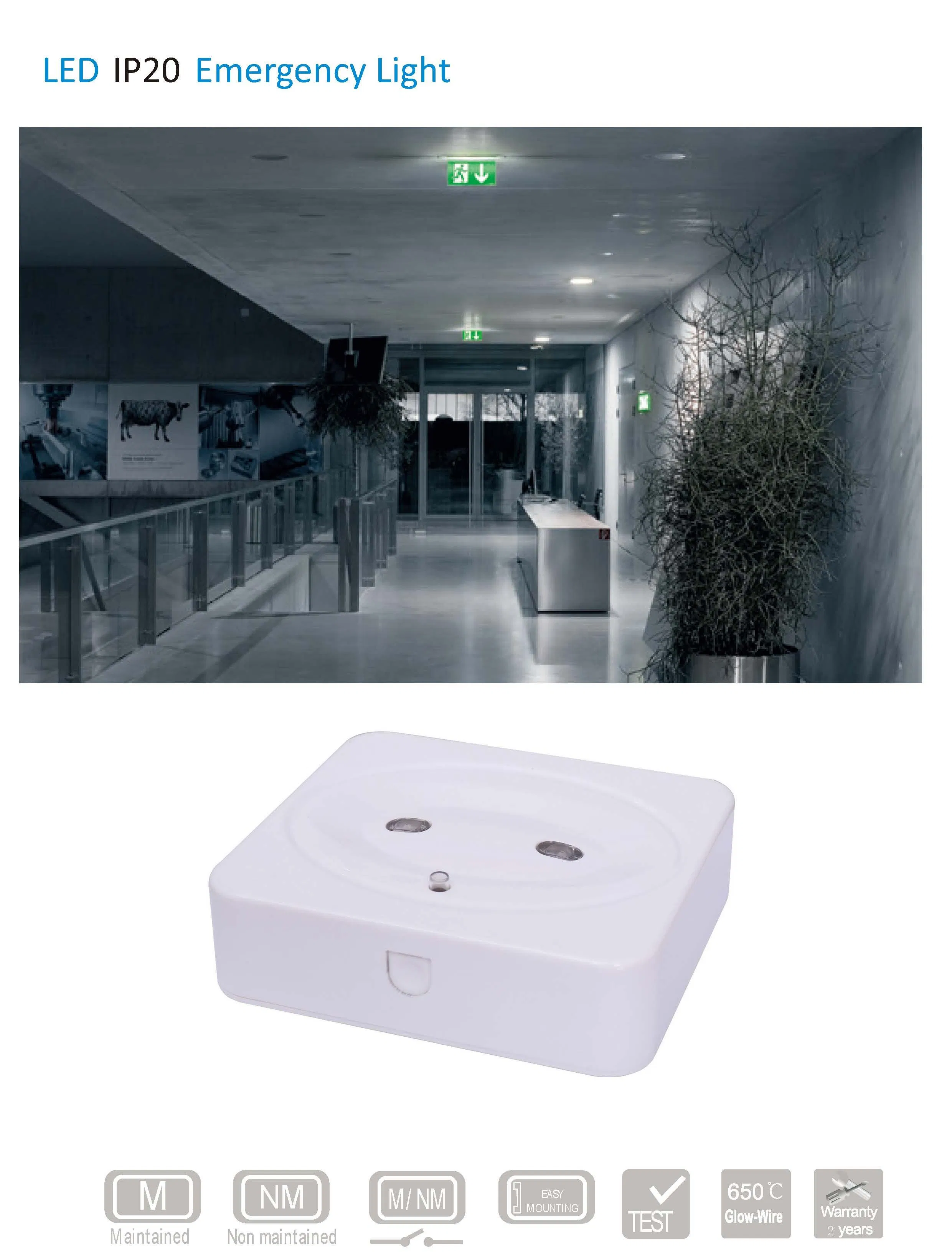

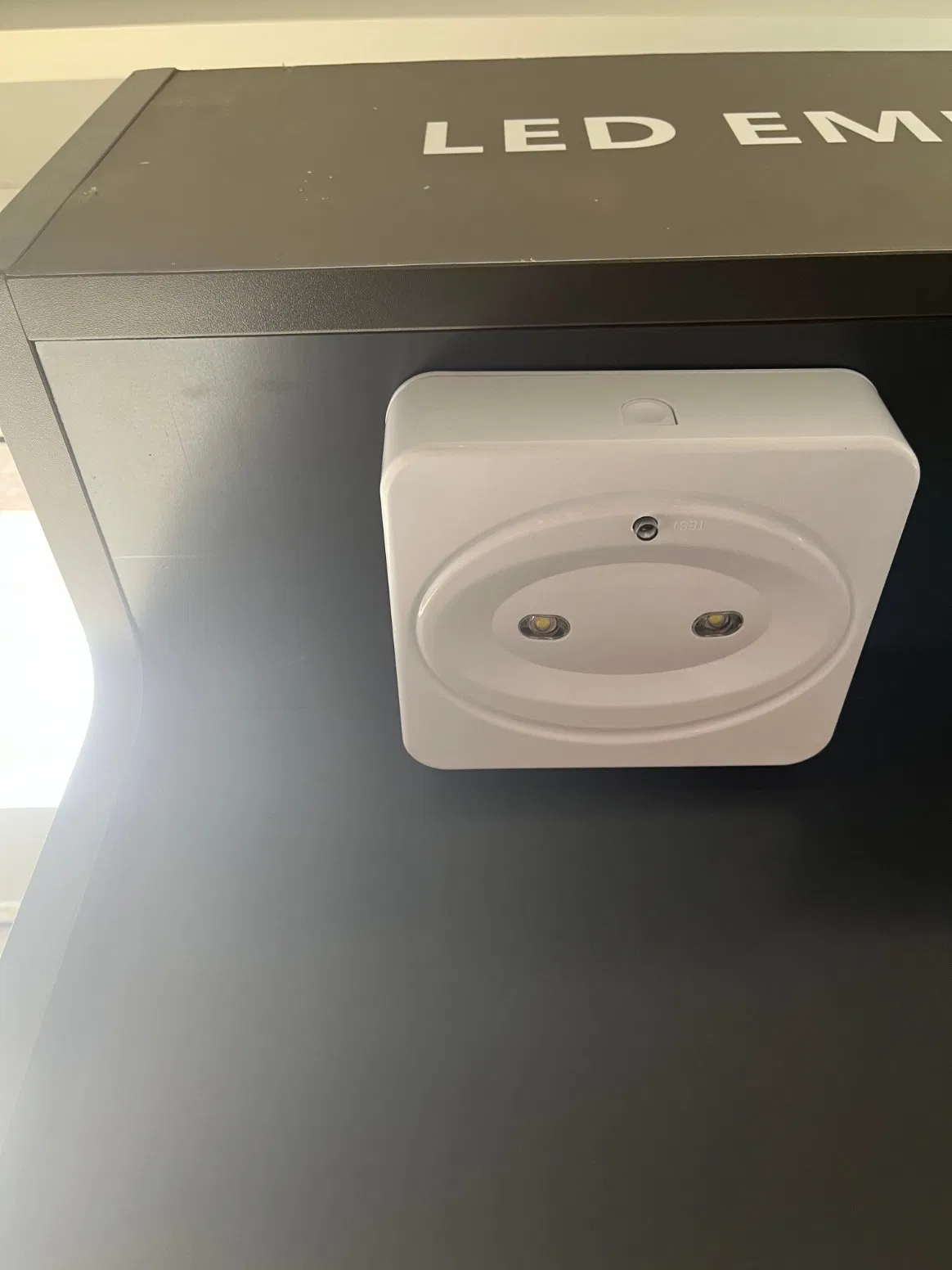

LED Emergency Light Main View

Relevant Standards

EN 60598-1EN 61000-3-2IEC 60598-1IEC61000-3-2
EN 60598-2-22EN 61000-3-3IEC 60598-2-22IEC 61000-3-3
EN 61347-1EN 62471IEC 61347-1IEC 62471
EN 61347-2-13EN 62493IEC 61347-2-13IEC 62493

Product Parameters

Battery: Ni-Cd, 3.6V 2000mAh LED Chips: Cree xt-e
Power Consumption: 2x3W Input Voltage: AC220-240V~50/60Hz
Emergency Duration: 3Hours Protection Class: II

Operation & Installation

Maintained and Non-Maintained Function

  • Maintained: Assemble wire connector
  • Non-Maintained: Disassemble the wire connector

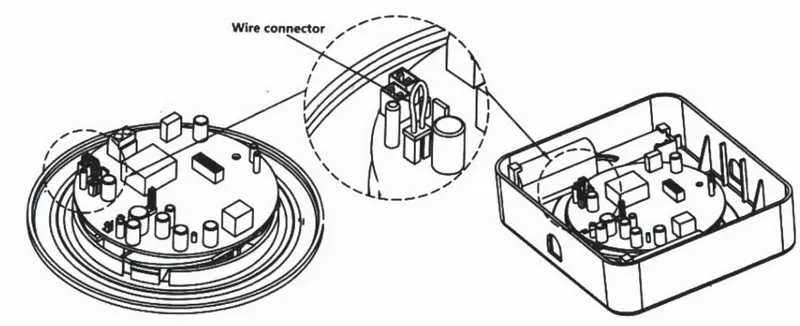

Wiring Diagram

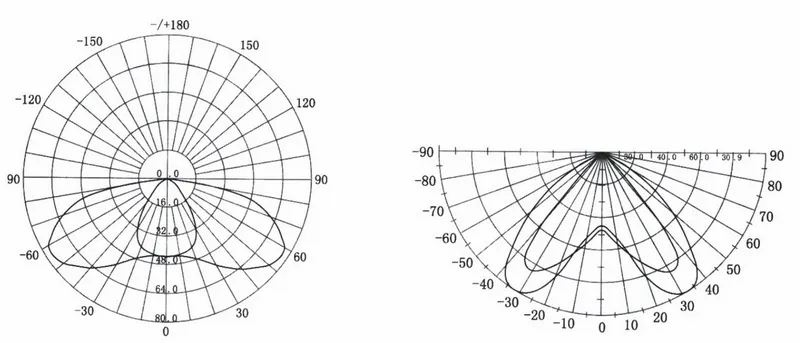

Photometrics

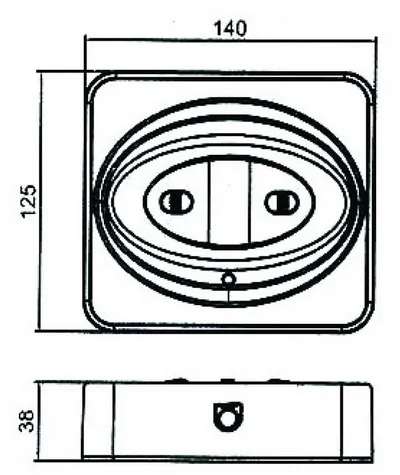

Dimensions

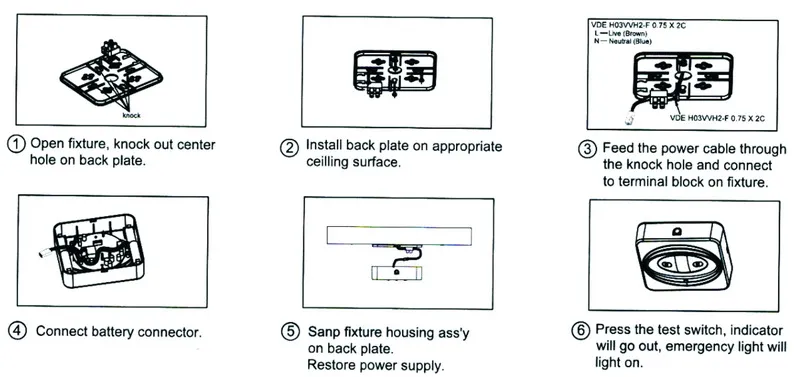

Installation Diagram

Special Notes:

  • Must be installed by a registered electrician.
  • Normal Operation: Green indicator stays on when healthy.
  • Auto Self Testing: Function tests every 7 days; Duration tests every 26 weeks.
  • Battery/LED: Light source and battery are not replaceable; replace whole luminaire at end of life.
Product Detail 1
Product Detail 2

Frequently Asked Questions

How long does the battery last in emergency mode?
The unit provides a rated emergency backup duration of 3 hours.
Can the LED light source be replaced?
No, the light source is not replaceable. When the LEDs reach their end of life, the entire luminaire should be replaced.
Does this unit support self-testing?
Yes, it features auto self-testing: function tests occur every 7 days and duration tests every 26 weeks.
What is the required charge time after installation?
The fixture must be charged for at least 24 hours after the initial installation to ensure full capacity.
What do the different operation modes mean?
It supports both Maintained (always on) and Non-Maintained (on only during power failure) modes, adjustable via the wire connector.
What is the IP rating of this product?
The product is rated IP20, making it suitable for indoor surface-mounted applications.
