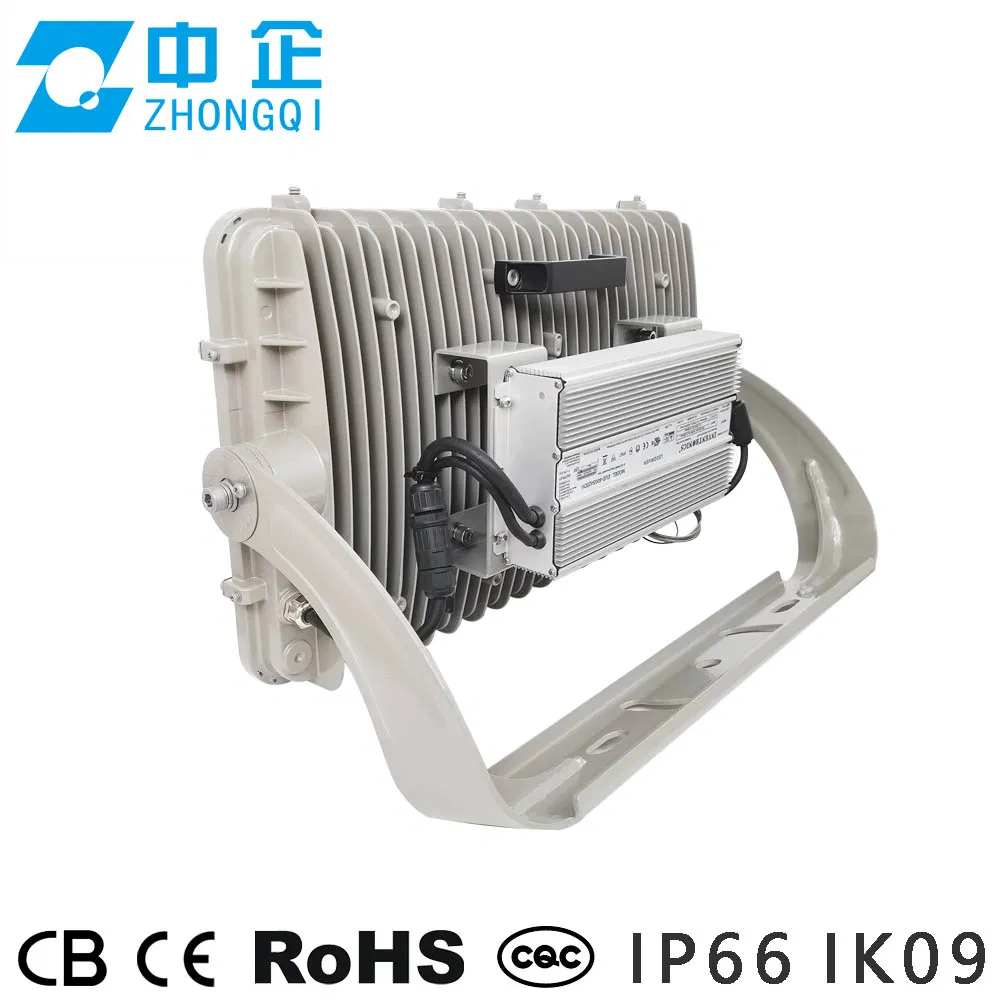

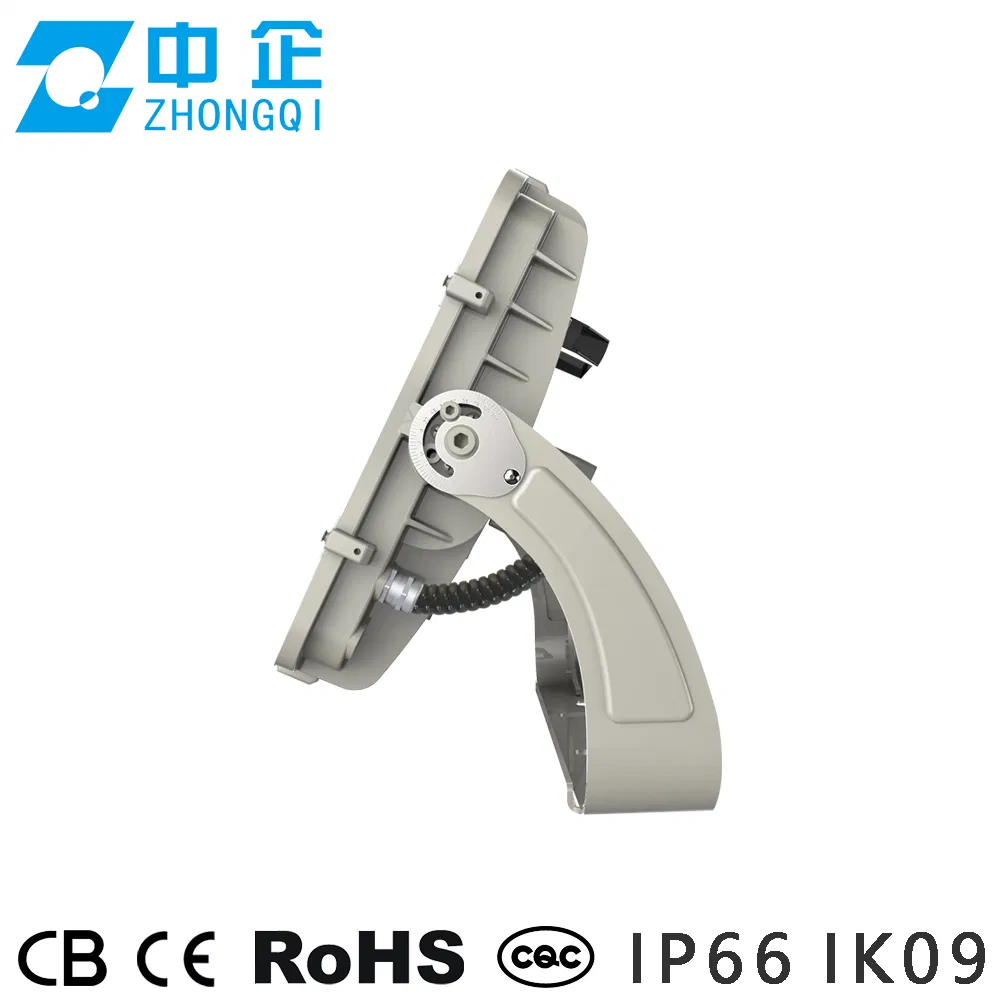

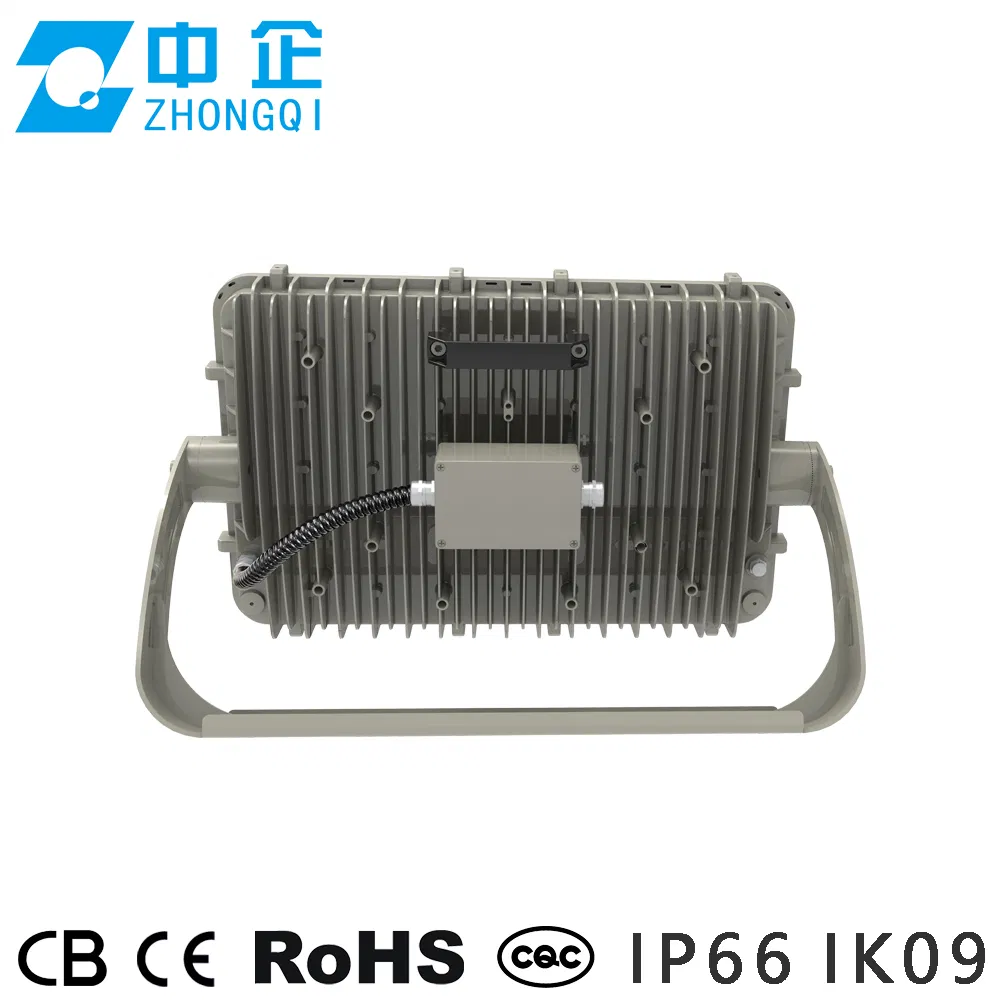

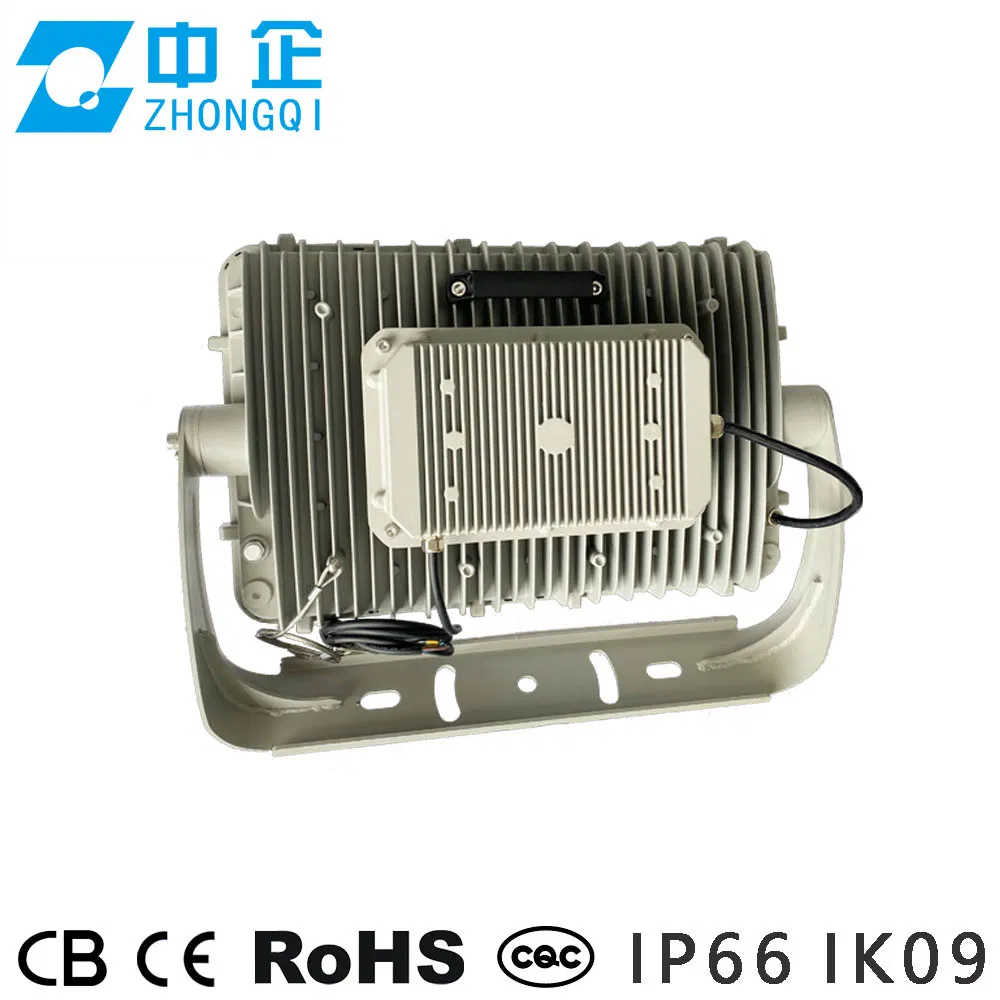

Offshore-Grade Corrosion Resistant 500W LED Light SS316 Stainless Body IP66 Ik09 5g Vibration Marine Light

1 / 5

Offshore-Grade Corrosion Resistant 500W LED Light SS316 Stainless Body IP66 Ik09 5g Vibration Marine Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specification

Model NO.:TYZQ-FD019L

Power:50-400W

IP Rating:IP66

Voltage:90-305V

LED Chips:Epistar

Material:Aluminum & Tempered Glass

Beam Angle:8° - 120° / Asymmetric

CRI:>70

★

Product Features

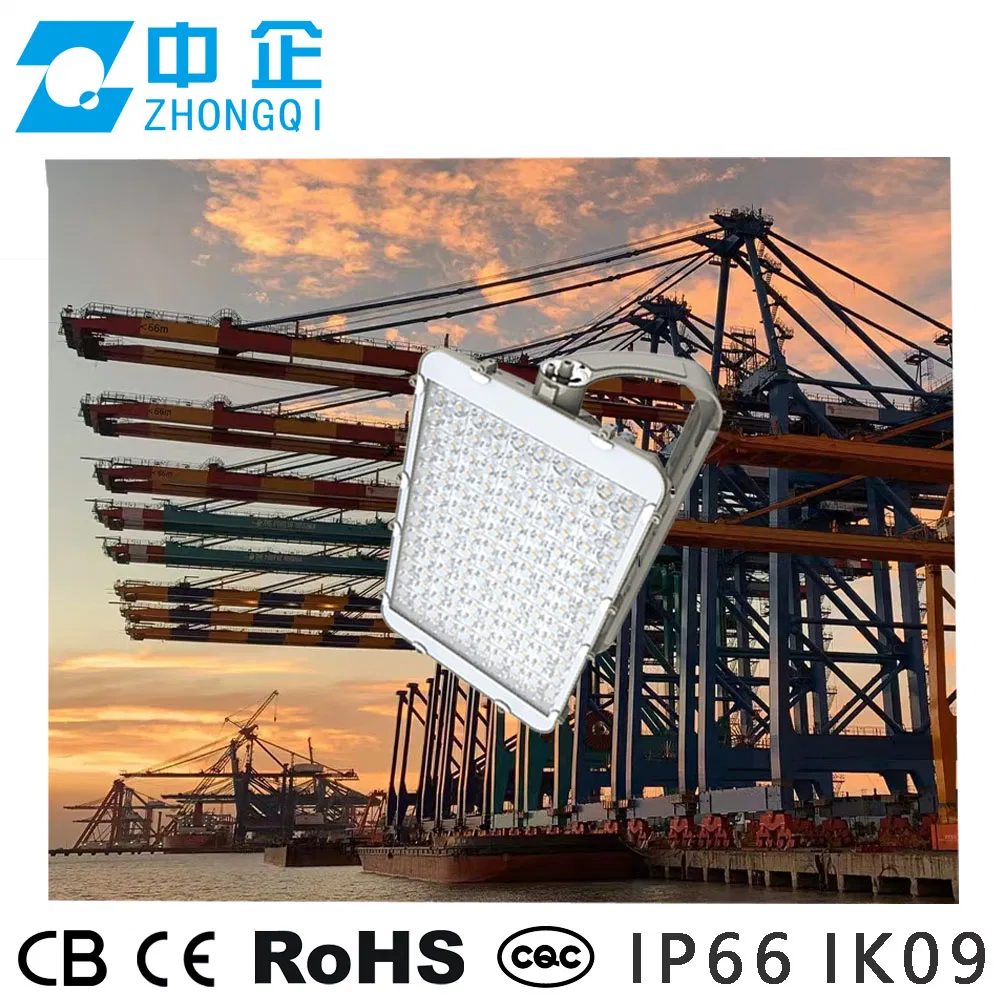

Designed for harsh environments with high vibration and salt fog (cranes, harbors, seaports).
5G vibration test approved (ANSI C136.31 & JIS C 60068-2-64).
1000 hours salt spray resistant, IP66 and IK09 certified.
Die-casting housing, power range from 100W to 1200W.
Multiple optic lens options: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric.
Tempered glass protection for PC lens against UV, moisture, and dust.
Separate IP66 driver chamber for superior heat dissipation and longer lifetime.
Standard 1-10V dimming; PWM, DALI, and Timer-modes available on request.

⚙

Technical Parameters

Model	Power (W)	Premium LPW	Standard LPW	N.W. (kg)	Product Size (mm)	Packaging Size (mm)
TYZQ-FD019	100W	150 lm/W	130 lm/W	7.10	346370152	430400220
TYZQ-FD019	150W	150 lm/W	130 lm/W	7.10	346370152	430400220
TYZQ-FD019	200W	150 lm/W	130 lm/W	7.30	346370152	430400220
TYZQ-FD019	300W	150 lm/W	130 lm/W	17.30	605408204	650525235
TYZQ-FD019	400W	150 lm/W	130 lm/W	17.40	605408204	650525275
TYZQ-FD019	600W	150 lm/W	130 lm/W	14.3+7.2	605408204	650540240
TYZQ-FD019	1200W	150 lm/W	130 lm/W	30+10.2	790653263	895695230

📷

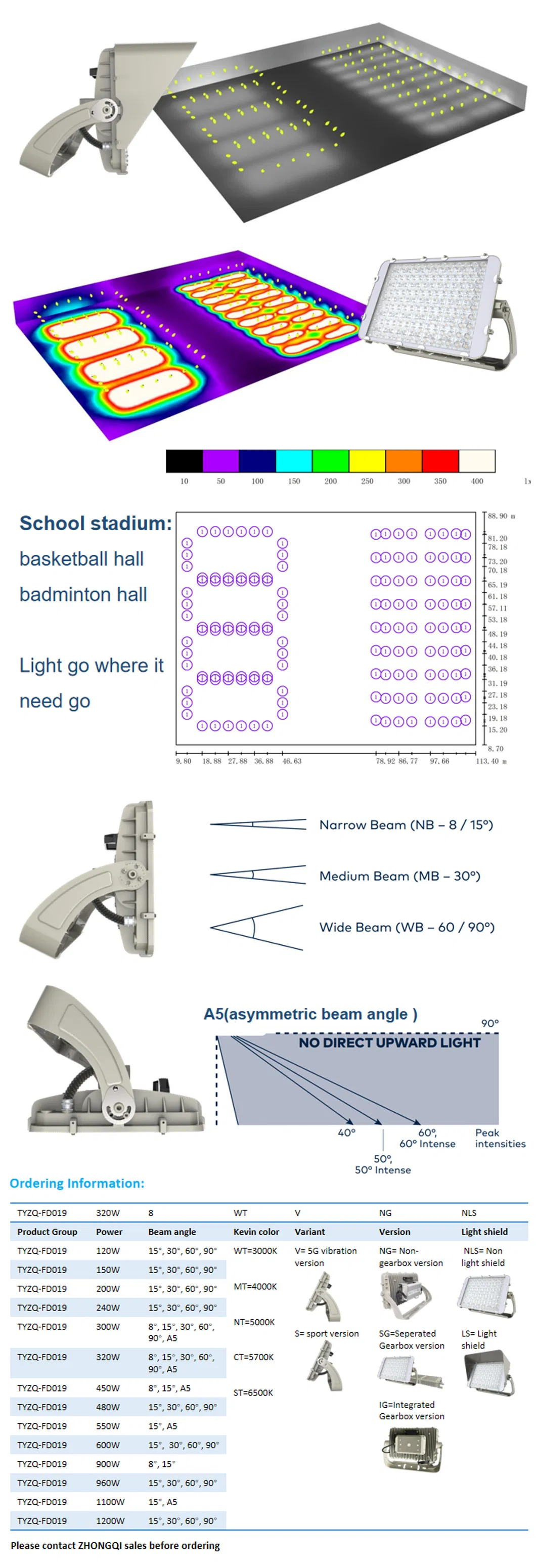

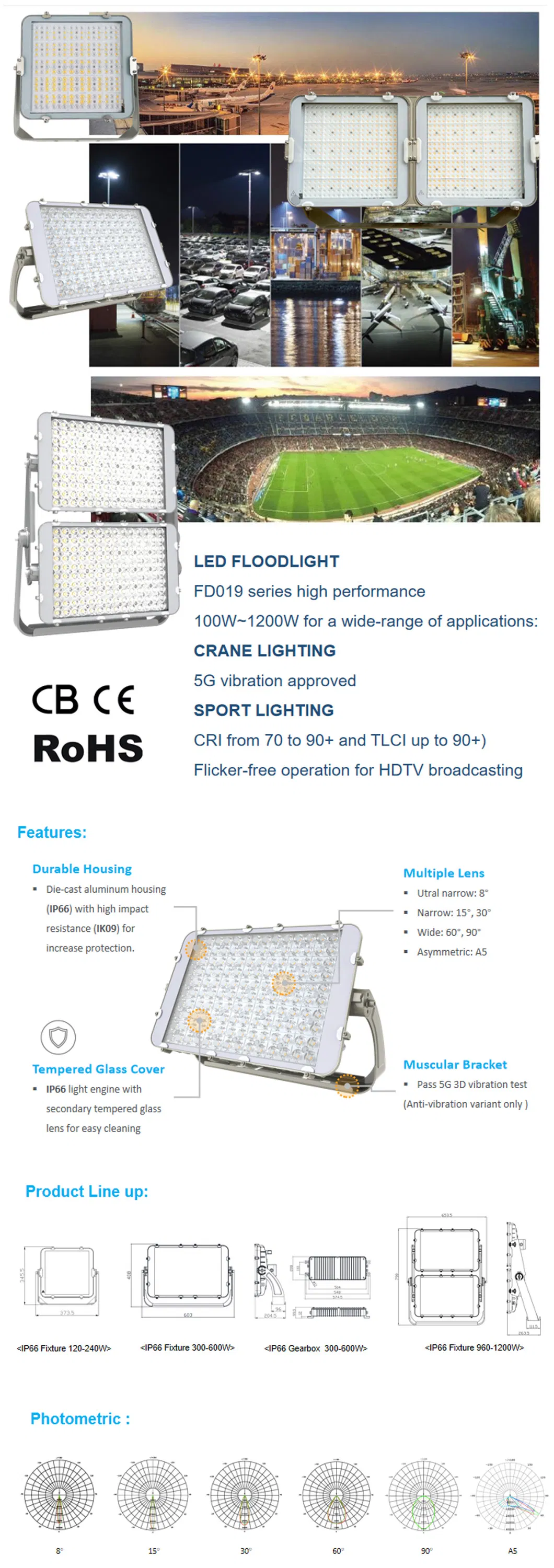

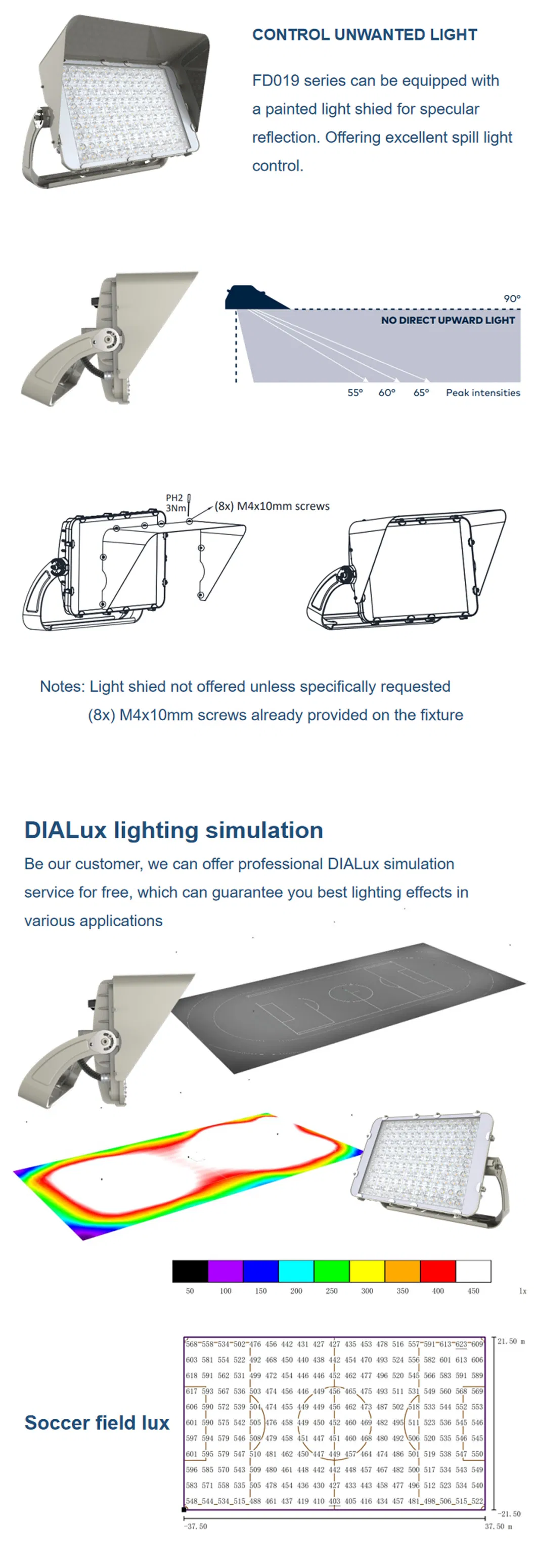

Product Applications

🔍

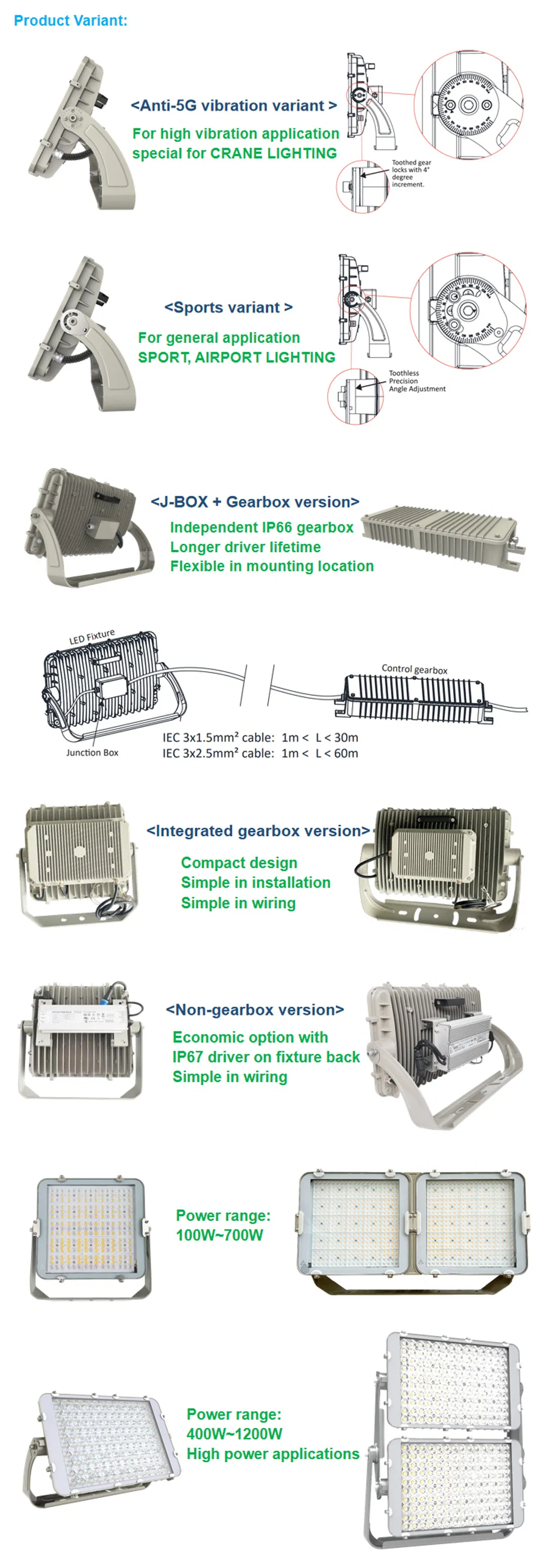

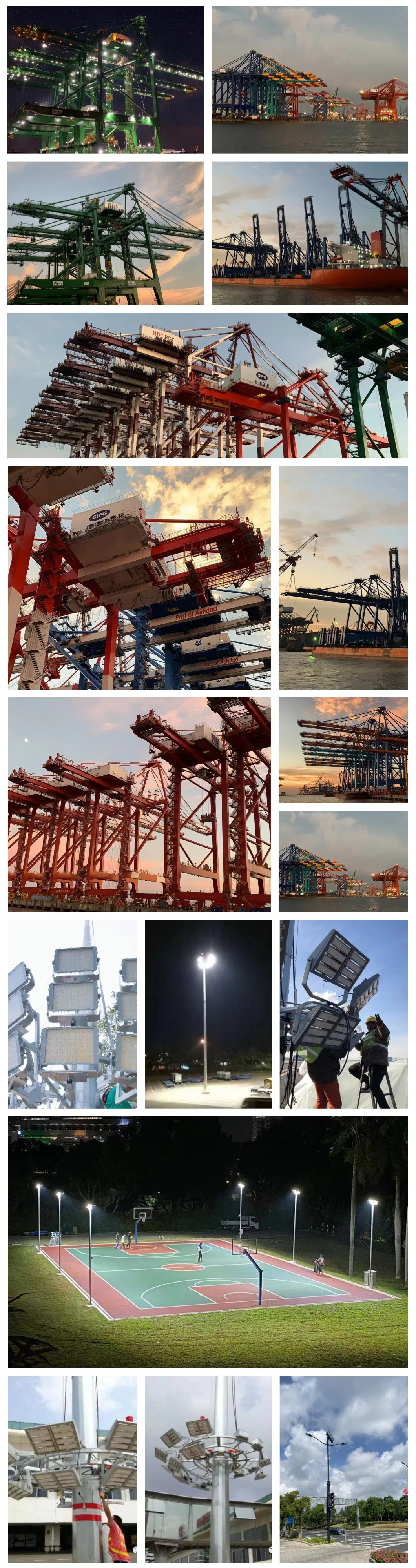

Product Details

🏭

Production & Logistics

Frequently Asked Questions

Q1: Can I have a sample before placing quantity orders? Yes, we welcome sample orders for testing and quality approval.

Q2: What is the typical lead time? Samples usually take 3-5 days, while bulk quantity orders take approximately 25-30 days.

Q3: Are ODM or OEM services accepted? Yes, we provide full ODM and OEM services to meet your specific requirements.

Q4: How long is the warranty for your lighting products? We offer a 2-5 year warranty depending on the product configuration.

Q5: What are your payment terms? Our standard terms are 30% TT deposit and 70% balance payment before shipment.

Q6: Is this light suitable for marine environments? Yes, the FD019 series is specifically designed for harsh environments, featuring 1000-hour salt spray resistance and 5G vibration approval.
