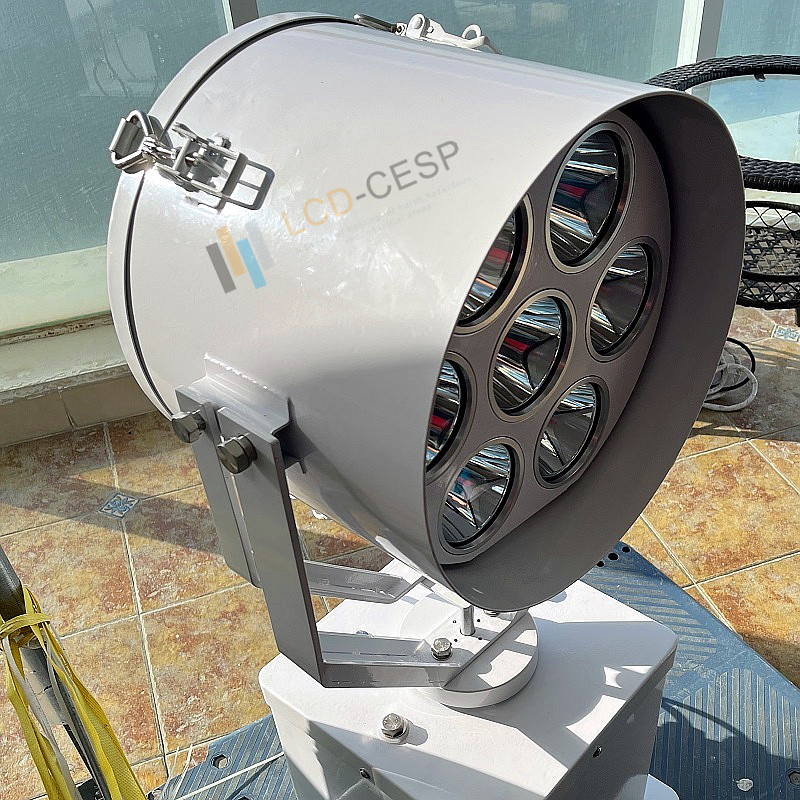

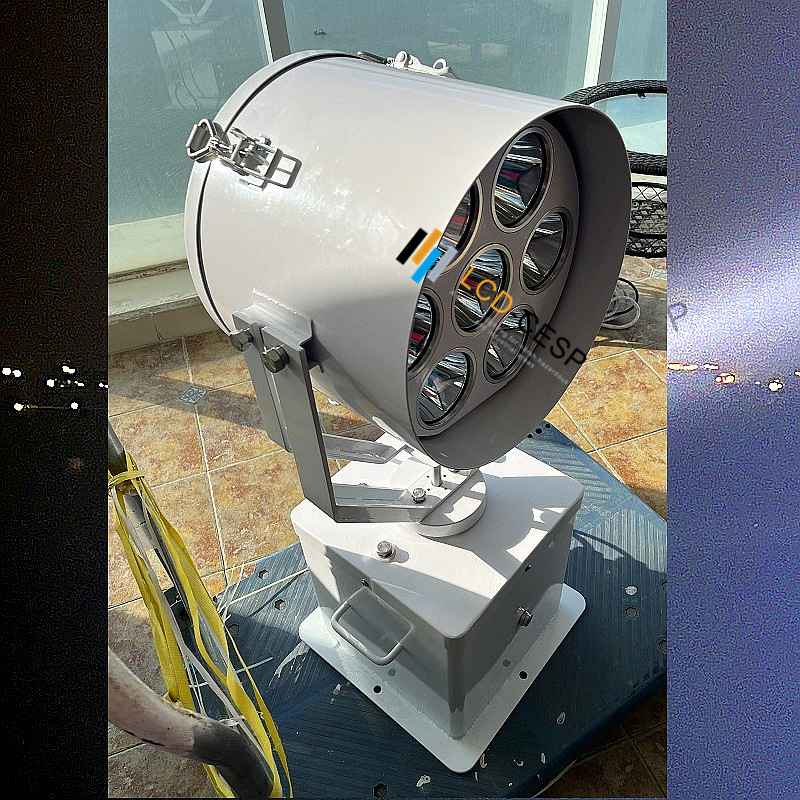

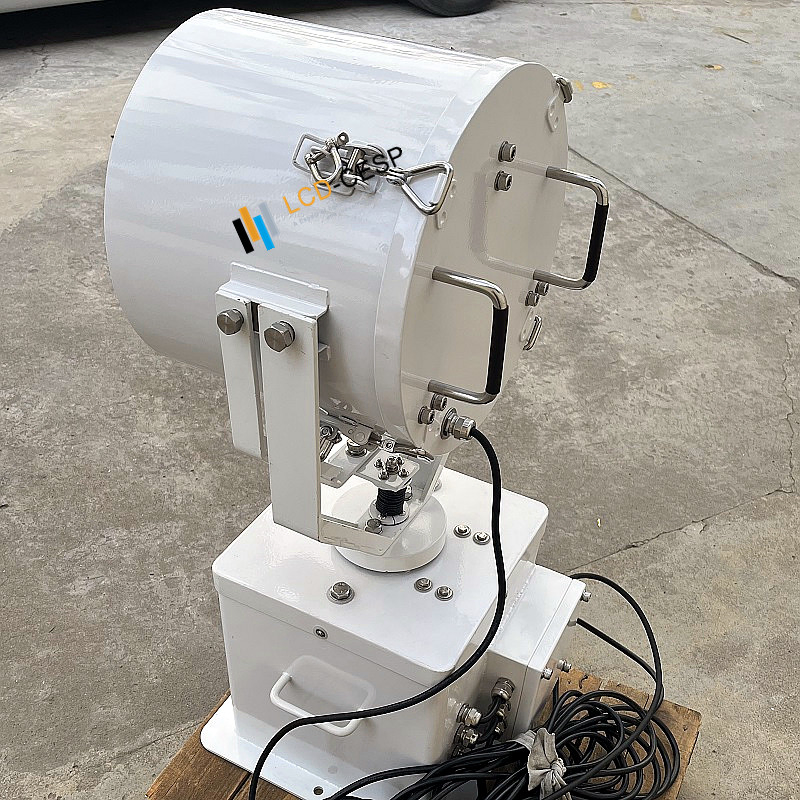

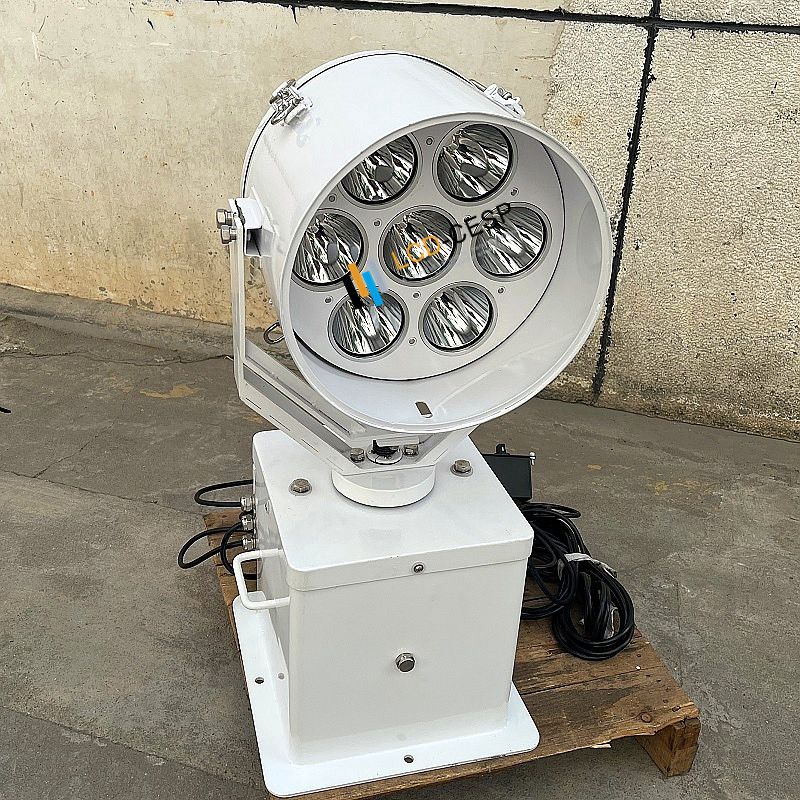

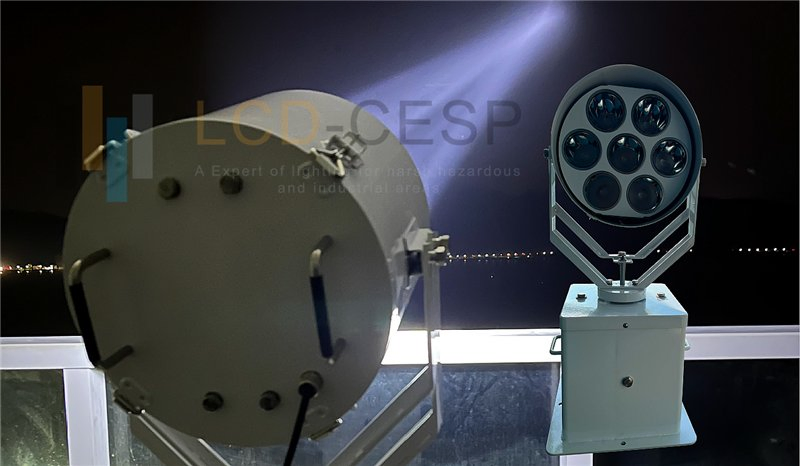

Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
1 / 5
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options
Corrosion-Resistant LED Marine Searchlight with Remote Control Options

Corrosion-Resistant LED Marine Searchlight with Remote Control Options

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO. S-XXM-LN2-65K Color Temperature Cool White (6500K)
IP Rating IP68 Light Intensity > 5,000 Lumens
Light Source High Power LED Power Range 80W - 350W
IK Rate IK09 / IK10 Lumen Output 70-150 lm/W
Marine Grade Anti-Salt Water Coating Illuminance Range Approx. 1000m - 6000m
Housing Material Stainless Steel + Pure Aluminum Certification CE, RoHs, TUV, SAA, CB, ETL
High Quality Searchlights

Advanced LED technology (80W-350W) serves as a superior replacement for traditional Halogen and Xenon lamps (1000W-5000W). These searchlights deliver powerful illumination with options for both wide and narrow beams, ensuring optimal visibility in the most demanding marine environments.

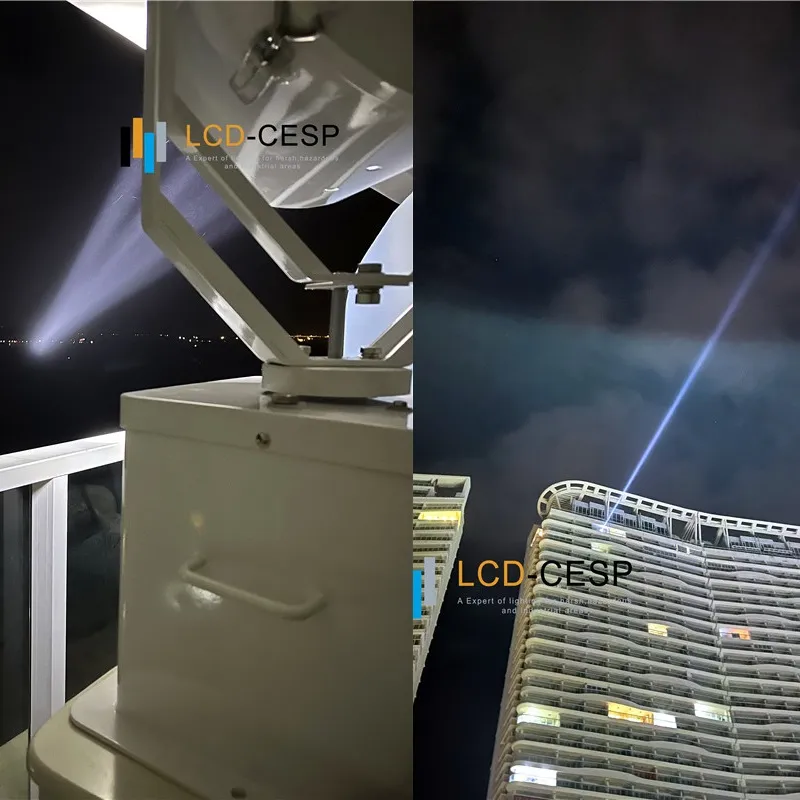

Marine Searchlight
Marine Driving Spotlight
  • Long-Range Visibility: Narrow 2° beam models provide extreme distance visibility up to 5000m, suitable for Arctic and harsh environments.
  • Efficiency: Lower energy consumption and operating costs compared to Xenon or Halogen.
  • Durability: Maintenance-free design with a long lifespan and compact installation.
  • Protection: Saltwater proof (IP67/IP68), high impact resistance (IK08-IK09), and vibration resistance (5-6G).
Product Specifications
Typical Models 4M-LN2 / 5M-LN2 / 7M-LN2 / 9M-LN2 / 12M-LN2
Module Count 4 / 5 / 7 / 9 / 12 modules available
Lumen Output 16,080 LM (Standard)
Beam Angle 2.5° Precise Optics
Candlepower 3,673,851 cd
Operating Temp -30°C to +50°C
Voltage Input AC100-277V (MD & MC); AC110V/220V (EC); DC 12V/24V/32V
Pan/Tilt Range Pan 0°~ 350°, Tilt -30°~ +30°

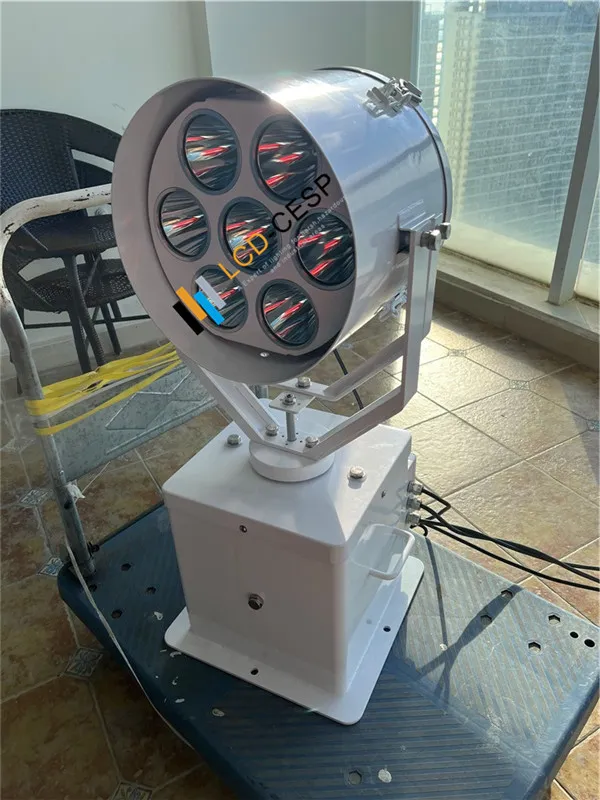

Searchlight Module Details

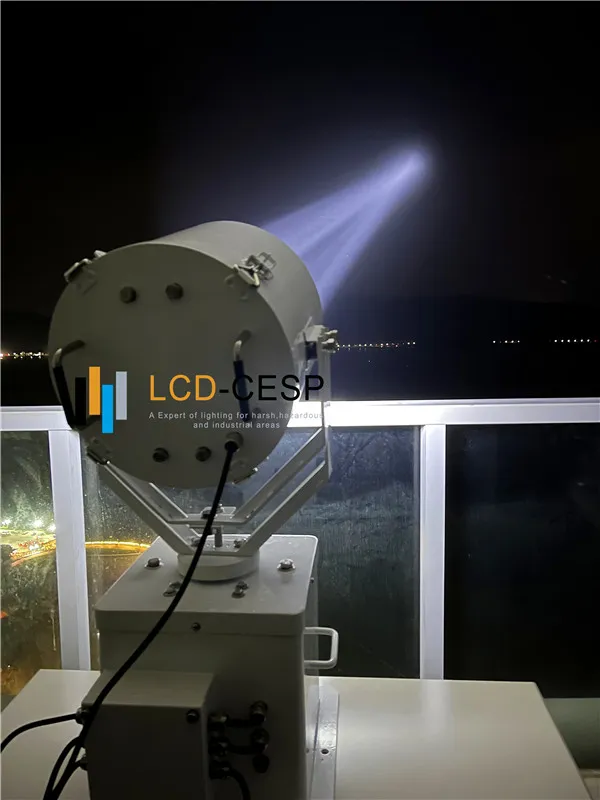

Searchlight Beam Performance

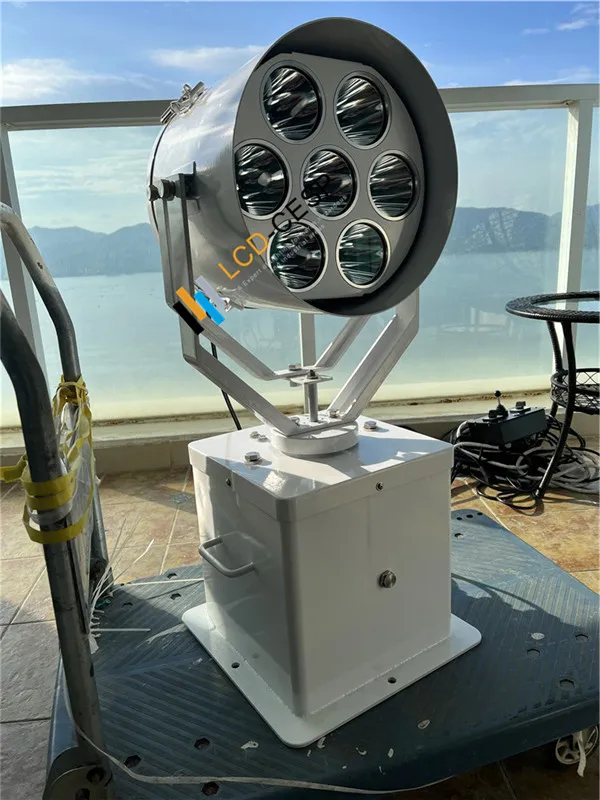

Marine Mounting Options

*Note: Illumination distances are measured under ideal conditions and may deteriorate in heavy smoke, fog, or smog.

Frequently Asked Questions
What is the maximum range of these LED searchlights?
Depending on the model and beam angle, these high-performance LED searchlights can reach a long-range illumination distance of up to 5000 to 6000 meters.
Are these searchlights suitable for saltwater environments?
Yes, they are specifically designed for marine use with IP68 waterproof ratings, anti-salt water coatings, and corrosion-resistant 1070 aluminum and stainless steel hardware.
How does LED compare to traditional Xenon or Halogen searchlights?
LED models (80W-350W) provide equivalent or superior brightness to 1000W-5000W traditional lamps while consuming significantly less power, offering longer lifespans, and requiring minimal maintenance.
What are the available beam angle options?
We offer wide beam models for close-range rescue operations (like man overboard) and ultra-narrow 2° to 2.5° beams for long-distance navigation and surveillance.
Can these searchlights withstand extreme weather conditions?
Absolutely. They are built with UV-resistant toughened glass and tested for high impact (IK09) and vibration (5-6G), operating effectively in temperatures from -30°C to +50°C.
What control methods are available for the Pan/Tilt function?
The searchlights support Manual (MD), Manual Cabin (MC), and Electric Remote Control (EC) mounting types, allowing for flexible operation based on vessel requirements.
