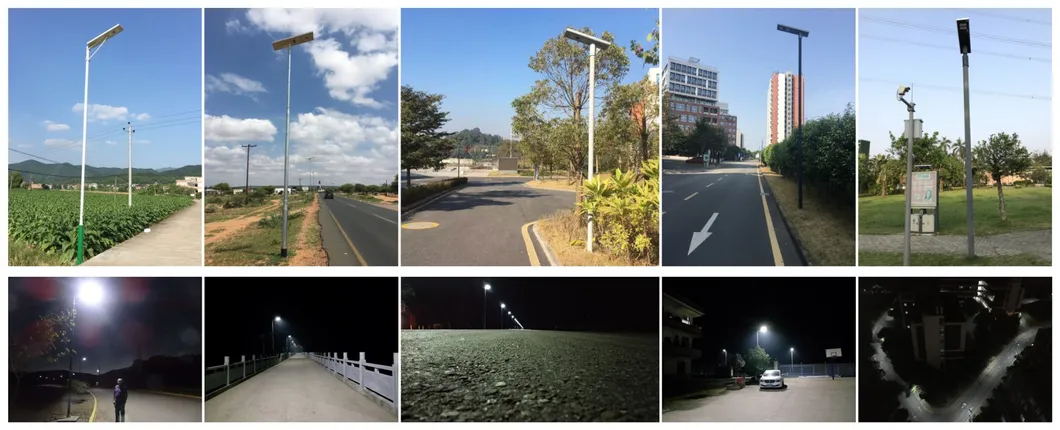

All in One / Integrated LED Solar Street Light
Integrated solar panel, LED, lithium battery, micro-controller and other accessories into one system, simple and stylish.
Combines light control system and time control system perfectly to ensure the whole system is more energy-efficient.
No power or cables required. Easy installation can be completed within 5 minutes.
Aluminum shell with scientific cooling holes and built-in aluminum blocks to support efficient heat management.
Light efficiency reaches 195 lm/w. Brighter output with expanded and uniform lighting areas at the same wattage.
Adopts LiFePO4 lithium battery with more than 8 years lifespan, offering longer reliability than MnNiCo alternatives.
| Category | Details (Model: ISSL-DLX-100C) | |
|---|---|---|
| Solar Panel | Power | 36V/160Wp (SUNPOWER, Efficiency: 22.5%) |
| Life-span | 25 years | |
| Battery | Capacity/Type | 25.6V/39AH (998.40WH) / LiFePO4 Lithium |
| Life-span | 8+ years (2,000 cycles) | |
| Controller | Type | MPPT / Waterproof IP68 |
| Sensor | Microwave Radar (PIR & Timing optional) | |
| LED Source | Rated Power | 24V/ 100W (20Wx5 modules) |
| Luminous Flux | 11000-13000lm (195lm/w) | |
| Viewing Angle | 140° | |
| Operation | Charge/Discharge | 6h Charge / >10h Bright Mode / >50h Dim Mode |
