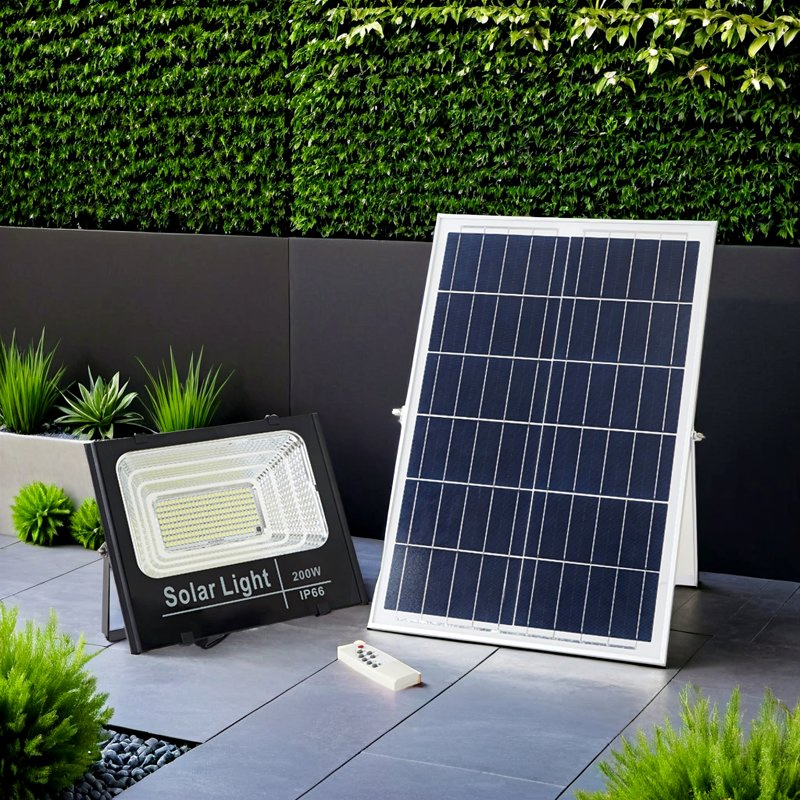

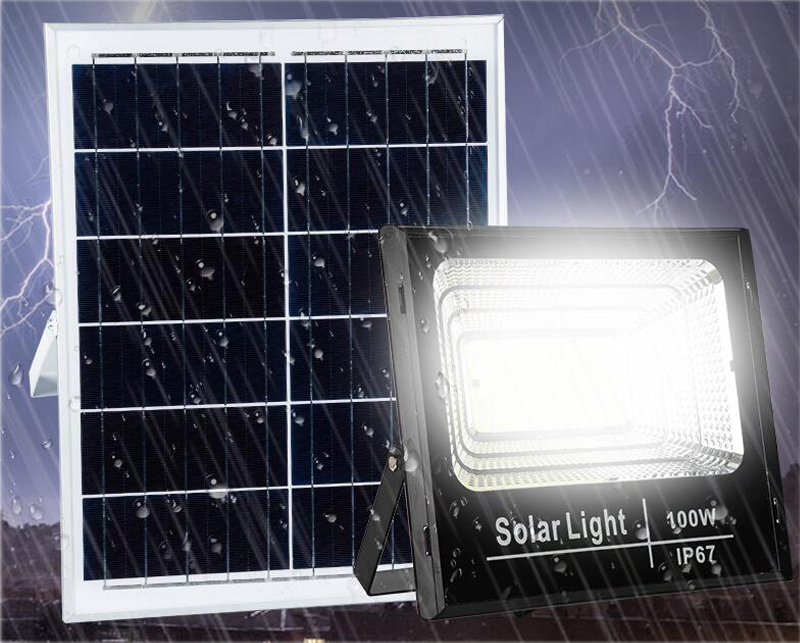

Energy Saving IP67 Outdoor Garden Security Projector 40W 60W 100W Billboard Reflector LED Flood Street Solar Light

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Product Information

Model NO.yc-fgd
Lamp Body MaterialPlastic / Die casting aluminum
Light TypeSolar
Color TemperatureCool White
Power50W-250W (Standard 40W)
Illumination Time12 Hours
Charging Time4-6 Hours
IP RatingIP65 / IP67
Battery TypeNi-MH / Lithium iron phosphate
LED Quantity147 PCS
Remote Distance10m
CertificationCE, RoHS

Product Description

Solar powered LED dusk to dawn floodlight is one of the most popular options for outdoor security. They are also effective for commercial locations and can be set to auto turn on at dusk and turn off at dawn, or controlled by remote.

Feature & Technical Parameters

Wattage Body Size (mm) Solar Panel Size LED Source Solar Panel Battery Emitting Area
25W 193*146*50 175*295 96pcs 6V/6W Polysilicon 5AH 40 Sqm
40W 225*180*50 235*350 147pcs 6V/8W Polysilicon 10AH 80 Sqm
60W 205*205*65 350*350*17 234pcs 6V/15W Polysilicon 12AH 100 Sqm
100W 300*245*75 450*350*17 394pcs 6V/20W Polysilicon 18AH 180 Sqm
200W 335*270*80 530*350*17 506pcs 6V/25W Polysilicon 24AH 200 Sqm

Detailed Specifications

1. Material: Die casting aluminum + tempering glass thickening aluminum
2. Function: Half / Full lighting modes
3. Control: Light control + Timer control

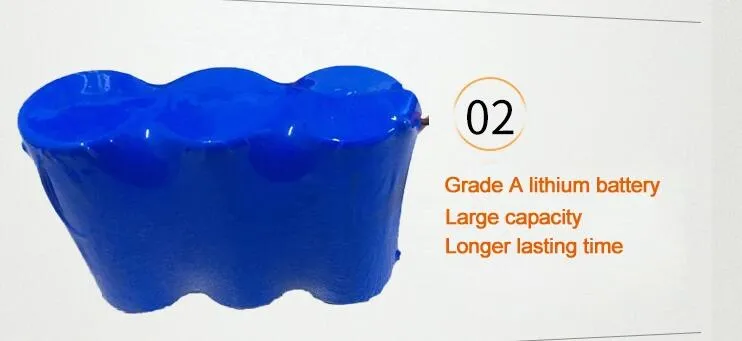

4. Battery: High-quality Lithium iron phosphate battery
5. Accessory: 5m waterproof cable + controller + Expansion screws
6. Lighting Time: 12 Hours
7. Charge Time: 5-6 Hours
8. Remote Distance: 10 Meters
9. Lumens: 100lm/W Efficiency
10. Waterproof: IP67 Rated
11. Warranty: 2 Years Warranty

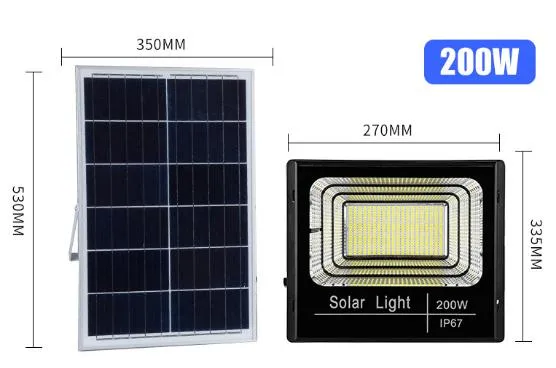

Size Drawing (200W Example)

Solar Flood Light Size Drawing

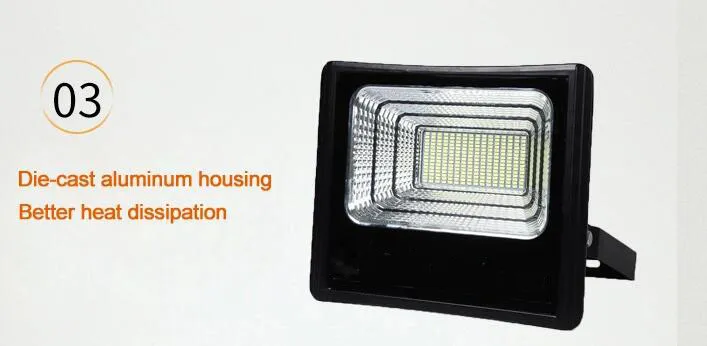

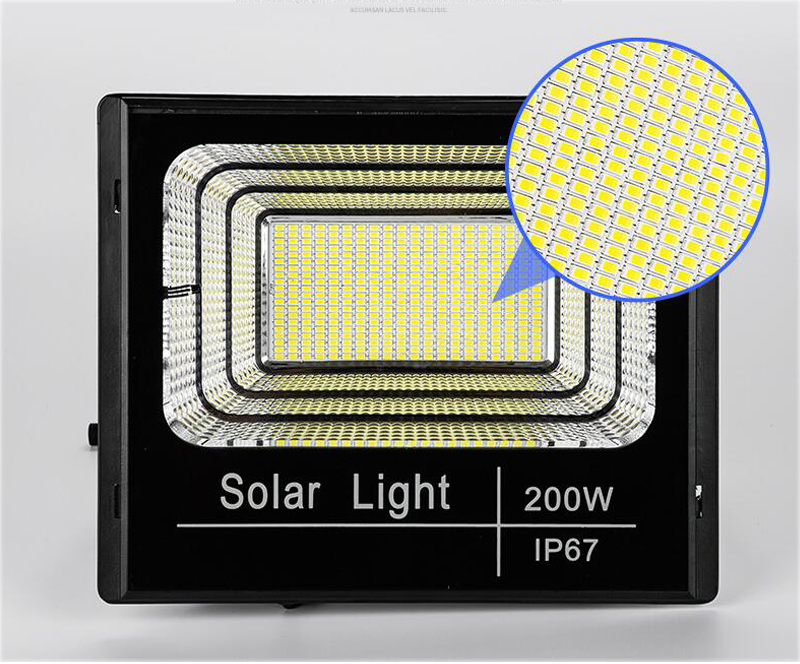

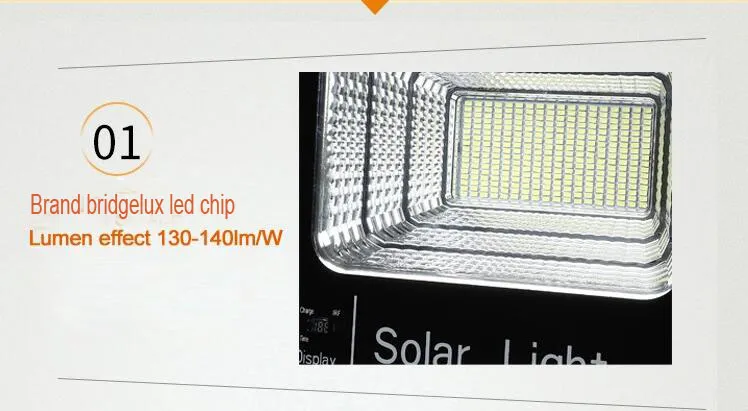

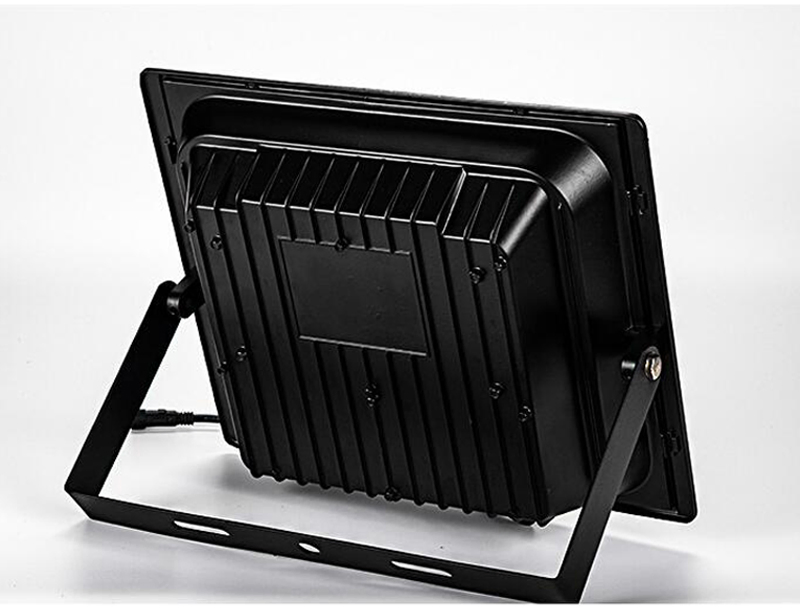

Product Detail Showcase

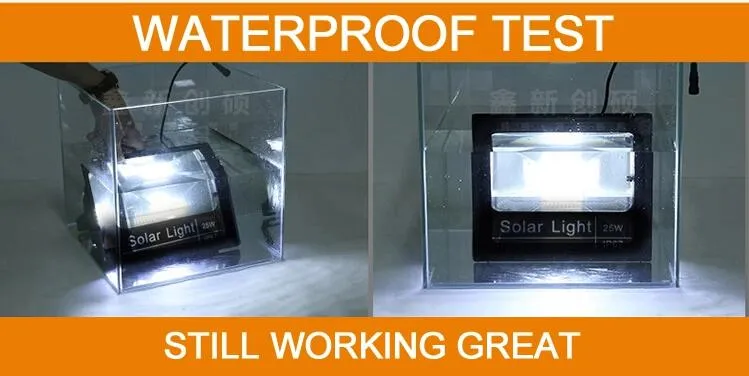

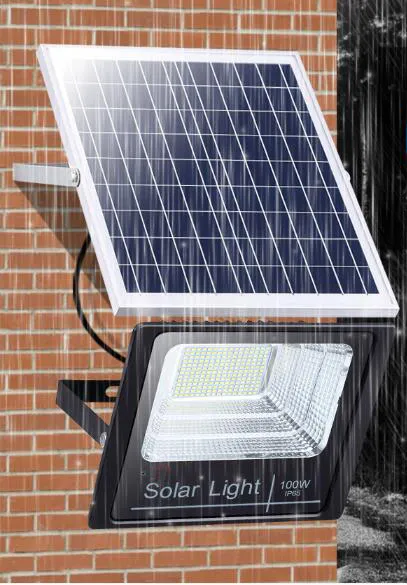

Waterproof & Outdoor Reliability

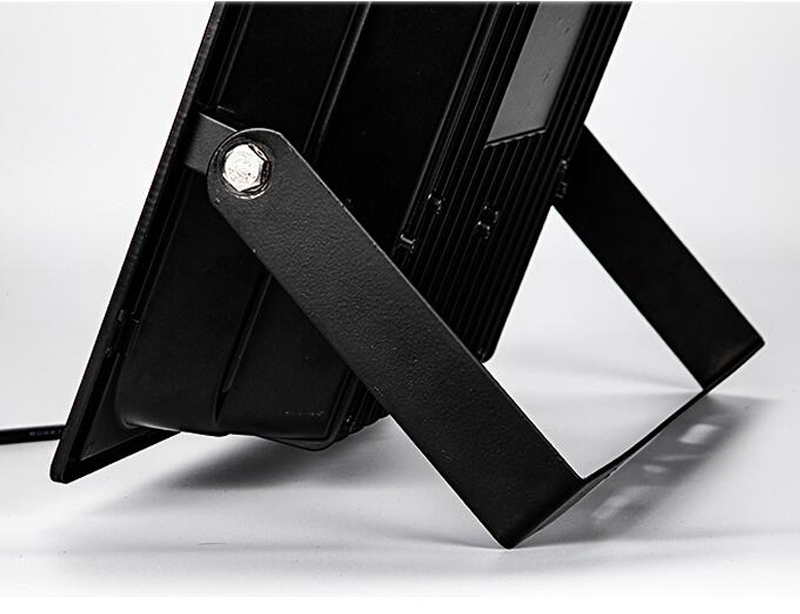

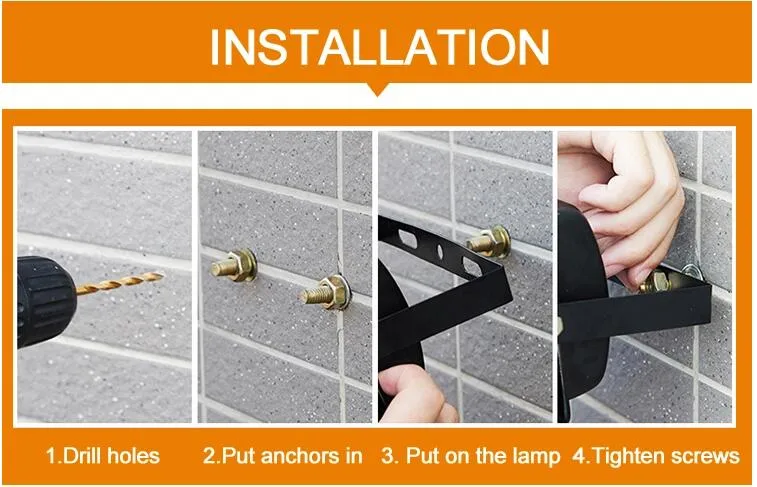

Installation Guide

Installation Steps

Application Areas

Widely used in outdoor environments, parking lots, billboards, sports fields (soccer fields, tennis courts, etc.), exterior lighting, amusement parks, airports, bridges, and tunnels.

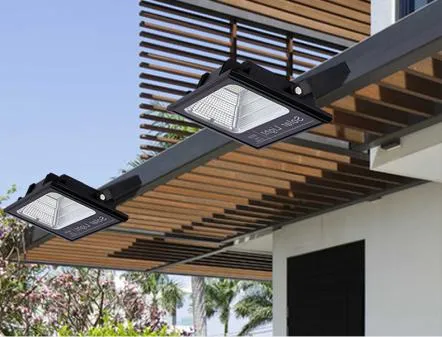

Product Application Case

Packaging & Delivery

Package Size52.00cm * 26.00cm * 15.00cm
Package Gross Weight2.500kg
Produce TimeSamples: 3-5 working days; Bulk: 7-10 working days
Delivery WayBy Sea & By FedEx
Payment Terms100% T/T, Western Union, or PayPal

Frequently Asked Questions

Q1: How long does the solar flood light stay on at night?
The lighting time is approximately 12 hours on a full charge, providing dusk-to-dawn security.
Q2: What is the charging time for the battery?
It typically takes 5-6 hours of direct sunlight to fully charge the high-capacity Lithium iron phosphate battery.
Q3: Is the floodlight truly waterproof for heavy rain?

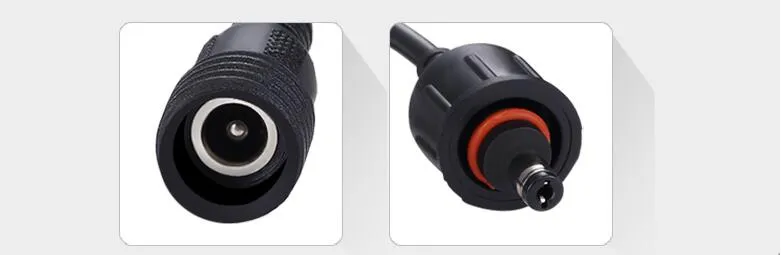

Yes, the product is IP67 rated, designed with precision waterproof wiring and a durable cast aluminum body to withstand harsh weather conditions.

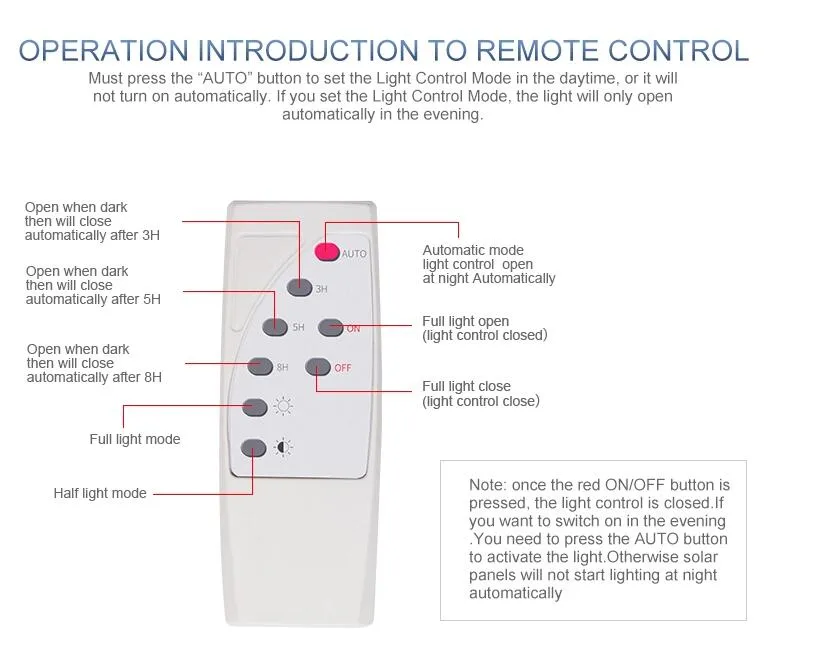

Q4: Can I control the light brightness or timing remotely?
Yes, the smart remote control allows you to adjust between half and full lighting modes and set timer functions from a distance of up to 10 meters.
Q5: What is the lifespan and warranty of this solar light?
The product comes with a 2-year warranty and utilizes Grade A lithium batteries and high-efficiency LEDs for long-term durability.
Q6: What is included in the package for installation?
The accessory kit includes a 5m waterproof cable, the remote controller, and expansion screws needed for mounting.
