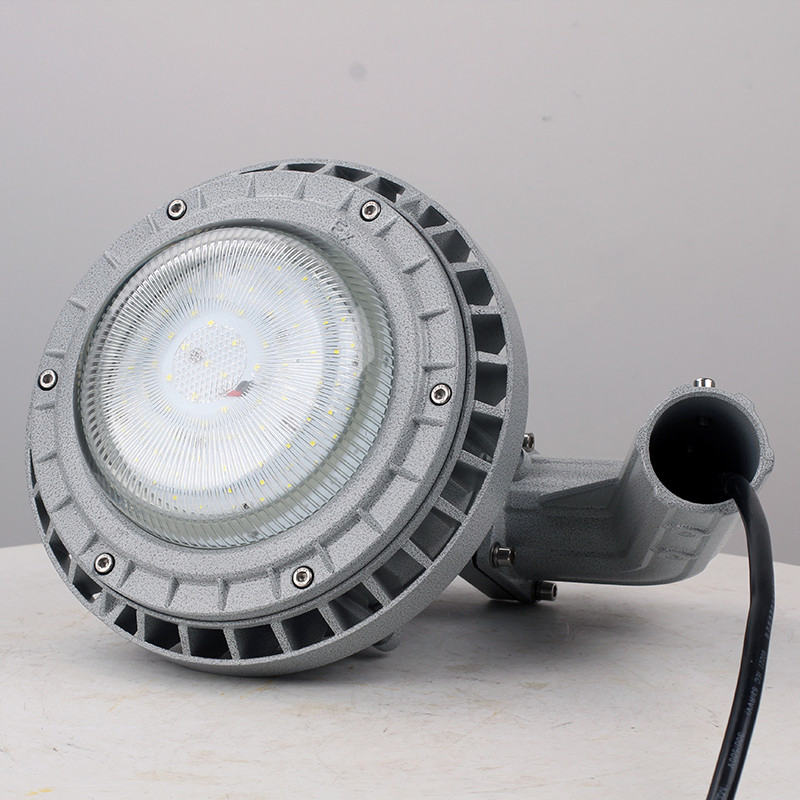

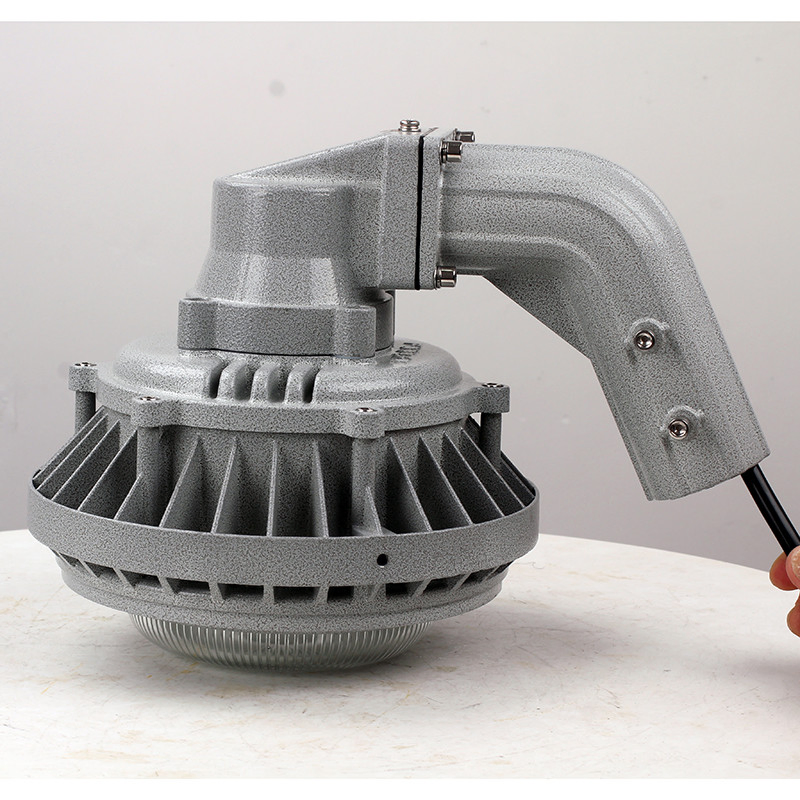

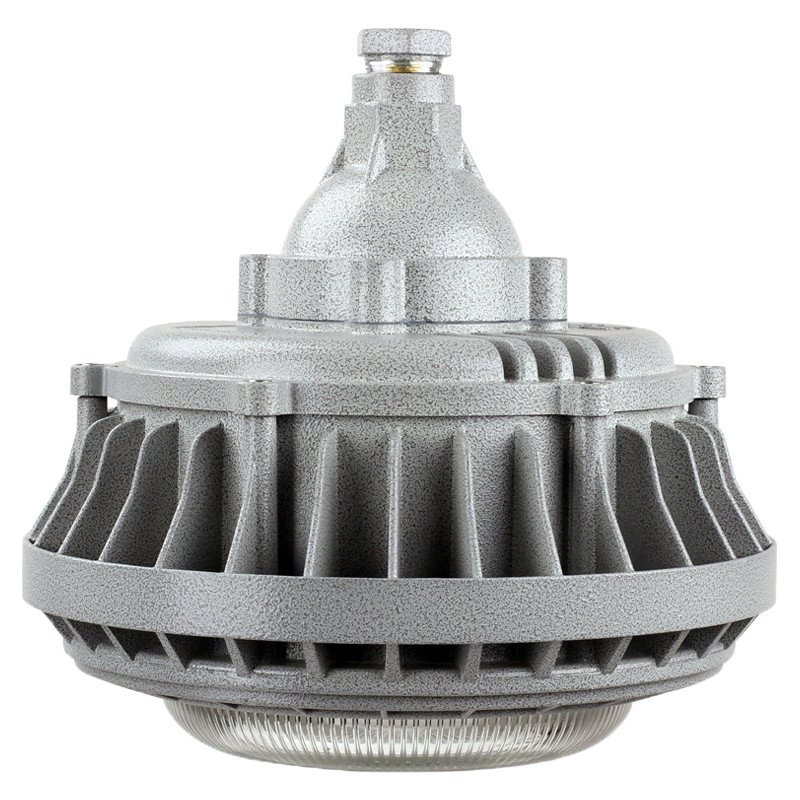

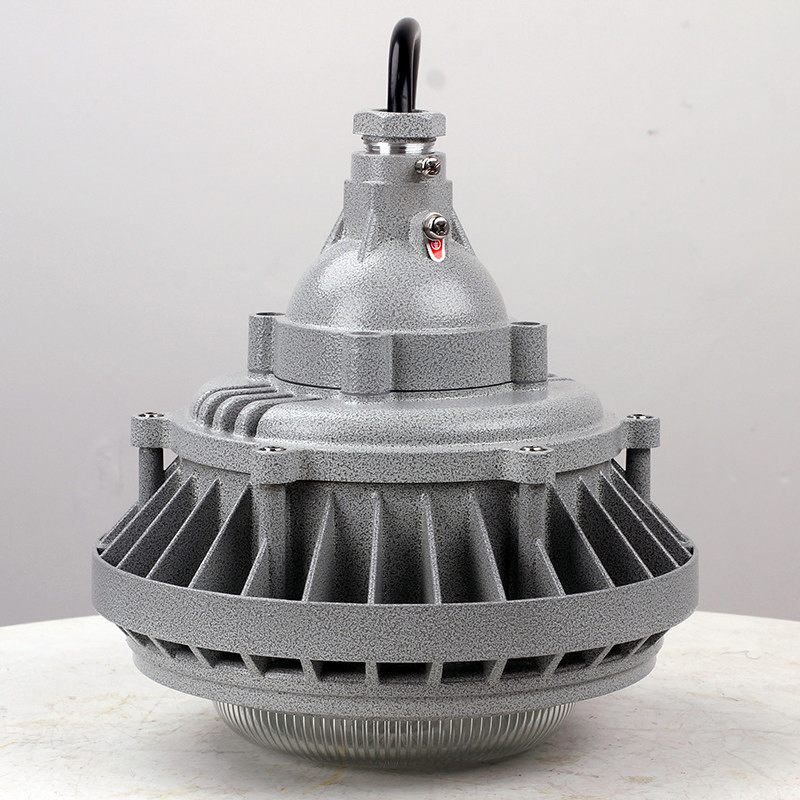

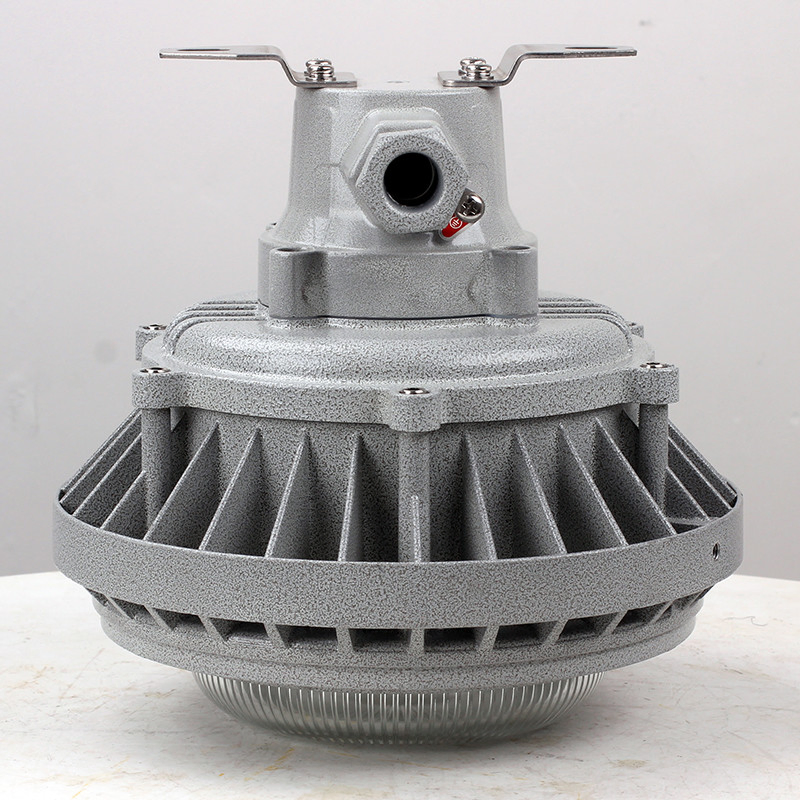

Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
1 / 5
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting
Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting

Top Explosion-Proof Lamp on a Metal Support Industrial LED Lights Explosion-Proof Hazardous Area Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
BED61-III
Input Voltage
AC 220V/AC 380
Power
10W - 150W
Color Temperature
2700-6500K
Certification
CCC, CE, RoHS, Iecex
Warranty
5-Year
Lifespan
50,000 Hours
Working Temp
-40 - 80℃
Protection
Waterproof, Dustproof, Corrosion-Resistant
Luminous Flux
8400-12000 Lm
💚 Product Parameters

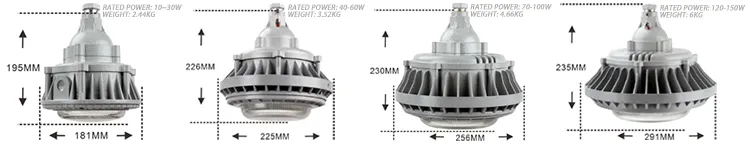

Product Parameter Banner Model Specifications
Model Explosion Proof Sign Type Power (W) Luminous Flux Weight (kg)
BED61-IEx db IIC T6 GbType I10~301200~36002.4
BED61-IIEx db IIC T6 GbType II40~604800~72003.5
BED61-IIIEx db IIC T6 GbType III70~1008400~120005.4
BED61-IVEx db IIC T6 GbType IV120~15014000~180006.0
Rated Voltage Inlet Thread Cable Diameter Protection Degree Anti Corrosion
220V/50Hz G3/4 Φ10~Φ14mm IP66 WF2
🚀 Product Description
Description Header
✔
Die-cast special aluminum alloy radiator with high-voltage electrostatic coating.
✔
Stainless steel fasteners with superior corrosion resistance.
✔
Pure flame-proof structure for reliable explosion-proof performance.
✔
Uniform multi-point lighting without glare and high light utilization.
✔
Advanced protection: anti-surge, overcurrent, and anti-electromagnetic interference.
✔
Optional microwave induction dimming and emergency device integration.
📍 Applicable Scope

Zones 1, 2, 21, 22; IIA, IIB, IIC Explosive Gas Environments. Ideal for Oil Refining, Chemical Plants, Gas Stations, and Offshore Platforms.

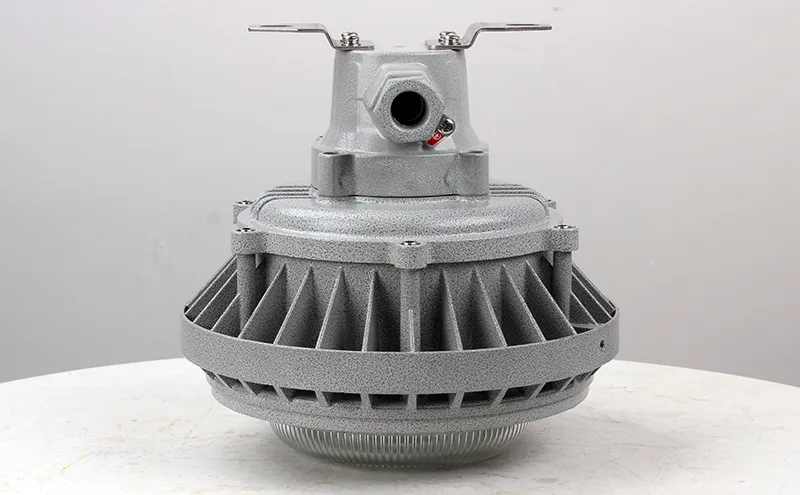

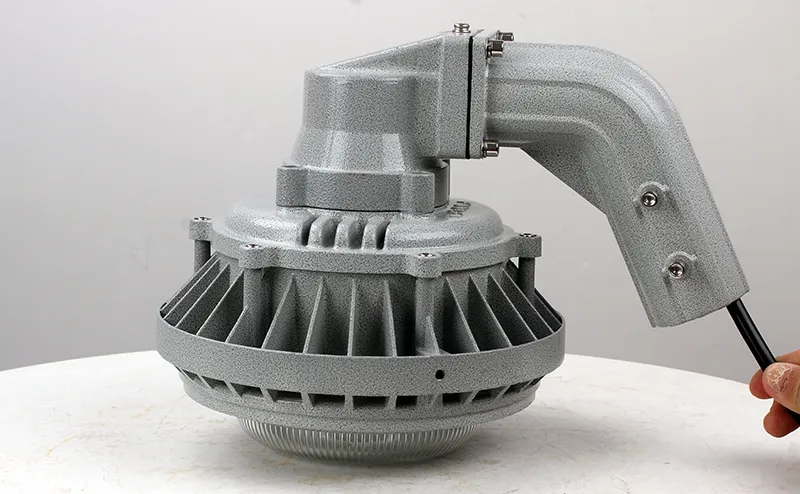

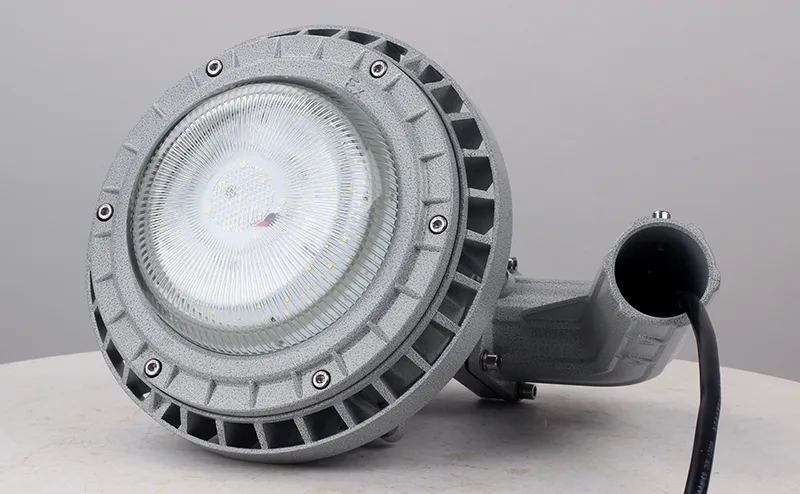

Application 1 Application 2 Application 3

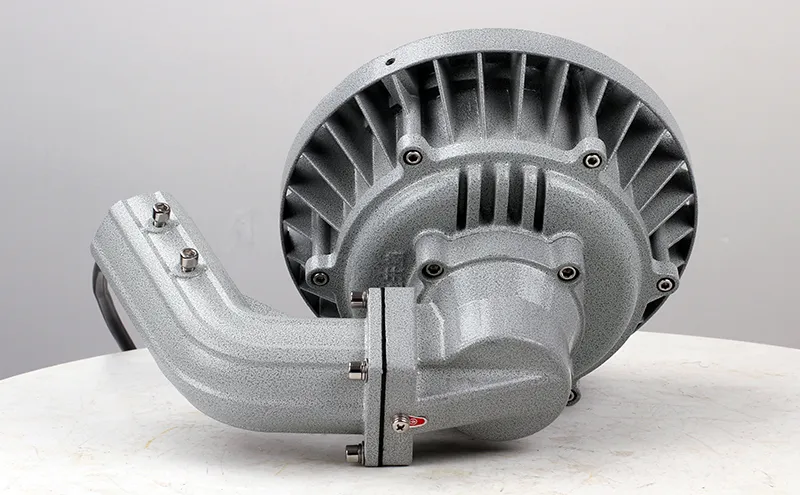

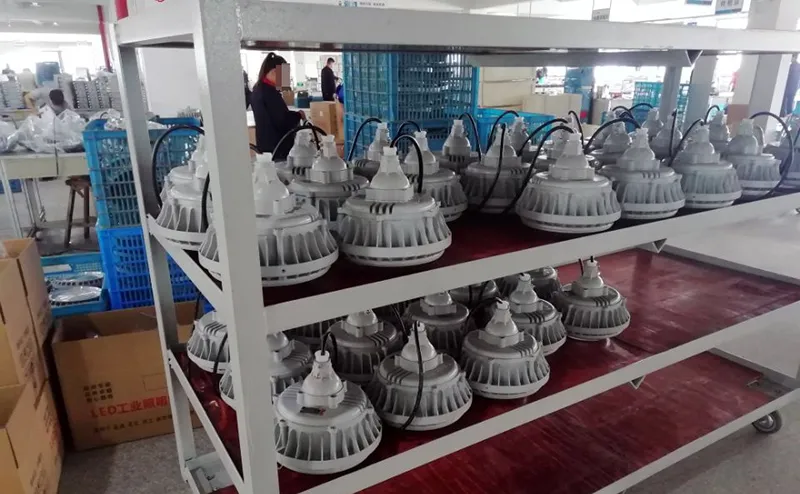

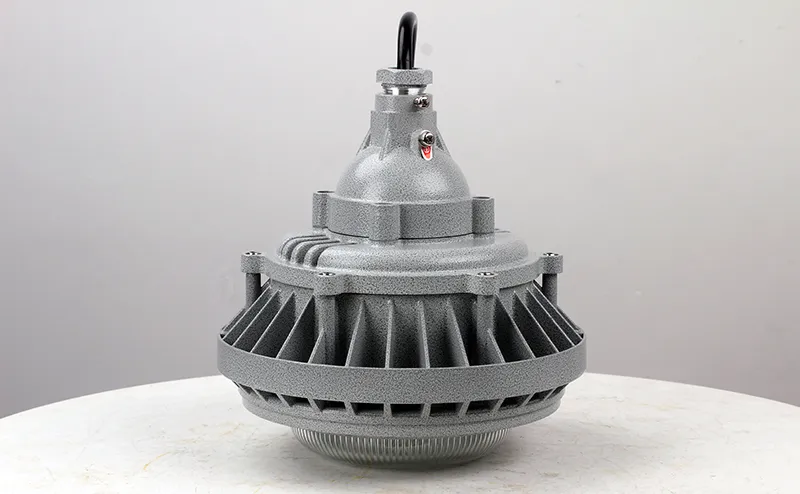

Application 4 Application 5 Application 6

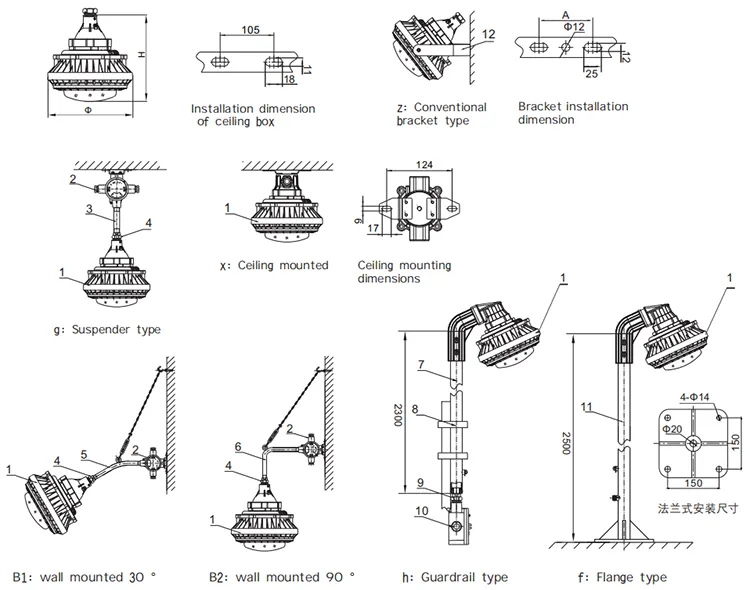

Dimensions
🏭 Manufacturing Excellence
Factory Capability

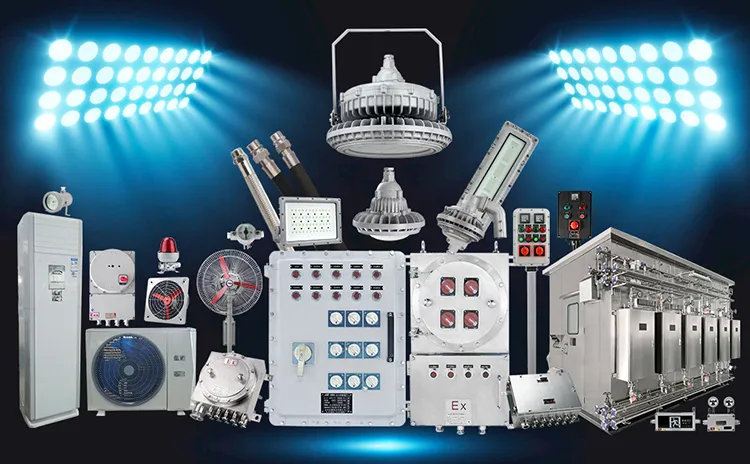

Workshop Testing
Certificates 1 Certificates 2
❓ Frequently Asked Questions
FAQ Banner
Are you a manufacturer or a trading company?
We are a professional manufacturer specializing in explosion-proof lighting and electrical equipment, providing full OEM services.
What certifications do your products carry?
Our products have successfully passed ATEX and IECEx certifications, and we hold numerous national patents for our designs.
Which industries use your explosion-proof lights?
They are widely applied in petroleum, chemical industries, aerospace, coal power, shipbuilding, medicine, and marine environments.
Do you accept sample orders for quality testing?
Yes, we welcome sample orders to test and verify the quality of our products. Mixed samples are also acceptable.
Can you provide customized solutions?
Yes, we accept customization based on specific project requirements. Please confirm your design with our technical team first.
What is the main advantage of your LED explosion-proof lights?
Our lights feature superior heat dissipation, high luminous efficiency (120 Lm/W), and long-term durability in hazardous Zone 1 and Zone 2 environments.
