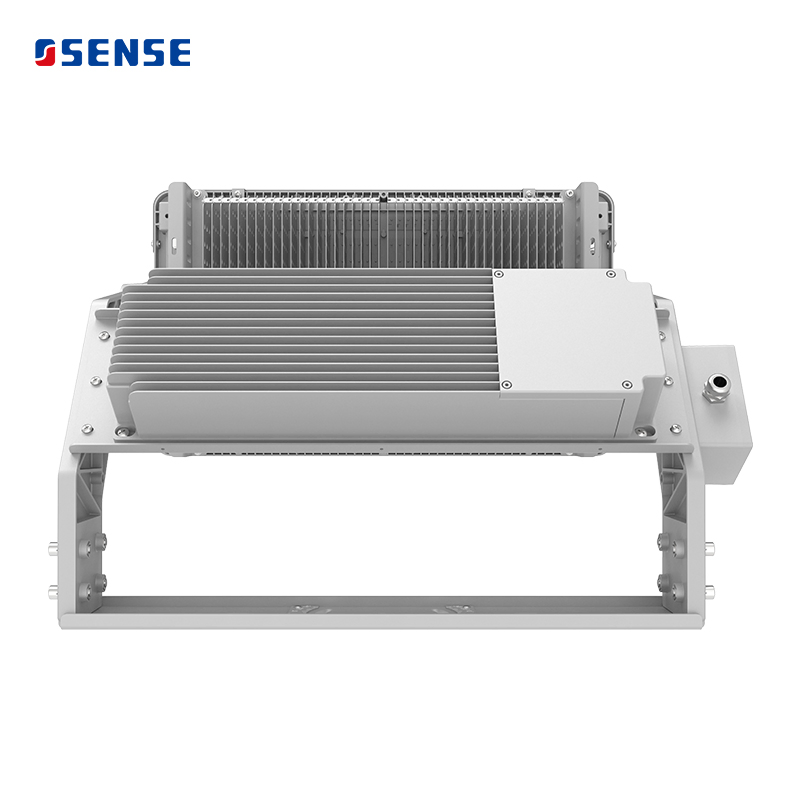

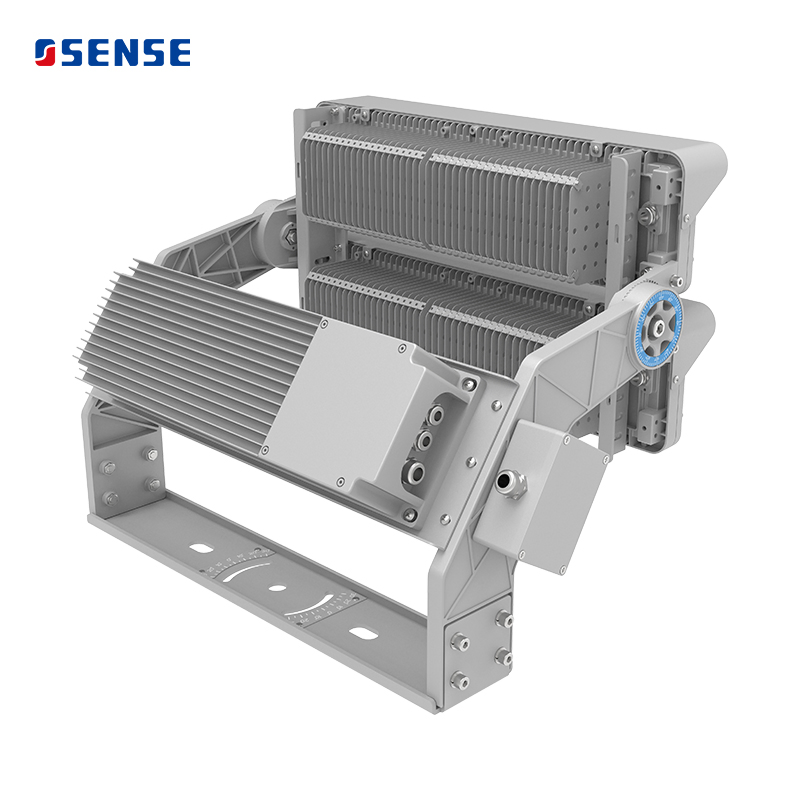

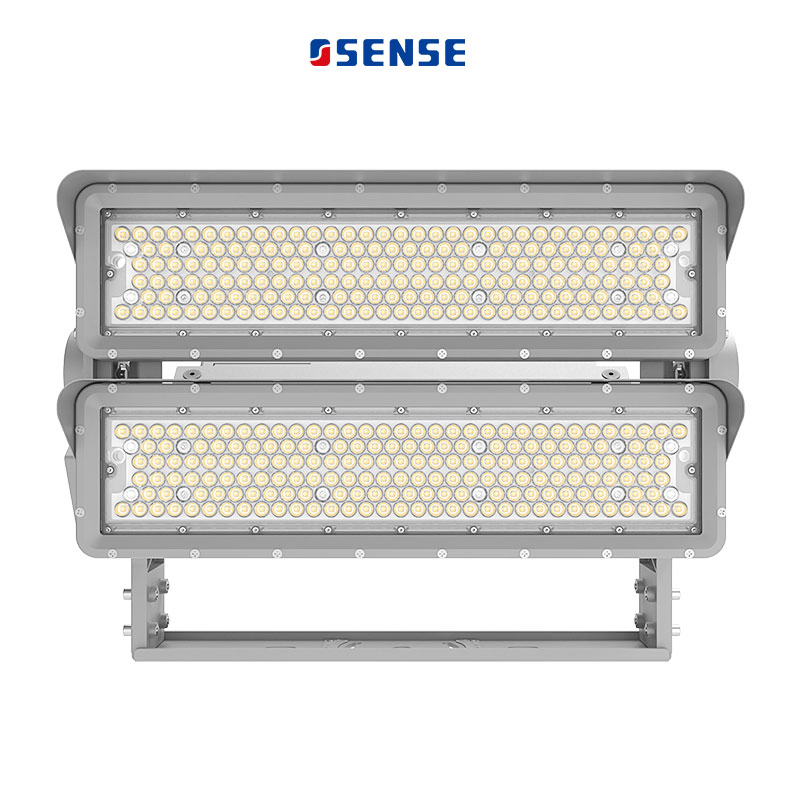

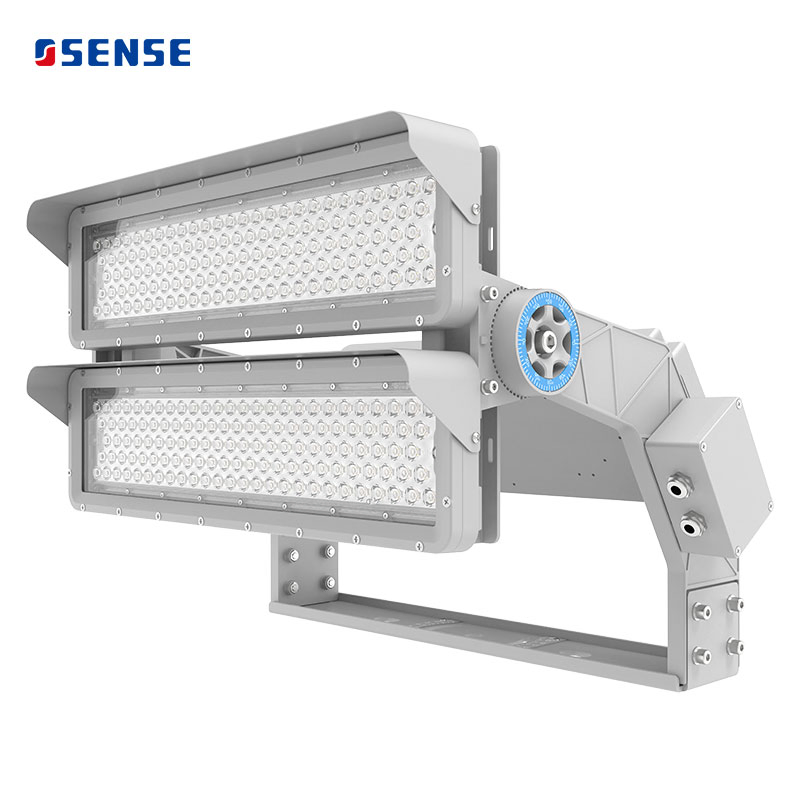

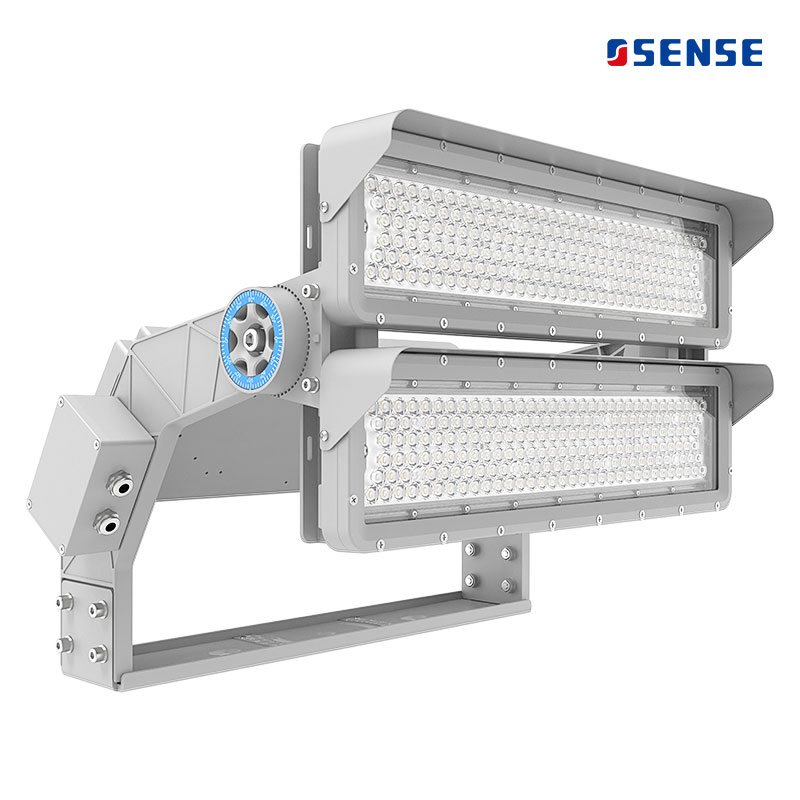

IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
1 / 5
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD
IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD

IP65 800W High Mast LED Stadium Light High Power Airport Square Lighting with 20kv SPD

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.

Model NO.
SWT-F01-600W
Pole Height
25-30m
Power
300W-1500W
IP Rating
IP66
Certification
CCC, CE, EMC, LVD, RoHS, CB
Input Voltage
100-277V
LED Chips
CREE/Lumileds/Nichia/Samsung
CCT
4000K/5000K/5700K
CRI
>90
IK Grade
IK08
Efficiency
160lm/W(5050) & 150lm/W(7070)
Material
ADC12 die-casting

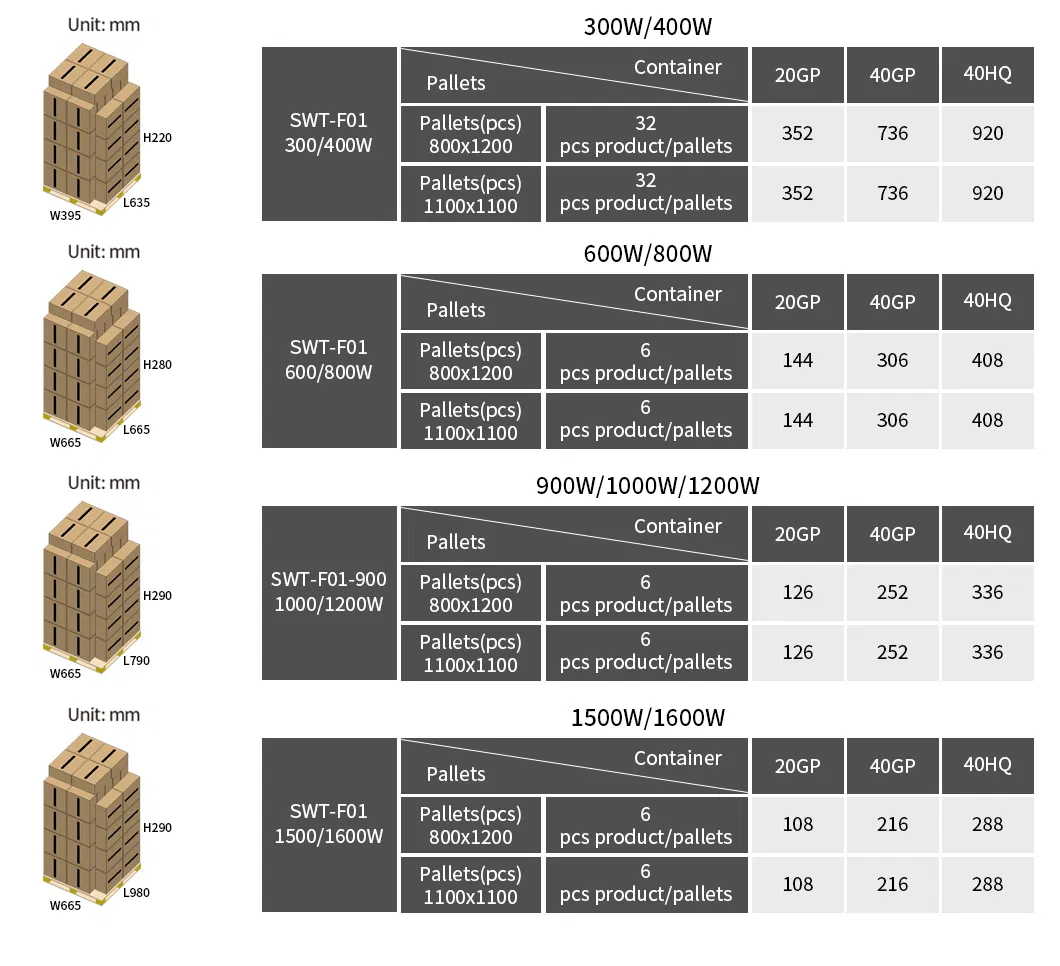

Packaging & Delivery

Package Size
66.50cm * 66.50cm * 29.00cm
Gross Weight
22.000kg

LED F01 Stadium Light Features

  • Power Options: 300W/400W/600W/800W/900W/1000W/1200W/1500W/1600W
  • ADC12 die-casting + fin forming with independent heat dissipation for better performance.
  • Electrostatically sprayed surface for strong anti-corrosion protection.
  • Air convection active heat dissipation ensures lower working temperatures for the light source.
  • Multiple optical angles available: 10°/25°/40°/60°.
  • Modular design allows assembly with different power specifications to meet site lighting needs.
  • 10KV/20KV SPD lightning protector for superior surge protection.
  • 360° adjustable angle installation with contour dial design, eliminating blind spots.
  • IP66/IK08 protection grade for durability in harsh environments.
  • Equipped with an anti-suspended chain structure for enhanced safety.

Technical Specifications

GENERAL & ELECTRIC INFORMATION OPTICAL & HOUSING
MountingBracket system LED BrandCREE; Nichia; Lumiled
Voltage100-240VAC/180-528VAC Color Temp4000K, 5000K, 5700K
LED Lamp Power400W-1200W (Up to 168000Lm) CRI≥70 / ≥80 / ≥90
Power Factor≥0.95 HousingADC 12 die-casting + Pure Aluminum
THD≤20% Standard ColourRAL9017 Black / RAL9007 Gray
Control SystemDALI/1-10V/DMX512 Dimming Lifetime>50,000h - L70B50

Product Details

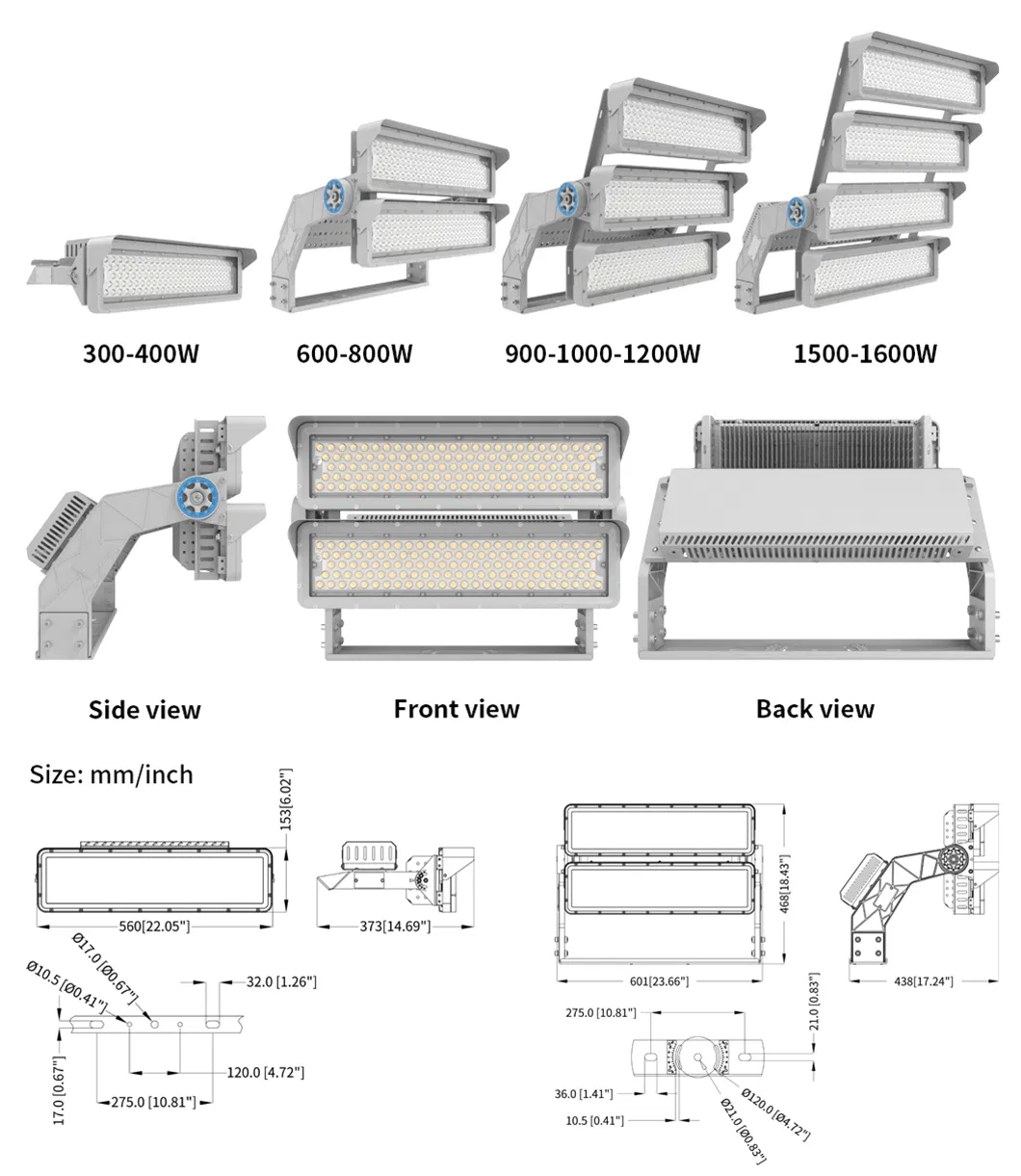

Stadium Light Detail 1

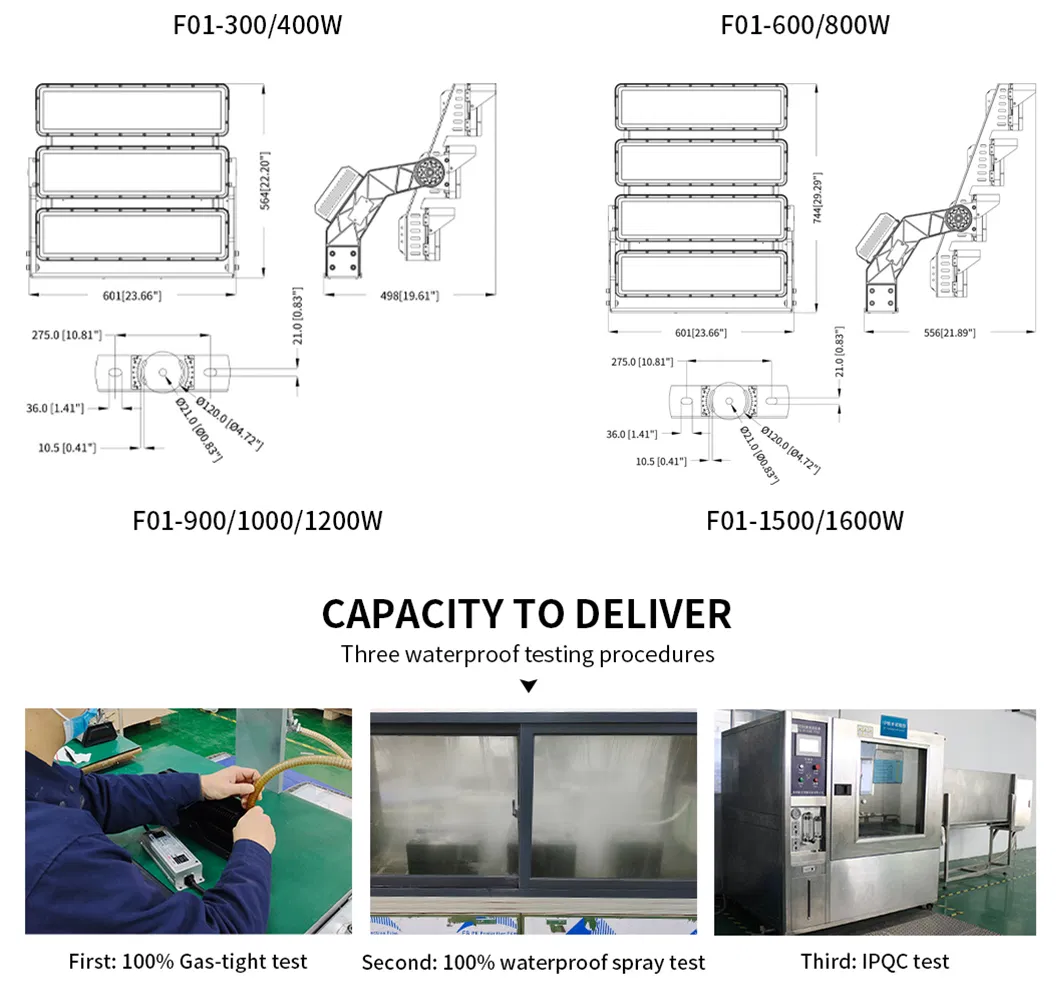

Stadium Light Detail 2

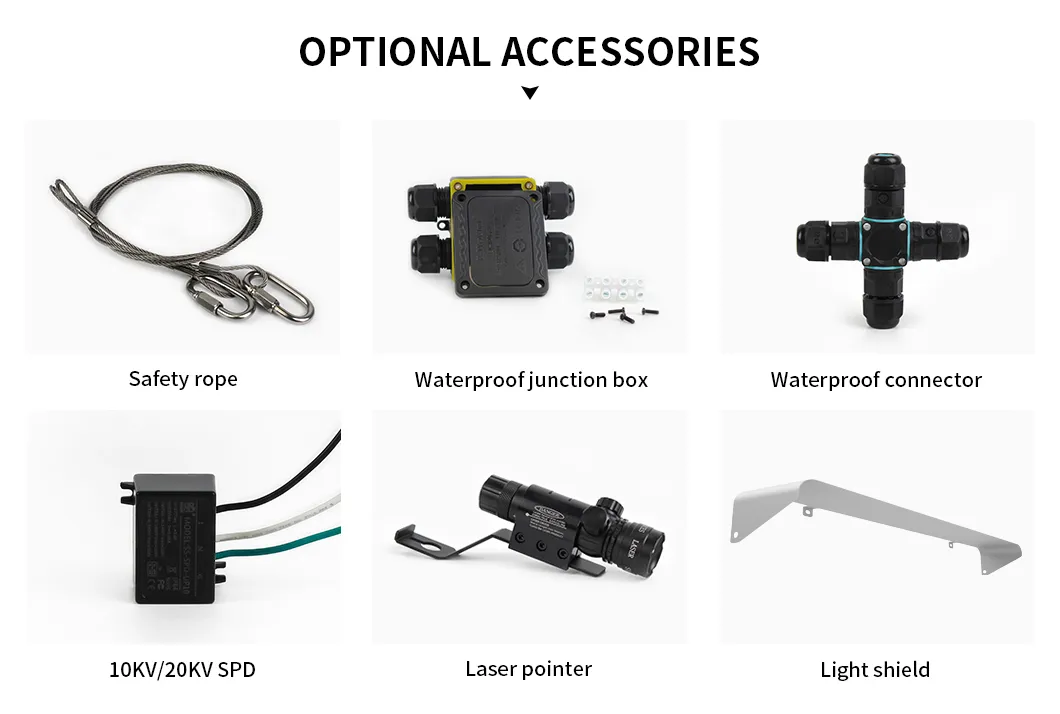

Stadium Light Detail 3

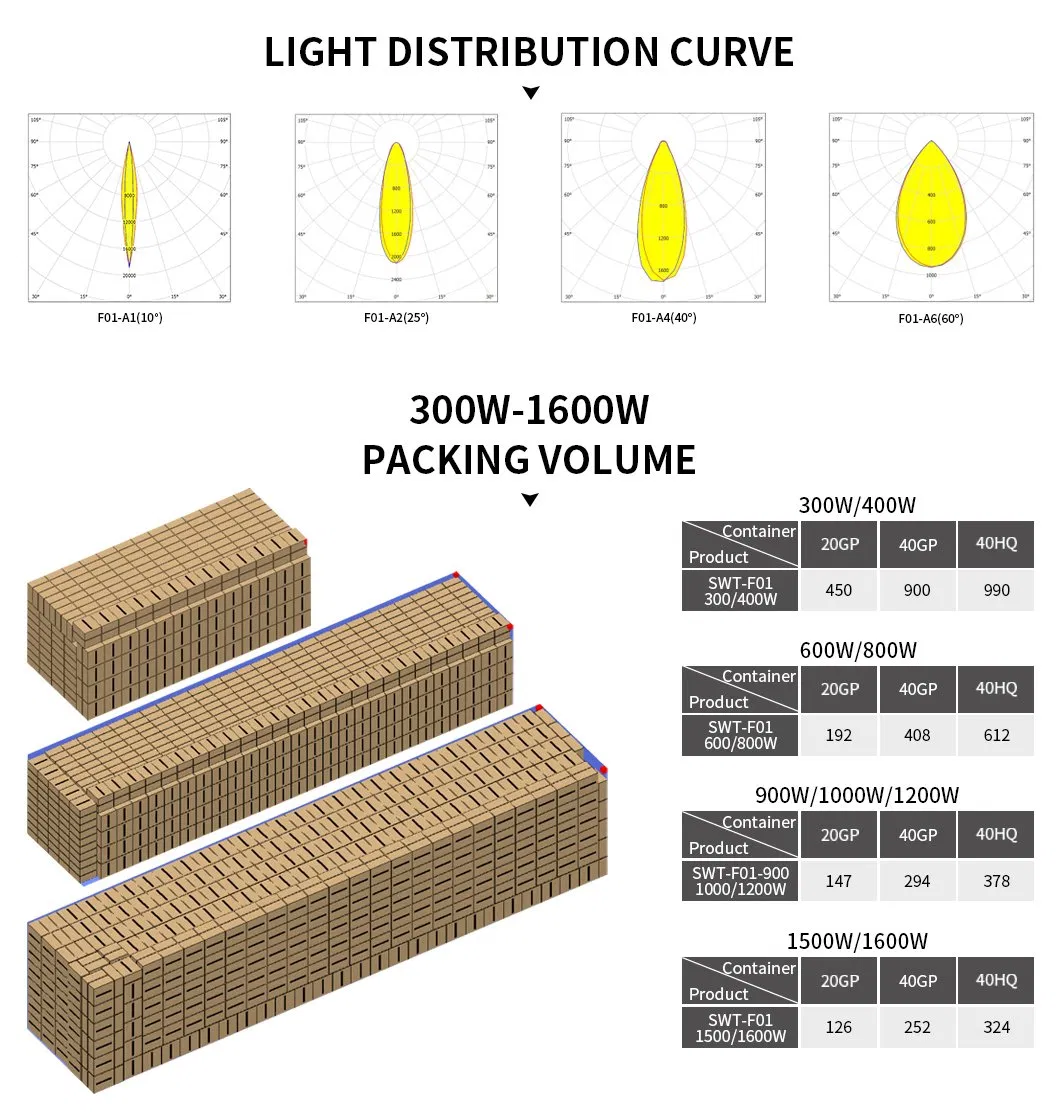

Stadium Light Detail 4
Stadium Light Detail 5

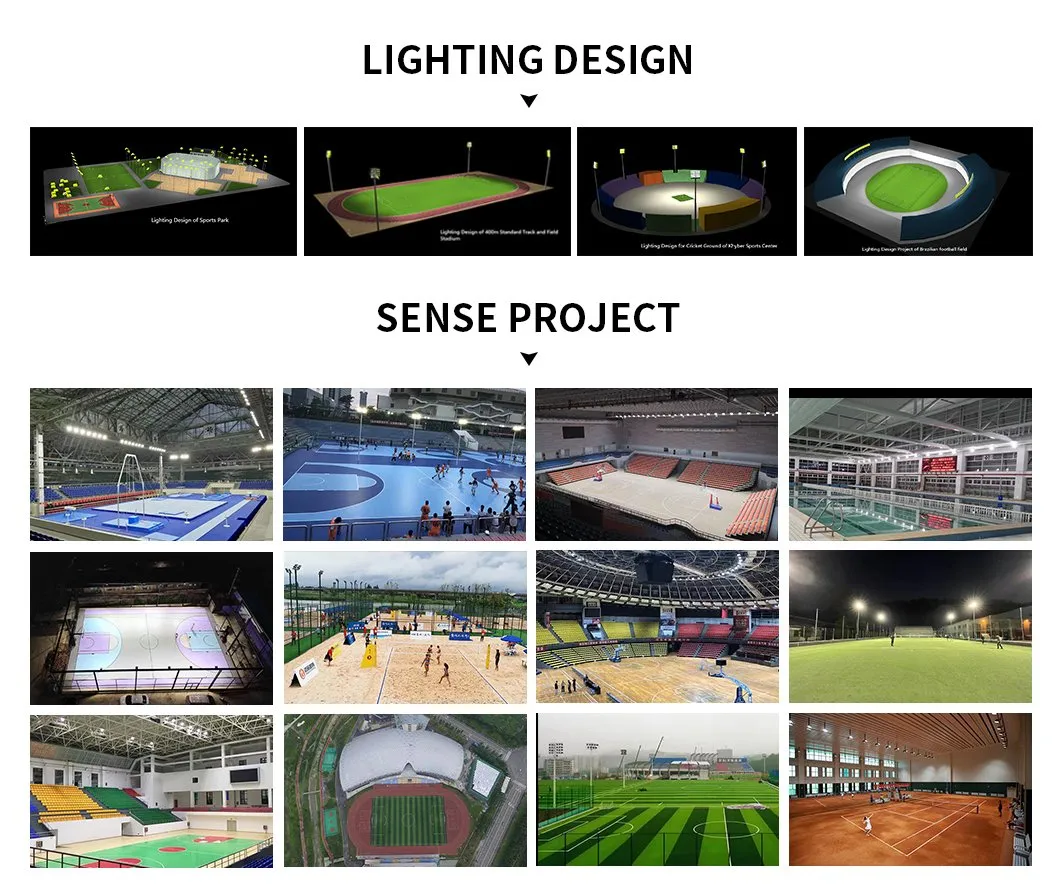

Stadium Light Detail 6
Stadium Light Detail 7
Stadium Light Detail 8

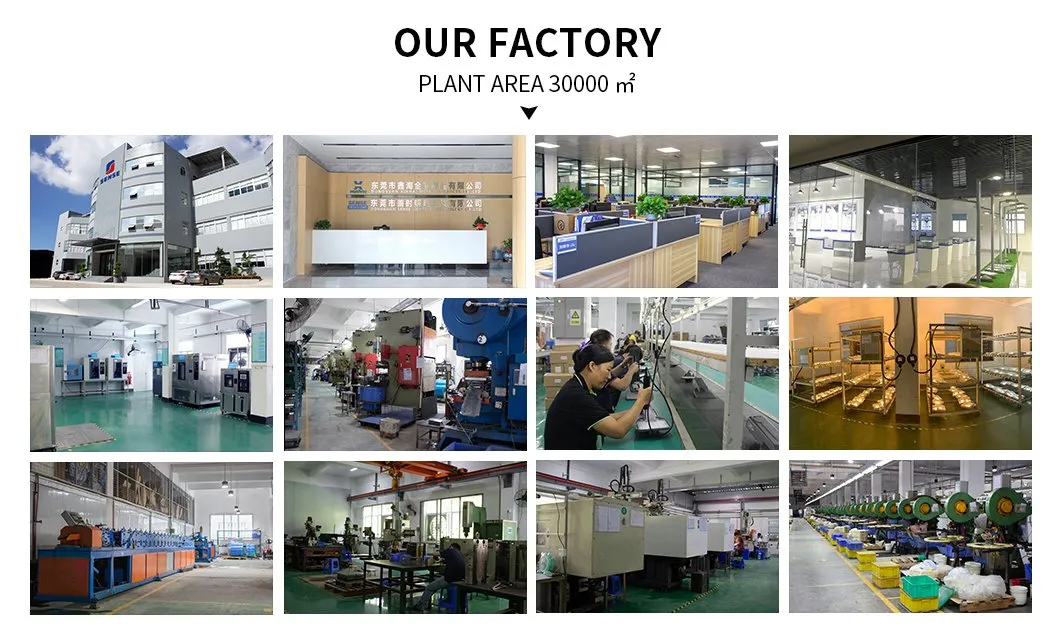

Stadium Light Detail 9
Stadium Light Detail 10

FAQ

Are you a manufacturer?
Yes, we operate our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management systems since 2003.
What certifications do your products hold?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. We also provide IP66, IK10, LM79, LM80, and IES reports.
Can we customize products with our own logo?
Yes, we provide comprehensive OEM services, allowing for custom logos on both products and packaging.
What is the standard warranty period?
We offer a 5-7 year warranty depending on the specific requirements and application of the project.
What is the typical lead time for orders?
Samples usually take 3-7 days, while mass production orders are typically fulfilled within 10-20 days depending on the quantity.
How do you handle faulty products?
Our defective rate is less than 0.1%. For items under warranty, we replace small quantities with new orders or repair/replace batch defects as per the situation.
