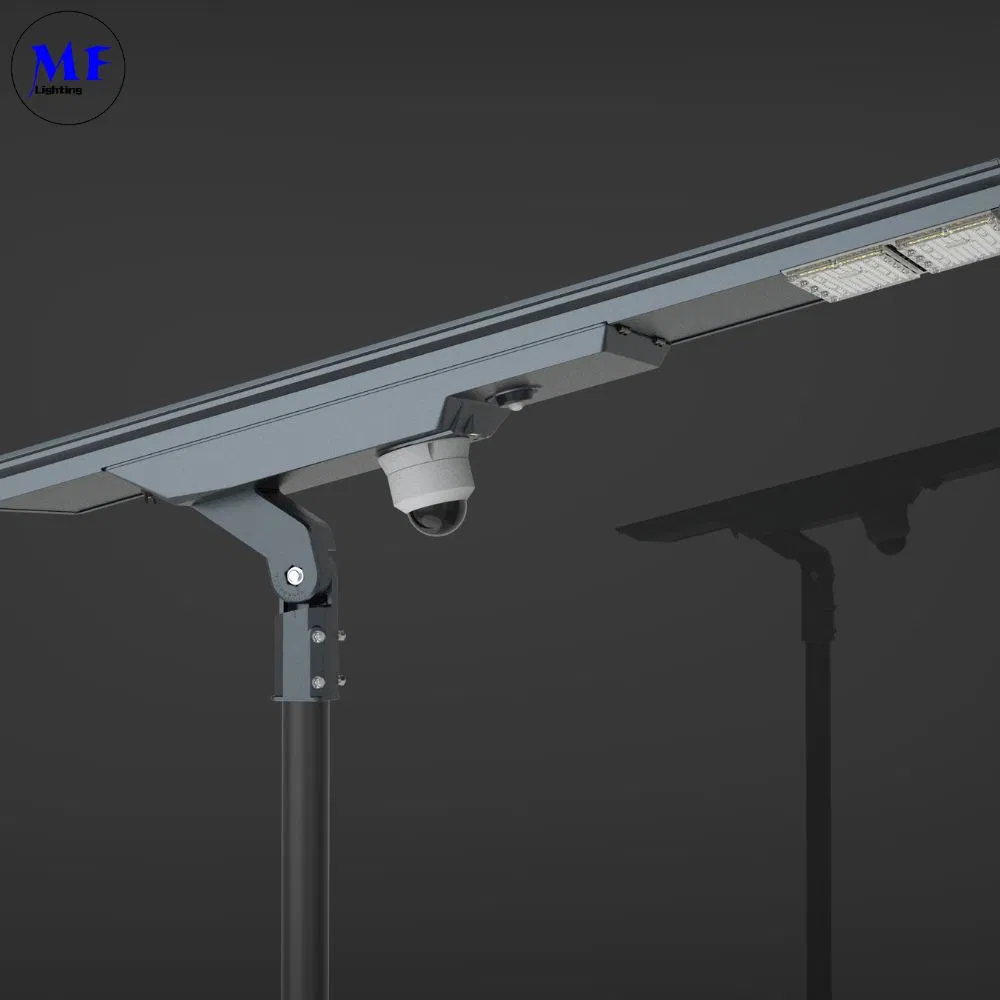

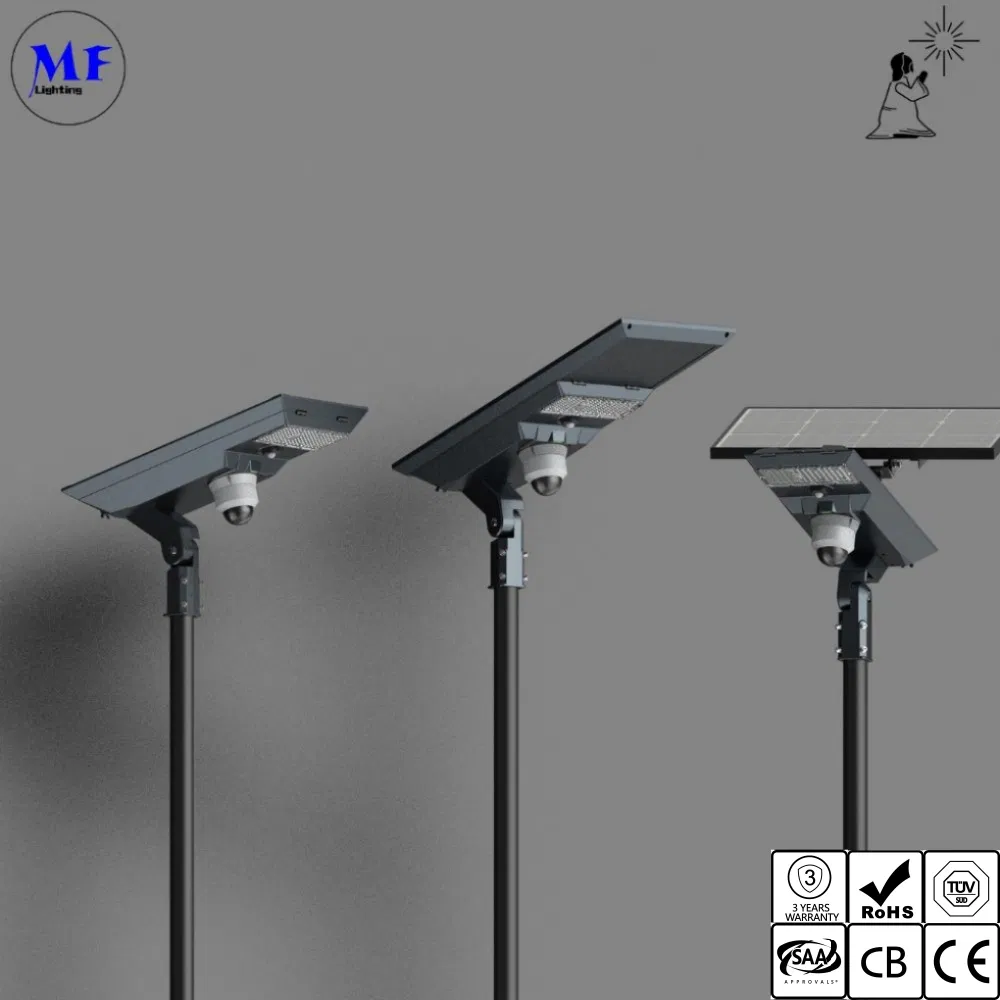

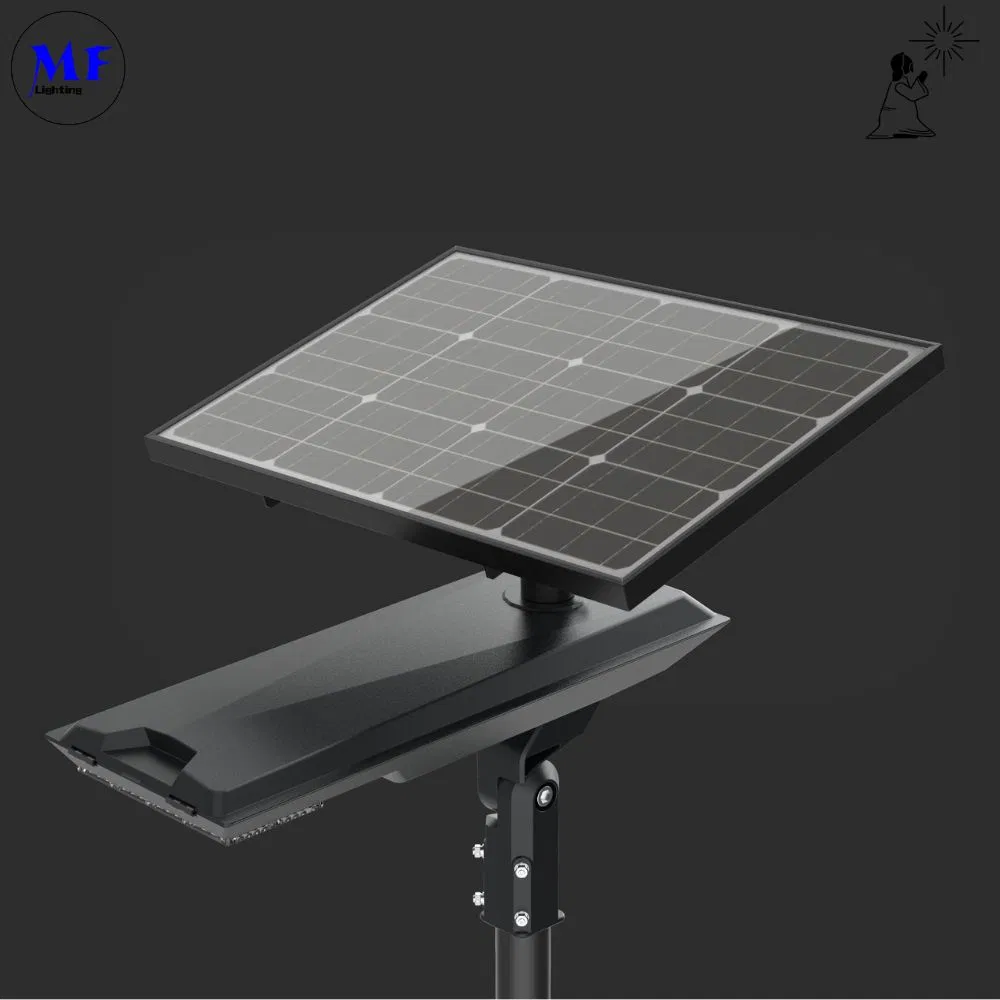

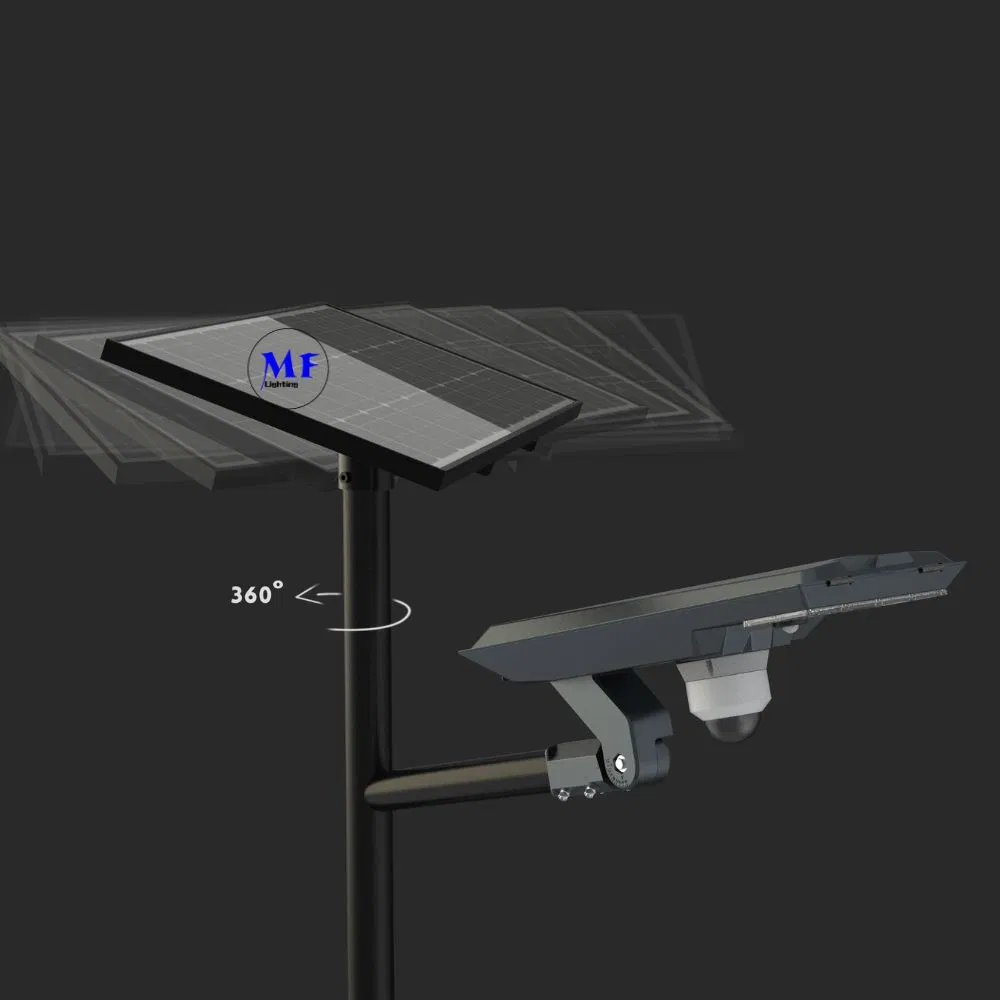

IP66 Waterproof Outdoor Security LED Solar Street Light with CCTV Camera Motion Sensor 20W-120W for Large Outdoor Space Main City Urban Park Road

1 / 5

IP66 Waterproof Outdoor Security LED Solar Street Light with CCTV Camera Motion Sensor 20W-120W for Large Outdoor Space Main City Urban Park Road

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.MF Solar Street light S5F

Light SourceLED Lamp

MaterialADC12 Aluminum+Al6063+PC

Color Temp4000K-5700K

Power Range20W - 120W

IP RatingIP66

Battery TypeLiFePO4 Battery

Charging Time6 Hours

Discharge Time12h/Day, 3-7 Days Backup

Install Height4 - 8 Meters

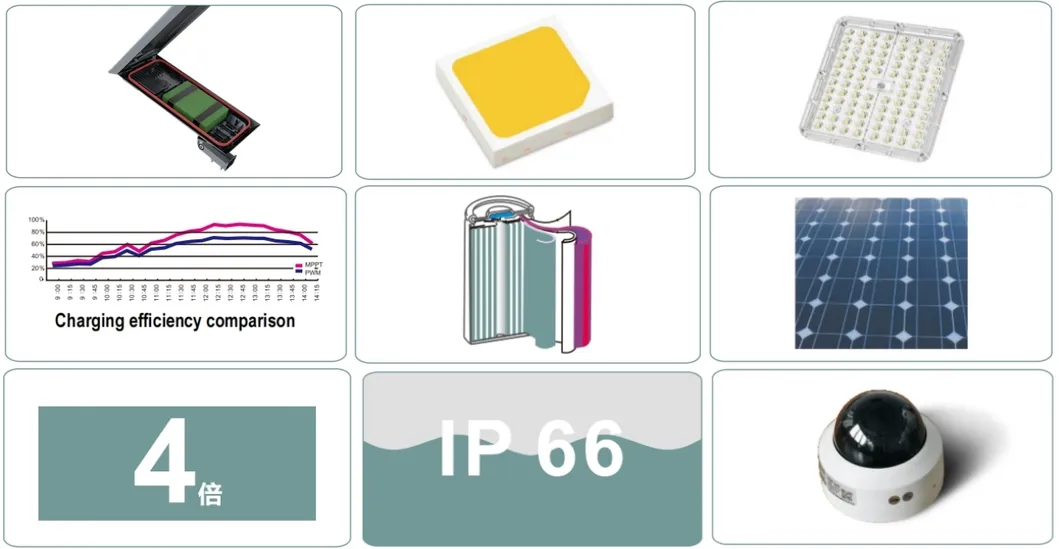

Product Features

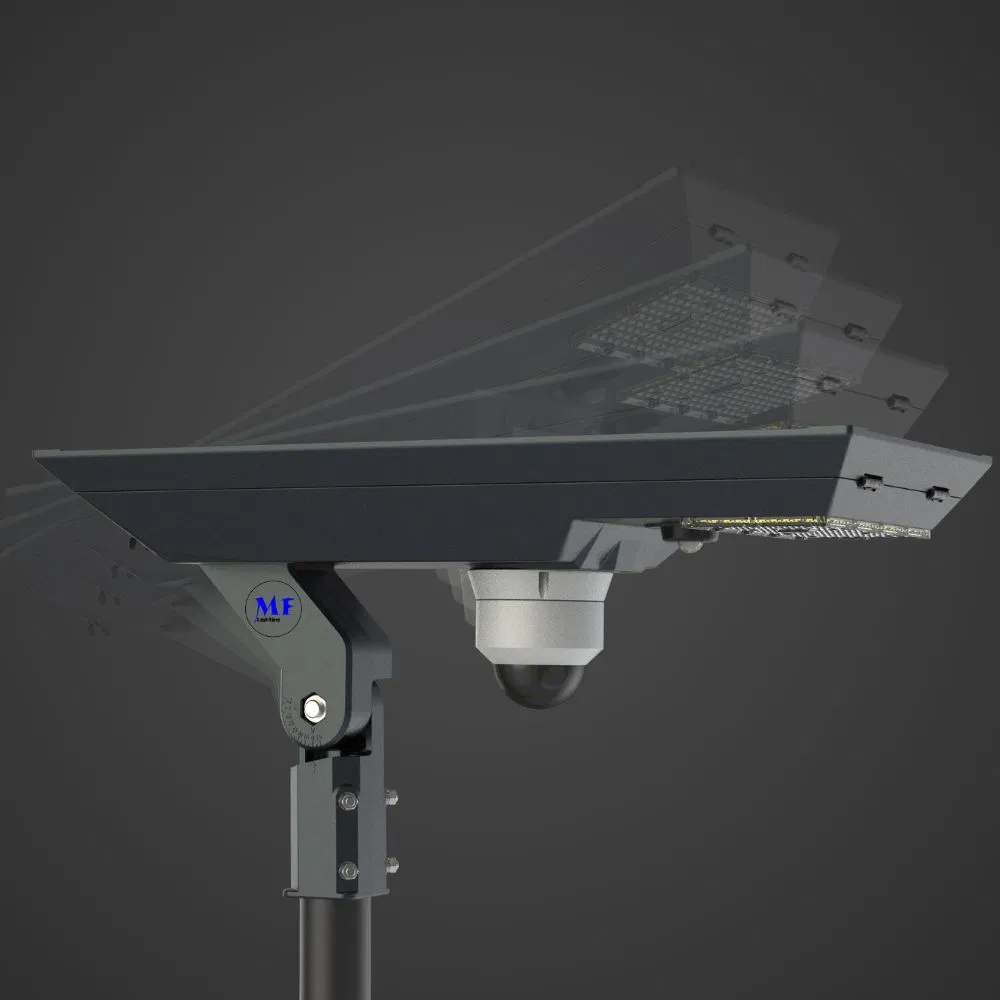

01. Integrated Die-castingTool-free access design for easy installation and maintenance. Supports adjustable angles for vertical or horizontal mounting.

02. New Gen LEDsHigh bright SMD technology with integrated lens, increasing lumen flux by 10% with lower attenuation.

03. Secondary Optical DesignMaximizes uniformity and illumination while decreasing dispersion and color reproduction issues.

04. MPPT ChargingImproves energy utilization by 15%-20% compared to ordinary controllers.

05. A-Level BatteryHigh energy density batteries with temperature control protection for longer cycle life.

06. Monocrystalline PanelTop quality silicon wafer with upgraded light transmittance and anti-aging performance.

07. Metal StrengthAll-metal aluminum alloy body can withstand 4 times its own gravity and harsh weather.

08. IP66 WaterproofOverall waterproof design instead of simple glue waterproofing for long-term durability.

09. Intelligent OptionsSupports CCTV Camera (2G/4G), motion sensors, and AC power complementary systems.

Technical Specification

Parameter	Value Details
Color Type	Warm White (4000K)	Nature White (5000K)	Cool White (5700K)
CRI	≥70
Beam Angle	155°/70° (TM3) or 155°/75° (TM2)
Luminous Flux	2000 ~ 12000 lm
Efficiency	100 lm/W (Bespoke up to 175lm/W)
Control Ways	PIR / Microwave / Time / Remote
LED Brand	Lumileds / CREE (Efficiency 180-190 lm/W)

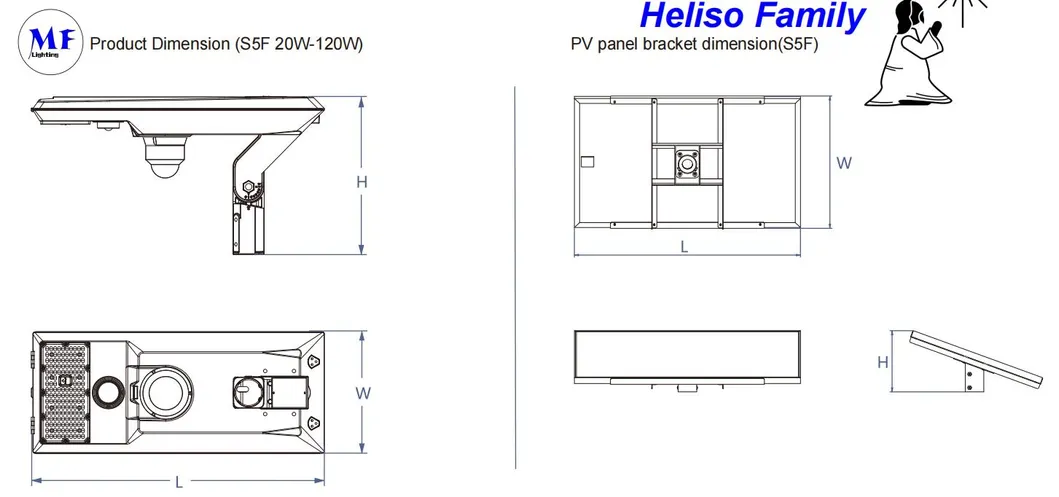

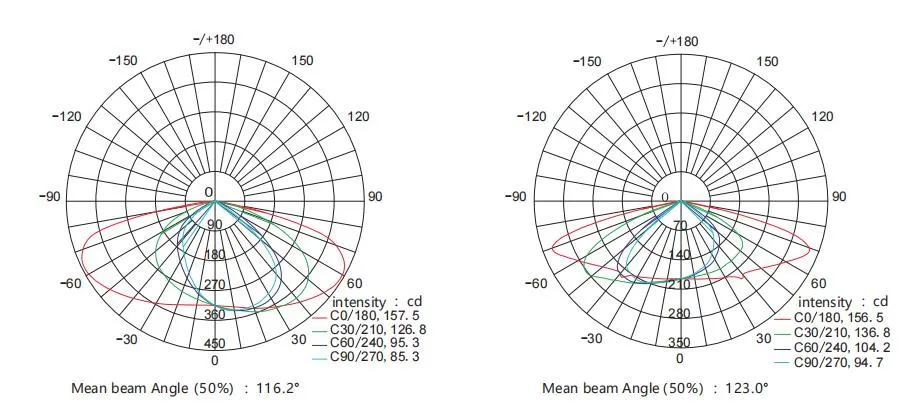

Dimensions & Photometry

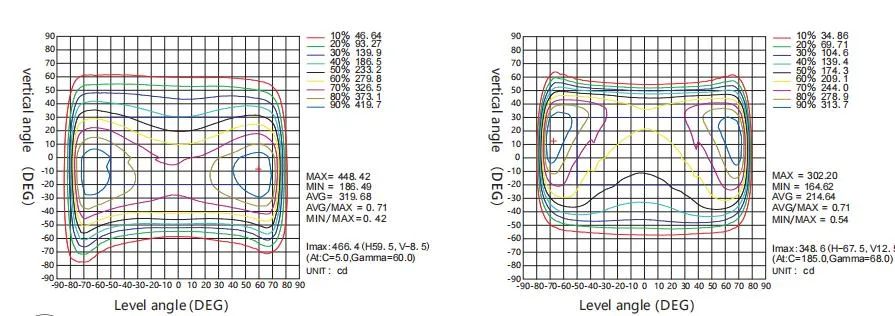

LUX LEVEL CHART

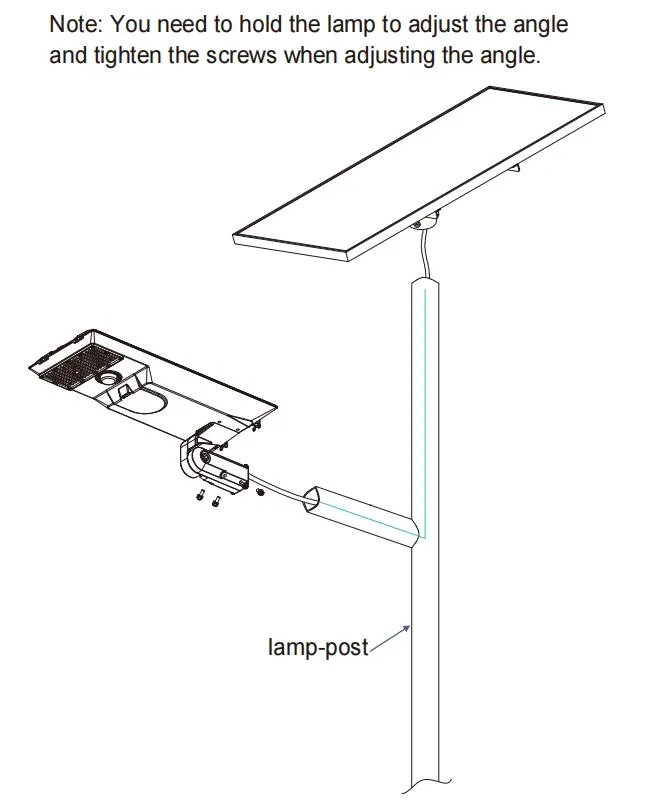

Installation Guide

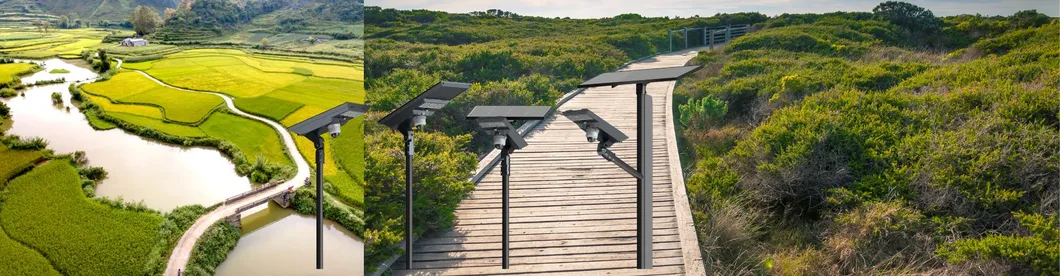

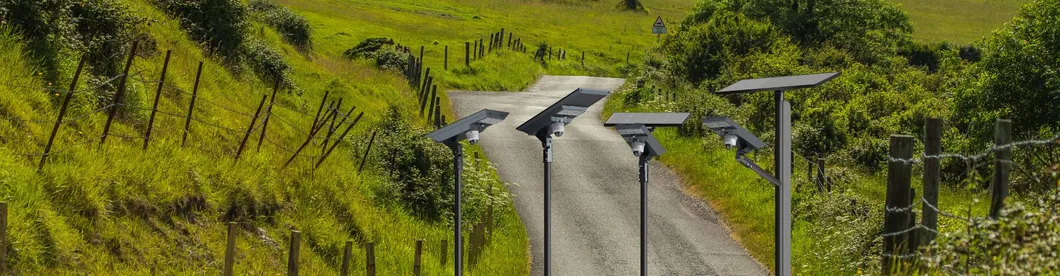

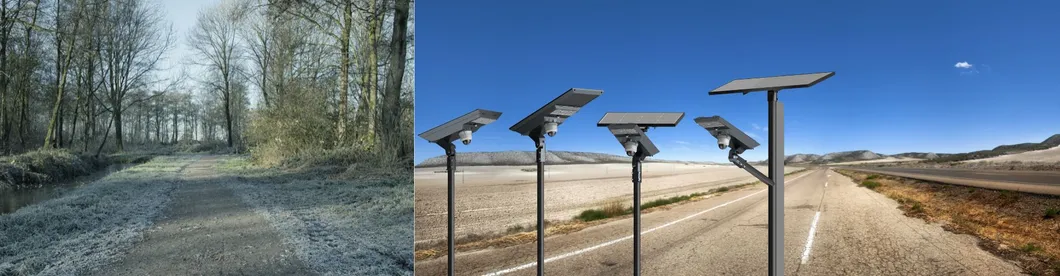

Wide Applications

• Parking lots and Urban/Village Streets

• Highways and Country Roads

• Gardens, Parks, and Residential Areas

• Schools, Squares, and Hospital Grounds

• Industrial Zones and Large Warehouses

• Public Landmarks and Campuses

• Smart City Infrastructure Projects

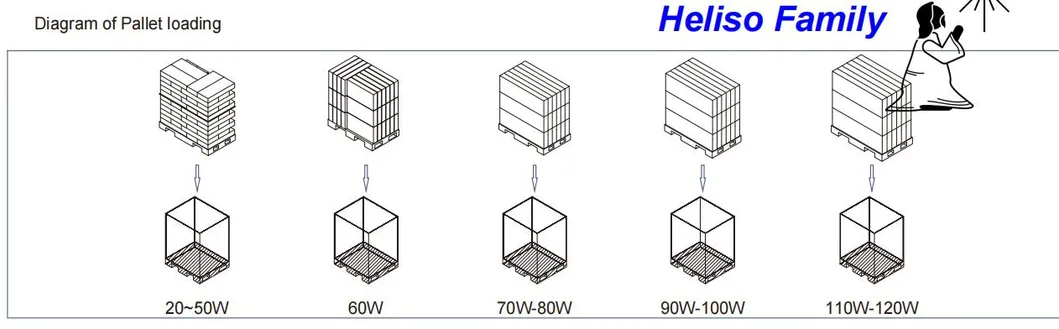

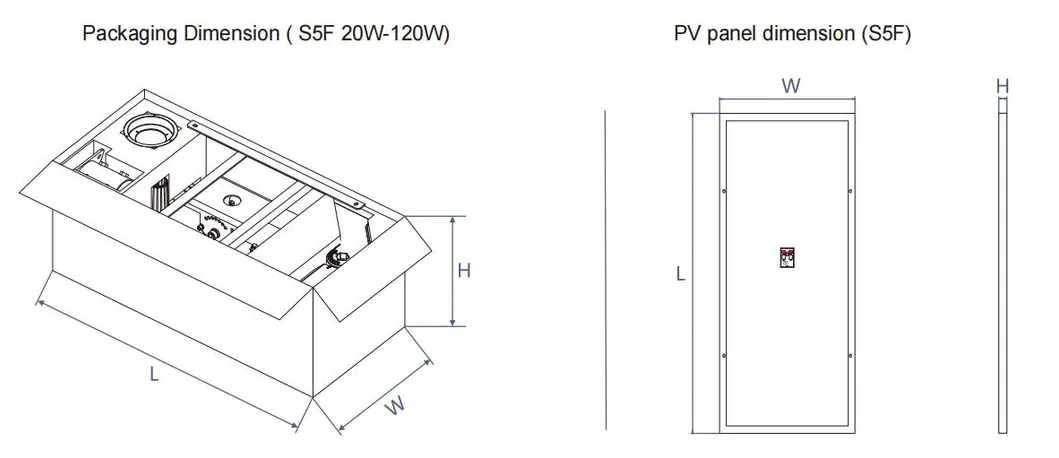

Packaging & Shipping

Frequently Asked Questions

What is the waterproof rating of this solar street light?

This solar street light features an IP66 rating, which means it is fully protected against dust and powerful water jets, making it ideal for harsh outdoor environments.

How long does it take to charge and how long will it light up?

The system requires approximately 6 hours of sunlight for a full charge. It can provide 12 hours of illumination per day and supports up to 3-7 days of operation during cloudy or rainy weather.

Can the light be installed vertically or horizontally?

Yes, the integrated die-casting structure is designed with adjustable angles, allowing for both vertical and horizontal installation depending on the pole type.

What types of sensors and controls are supported?

It supports various control methods including PIR motion sensors, microwave sensors, time-based dimming, and remote control. Optional CCTV and 4G smart control systems are also available.

What battery technology is used in this product?

We use high energy density A-level LiFePO4 (Lithium Iron Phosphate) batteries, known for their safety and long cycle life, even in varying temperatures.

What is the recommended installation height?

Depending on the power model (20W to 120W), the recommended installation height is between 4 to 8 meters.
