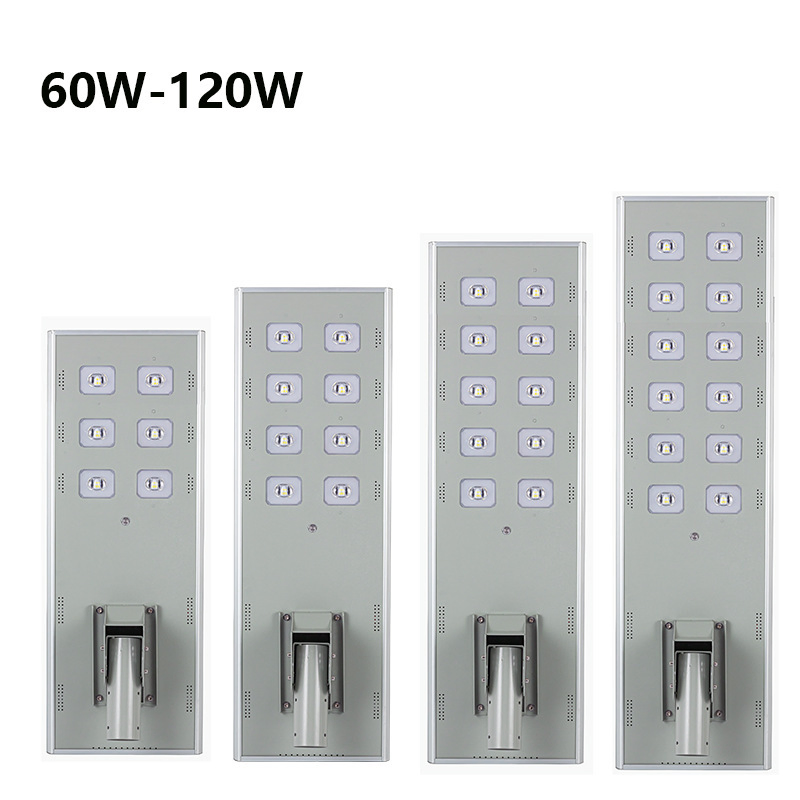

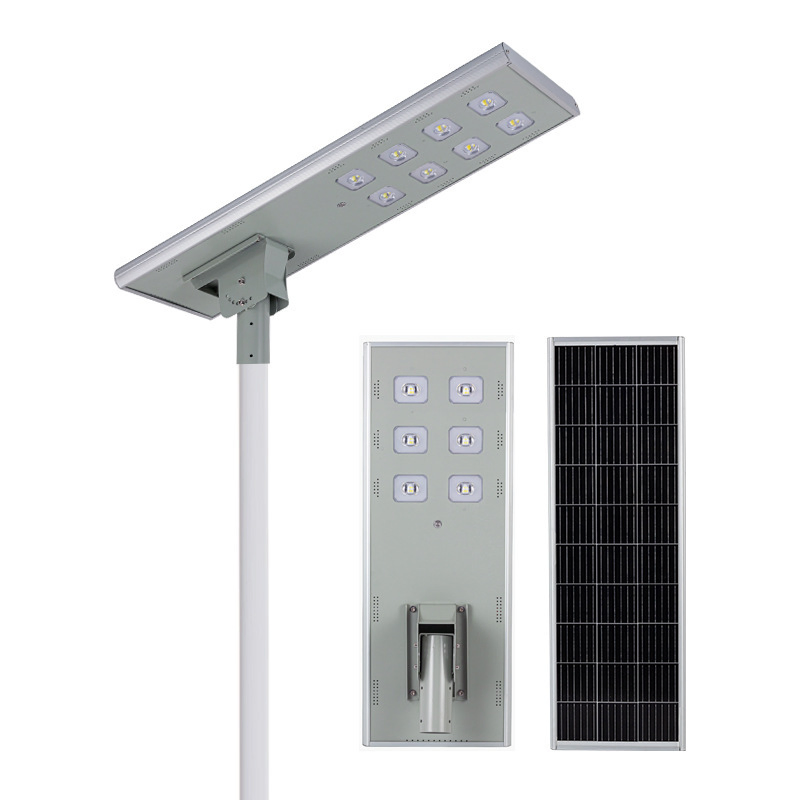

LED Solar Security High Bright Street Lights Lamp Solar Remote Control Motion Sensor Farolas Solares

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO.:M55
Light Type:Solar
Color Temperature:Pure White
Power:≥30W
Illumination Time:6h
Charging Time:6H
Usage:Street Lighting
Certification:CE, RoHS, IP, IK, LM79, LM80
Voltage:12/24V
Working Model:100%-75%-50%-100%
Feature:Support 4G Lora, MPPT
Luminous Efficacy:205lm/W
Mounting Height:Max 15meter
PV Panel:Mono 150wp
Battery:1152wh LiFePo4
Package Size:150.00cm * 45.00cm * 15.00cm
Gross Weight:20.000kg

Product Description

Solar street lights model M55 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use.

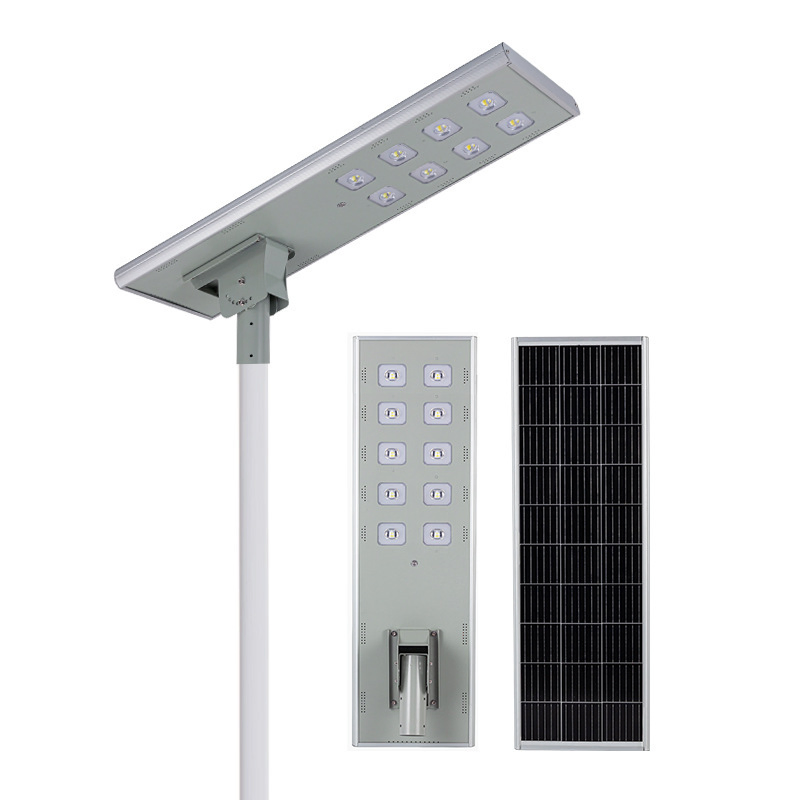

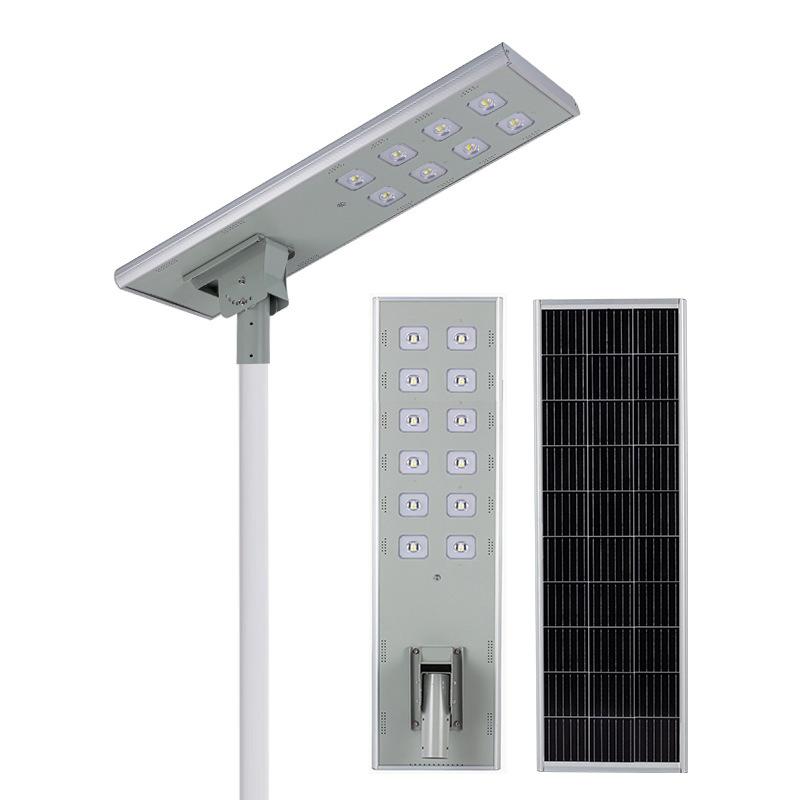

Designed by integrated fixture, with PV panel, Lithium battery, charge controller, LED components all together, which make the installation easily.

With 24% convert solar PV panel MONO type, and LiFePo4 battery, Constant current driver, MPPT charging agreement, which make the solar lights have excellent charge and discharge performance.

M55 model 120watts can be used for Max 12meter mounting height with luminous flux 52lx, which is strong lumens with advanced technology of LED improvement, with Type I Type II Type III Type IV Type V different optical lens which make the lights can be widely used for expressway, highway, Road, Area lighting.

📷

Detailed Photos

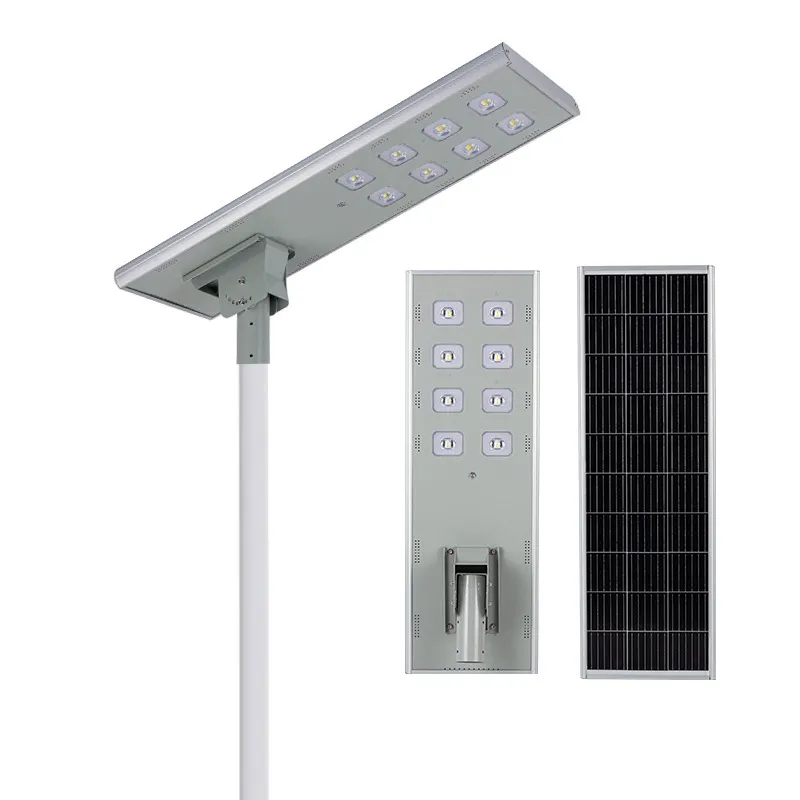

Detailed Photo 1
Detailed Photo 2
Detailed Photo 3

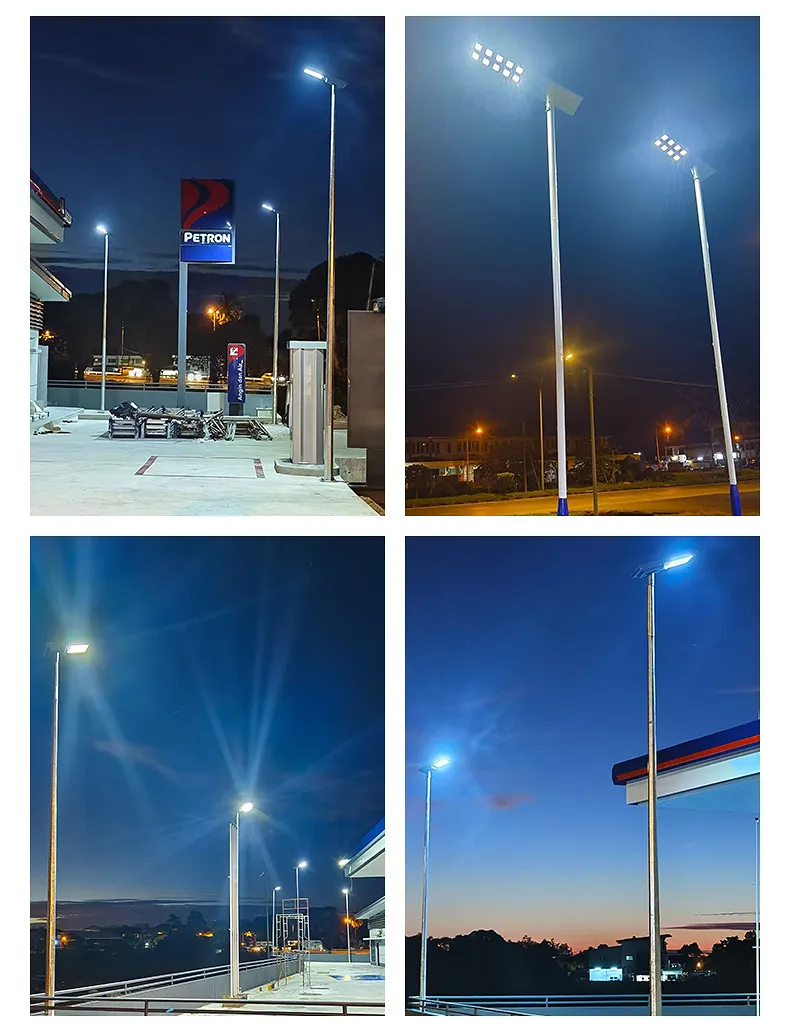

Detailed Photo 4

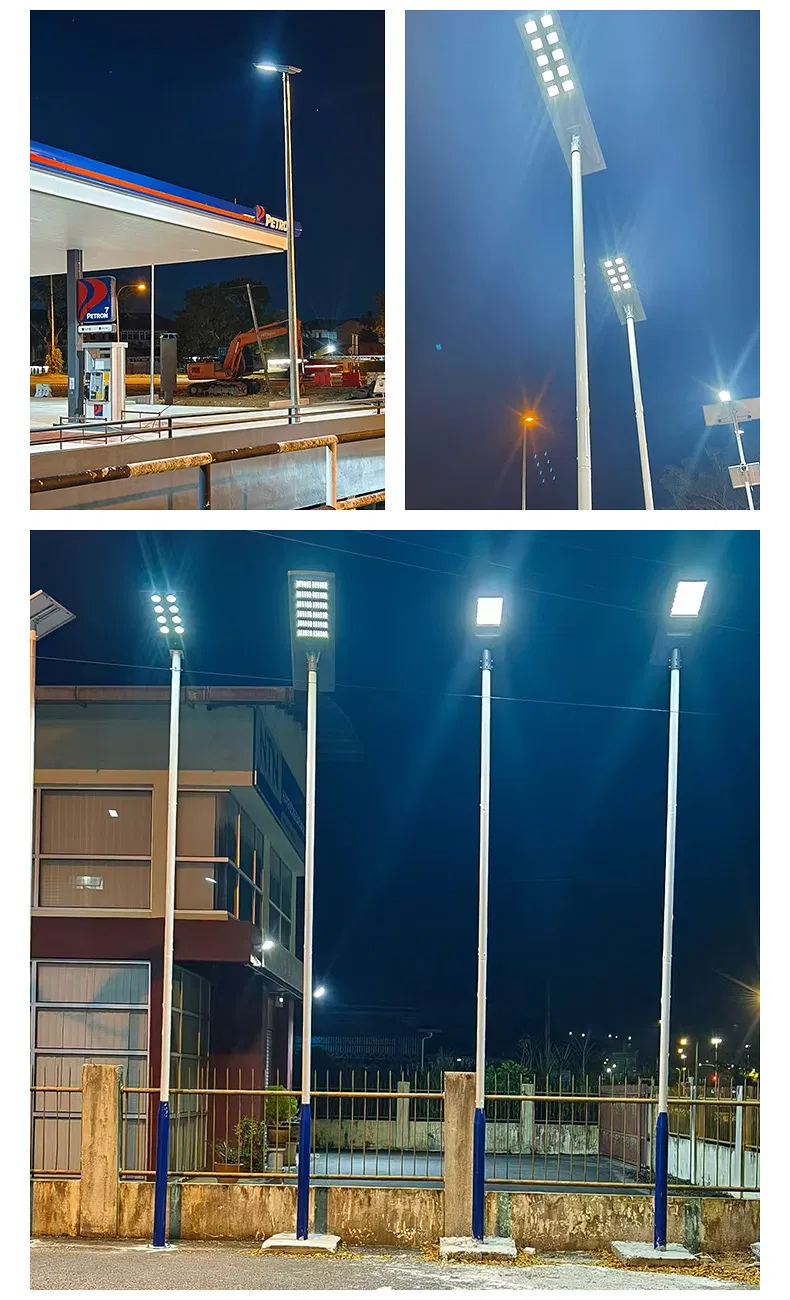

Detailed Photo 5
📋

Product Parameters

Parameter M55-30W M55-40W M55-60W M55-80W M55-100W M55-120W
Solar panel 50Wp 18V 60Wp 18V 80Wp 18V 110Wp 18V 130Wp 18V 150Wp 18V
Battery 244Wh 384Wh 576Wh 768Wh 960Wh 1152Wh
LED Chips 3030 SMD (120pcs) 3030 SMD (180pcs) 3030 SMD (240pcs) 3030 SMD (300pcs) 3030 SMD (360pcs) 3030 SMD (420pcs)
Luminous flux 6150lm 8200lm 12300lm 16400lm 20500lm 24600lm
Efficacy 205Lm/W
CCT 2700k to 6500k
Mounting Height 5-6 meter 6-8meter 8-10meter 10-12meter 12-14meter 14-16meter

Certifications

This model M55 solar street lights was fully certified for projects tender use. It meets the following standards:

IEC 60598 IEC 61215 IEC 61730 IEC 62109 IEC 62133 IEC 62471 LM79 / LM80 IP66 / IK CE / RoHS
📦

Packaging & Shipping

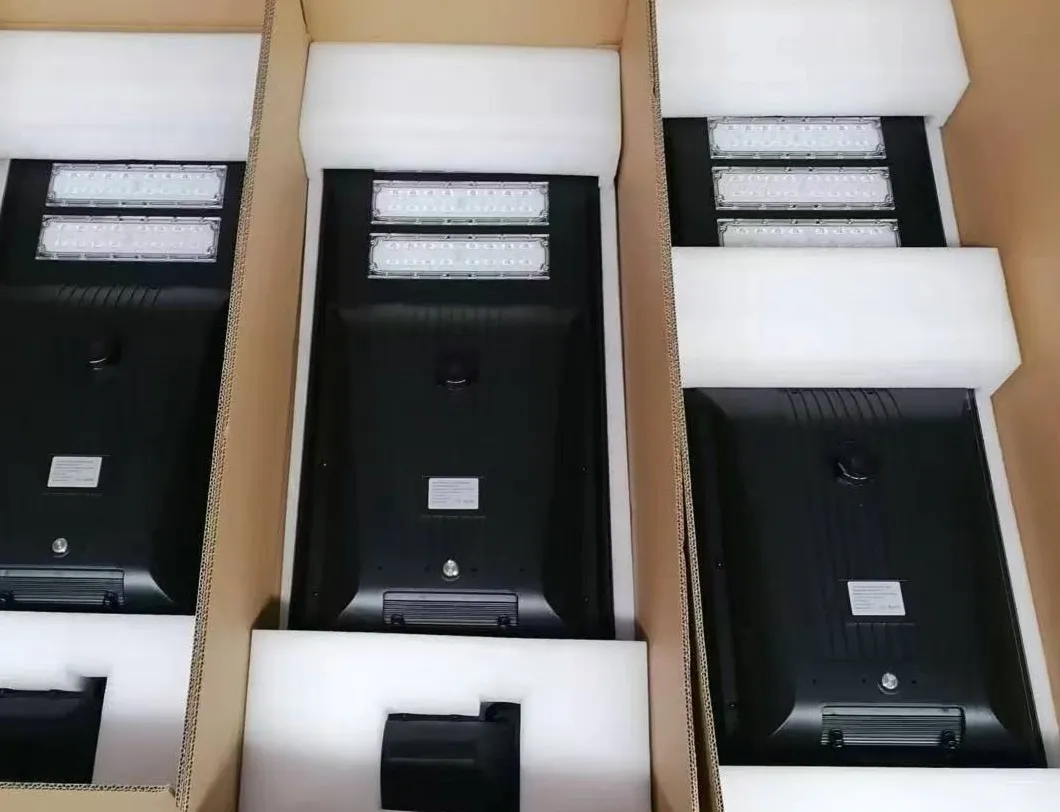

Packaging Image 1
Packaging Image 2

Installation Instructions

This model provide mounting tilt way, can do horizontal to vertical installation. Ideal to replace the traditional HID street lights by keeping the existing poles.

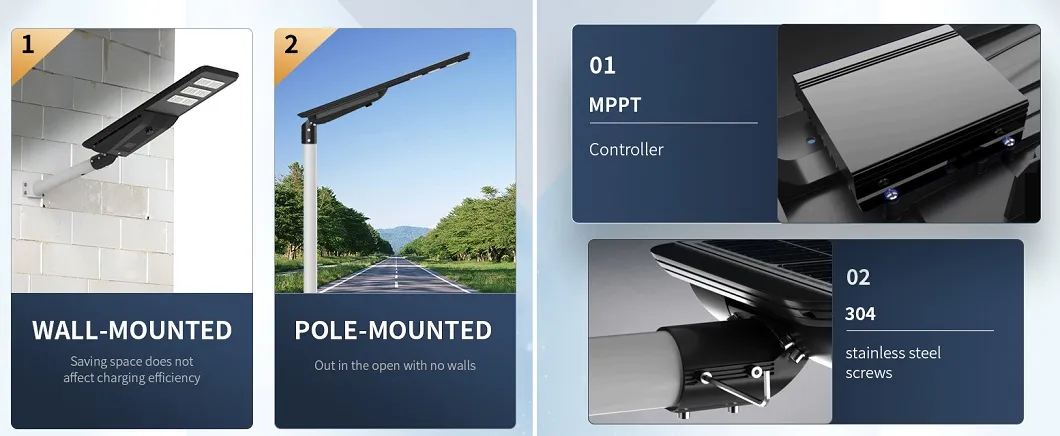

Installation Guide
?

Frequently Asked Questions

What is the luminous efficacy of the M55 solar street light?
The M55 model features a high luminous efficacy of 205Lm/W, making it highly efficient for public and roadway lighting.
How long does it take to fully charge the battery?
The charging time is approximately 5 to 6 hours under standard sunlight conditions.
What type of battery and solar panel are used?
The system utilizes a high-efficiency Mono-crystalline PV panel (up to 24% conversion) and a durable LiFePo4 Lithium battery.
Is the M55 suitable for high mounting requirements?
Yes, depending on the wattage (up to 120W), the M55 can be mounted at heights ranging from 5 meters up to 16 meters.
Does the light support smart management features?

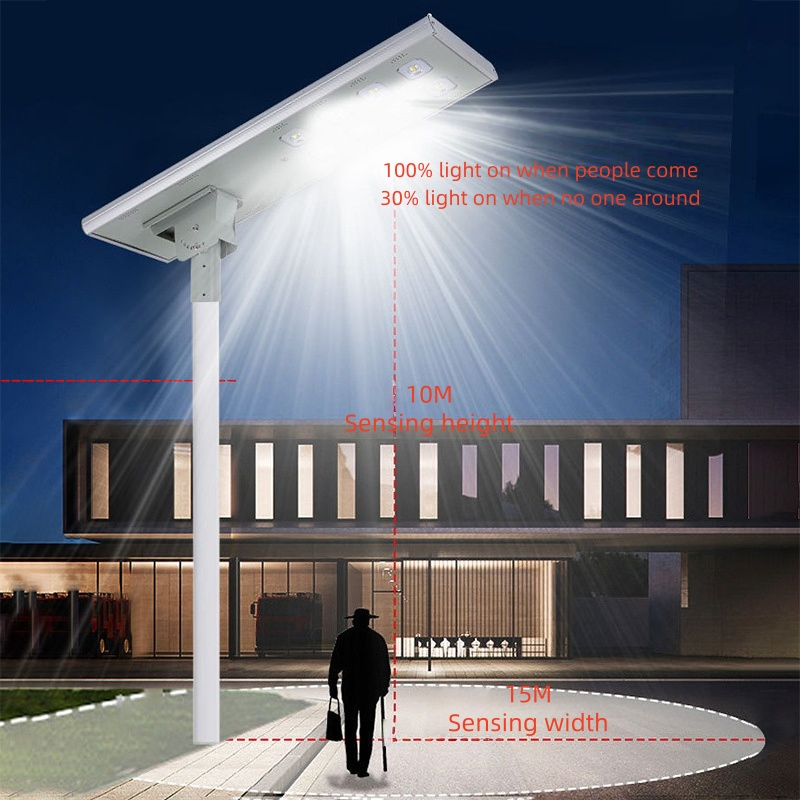

Yes, the M55 supports 4G Lora IoT connectivity, MPPT charging controllers, and motion sensors for intelligent energy management.
What kind of road environments is this light suitable for?
With Type I through Type V optical lens options, it is ideal for expressways, highways, urban roads, and general area lighting.
