Solar Light with Efficient Monocrystalline Design Smart Spx Series Solar Flood Light Equipped with Motion Sensor Mode for Enhanced Outdoor Security Light
1 / 5

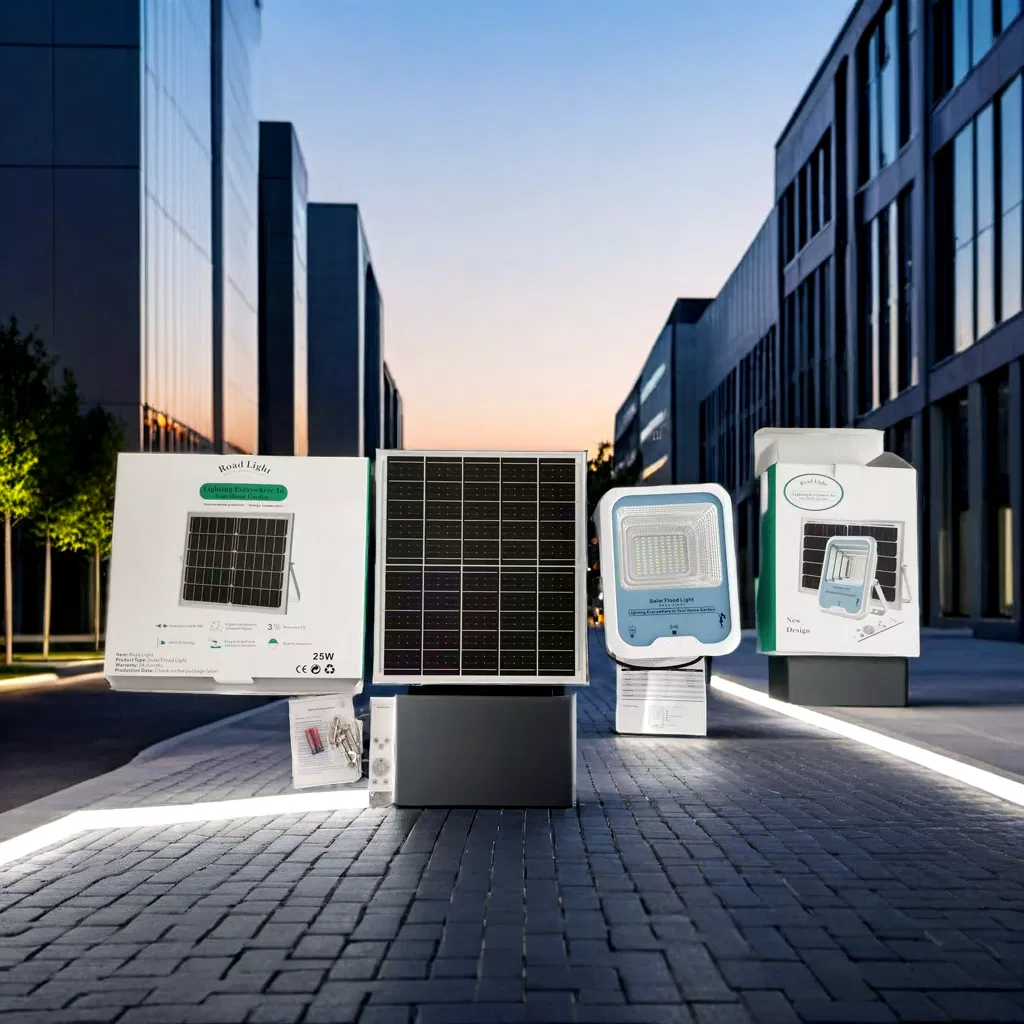

Solar Light with Efficient Monocrystalline Design Smart Spx Series Solar Flood Light Equipped with Motion Sensor Mode for Enhanced Outdoor Security Light
SPX Series Solar Flood Light - An innovative marvel in outdoor lighting solutions, meticulously designed for gardens, courtyards, roads, and squares. Available in four distinct capacities: 60W (SPX-E2), 100W (SPX-E4), 200W (SPX-E6), and 300W (SPX-ES).
These solar flood lights utilize monocrystalline silicon solar panels for maximum energy conversion and high-luminous LEDs for superior brightness. Fortified by an IP66 waterproof rating, the SPX Series promises reliable performance in any weather.
Core Advantages

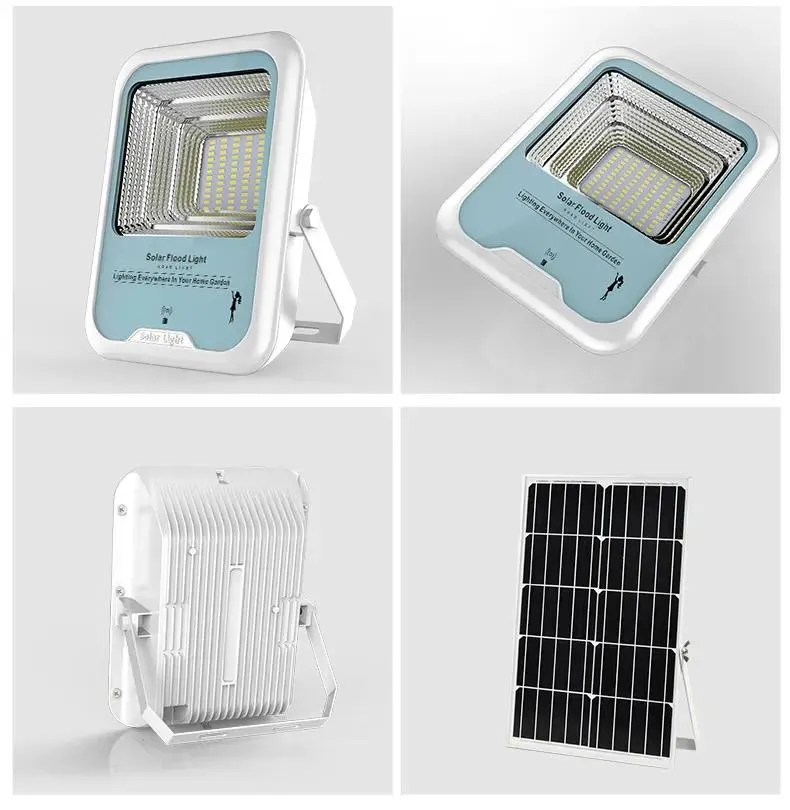

1. High-Efficiency Monocrystalline Panels
Features state-of-the-art monocrystalline silicon solar panels with energy conversion rates between 15-22%. These panels are designed to harness sunlight effectively even on overcast days, with a lifespan exceeding 25 years.

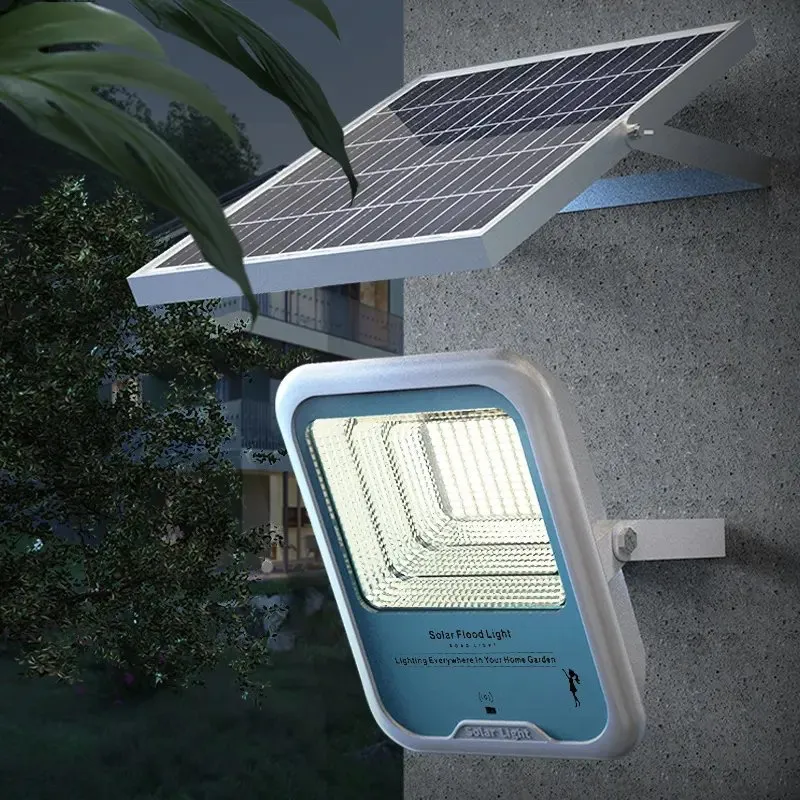

2. Long-Lasting LiFePO4 Batteries
Premium Lithium Iron Phosphate batteries offer over 2000 charge-discharge cycles (5-7 years lifespan). They are inherently stable, resistant to thermal runaway, and function reliably from -20°C to 60°C.
3. 7 Versatile Working Modes
Includes Sensor Mode (100% brightness on motion), Semi-Sensor Mode (30% constant, 100% on motion), and Timed Modes (3, 5, or 8 hours of full brightness).
4. IP66 Waterproof & All-Weather Durability
Certified dust-tight protection and resilience against powerful water jets. The housing is crafted from high-grade, corrosion-resistant aluminum alloy for optimal heat dissipation.
Technical Specifications
Parameter
SPX-E2 (60W)
SPX-E4 (100W)
SPX-E6 (200W)
SPX-ES (300W)
Luminous Flux
600LM
1000LM
1800LM
2700LM
Solar Panel
15W Mono
25W Mono
40W Mono
50W Mono
Battery Capacity
12000mAh
18000mAh
30000mAh
45000mAh
IP Grade
IP66
IP66
IP66
IP66
Charging Time
4-5 Hours
5-6 Hours
6-7 Hours
6-7 Hours
Working Time
12-24 Hours
12-20 Hours
10-18 Hours
10-16 Hours
Color Temp
5500-6000K
5500-6000K
5500-6000K
5500-6000K

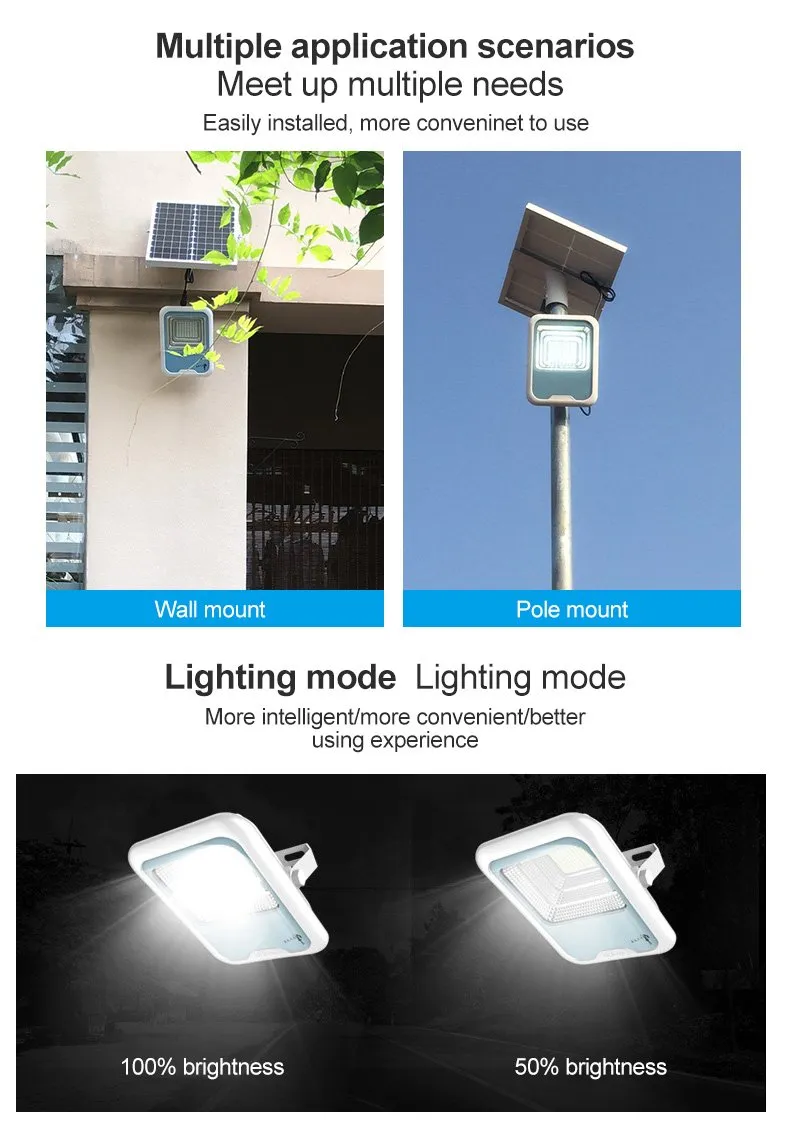

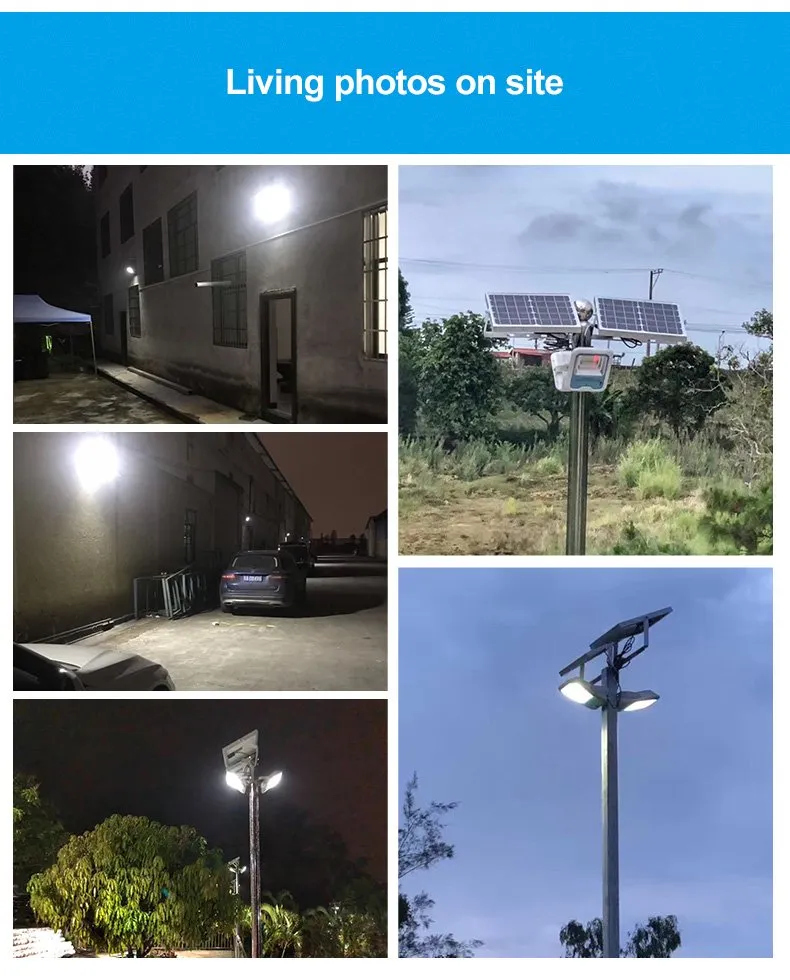

Application Scenarios
Our dynamic solar lighting system enhances safety and sets an inviting ambiance across various settings:
Residential: Gardens, courtyards, driveways, and patios.
Commercial: Parking lots, retail store exteriors, and office complexes.
Public Spaces: Parks, pathways, recreational squares, and streets.
Industrial: Warehouses, loading docks, and construction sites.

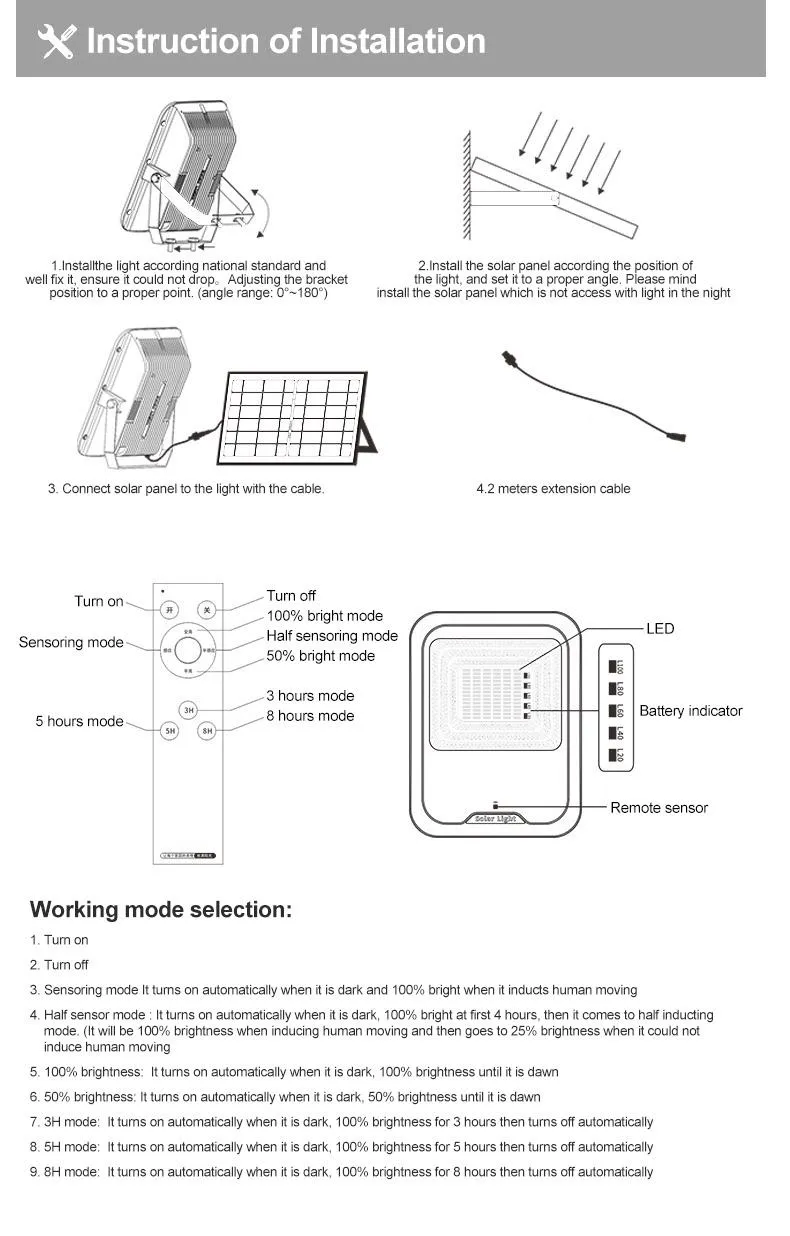

Installation Guide
1. Choose Location: Mount solar panel in direct sunlight (south-facing in Northern Hemisphere).
2. Mount Panel: Use brackets to adjust to 30-45° angle.
3. Install Lamp: Affix securely to surface and adjust angle for desired coverage.
4. Set Mode: Use controller to select preferred lighting mode. Note: Allow battery to charge for 4-7 hours before first use.
Frequently Asked Questions
1. How do I choose the right model?
Selection depends on area size: 60W for gardens/patios, 100W for driveways, 200W for parks, and 300W for large industrial/public squares.
2. Will the light work on cloudy or rainy days?
Yes. High-efficiency monocrystalline panels absorb diffused sunlight. While charging takes longer (6-8 hours), the battery stores enough energy for 12+ hours of use.
3. How does the motion sensor work?
The 180° sensor detects movement within 5-8 meters. It triggers 100% brightness and dims/shuts off after 30-60 seconds of no motion.
4. Is the light suitable for coastal areas?
Yes. The IP66 rating and corrosion-resistant aluminum housing protect the unit from salt spray. Regular cleaning with fresh water is recommended.
5. What is the operational temperature range?
The SPX series operates reliably in temperatures from -20°C to 60°C (-4°F to 140°F), making it suitable for extreme climates.
6. How long does the solar panel last?
The monocrystalline silicon panel has a lifespan of 25+ years with minimal degradation under normal usage conditions.
