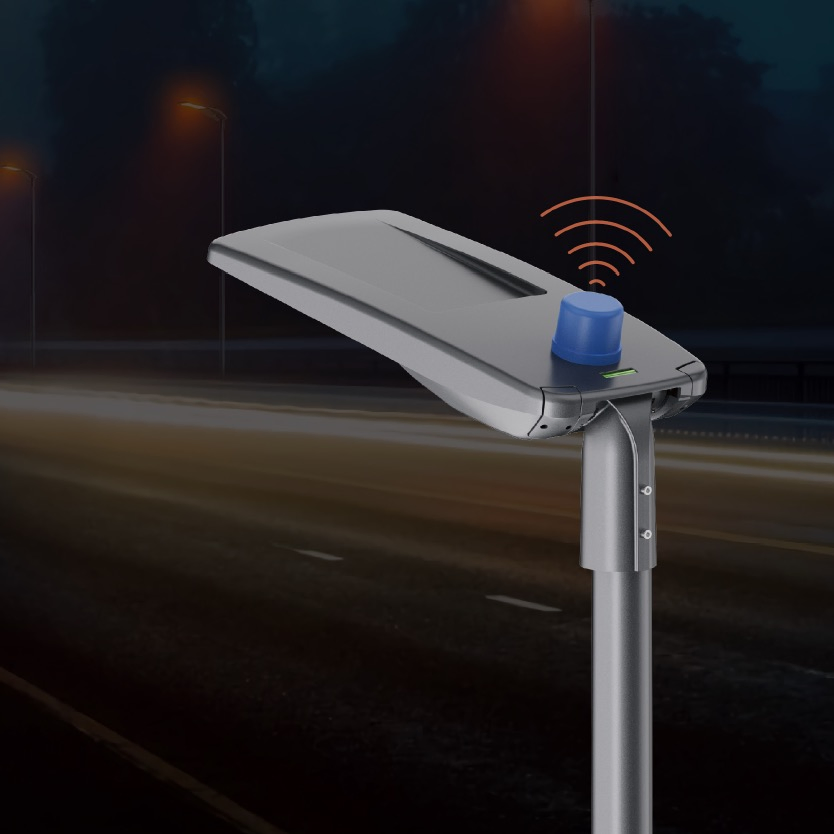

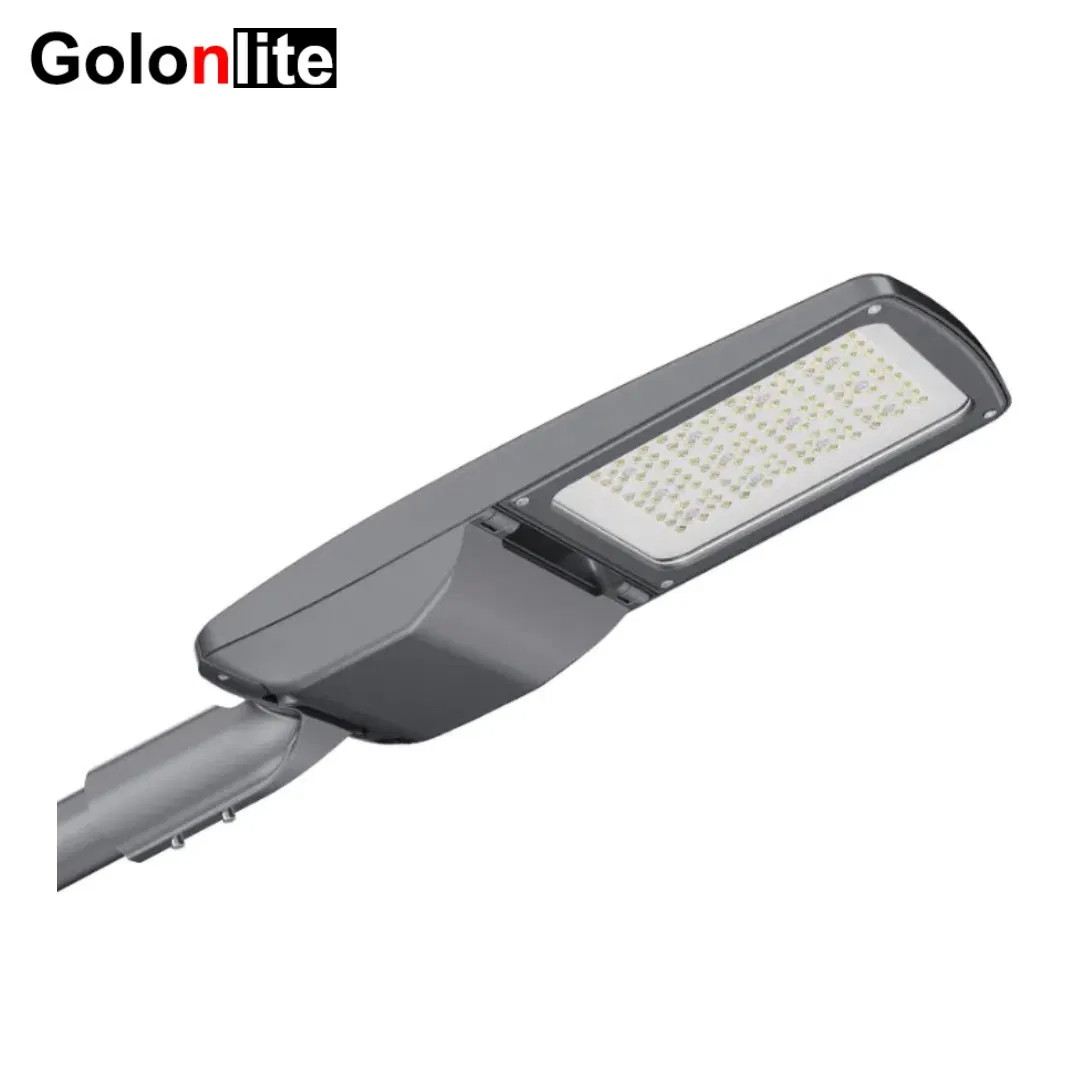

170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
1 / 5
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light
170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light

170lm/W Photocell Sensor City Smart Control 50W -240W High Quality LED Street Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Material
Die Casting Aluminum + PC Lens + Tempered Glass
Power
30W - 200W Range
IP Rating
IP66 / IK08
Input Voltage
100-277VAC 50/60Hz
Warranty
5/7 Years
Certification
CE, EMC, LVD, RoHS
170Lm/W Smart Control LED Street Light

High-quality urban smart control LED street light solutions, featuring 150LM/W to 180Lm/W efficiency. Designed for highway, garden, parking lot, and industrial applications.

Technical Specifications
Light Source LED Type SMD3030 / SMD5050
Luminous Efficiency 150Lm/W - 180Lm/W
CCT (K) 1700K - 6500K Options
Lifespan > 50,000 Hours
Electrical Input Voltage 100-277VAC, 347V, 480VAC
Smart Control NEMA (3/5/7 pins), Photocell, LoRaWan, Zigbee
Protection IP66 Waterproof / IK08 / SPD 6KV-20KV
Product Key Features
  • Superior Efficiency: Up to 170Lm/W for maximum energy savings.
  • Durable Construction: Die-casting aluminum housing with tempered glass and optic PC lens.
  • Multiple Optics: Various beam angles available (T2M/T3M/T4M/P50).
  • Smart Ready: Compatible with Zigbee, LoRaWan, and Photocell sensors via NEMA socket.
  • Industrial Grade: IP66 waterproof rating and IK08 impact resistance.

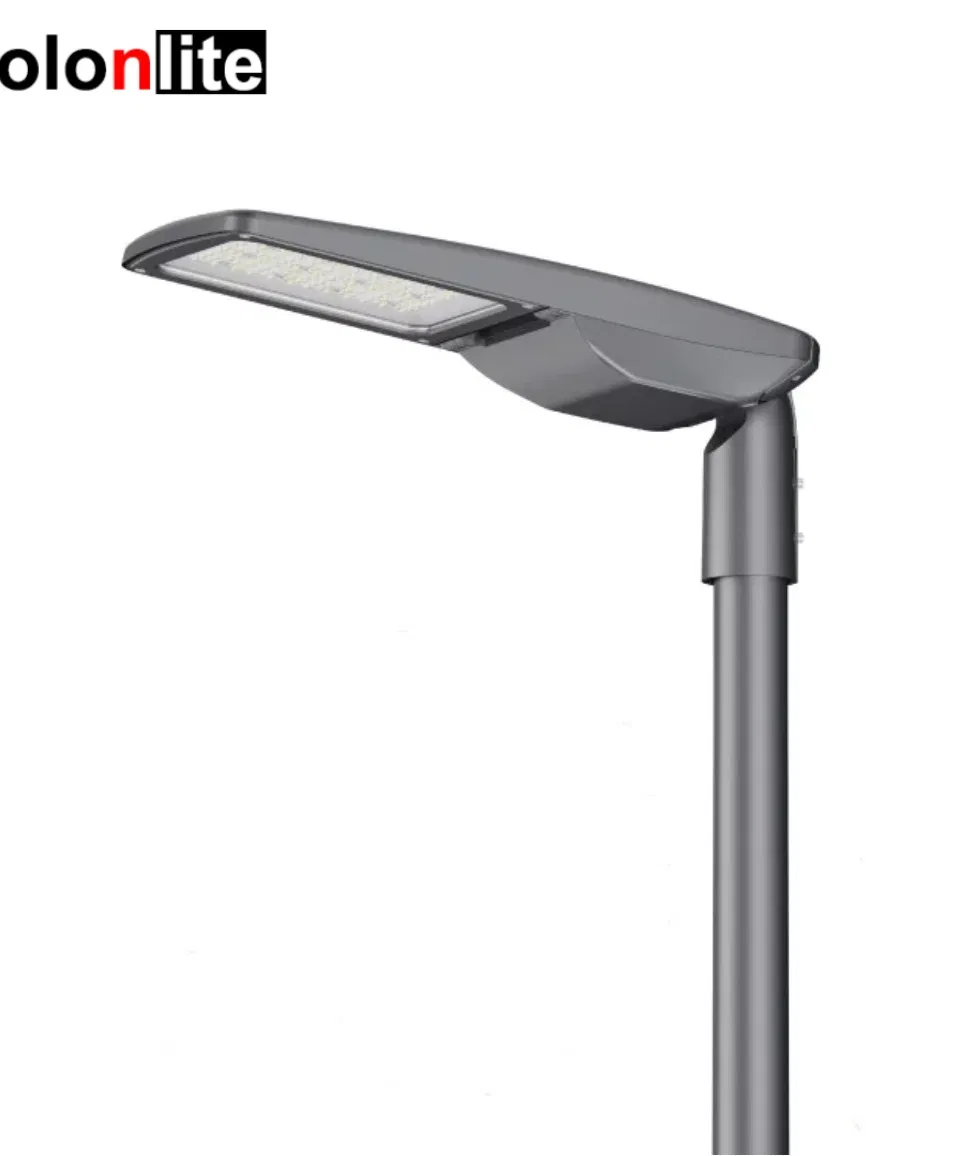

Smart Street Light View 1

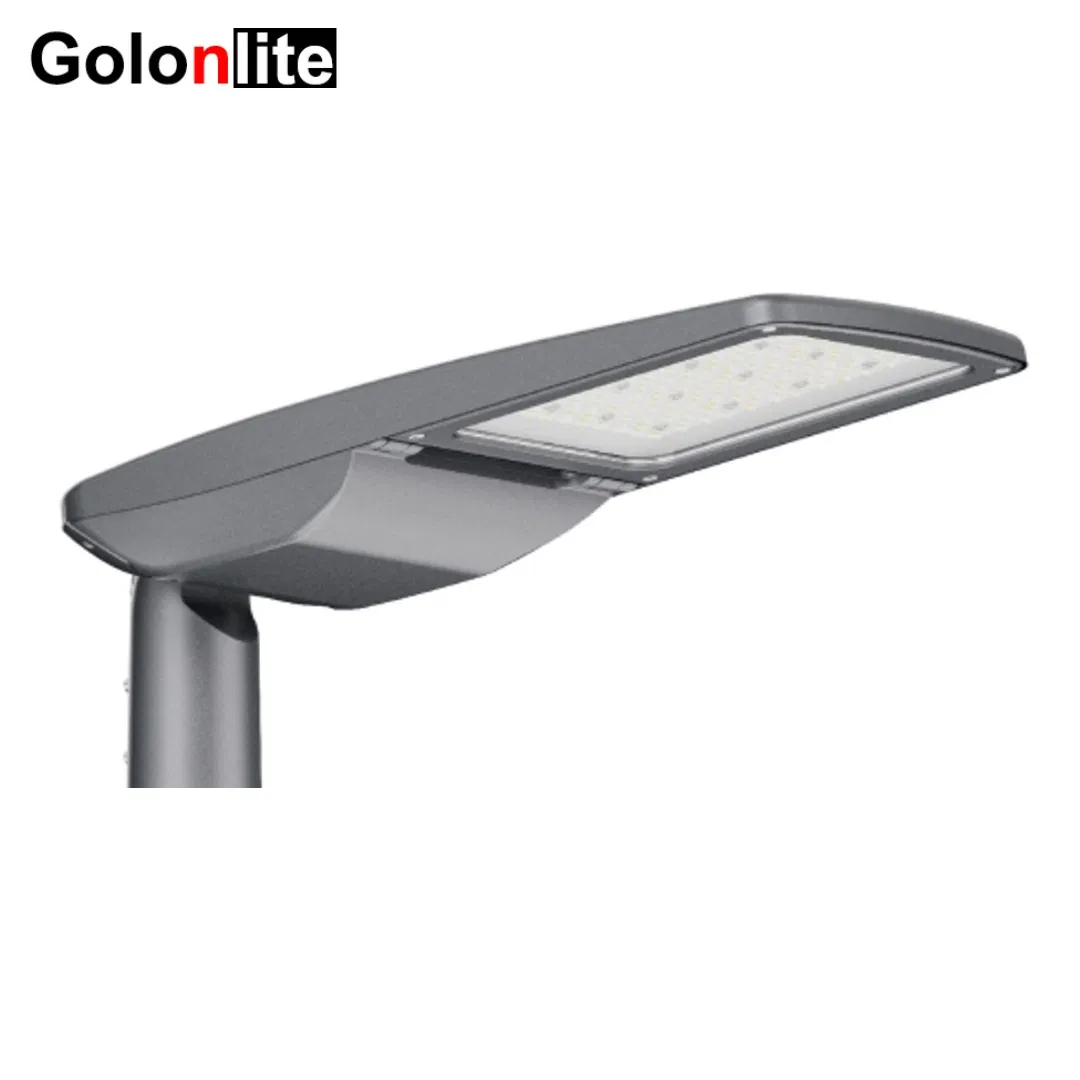

Smart Street Light View 2

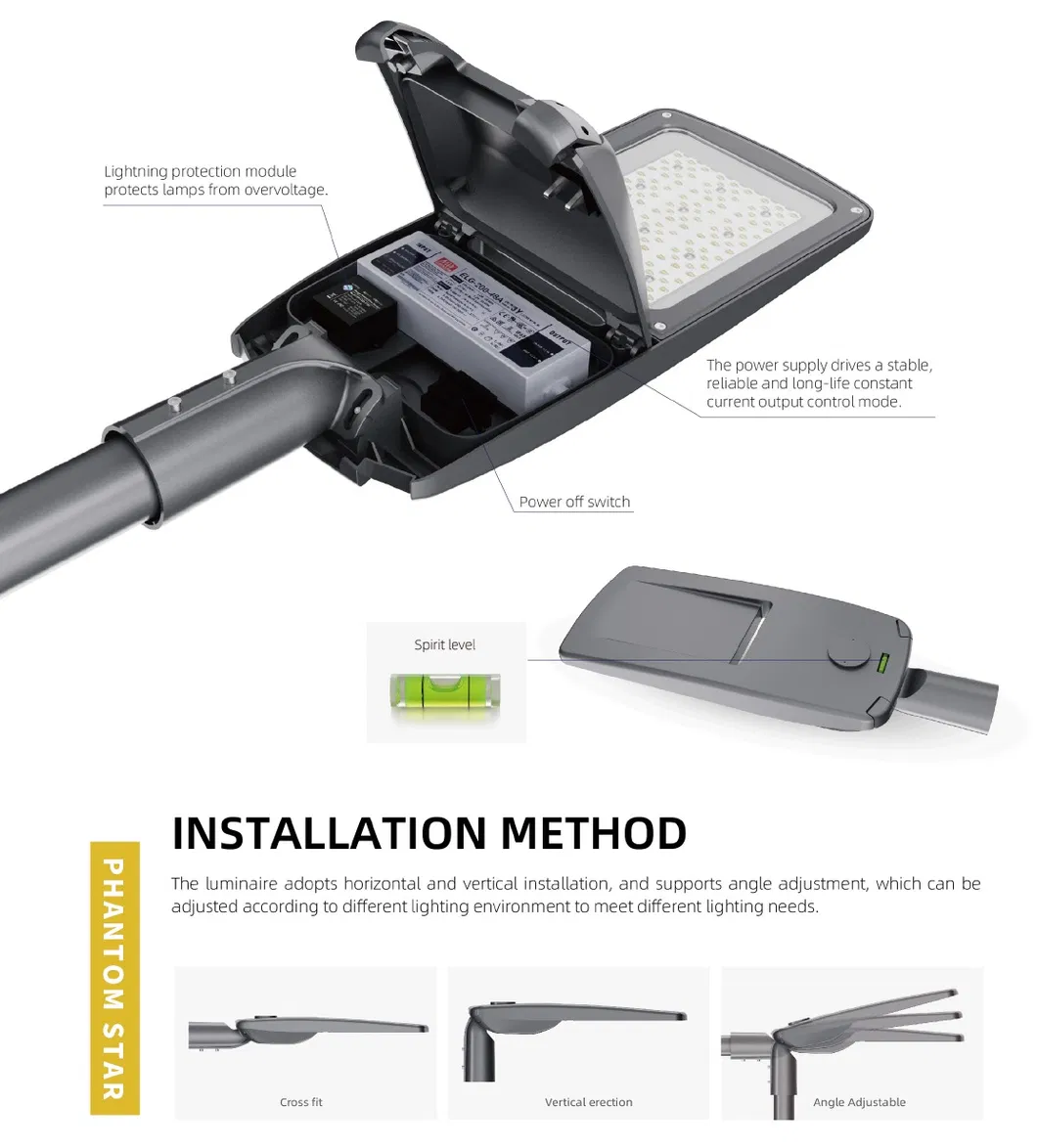

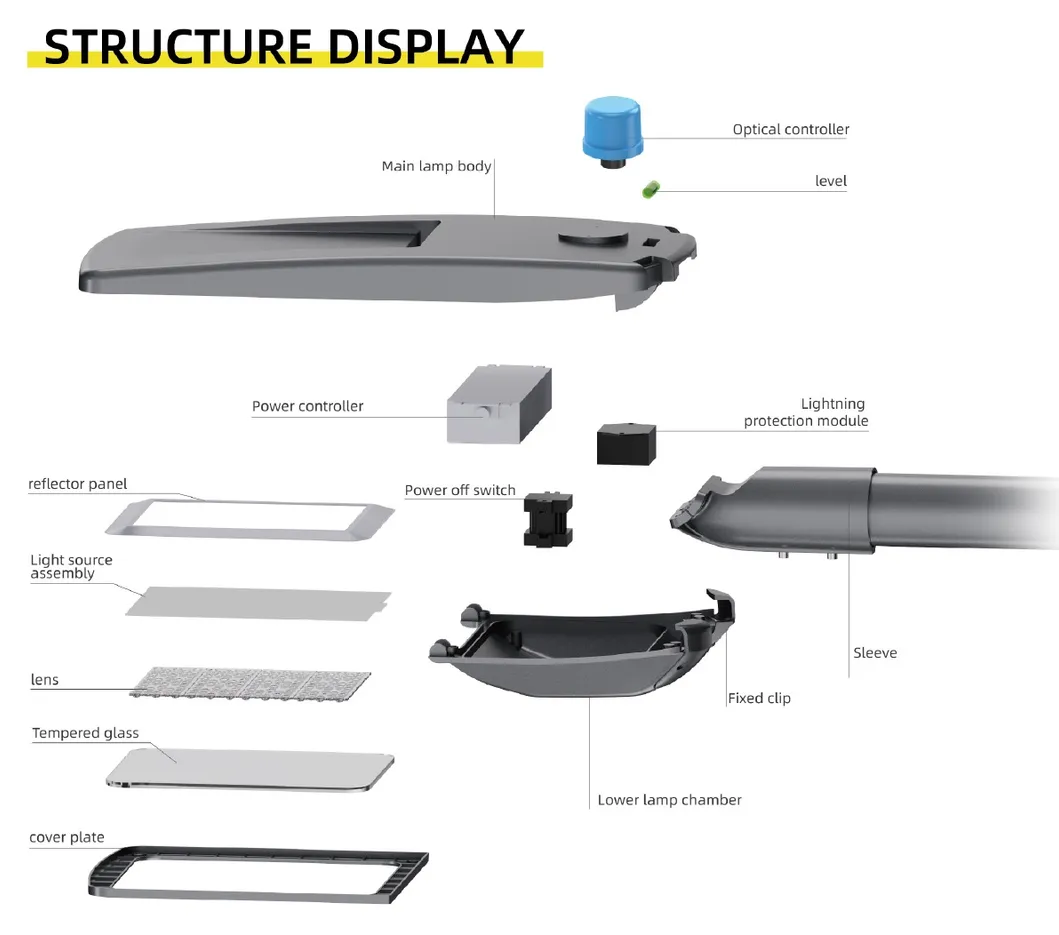

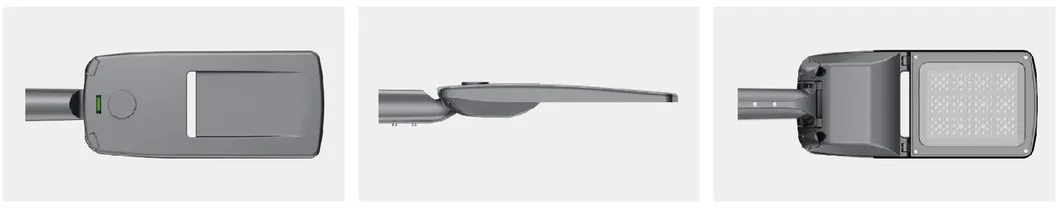

Dimensions and Detail Structure Analysis Component Breakdown
Smart Control Capabilities

What can the smart system do?

  • Remote switch on/off and group dimming.
  • Electricity consumption and power saving reports.
  • Real-time status monitoring and fault alarms.
  • Color temperature adjustment and camera monitoring support.

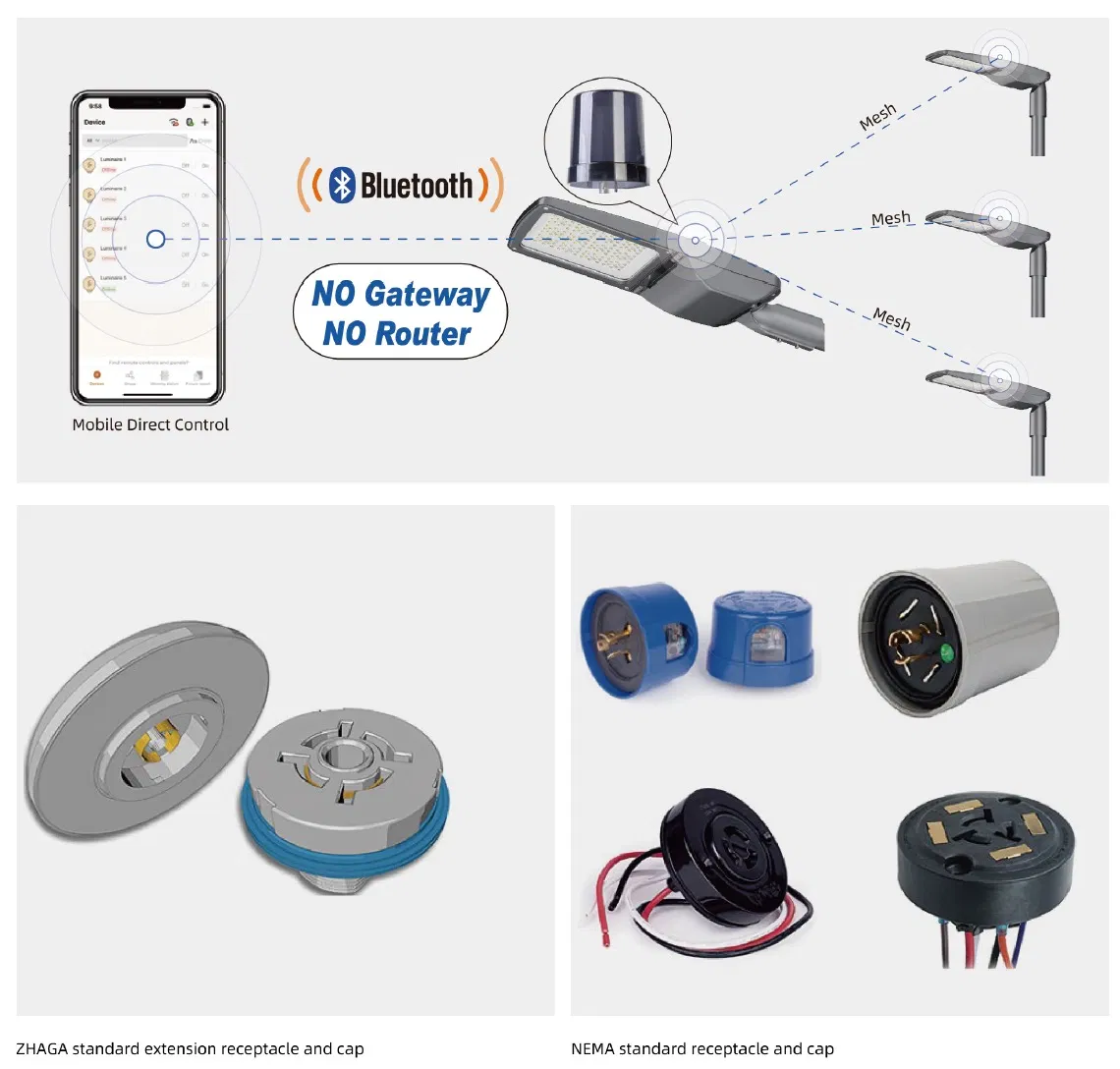

Smart System Interface
Broad Applications

Ideal for urban roads, industrial zones, residential areas, sidewalks, parking lots, schools, and gardens.

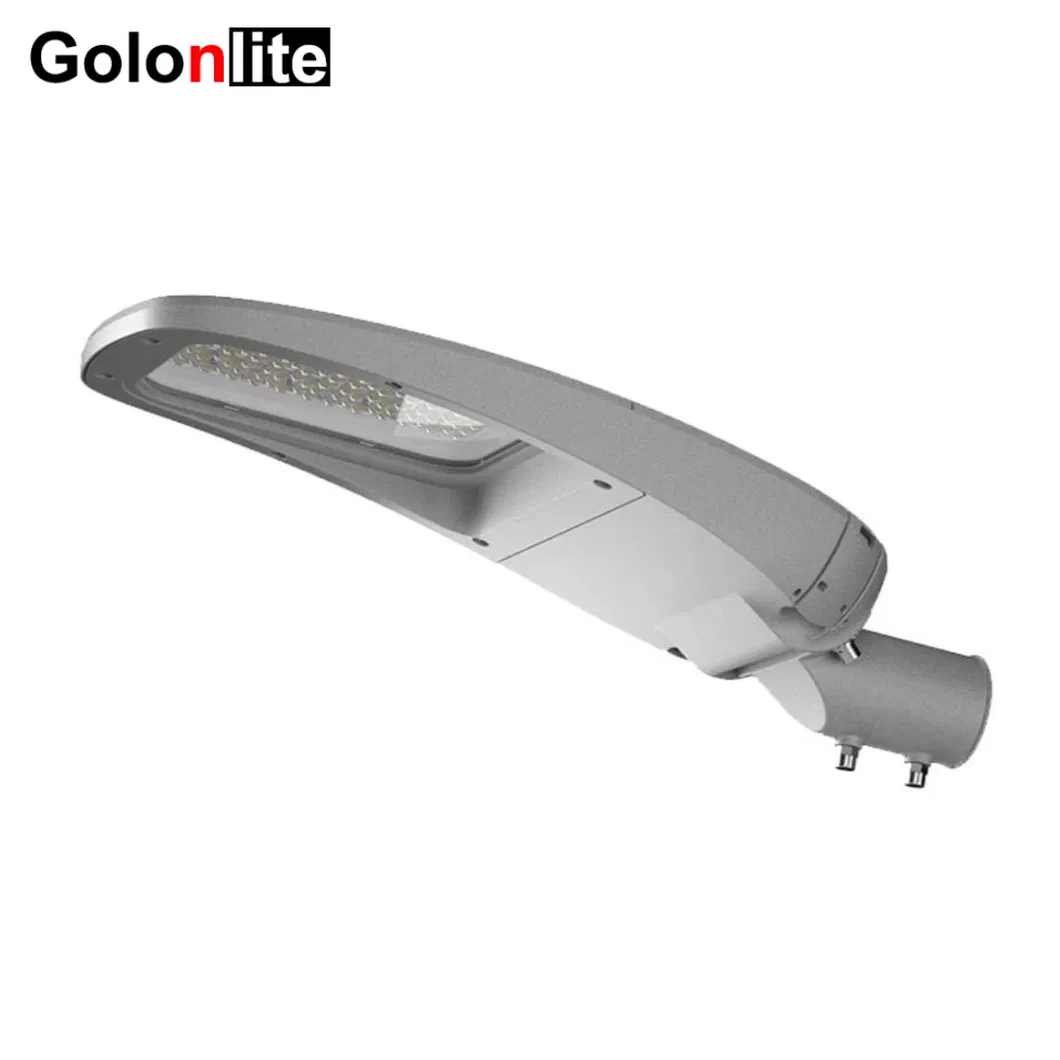

Road Lighting

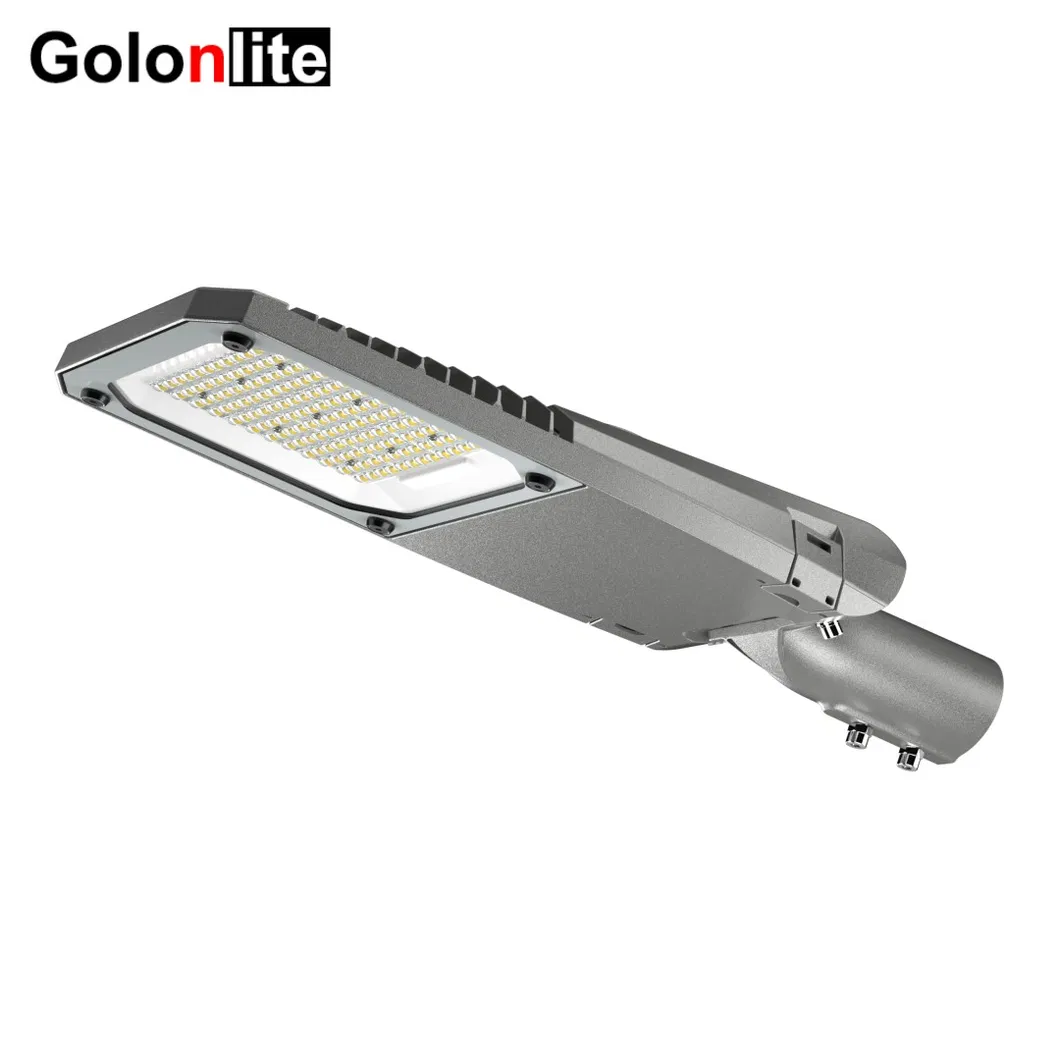

Parking Lot Lighting

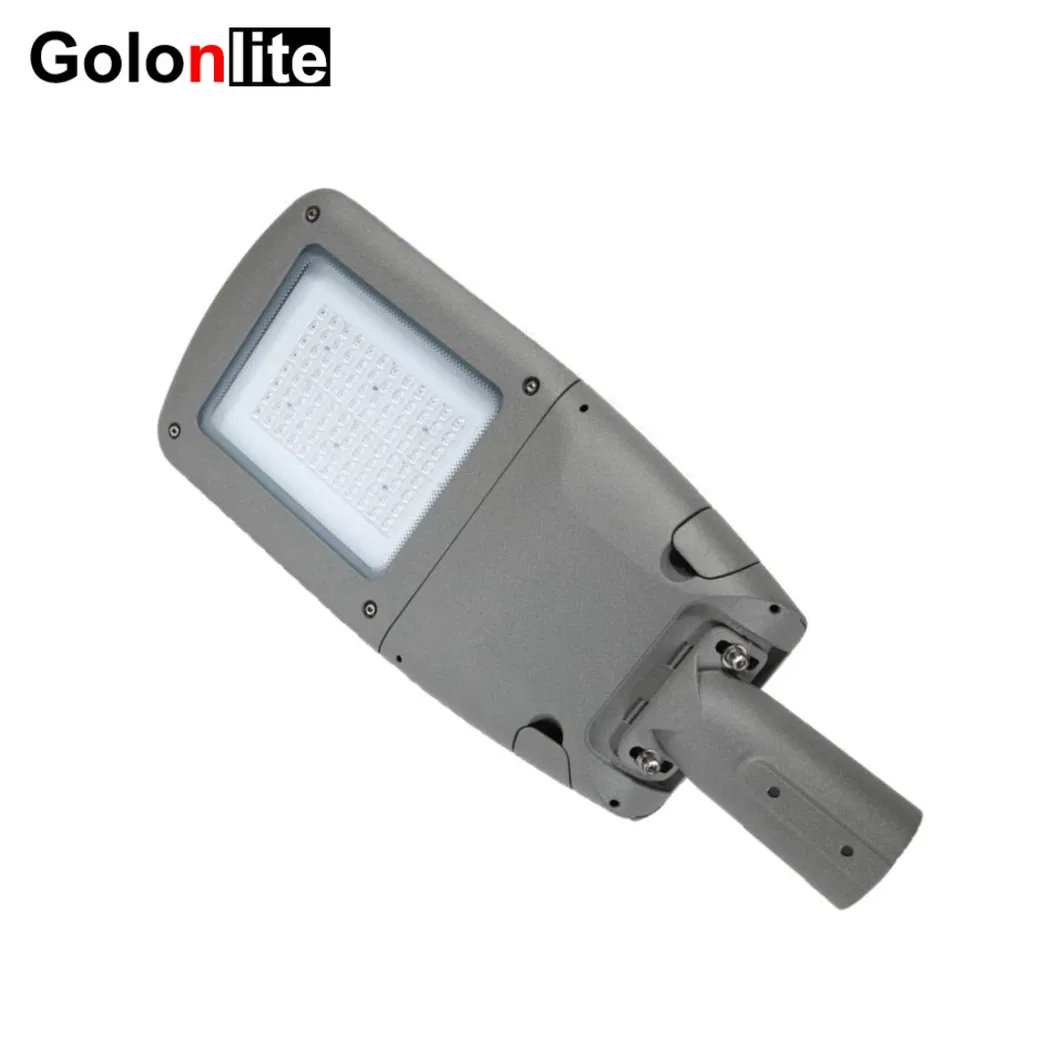

Urban Street Lighting

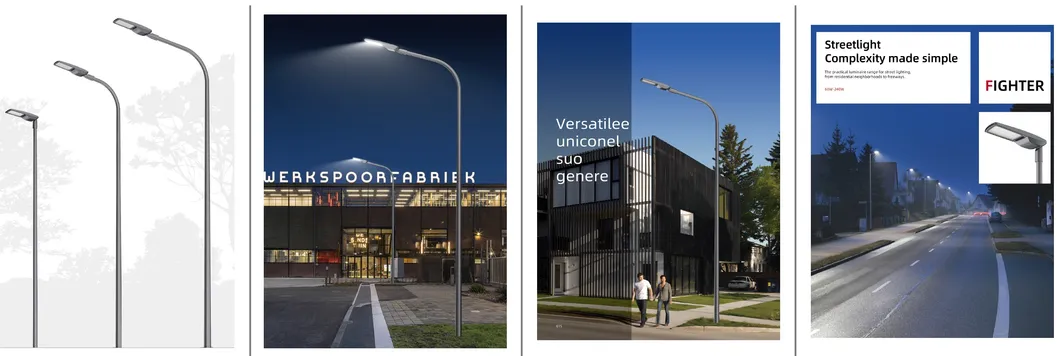

Application Projects
Our Professional Services
  • 24-hour inquiry response and expert technical support.
  • OEM and ODM customization welcomed.
  • Comprehensive 5 to 7-year warranty.
  • Free Lighting Design: Provision of IES files and Dialux simulation solutions.

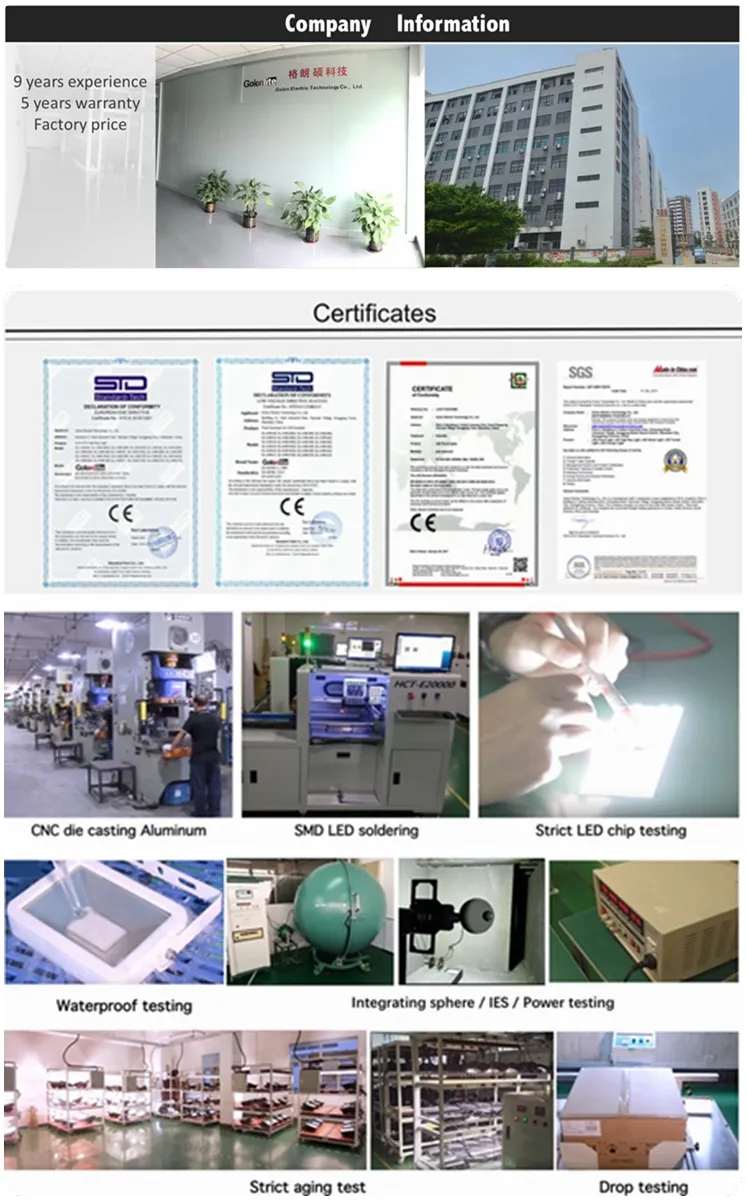

Factory Quality Control
Frequently Asked Questions
Q1: What is the luminous efficiency of these LED street lights? A: These high-quality street lights offer an efficiency range of 150Lm/W to 180Lm/W, providing significant energy savings compared to traditional lighting.
Q2: Which smart control protocols are supported? A: The lights support multiple smart control options including LoRaWAN, Zigbee, and traditional Photocell sensors via 3/5/7-pin NEMA sockets.
Q3: How durable are the light fixtures for outdoor use? A: The fixtures are built with die-casting aluminum and tempered glass, featuring an IP66 waterproof rating and IK08 impact resistance, along with 6KV to 20KV surge protection (SPD).
Q4: Can you provide a lighting simulation for my specific project? A: Yes, we offer free Dialux lighting simulations and studies to help you determine the optimal layout and power requirements for your project.
Q5: What is the warranty period offered for these products? A: Depending on the specific configuration and driver choice (Meanwell, Inventronics, etc.), we provide a reliable warranty of 5 to 7 years.
Q6: What power options are available for this series? A: We offer a wide range of power options including 30W, 50W, 60W, 80W, 100W, 120W, 150W, 180W, 200W, and up to 240W.
