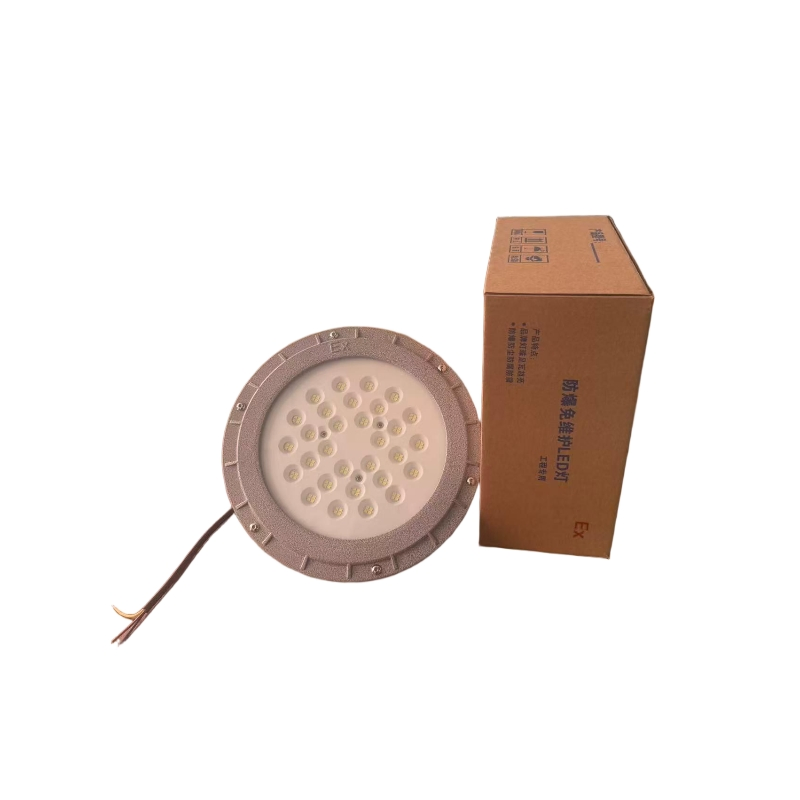

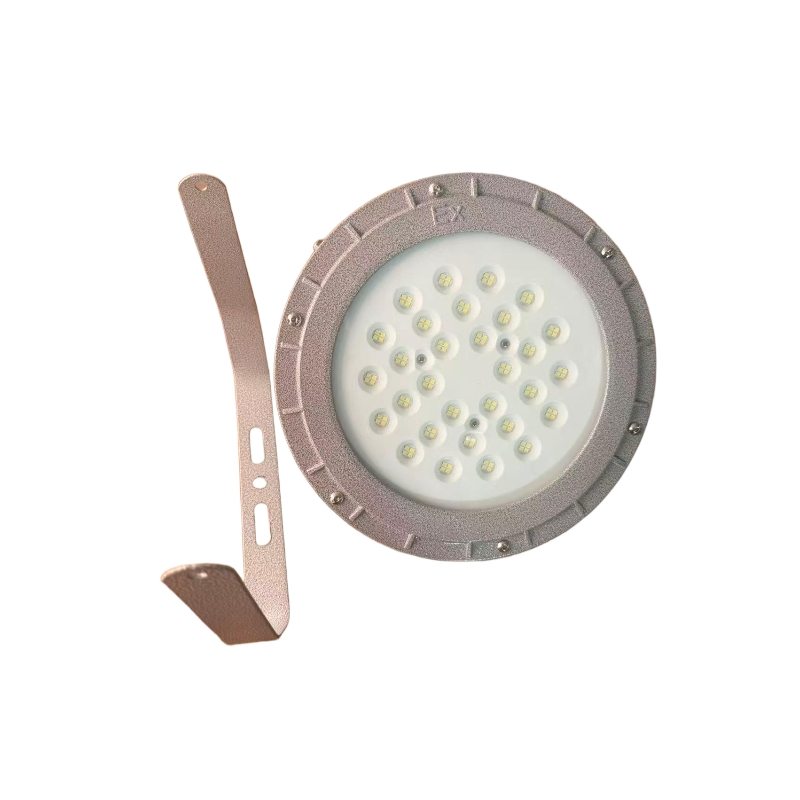

50W 100W 200W Circular Explosion-Proof LED High-Pressure Lamps with a Sturdy Aluminum Alloy Casing, Are Suitable for Industrial Hazardous Areas Fj91-C-1

1 / 5

50W 100W 200W Circular Explosion-Proof LED High-Pressure Lamps with a Sturdy Aluminum Alloy Casing, Are Suitable for Industrial Hazardous Areas Fj91-C-1

Lamp Body Material:	Aluminum
IP Rating:	IP65
Irradiated Area:	15-30m²

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

FJ91-C-1

Input Voltage

165V-265V

Power

50W-200W

Color Temperature

Warm White

LED Chips Brand

CREE

Certification

CCC

Working Temp.

-30 to 60 ℃

Protection Grade

IP65

Size

210mm*295mm

Weight

5kg

💡

Product Features

⚡

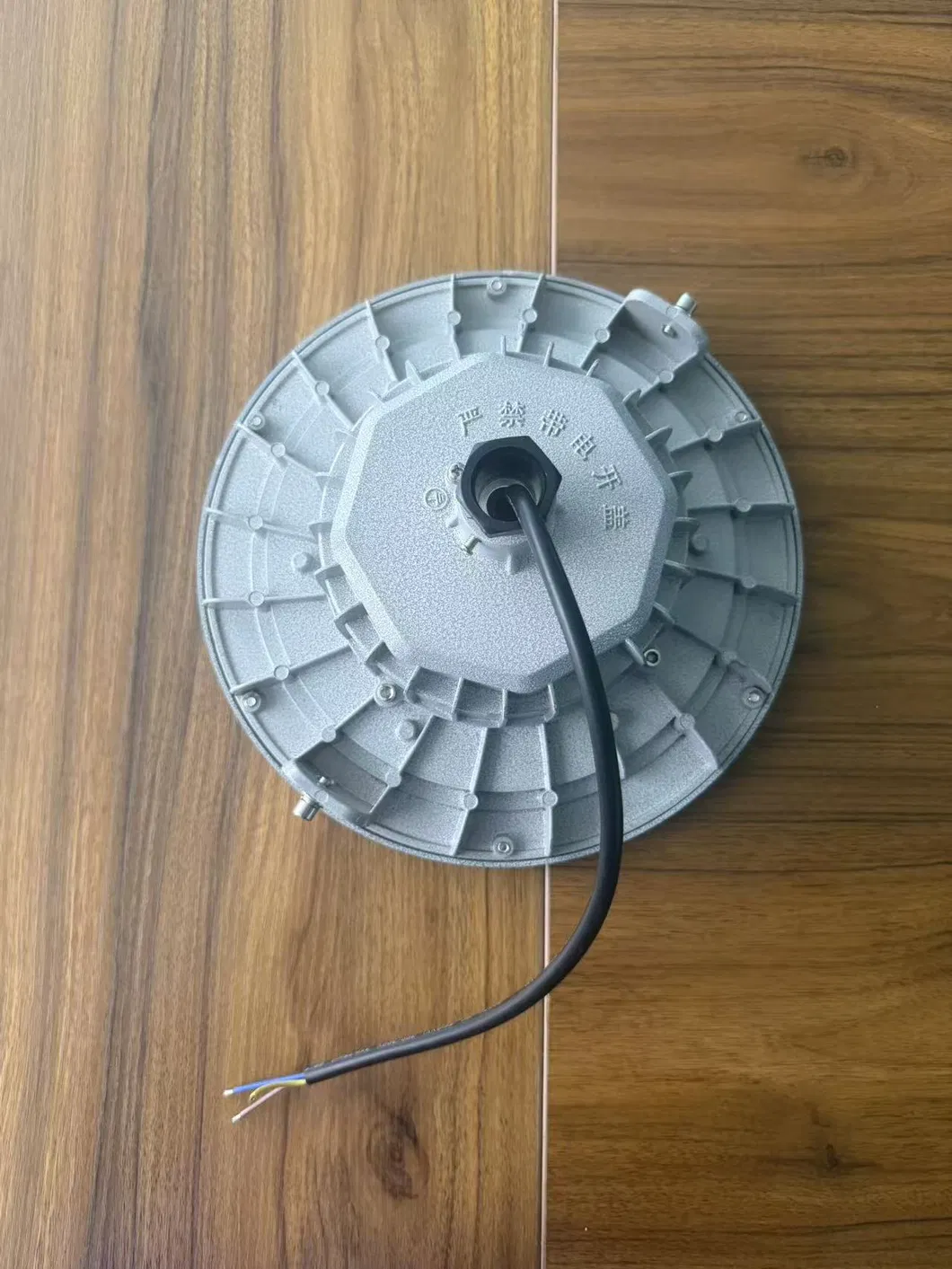

High-Performance Radiator: Made of special cast aluminum alloy via die-casting, with a high-voltage electrostatic sprayed surface for superior heat dissipation.
🛡️
Durable Construction: Features exposed stainless steel fasteners with high corrosion resistance and high-strength transparent tempered glass with strong impact resistance.
⚙️
Explosion-Proof Design: Pure flame-proof structure with a modular three-box separation design, effectively reducing temperature rise to ensure long lamp life.
🌟
Uniform Illumination: Multi-point lighting design provides high light utilization and uniform illumination without glare.
🔌
Advanced Power Supply: Constant current power supply with wide voltage input, featuring surge prevention, overcurrent, and anti-electromagnetic interference protection.

🖼️

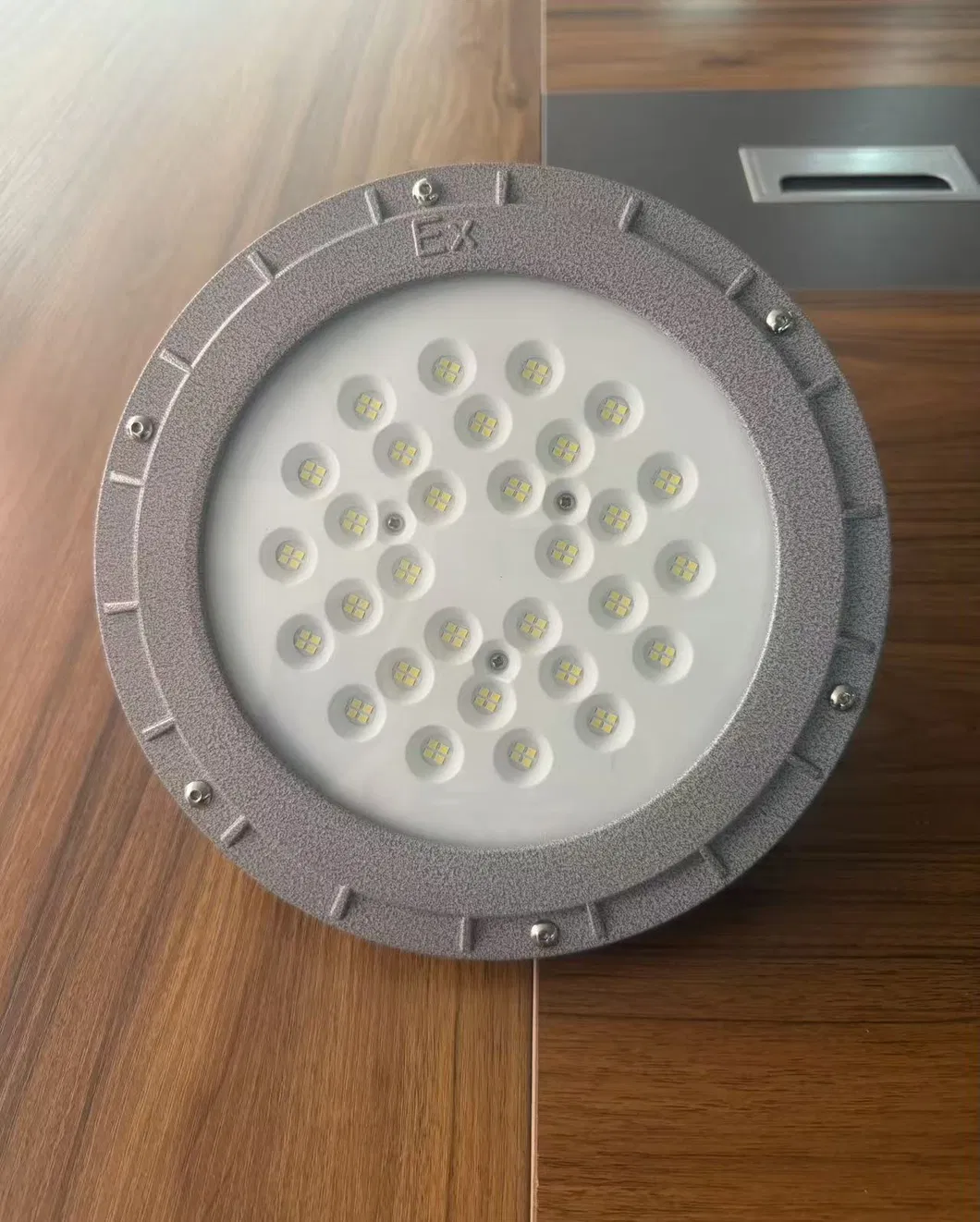

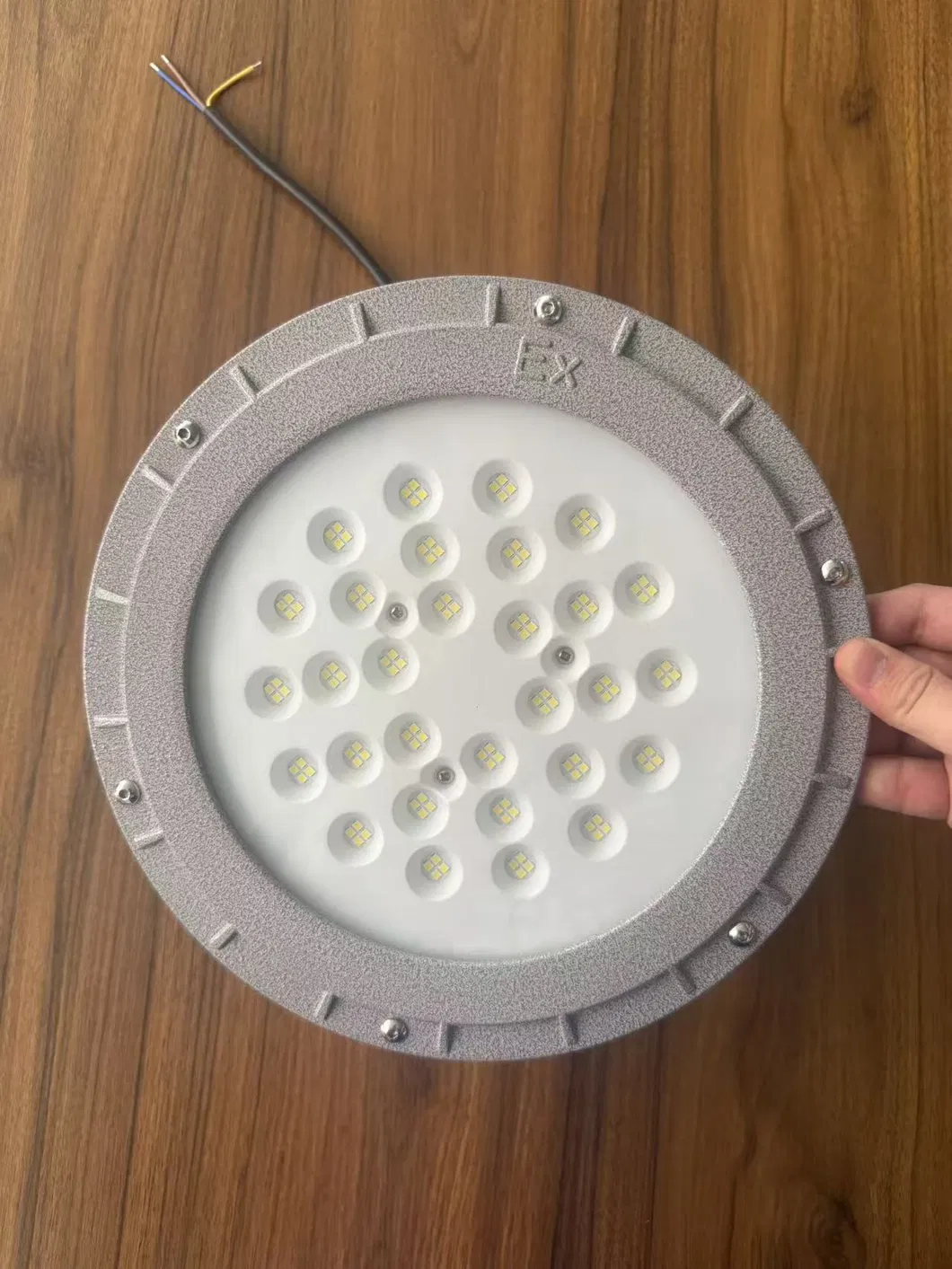

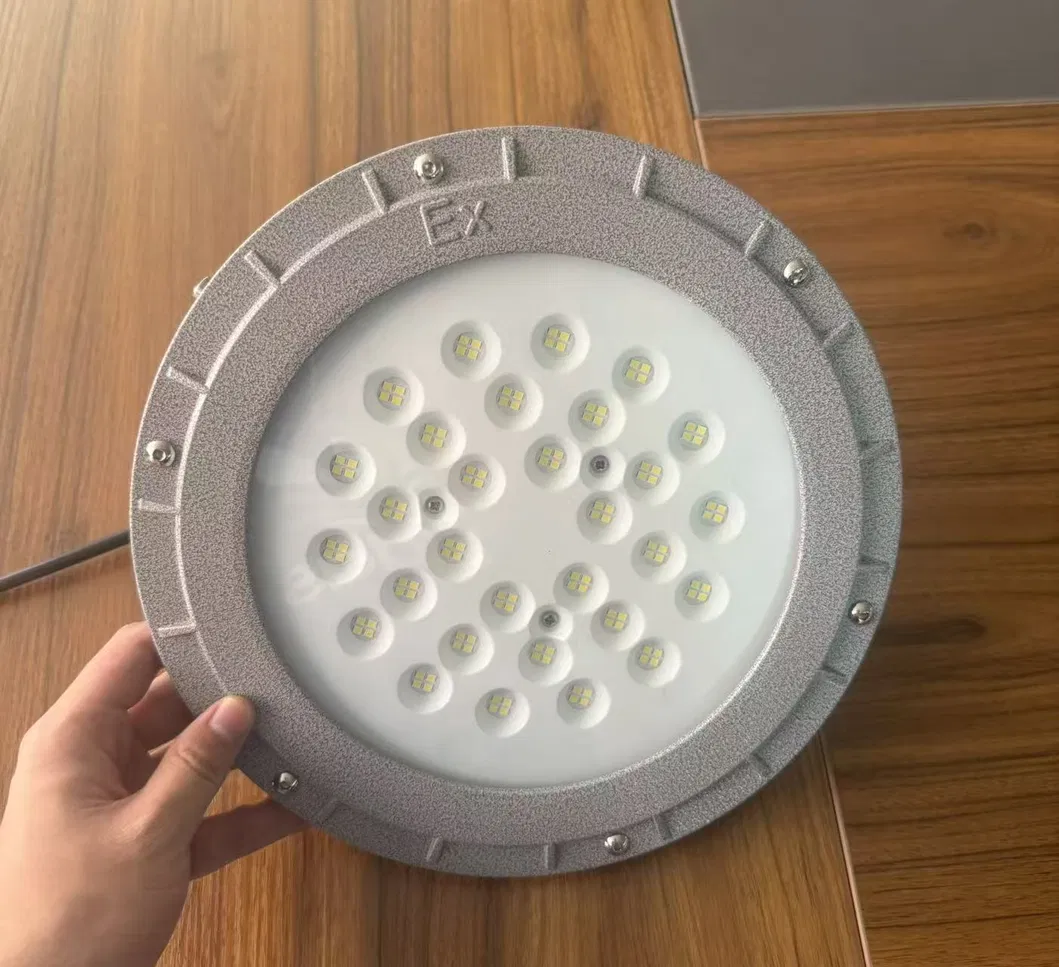

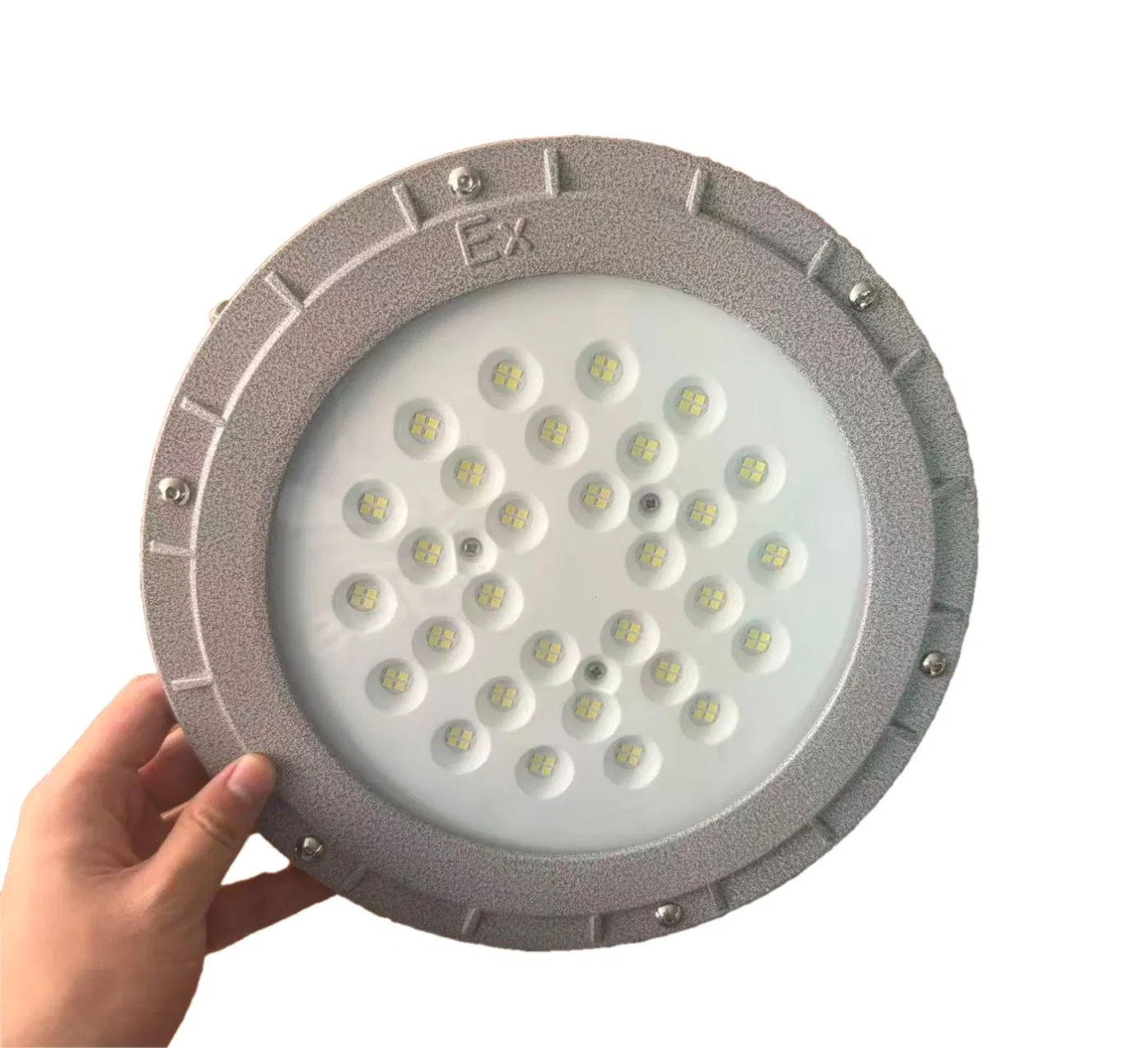

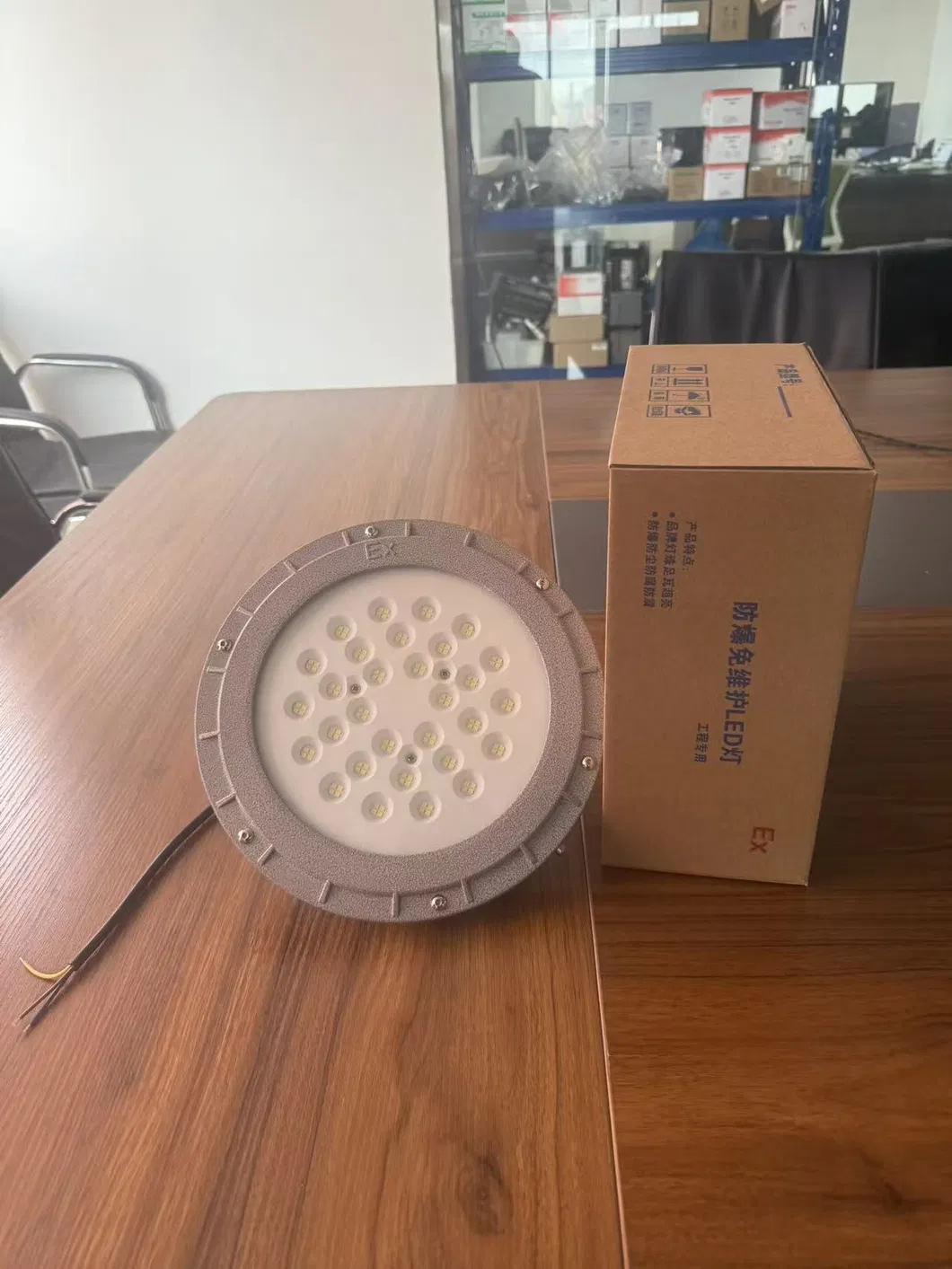

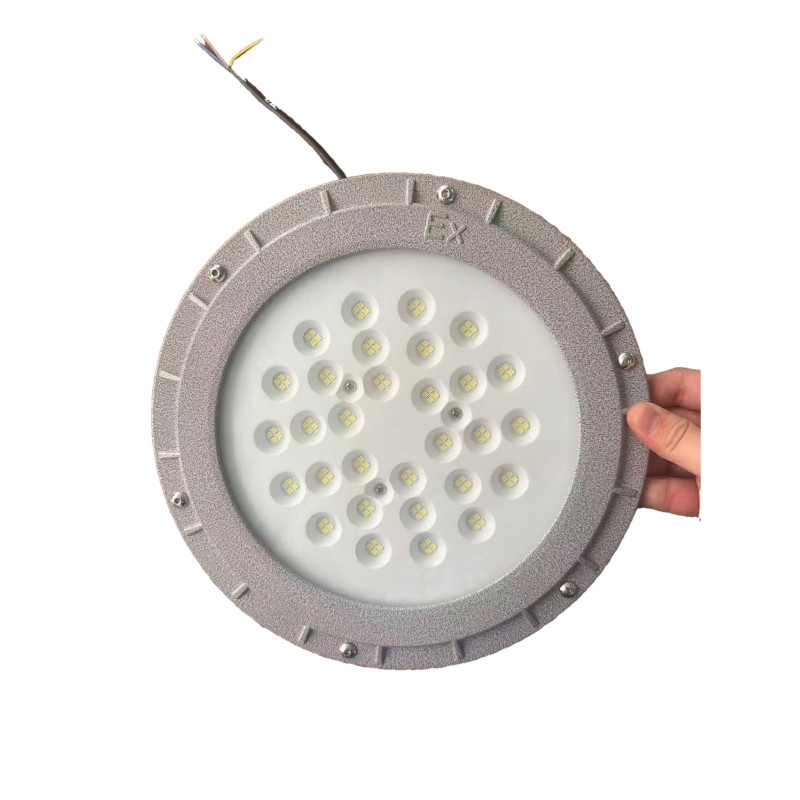

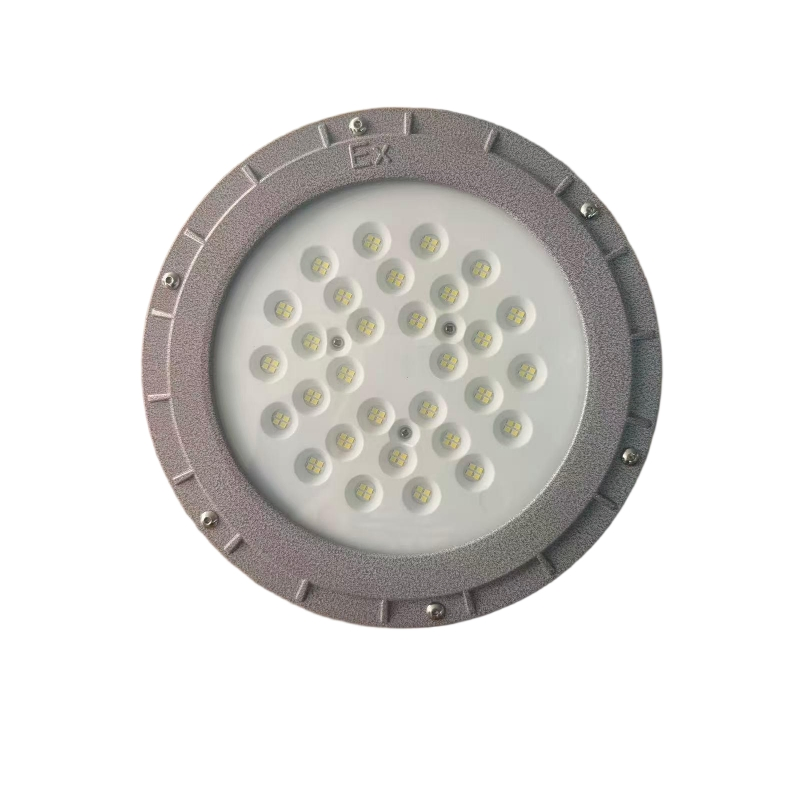

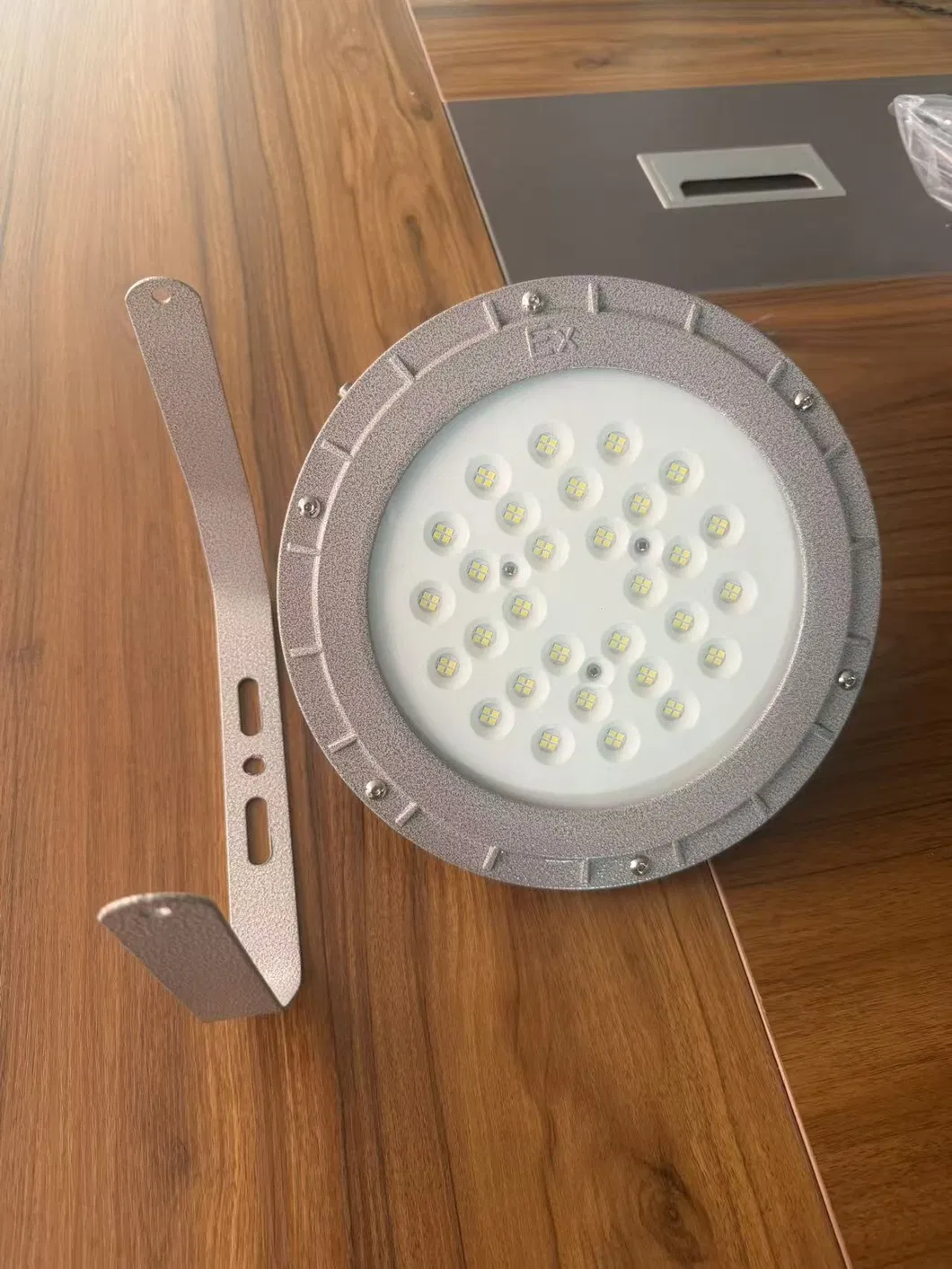

Product Display

📝

Technical Parameters

Model	Explosion Proof Sign	Light Source	Type	Power (W)
FJ91-C-1	Ex db IIC T6 Gb Ex tb IIIC T80ºC Db	LED	I	50
			II	100
			III	200
			IV	300

Rated Voltage	Inlet Thread	Cable Diameter	Protection	Anti-Corrosion
165-265V/50Hz	G3/4	Φ8~Φ10mm	IP65	WF1/WF2

📐

Dimensions & Installation

❓

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer providing professional services. Our product range includes explosion-proof lighting, distribution boxes, cable glands, fans, and junction boxes.

What industries are these products suitable for?

They are widely used in petroleum, chemical, aerospace, coal power, railway, metallurgy, shipbuilding, medicine, and other hazardous industrial environments.

Do you offer customized explosion-proof lights?

Yes, our explosion-proof lights have a customized range. You can discuss your specific requirements with our sales representatives.

What kind of shipping methods are available?

We support multiple transportation methods, including DHL, UPS, FedEx, and maritime transportation.

What are the key safety features of the FJ91-C-1 model?

It features a pure flame-proof joint surface, IP65 protection, and high-strength tempered glass to ensure safety in Class IIA, IIB, and IIC gas environments.

How does the design ensure a long lifespan for the LED?

The three-box separation structure and special cast aluminum radiator effectively reduce heat accumulation, protecting the LED chips and power supply.
