Warehouse Industrial Warranty High Bay Smart 130lm/W Explosion Proof LED

1 / 5

Warehouse Industrial Warranty High Bay Smart 130lm/W Explosion Proof LED

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	Explosion Proof High Bay Light	Irradiated Area	≥30m²
Input Voltage	220v	Color Temperature	Warm White
Emitting Color	White	Certification	CCC, CE, RoHS
Model	Mxel 8234c-2	Light Efficiency	120lm/W
Base Specs	CREE3030	Operating Life	100,000 Hours
Anti-Corrosion	WF2	HS Code	9405409000

What is an Explosion Proof Light?

An explosion proof high bay or low bay light is an industrial-grade light fixture designed for use in hazardous locations where atmospheres may be exposed to the release of flammable gases or vapors, combustible dusts or ignitable fibers or flyings in explosive concentrations.

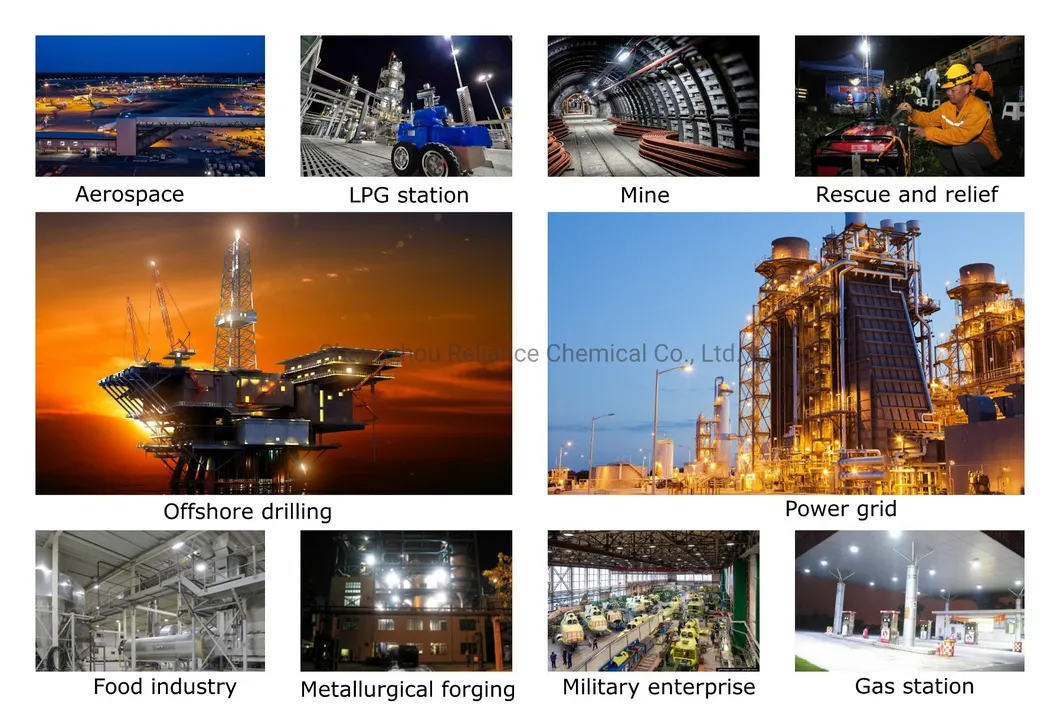

Typical hazardous environments include oil and gas processing facilities, petroleum refineries, chemical plants, solvent extraction plants, grain silos, and wood-processing facilities where safety is the top priority.

Key Features

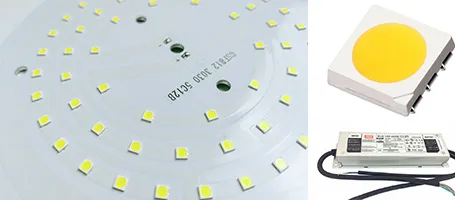

Electrical Configuration

Utilizes top-tier CREE LED light-emitting chips. These chips offer ultra-high light efficiency and an exceptional average service life of up to 100,000 hours, reducing maintenance needs.

Heat Dissipation Performance

The radiator is crafted from one-piece die-casting molding. This firm structure provides excellent thermal conductivity, ensuring the lamp stays cool and extends its operational life.

Optical Lampshade

Made from high-strength optical-grade materials. It is both corrosion and impact-resistant, with light transmittance reaching 95%~98%. Features an anti-glare design for uniform, soft lighting.

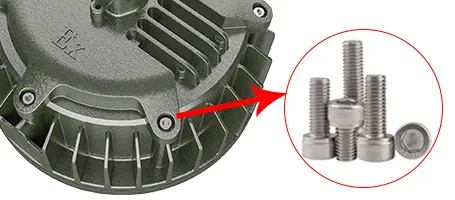

Ultra-High Anti-Corrosion

Treated with high-voltage electrostatic spraying and stainless steel fasteners. High precision processing makes it suitable for harsh environments containing strong acids or alkalis.

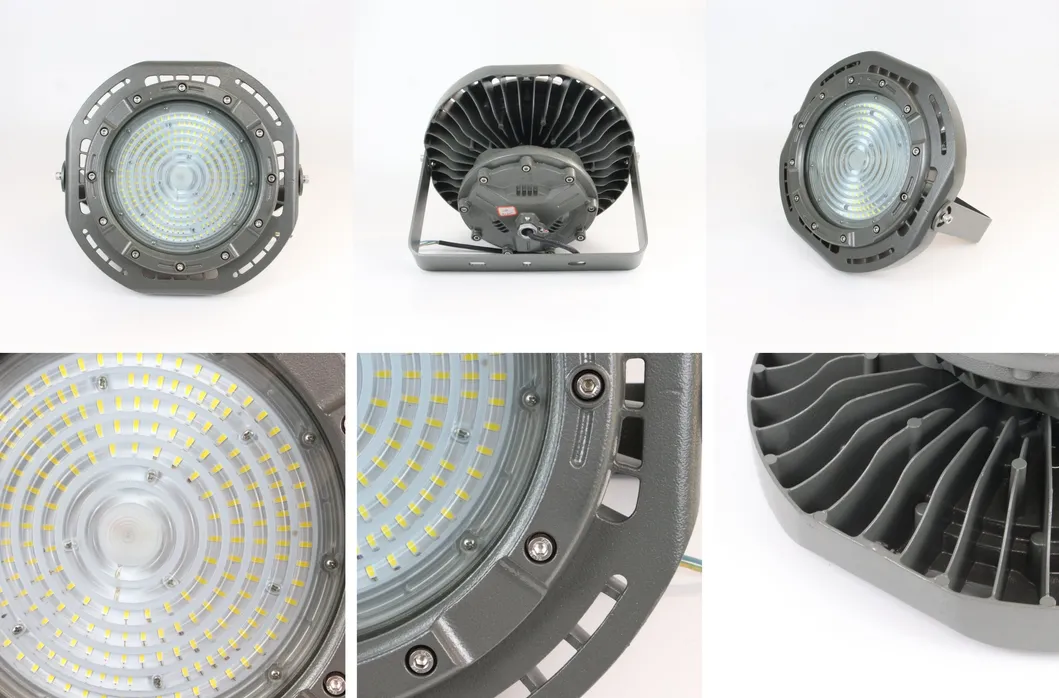

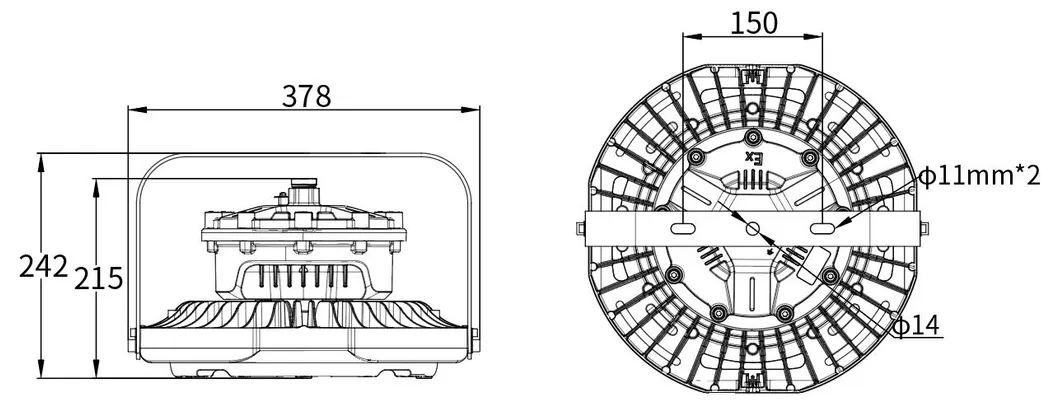

Detailed Product Gallery

Technical Parameters

Rated Power	150-200W	Power Factor	>0.95
Rated Voltage	AC 220V 50/60Hz	Ambient Temp	-20~40ºC
Protection Degree	IP66	Beam Angle	90° (optional 60°)
CCT	3000-6500K	CRI	≥70RA
Ex-Proof Grade	Exd IIC T6 Gb	Net Weight	9.5kg

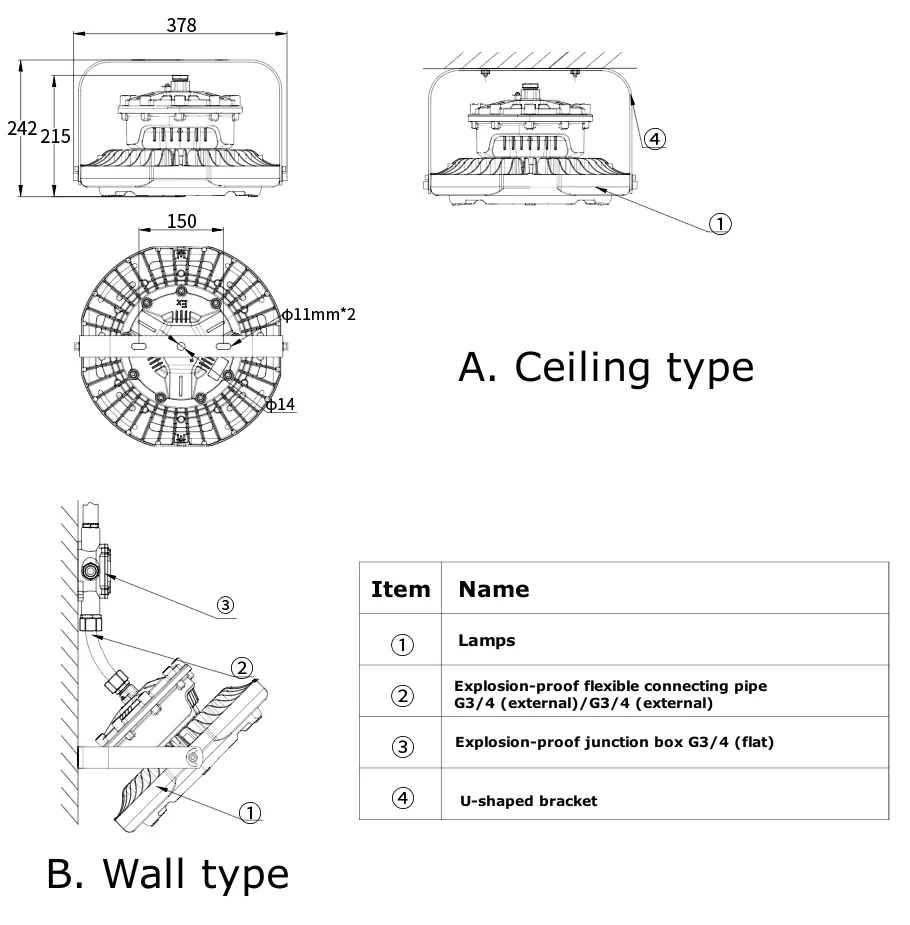

Installation & Application

Safety Cautions

Verify operating conditions match the nameplate parameters before installation.
Ensure reliable grounding for all luminaires.
Avoid using the lamp if the supply voltage exceeds the rated limit.
Make waterproof and insulation measures at all cable connections.

Frequently Asked Questions

1. Why is Explosion Proof Lighting necessary? Facilities handling flammable gases, vapors, or combustible dust require these fixtures to prevent sparks from causing fires or explosions in hazardous atmospheres.

2. What does the IP66 rating signify? IP66 indicates the light is "dust tight" and protected against powerful jets of water, making it ideal for outdoor or high-pressure cleaning environments.

3. Can these lights withstand corrosive chemicals? Yes, with a WF2 anti-corrosion grade and high-voltage electrostatic spraying, these lights are designed for environments with strong acids and alkalis.

4. What is the benefit of using CREE LED chips? CREE LEDs provide superior light efficiency (120lm/W) and an extremely long lifespan of up to 100,000 hours, significantly reducing maintenance costs.

5. Does an explosion-proof fixture resist external explosions? The primary purpose is to contain any internal spark or heat to prevent it from igniting the surrounding hazardous atmosphere, rather than surviving an external blast.

6. In what temperatures can these lights operate? These fixtures are rated for ambient temperatures ranging from -20ºC to +40ºC, ensuring stability in various industrial climates.
