SAA TUV 3 Years Warranty IP66 Waterproof Outdoor LED Solar Street Light with Motion Sensor CCTV Camera Dimming for Smart City Urban Road Parking Lot Park

Still deciding? Get samples of $ !
Request Sample

Product Description

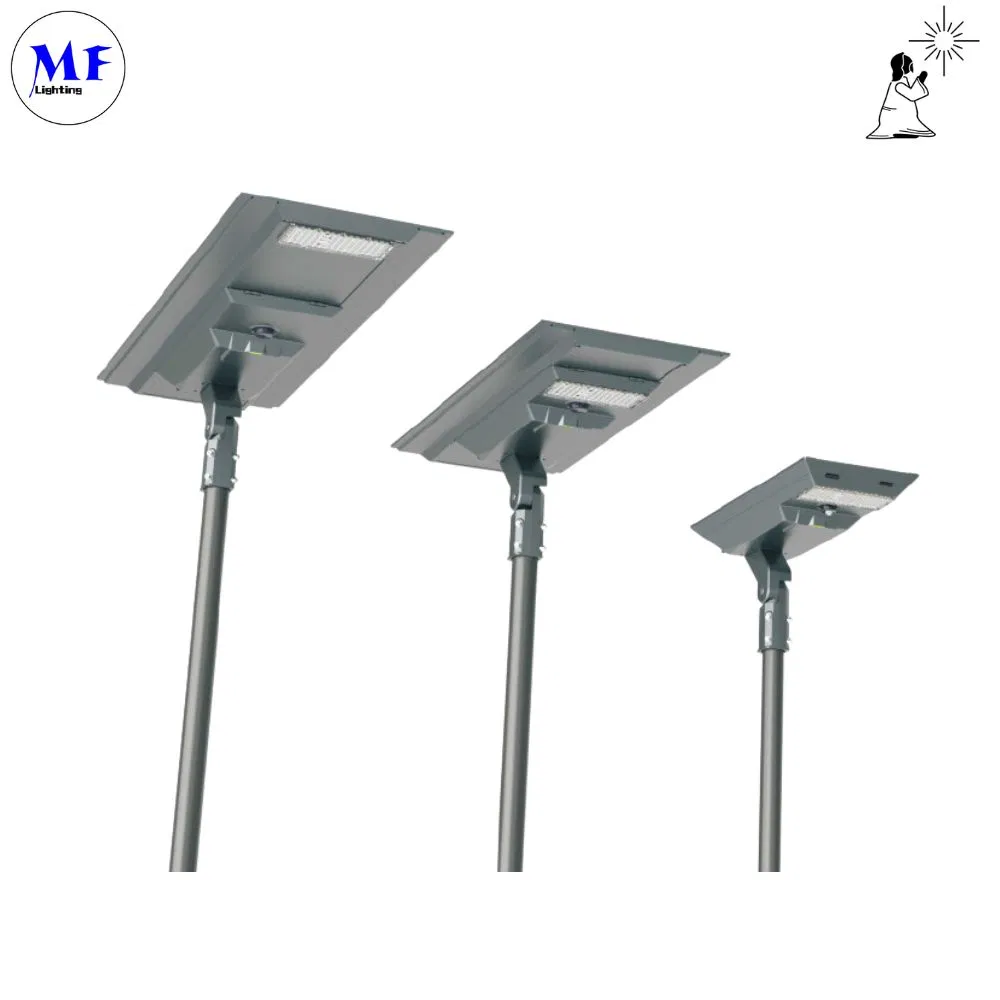

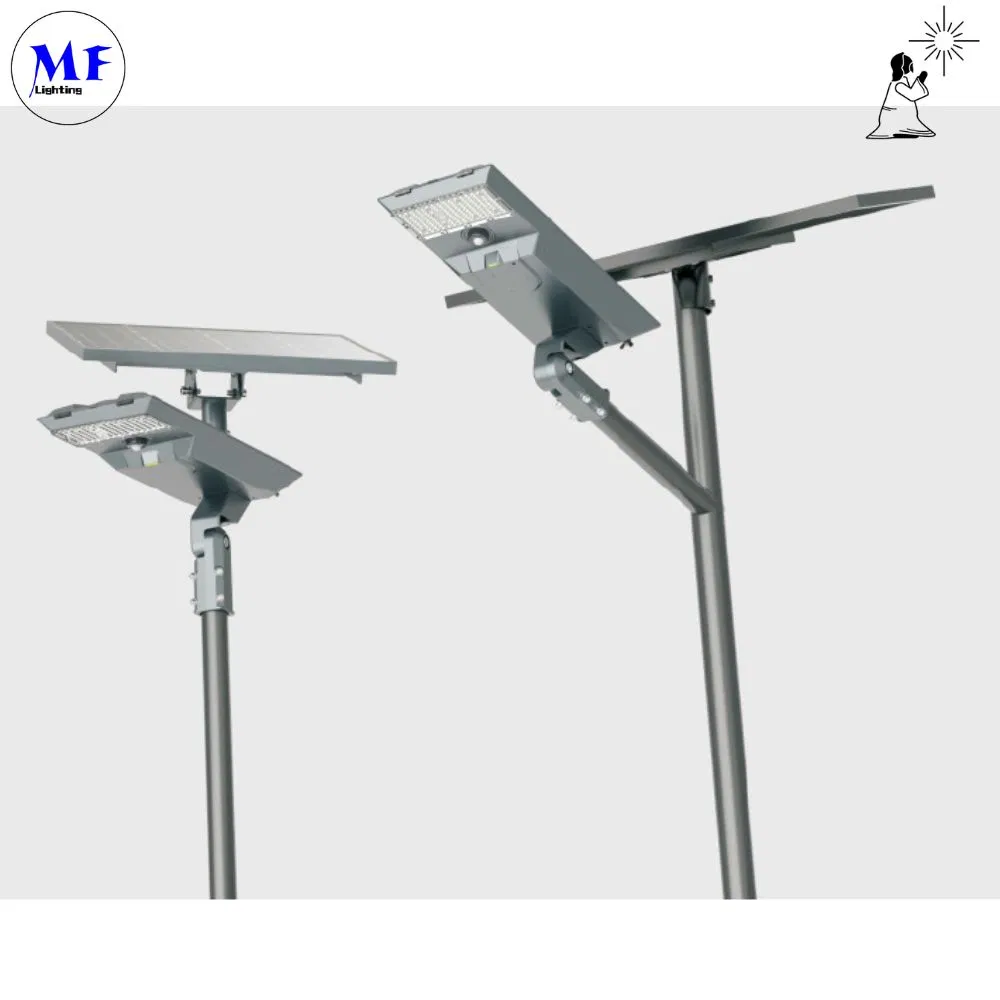

Solar Street Light Overview
Basic Info.
Model NO.
Solar Street light S5H
Light Source
LED Lamp
Material
ADC12 Aluminum+Al6063+PC
Color Temp
4000K-5700K
Power Range
20W - 120W
IP Rating
IP66
Charging Time
6 Hours
Illumination Time
12 Hours / Day
Beam Angle
155°/70° or 155°/75°
Control System
PWM/MPPT/AC Input
Product Features
🛠️ Integrated Die-casting

Tool-free access for easy installation and maintenance. Adjustable angles for vertical or horizontal mounting.

💡 New Generation LEDs

High bright SMD combined with integrated lens, increasing lumen flux by 10%.

🔋 A-Level Battery

High energy density Li(NiCoMn)O2 or LiFePO4 batteries with temperature control protection.

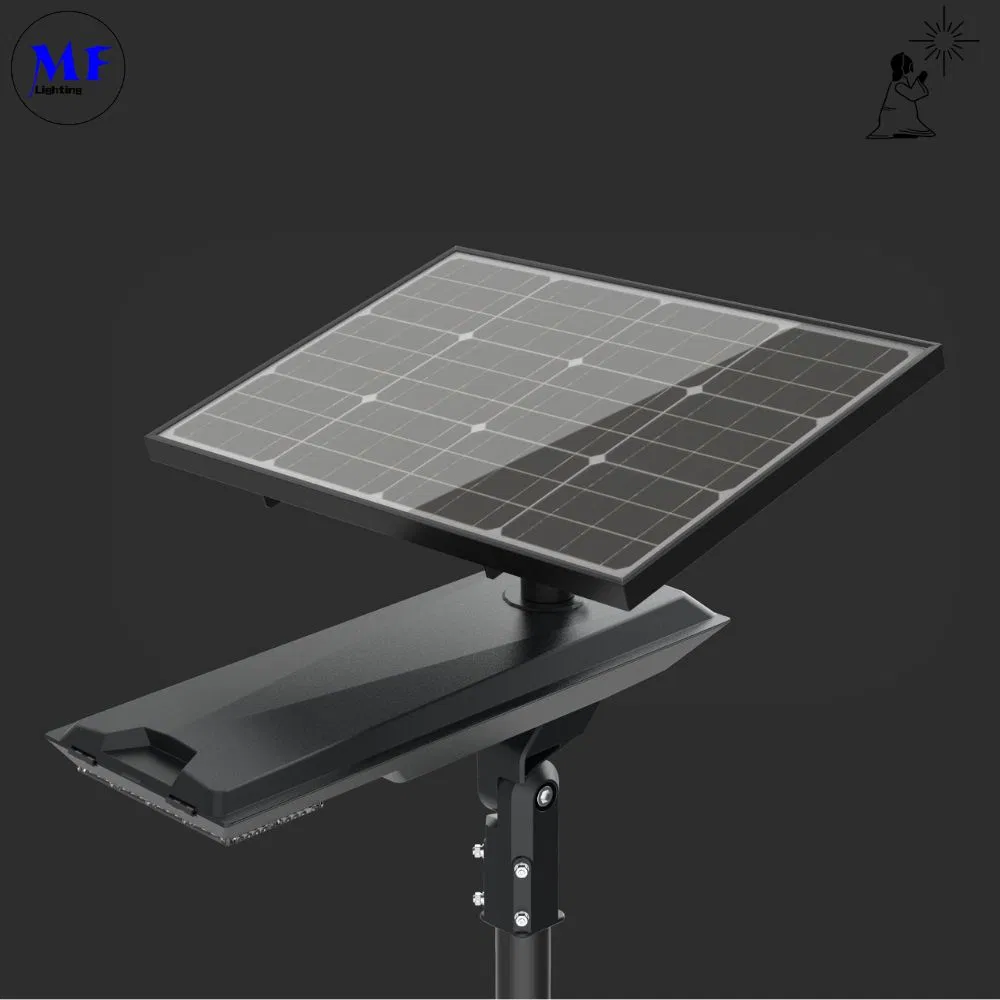

☀️ Monocrystalline Panel

Top quality silicon wafer with upgraded light transmittance and anti-aging performance.

🌧️ IP66 Waterproof

Overall waterproof design ensuring durability in harsh outdoor weather conditions.

🛡️ Smart Options

Supports CCTV, 2G/4G intelligent control systems, and microwave motion sensors.

Features Display
Specifications
Parameter Warm White Nature White Cool White
Color Temperature 4000±300K 5000±300K 5700±300K
CRI ≥70
Luminous Efficiency 100 lm/W (Bespoke ≥175lm/W)
Working Temp -10°C ~ +50°C
Install Height 4 ~ 8m
LED Parameters
LED Brand Lumileds / CREE Power 0.3 W
LED Size 3.0x3.0x0.52 mm Efficiency 180-190 lm/W
Dimensions & Photometry
Dimension Drawing
Installation Guide
Installation Step
Wide Applications
  • Highways & Urban Roads
  • Parking Lots & Garages
  • Public Parks & Gardens
  • Residential Communities
  • Industrial Zones
  • Schools & Campuses
  • Square & Plazas
  • Tourist Landmarks
Packaging & Shipping
Shipping Load Factory Warehouse
Frequently Asked Questions
How long does the light operate on a full charge?
The system is designed for 12 hours of illumination per day. With its high-capacity battery, it can provide 3 full days of autonomy plus an additional 4 days of low-brightness backup during rainy or cloudy weather.
Is this solar street light truly waterproof?
Yes, it features an IP66 rating. Unlike lights that rely on glue for sealing, this model uses a structural waterproof design with high-quality gaskets, making it suitable for heavy rain and extreme conditions.
What are the available control methods?
The S5H series supports multiple control modes including PIR motion sensing, microwave induction, time-based dimming, and remote control for manual adjustments.

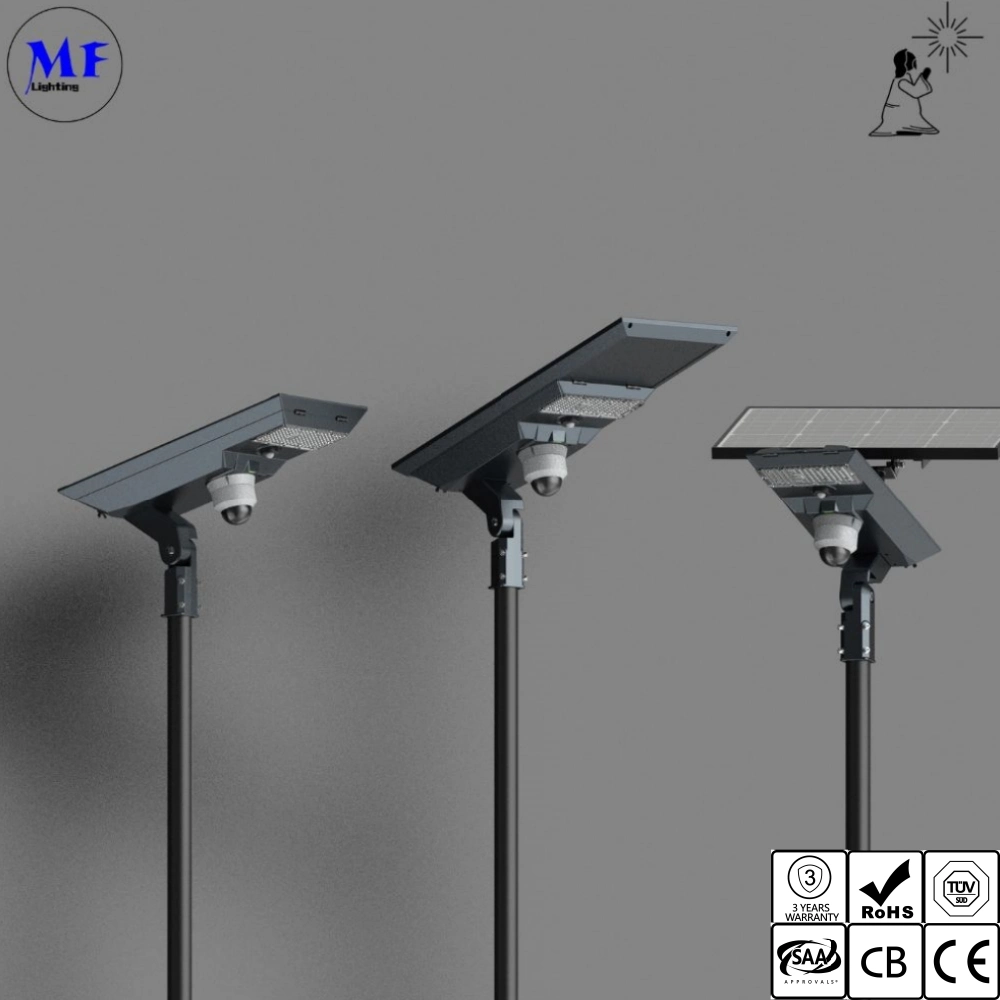

Can I integrate smart city features like cameras?
Absolutely. We offer optional support for high-definition CCTV cameras with 2G/4G intelligent control systems, making it perfect for modern smart city initiatives.
What is the advantage of the MPPT controller?
The optional MPPT controller improves energy utilization by 15% to 20% compared to ordinary PWM controllers by maximizing the power output from the monocrystalline solar panels.

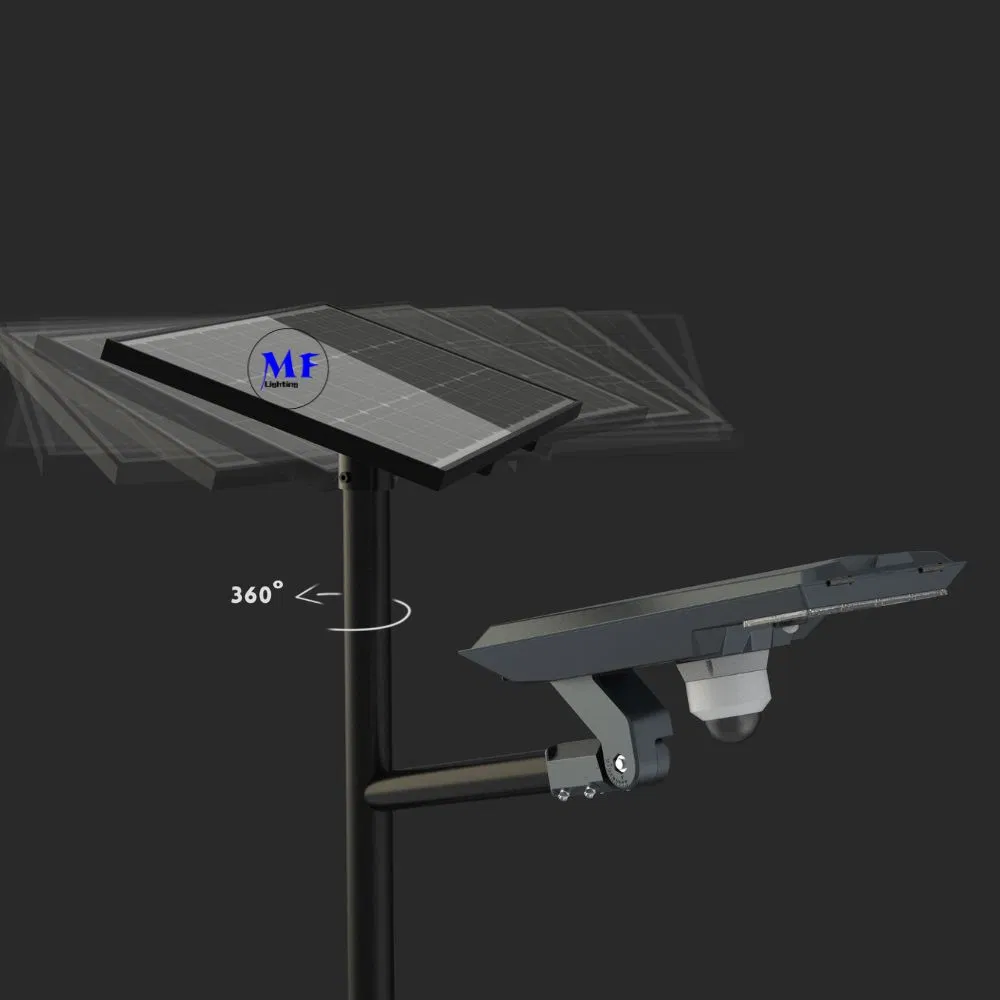

What mounting options are available?
The integrated die-casting structure allows for both vertical and horizontal installation with adjustable angles to ensure optimal sun exposure and light distribution.
