LED Street Light YASL-19

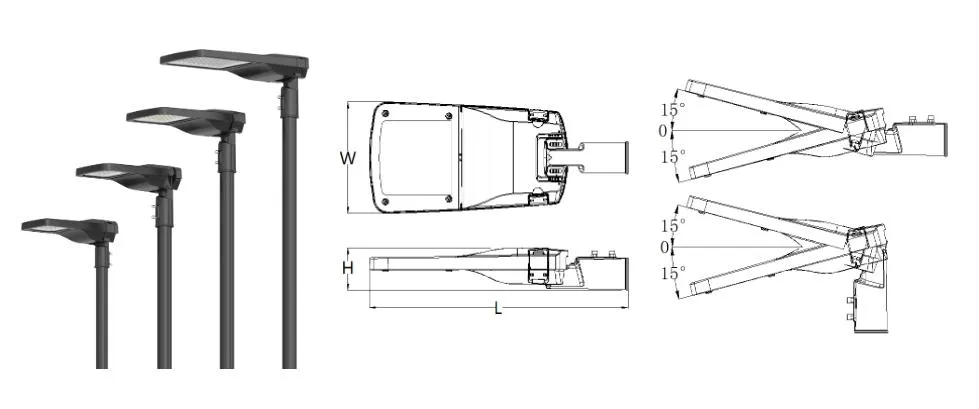

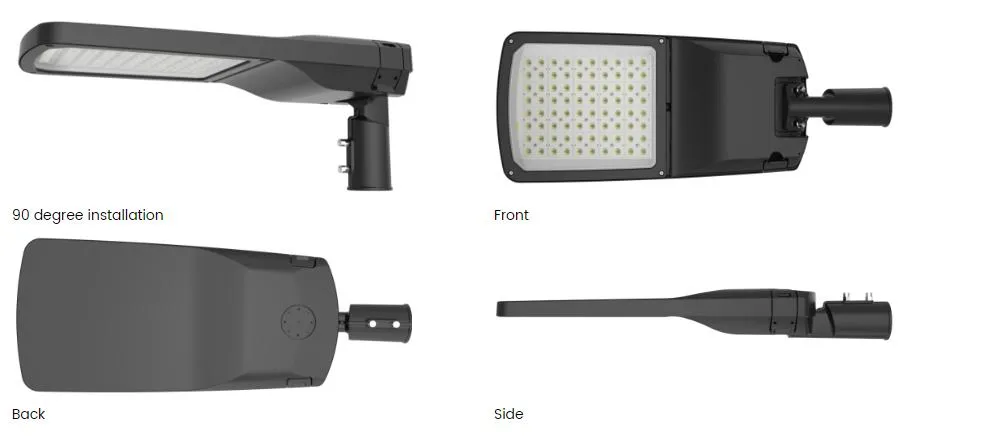

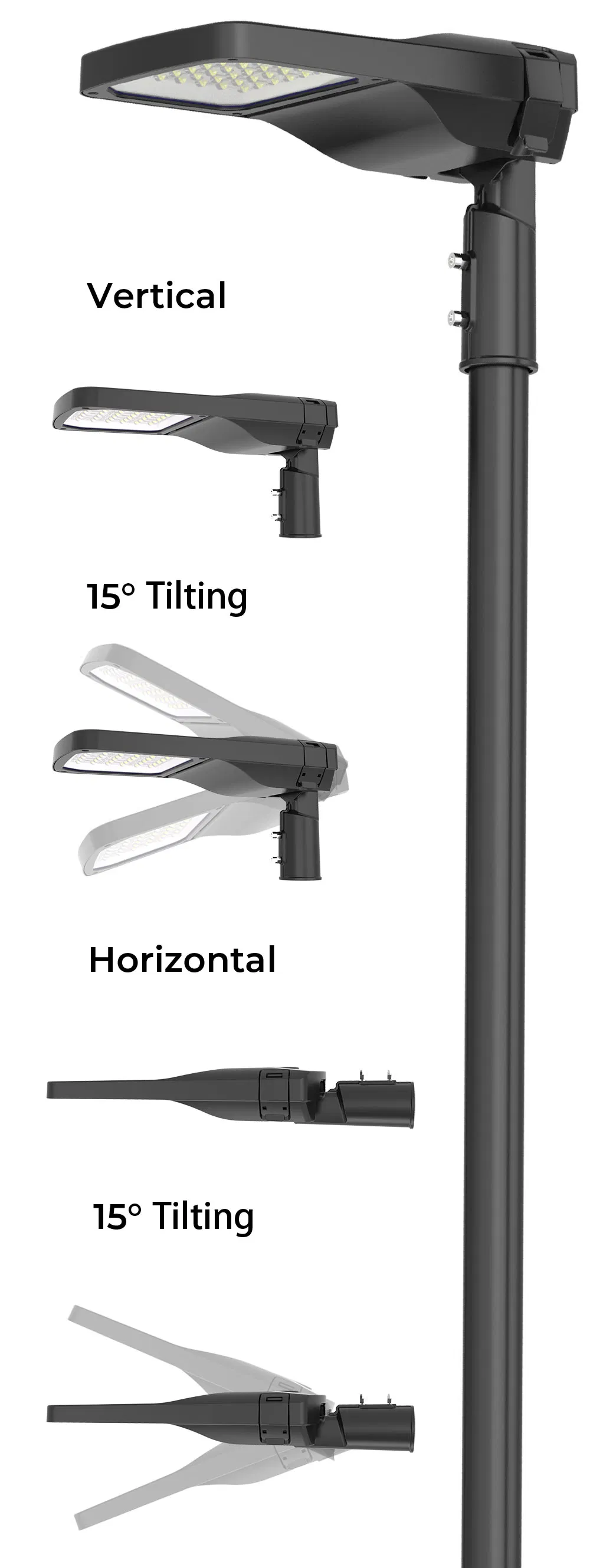

Installing Ways: Both Horizontal and Vertical available and adjustable angle -15° to +15°.

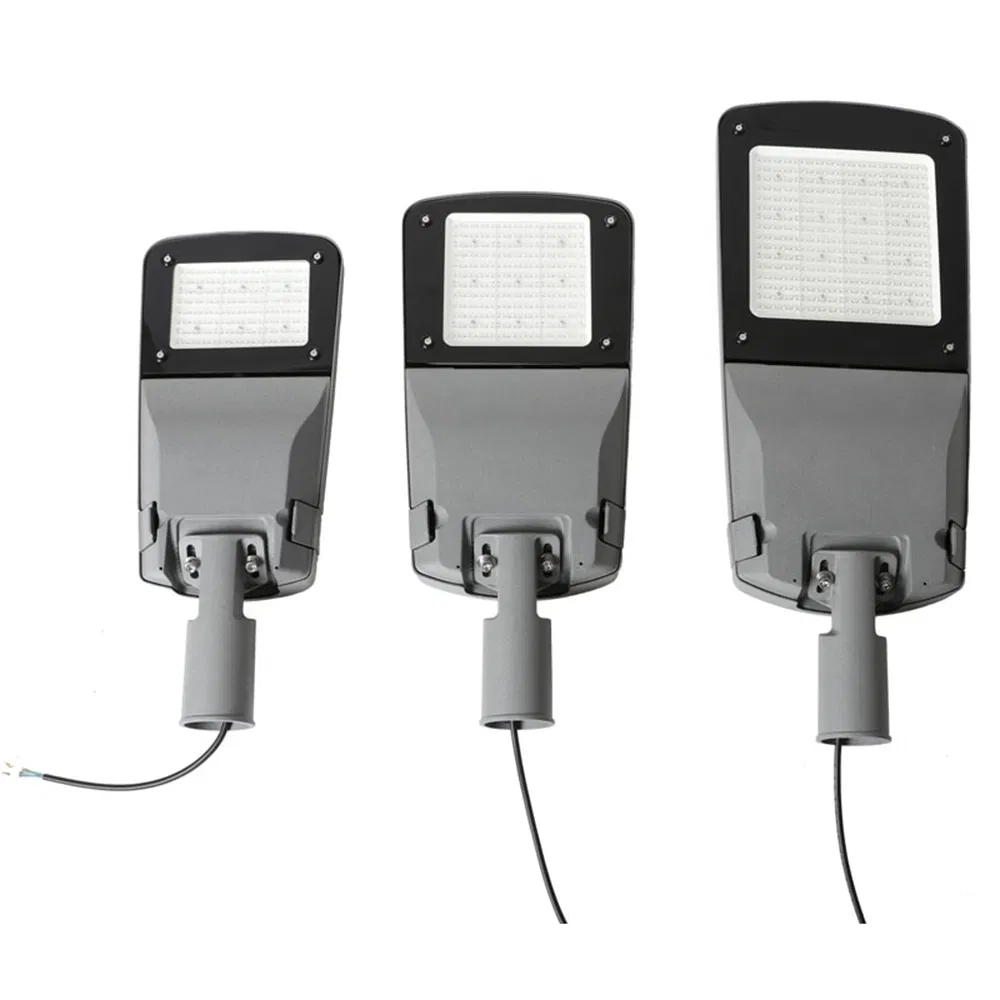

This series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum. It features a LED efficiency up to 130 lm/w and is capable of producing up to 26000 luminaire lumens at 4000K.
| Product Code | YASL-19-30M | YASL-19-50M | YASL-19-80M | YASL-19-150M |
|---|---|---|---|---|
| Input Wattage | 50W | 60W | 100W | 200W |
| Color Temperature | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K |
| Luminous Flux | 6500-7000lm | 13000-15000lm | 13000-15000lm | 26000-30000lm |
| LED Lifetime | 50000h | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 | IP66 |

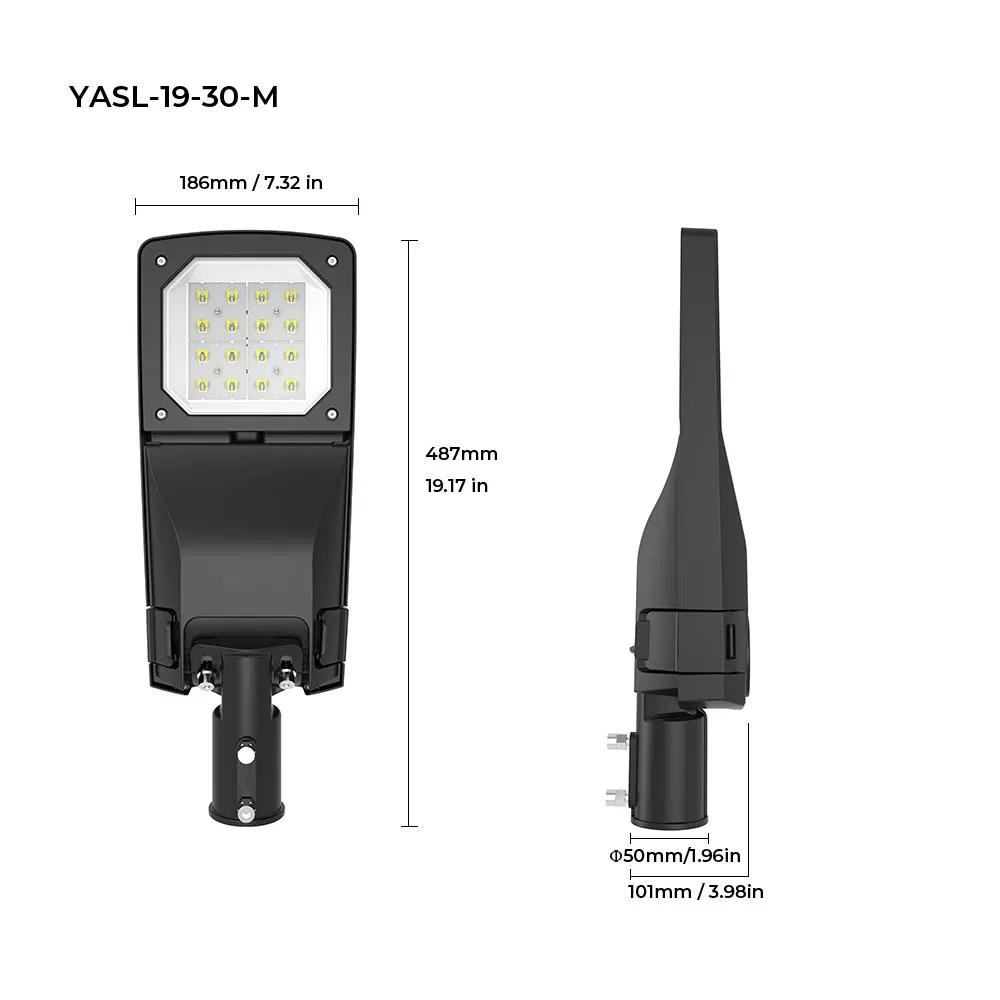

| Code | L (mm) | W (mm) | H (mm) |
|---|---|---|---|

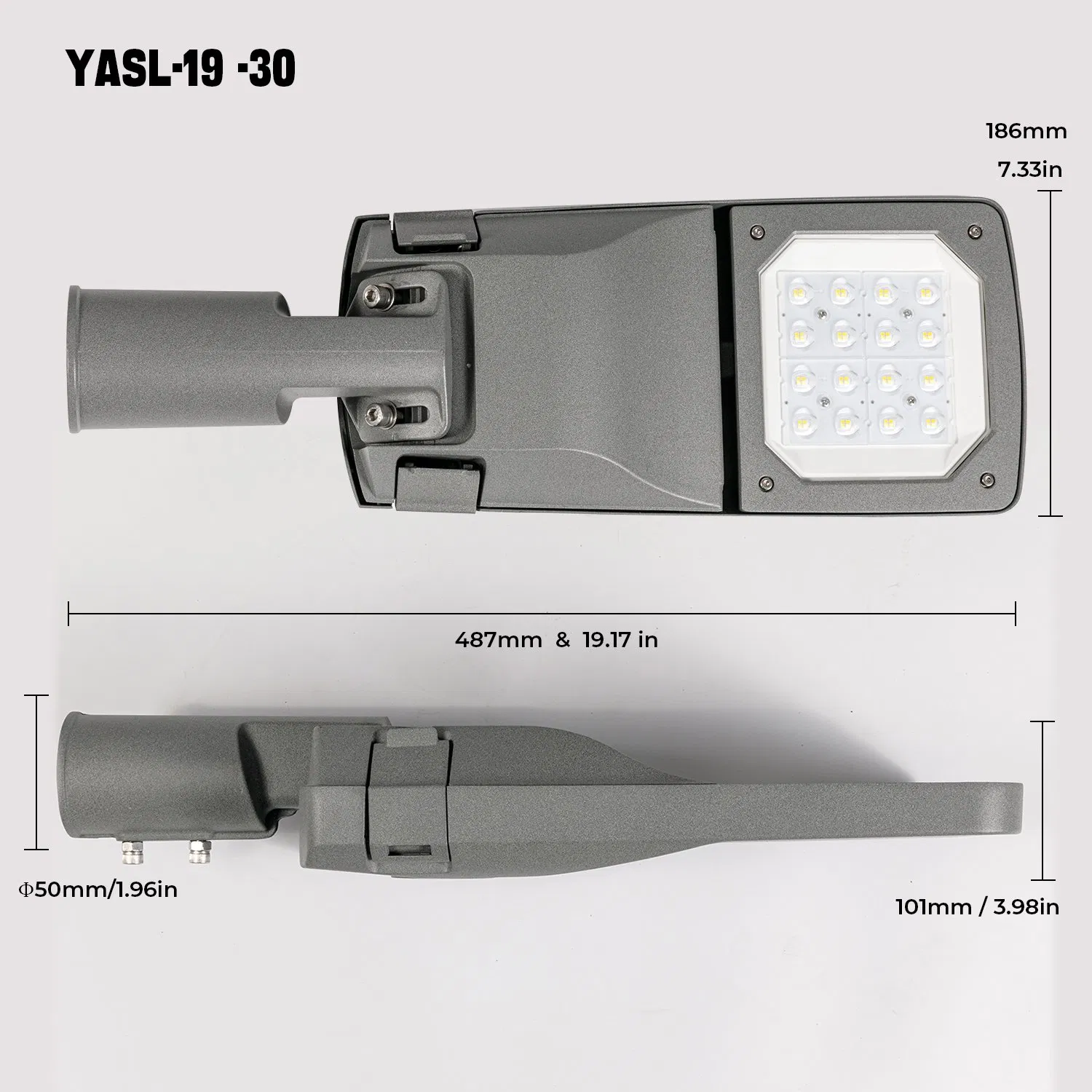

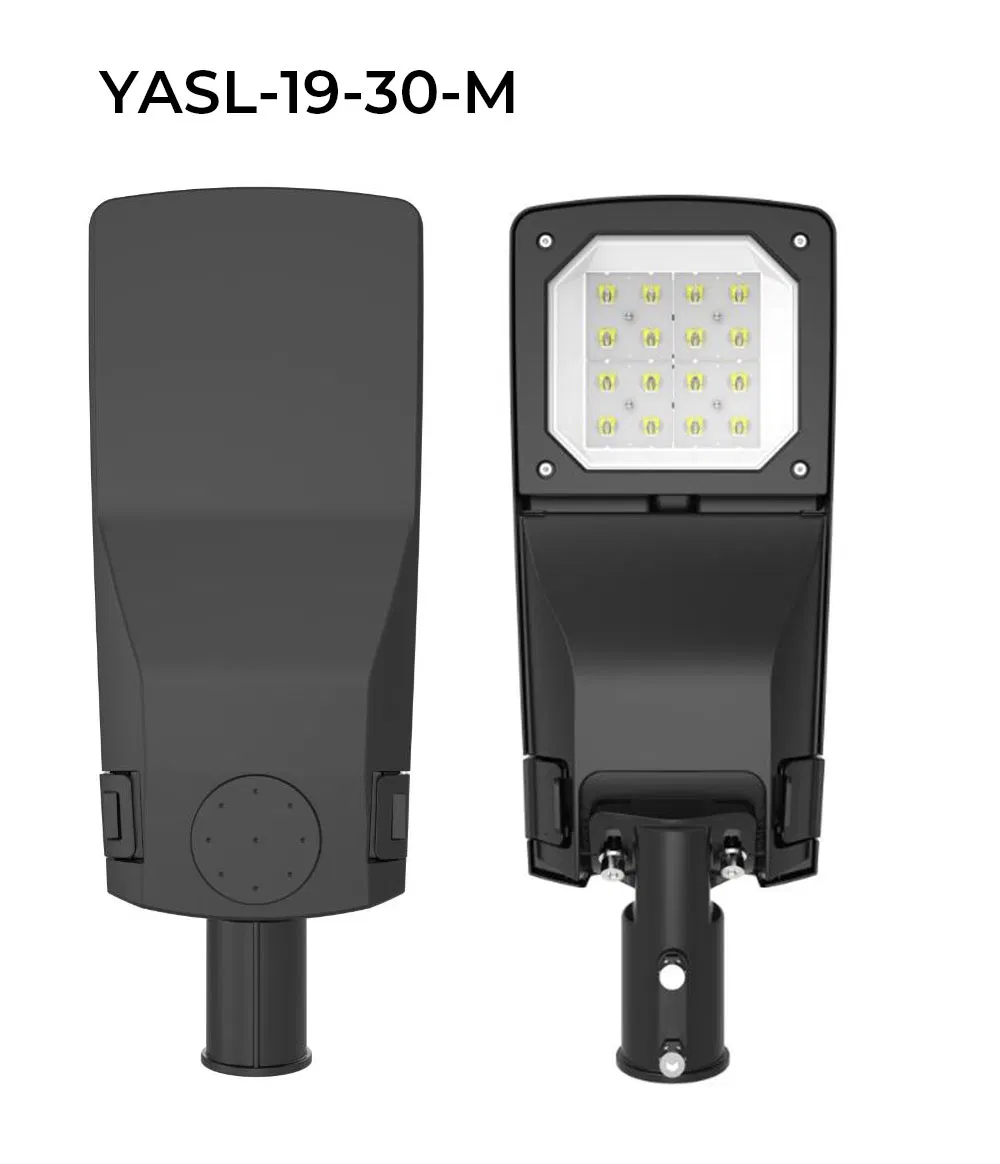

| YASL-19-30M | 459 | 186 | 119 |

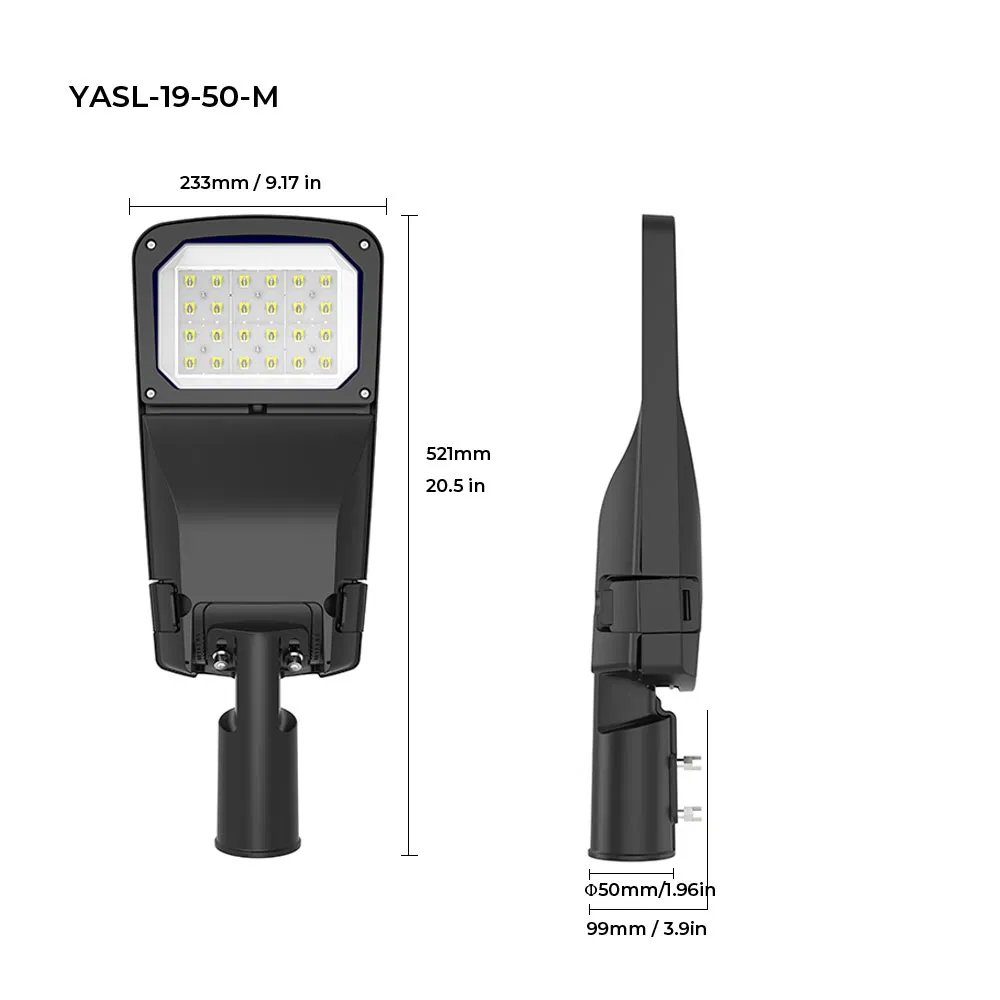

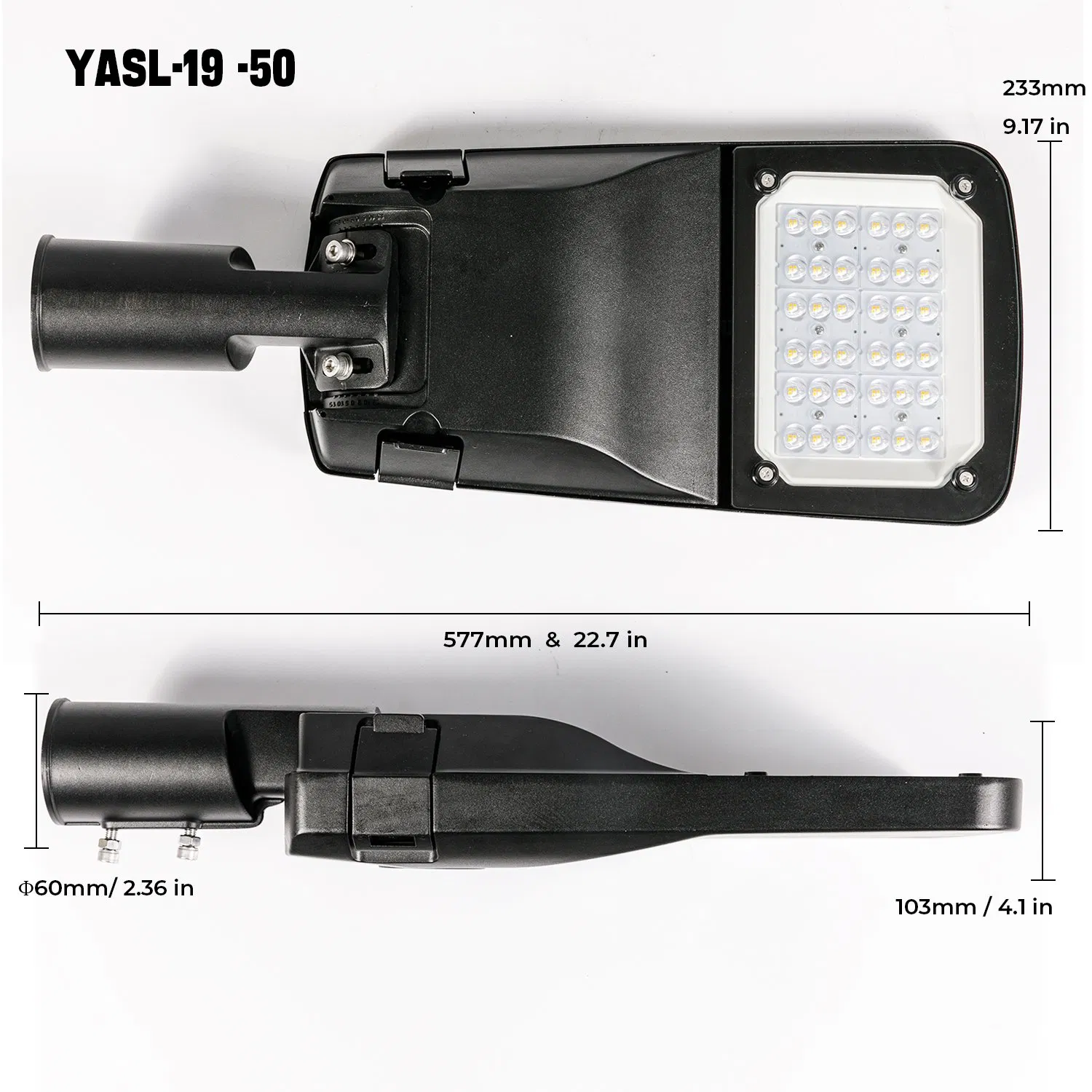

| YASL-19-50M | 577 | 233 | 103 |

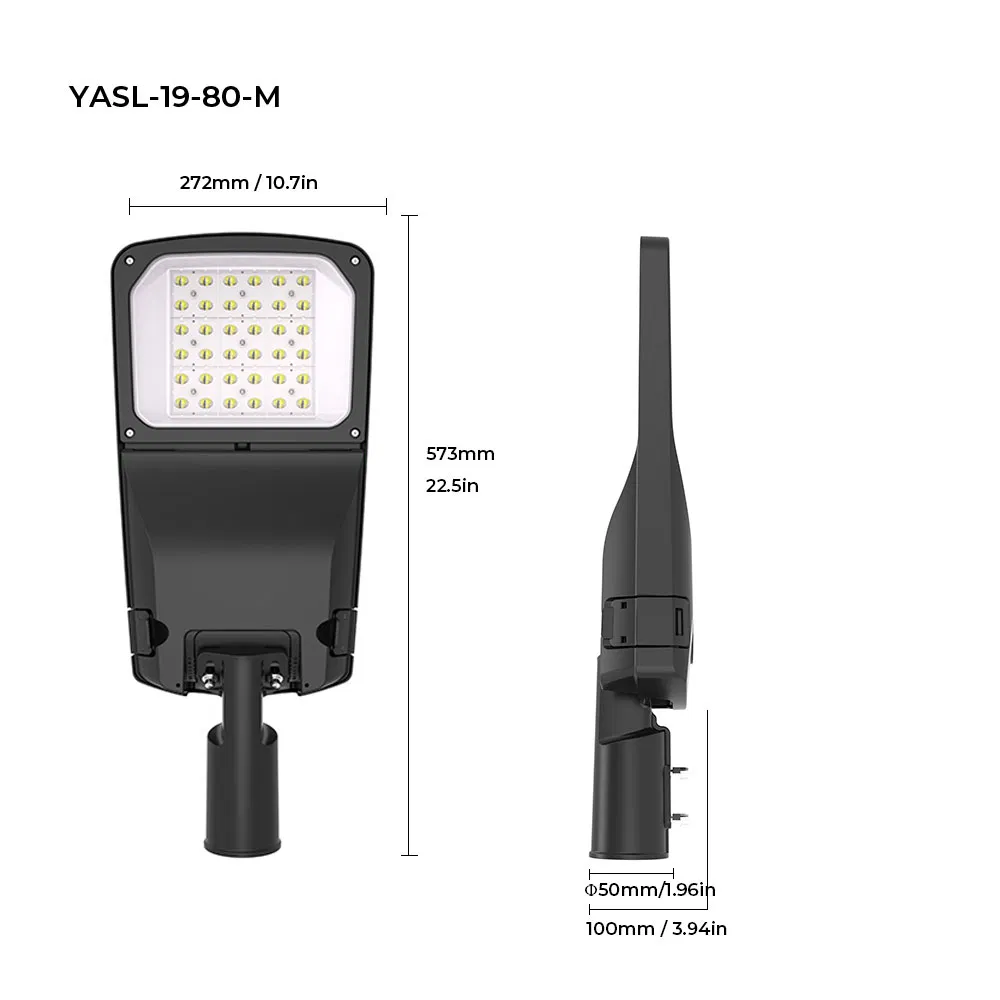

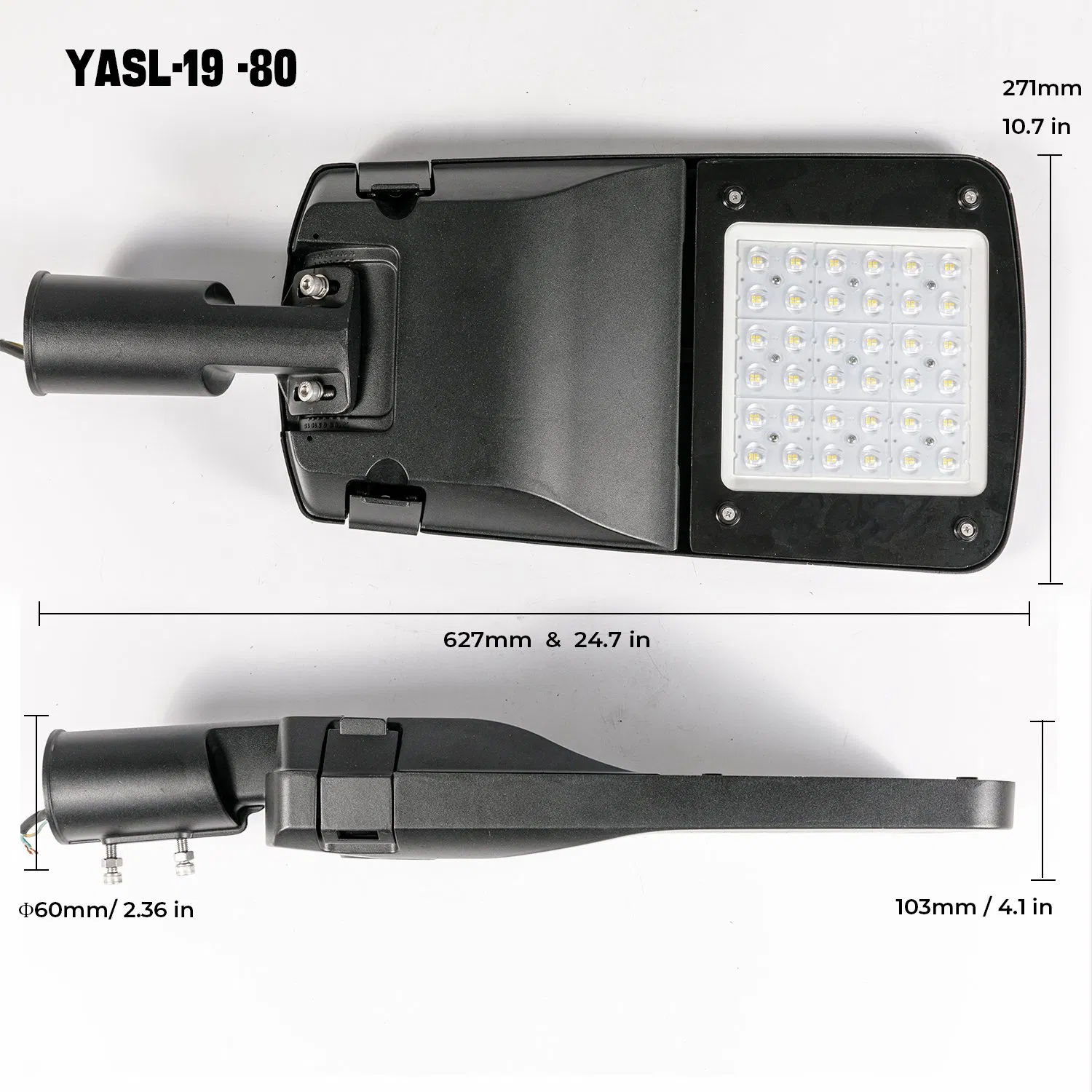

| YASL-19-80M | 627 | 271 | 103 |

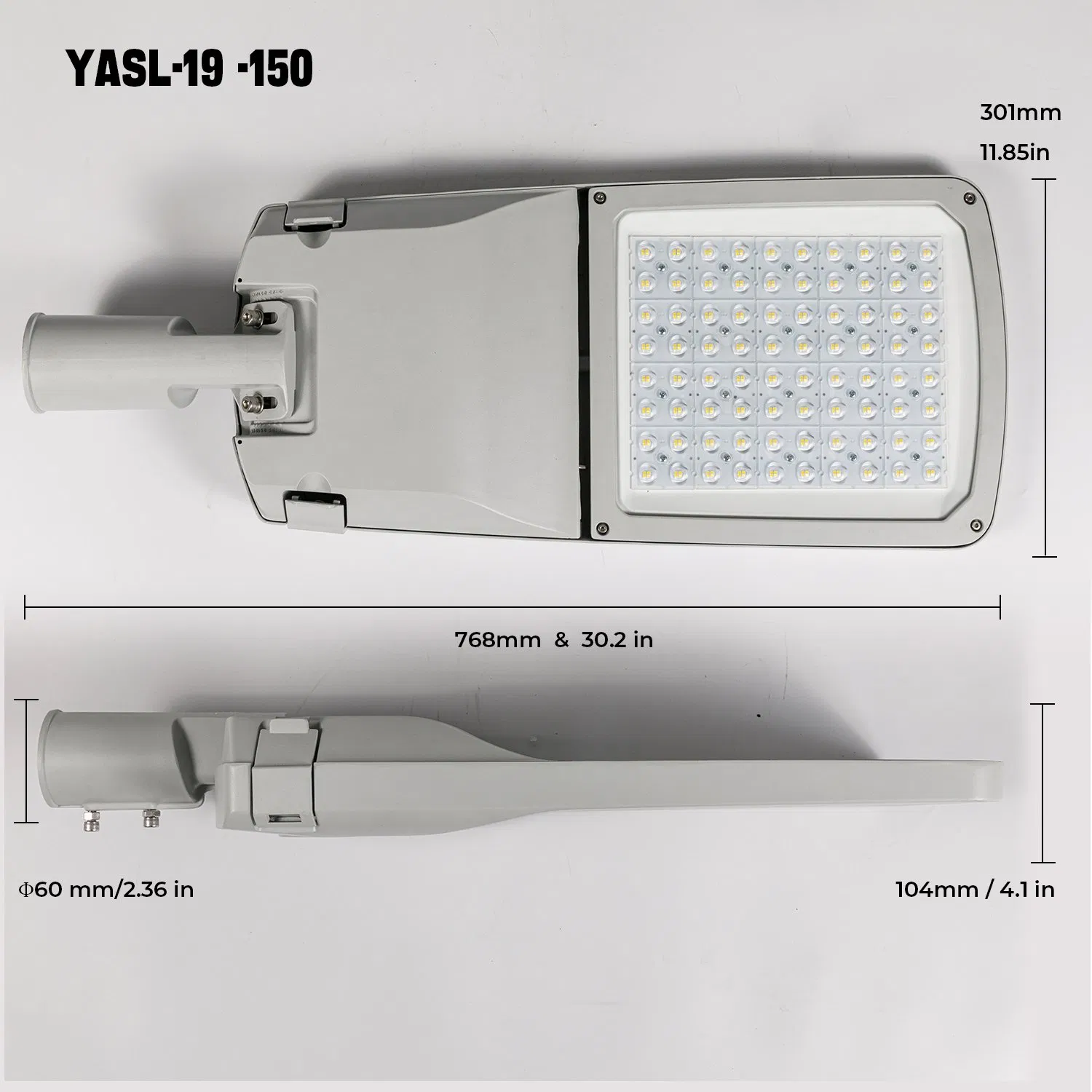

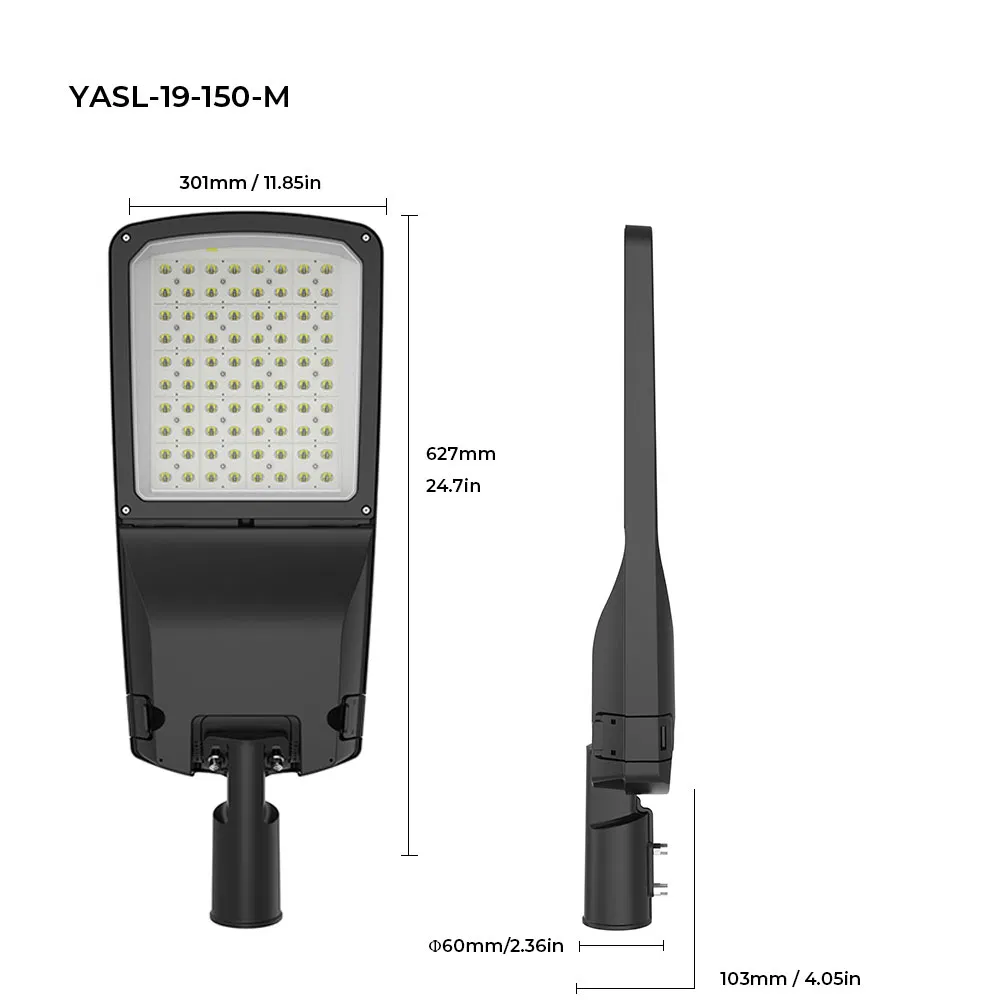

| YASL-19-150M | 768 | 301 | 104 |
| Physical Requirements | ||
| Housing | Pressure die-cast aluminium alloy | ISO 3522 |
| Cover | Tempered Glass | - |
| IP/IK Protection | IP66 / IK08 | IEC 60529/62262 |
| LED and Optics | ||
| LED Make | Osram/CREE | - |
| LED Life | >100,000 hours @L95 | LM80 and TM21 |
| Performance | ||
| Lumen Efficacy | ≥ 160lm/W | LM-79 |
| Surge Protection | 10KV | - |
| Power Factor | >0.90 | IEC 60598-2-3 |

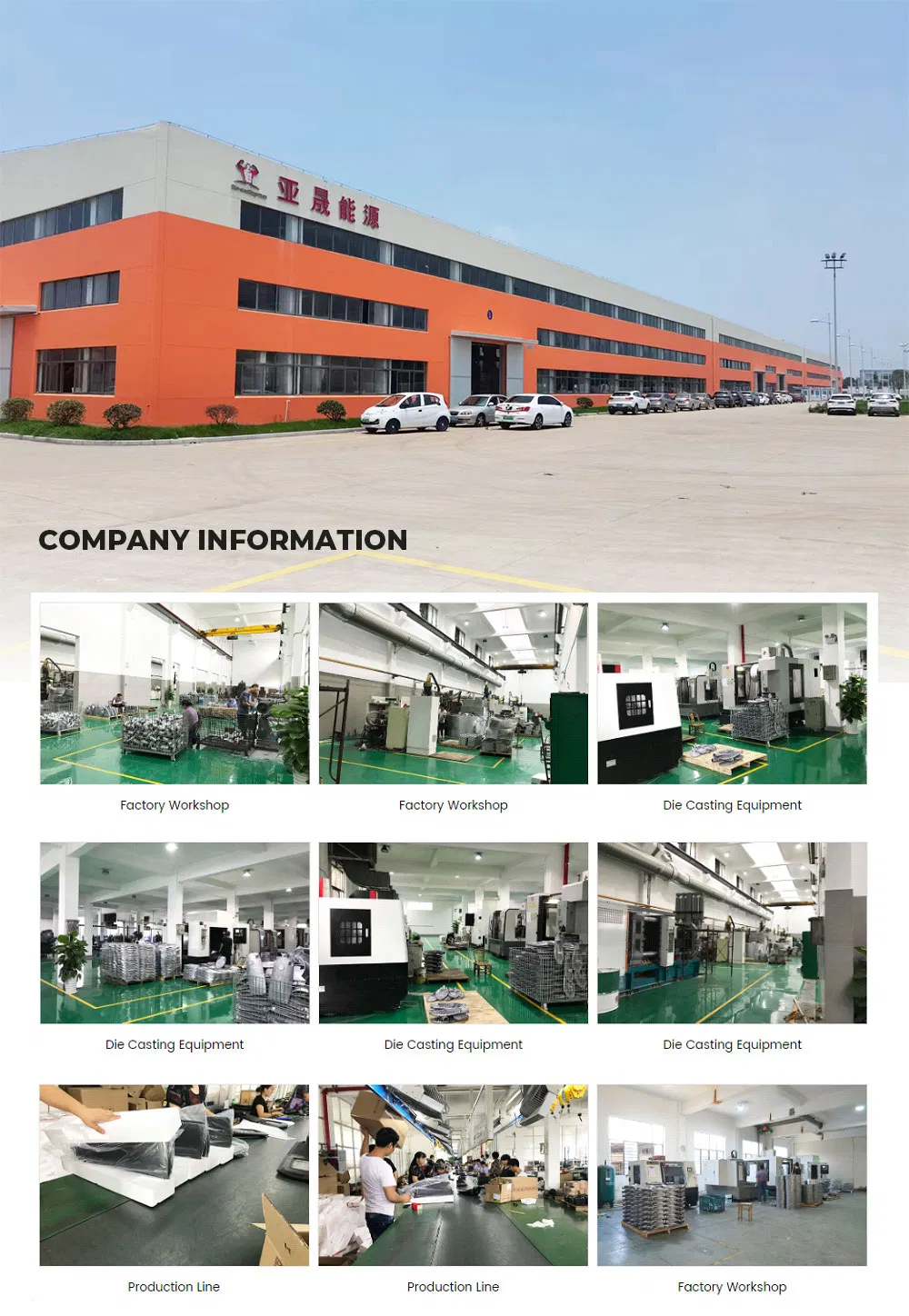

Established in 1996, the manufacturer is a leading lighting enterprise specializing in design, development, production, and testing. We provide a superior range of products including street lights, high bay lights, and die-casting OEM solutions. We offer full manufacturing services or SKD supply options.
Our engineering team ensures all technology is practical, affordable, and reliable. All products are designed to meet rigorous international requirements and undergo performance testing in recognized laboratories to ensure long-term durability and efficiency.
